How Pre-Terminated Fiber Patch Panels Are Built
Cablesys Brand pre-terminated fiber optic patch panel cable assemblies are manufactured, tested, and prepared for high-speed network installations.
Termination
Measured and stripped to spec with accuracy
Epoxy cured with consistency
Polishing
Twenty-four fiber end faces are machine-polished at once for precise geometry.
Finishing
Each fiber end face is inspected at 400x magnification to detect and remove contaminants.
Testing
3-D metrology tested measuring the orientation of the strain elements
Insertion loss and return loss tested
Bezel Assembly
Adapters snapped into bezels, mounting clips reduce movement
Pre-Terminated and pre-tested patch cables are ordered in sequence

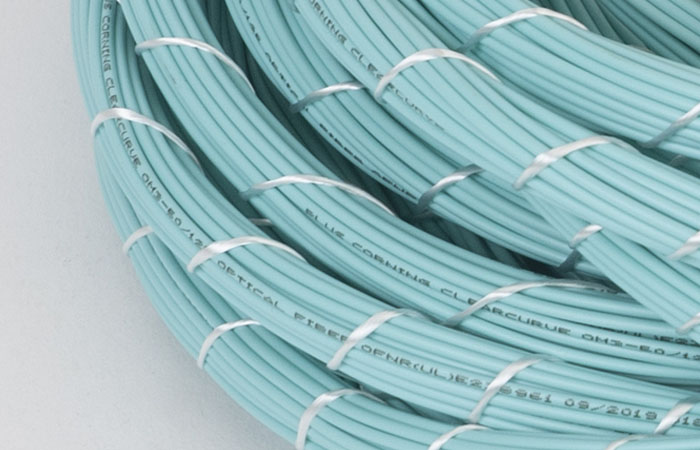

Bundling
Cables are bundled together to stay organized and make pulling easier.
Labeling
Cables are numbered to identify ports
Cable bundles are labeled to mark installation locations
Final Testing
Assemblies are tested for performance before shipping.
Packaging
Bezels bubble wrapped
Twist tied cable assembly
Bagged, labeled, and boxed
