Metal Vertical and Horizontal Ring Panel with Cover in 2 RMS

Metal Vertical and Horizontal Ring Panel with Cover in 2 RMS

Style: Metal Vertical and Horizontal Ring Panel
  • 3" Deep Finger Duct Panel in 2 RMS
  • 5 Inch Horizontal Deep Finger Duct Panel 2 RMS ICCMSCMA25
  • Cable Management Interbay Plastic Panel and Cover in 2 RMS
  • Metal Vertical Ring Panel Cover 2 RMS ICCMSCMPK2
  • 3" Deep Front Cable Management Bracket Panel
  • 5" Deep Rear Cable Management Bracket Panel
  • Patch Panel Cable Management Bar ICMPP25CMB
  • Blank Cable Management Panel 2 RMS ICCMSCMPB2
Rack Space: 2
Packaging: Single
UPC: 633758009256

Country of Origin: China

Warning SymbolCalifornia Prop 65 Warning

Description

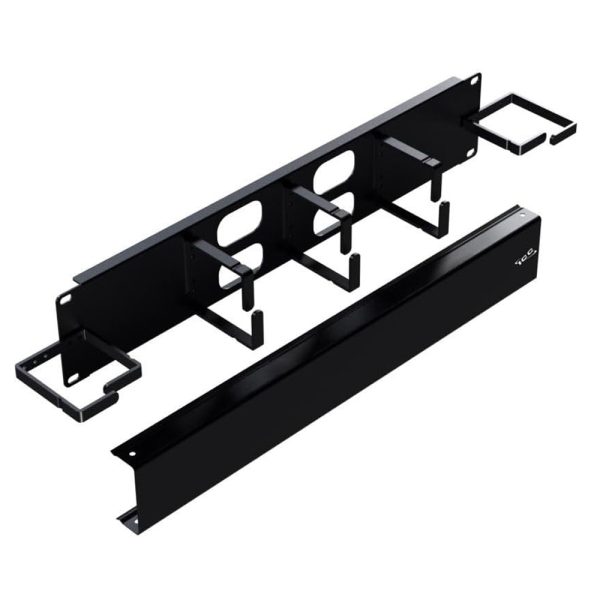

ICC offers metal ring panels designed to manage cables coming into the server room or wiring closet. These metal ring panels are available in 2 rack mount spaces (2 RMS). The panels fit on racks and cabinets with 19-inch mounting widths.

The channel has 3 horizontal and 2 vertical rings, to help guide cables on the front of the rack and cabinet.

The base of the ring panel is made of steel that has a black powder coat finish to protect against wear and corrosion. Holes are also positioned on the back side of the panel to allow the cable to be routed from the front to the back or vice versa. A channel cover is included. The cover snaps on and off which makes changing cables easy. It also helps conceal cables, so the installation looks clean and professional.

One horizontal cable management panel is recommended for every 48 ports. Cable management panels help reduce stress on cables connecting to patch panels, servers and, networking equipment. Most importantly, cable managers increase the longevity of connections.

Features

  • Fits EIA’s standard 19-inch  rack mount width
  • 3 horizontal and 2 vertical rings
  • Removal cover included

Specifications

Panel:
Material: 16 GA CRS
Surface Finish: Black Powder Coat
Ring:
11 GA CRS, 3.0” X 2.7” X 0.125” Strip
Cover:
Material: 25 GA CRS
Surface Finish: Black Powder Coat
Size: 3.50” height x 19.00” width x 2.83” depth
