Description

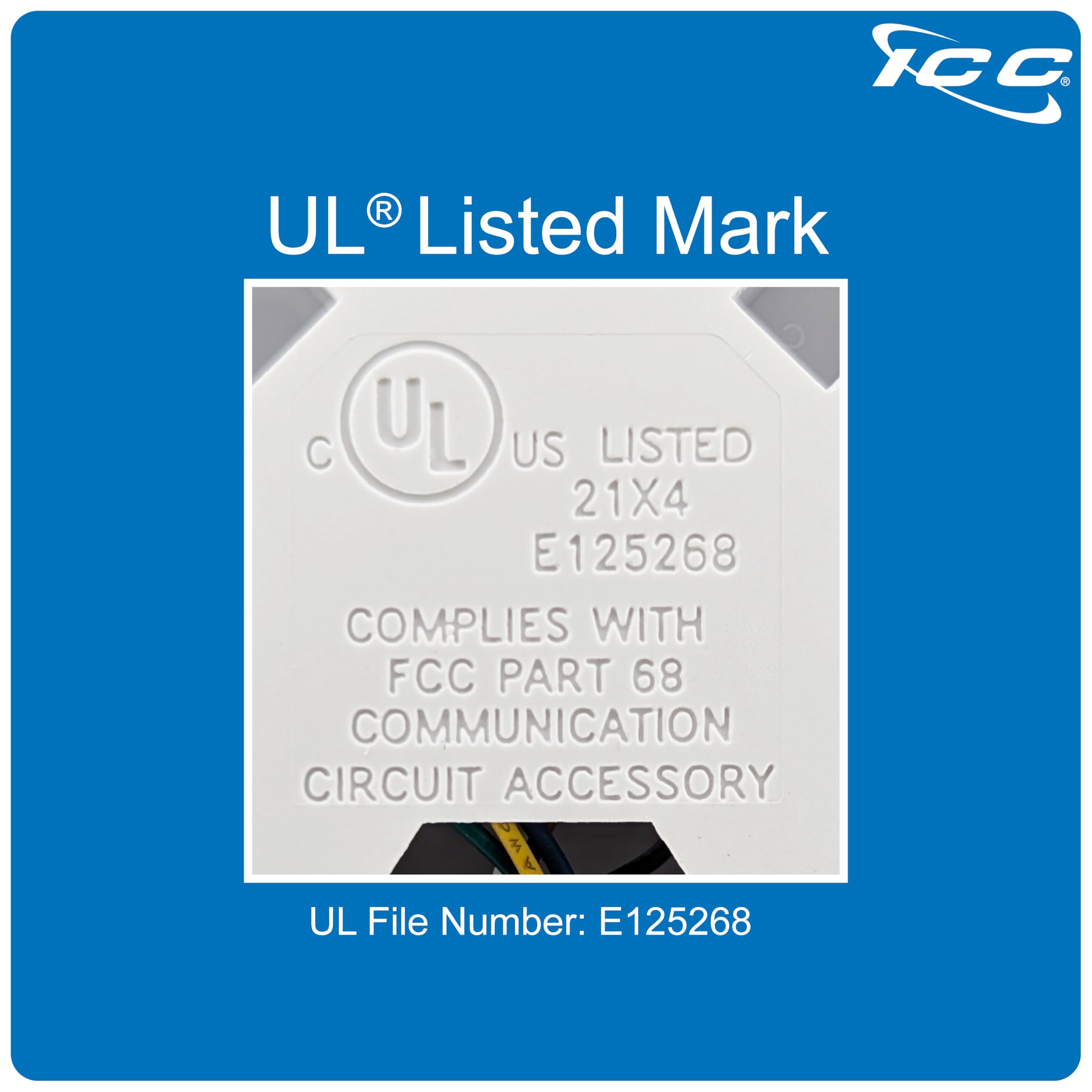

ICC’s Surface Mount Jacks provide a simple and professional solution for voice connectivity. This 6P6C model is designed with screw-down terminals and supports a wide range of telephone applications. It is UL Listed for safety and compliance and can be mounted using adhesive backing or screws, making it suitable for offices, classrooms, labs, cubicles, and other voice network installations.
Features

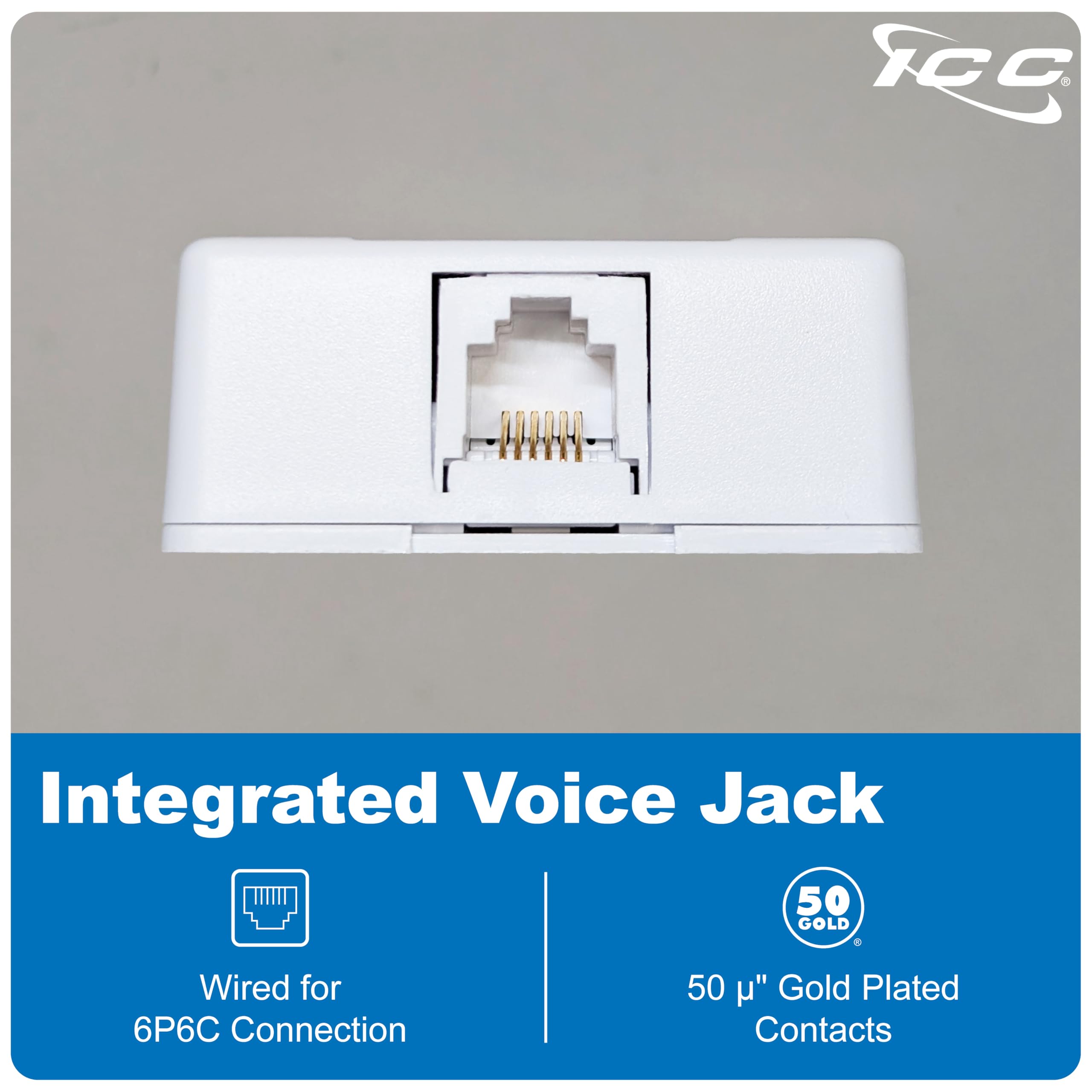

- VOICE CONNECTIVITY: Provides a clean modular outlet station for voice applications

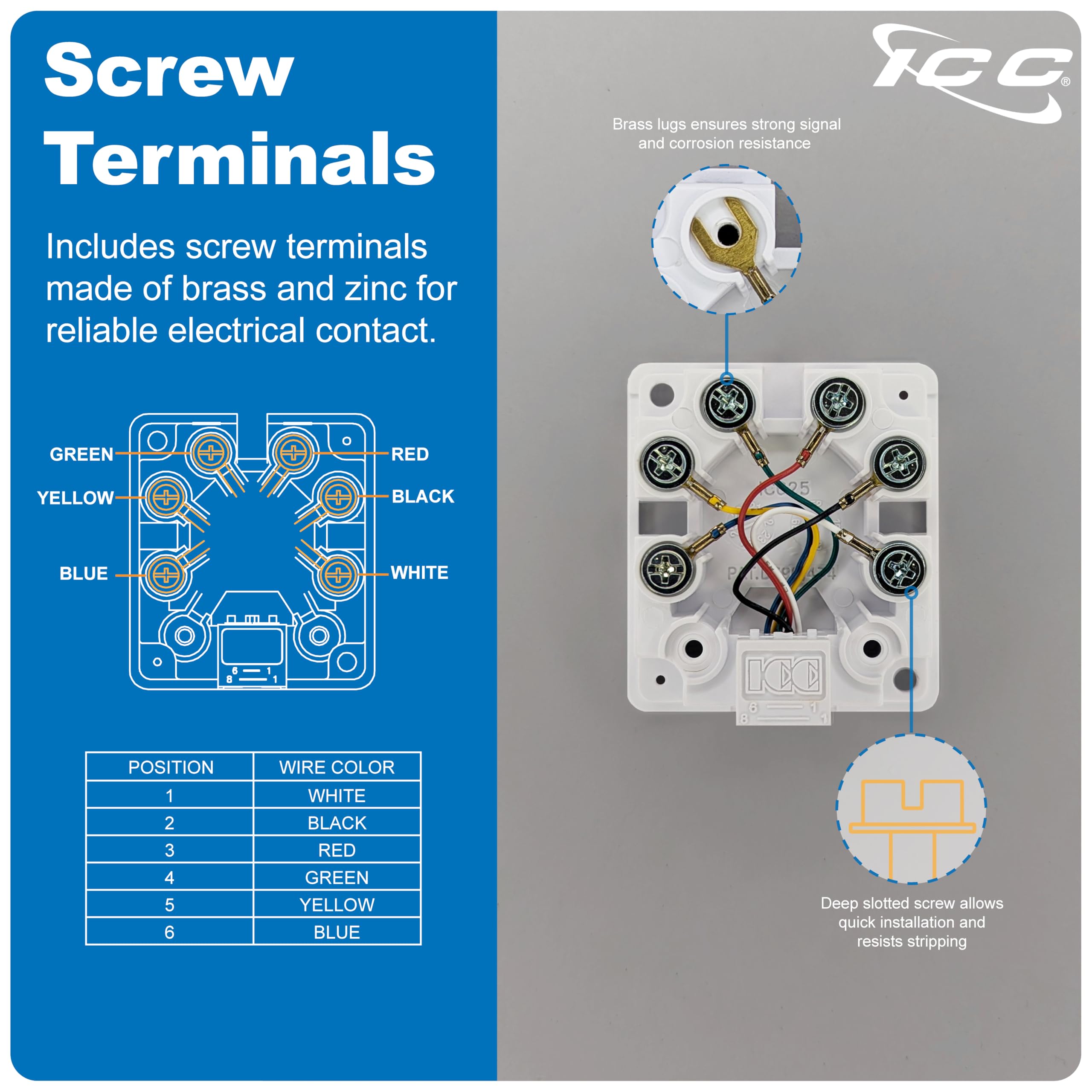

- SCREW TERMINALS: Equipped with traditional flat pan head tapping screw with two washers each for easy screw-down wiring
- MULTIPLE MOUNTING OPTIONS: Includes adhesive backing and screws for flexible installation
- APPLICATIONS: Suitable for residential or commercial use including offices, classrooms, computer labs, and conference rooms
- CONFIGURATIONS: Available in various colors and configurations to support phone installations
Specifications
Material:
Surface Mount Jack Housing: ABS, UL 94V-0
Spring Wire Contacts: Phosphor bronze gold plating over 100 microinch nickel
Gold Plating: 1.27 micron/50 micro inch min
Wire Leads: 26 AWG stranded wire
Termination Screws: 15 lbs/inch min torque zinc chromatic plated steel
Terminal Lugs: Brass
Mechanical:
Force: 750 grams
Retention: 17 lbs between jack and plug
Crimp Tensile strength: 4.0-500 lbs
Electrical:
Current rating: 1.5 amp max
Dielectric withstanding voltage: 1000 volts RMS, 60 GHz
Insulation resistance: 10 mega ohms
Contact Resistance: < 20 milliohms
Color:
Color XX: IV-Ivory, WH-White
