Description

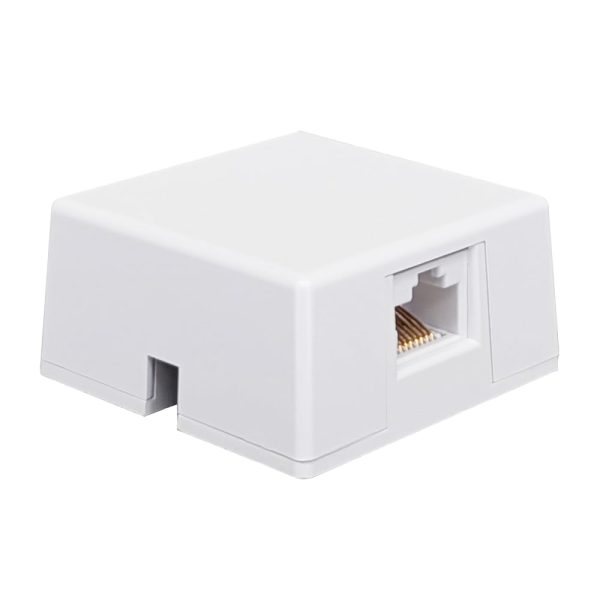

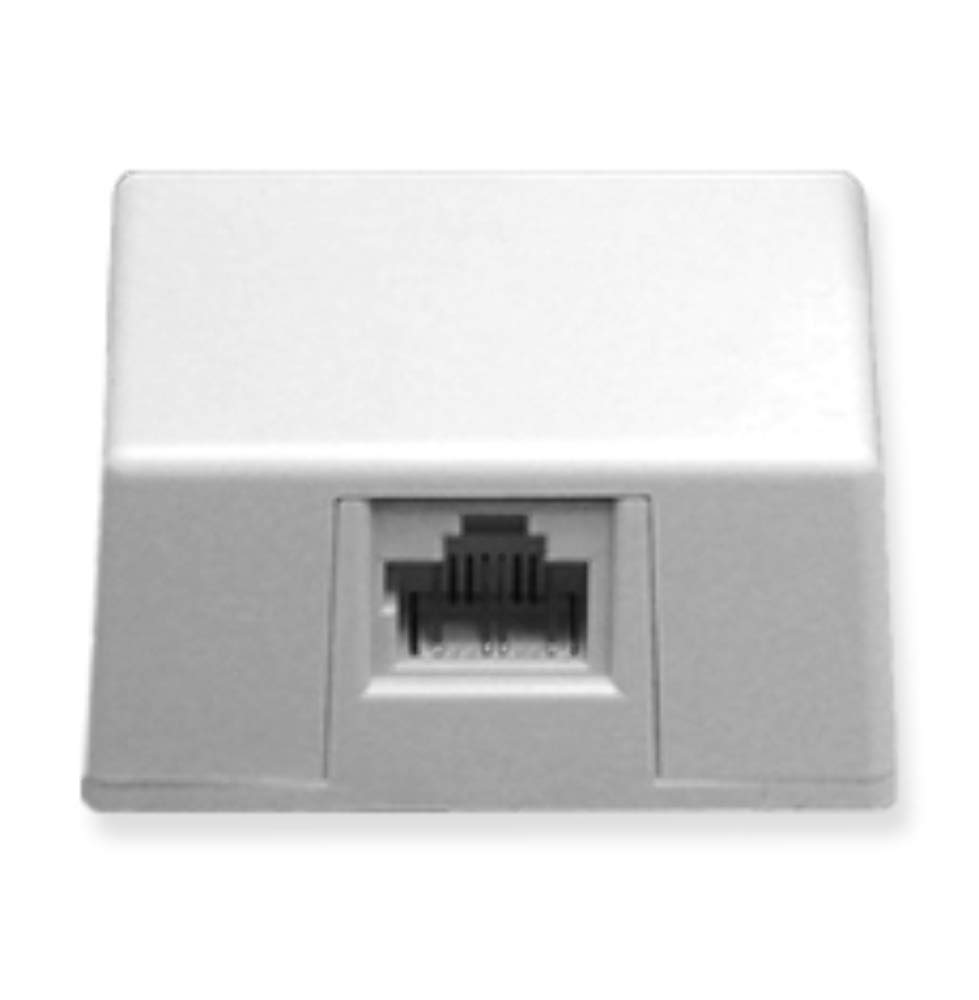

ICC’s RJ31X Surface Mount Jack is designed for alarm/security system and telephone voice connectivity applications. It features a keyed RJ31X jack with shorting bar for security monitoring and screw down terminals for easy wiring. This modular surface mount outlet station is suitable for residential and commercial environments, providing a professional appearance in offices, classrooms, labs, or conference rooms. With multiple mounting options and durable construction, it delivers dependable performance for voice and alarm/security installations.
Features

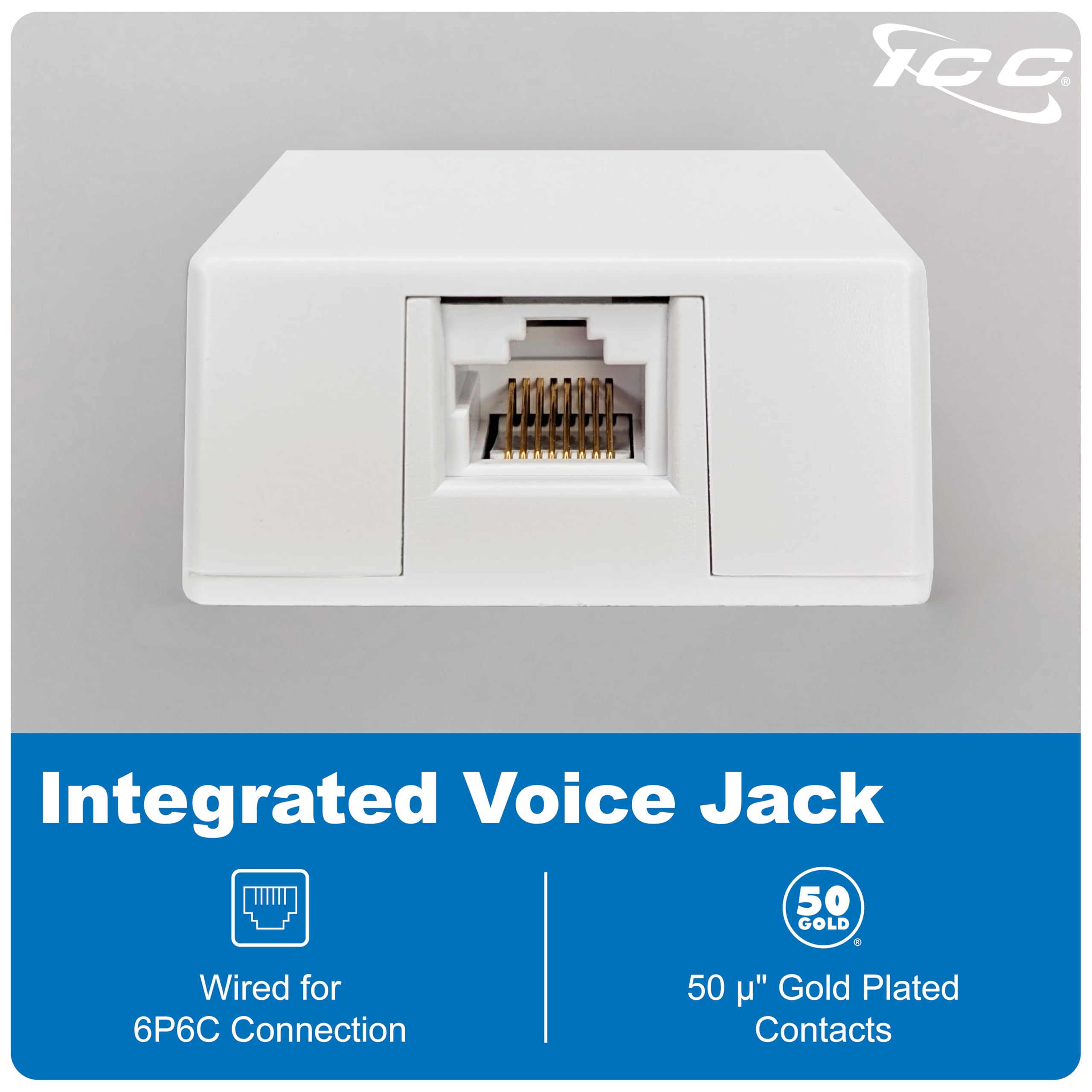

- VOICE CONNECTIVITY: Provides a clean modular surface mount outlet station for telephone and voice connections
- ALARM/SECURITY SYSTEM SUPPORT: Keyed RJ31X jack with shorting bar integrates with alarm/security systems for reliable monitoring

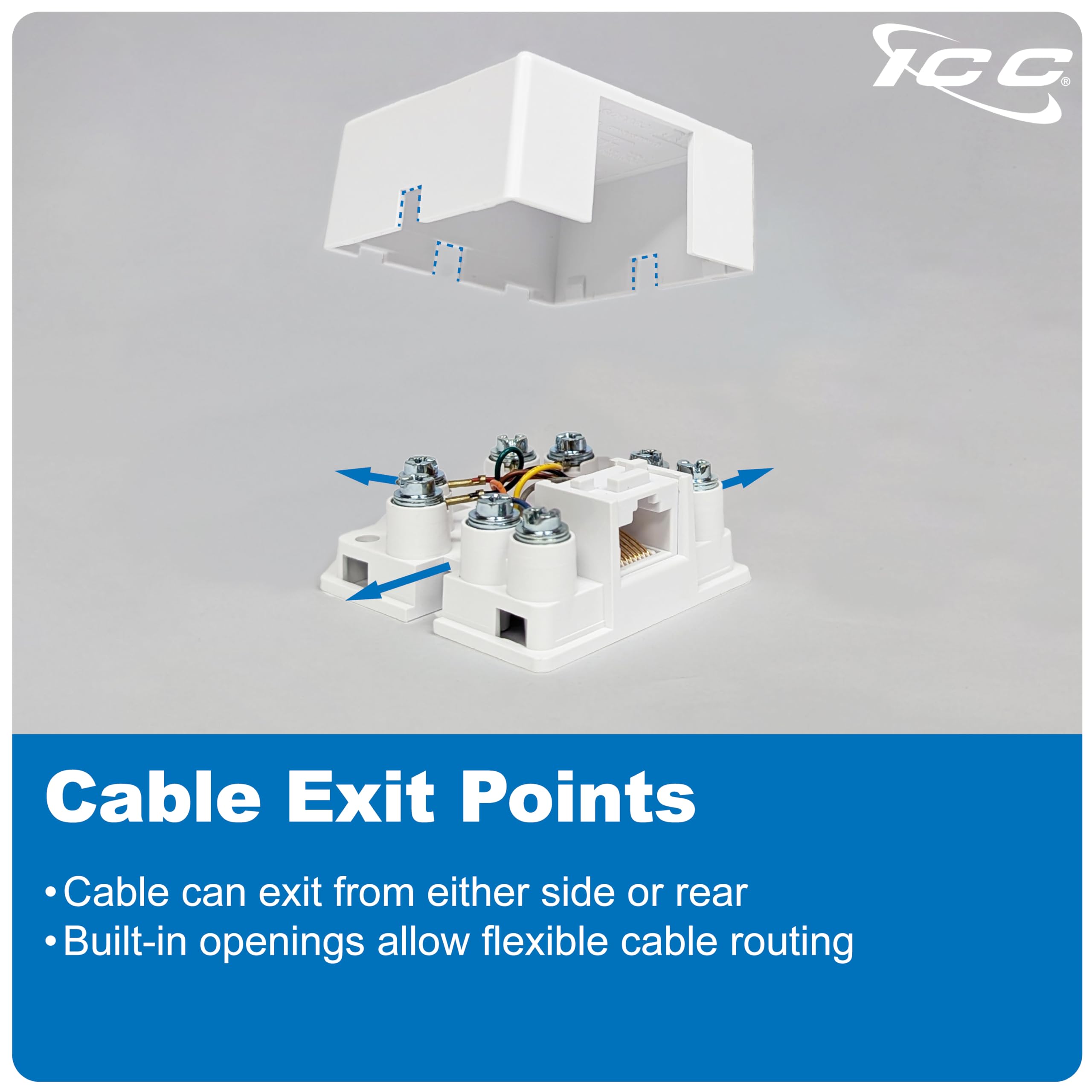

- EASY TERMINATION: Screw down terminals simplify wiring for both residential and commercial installations

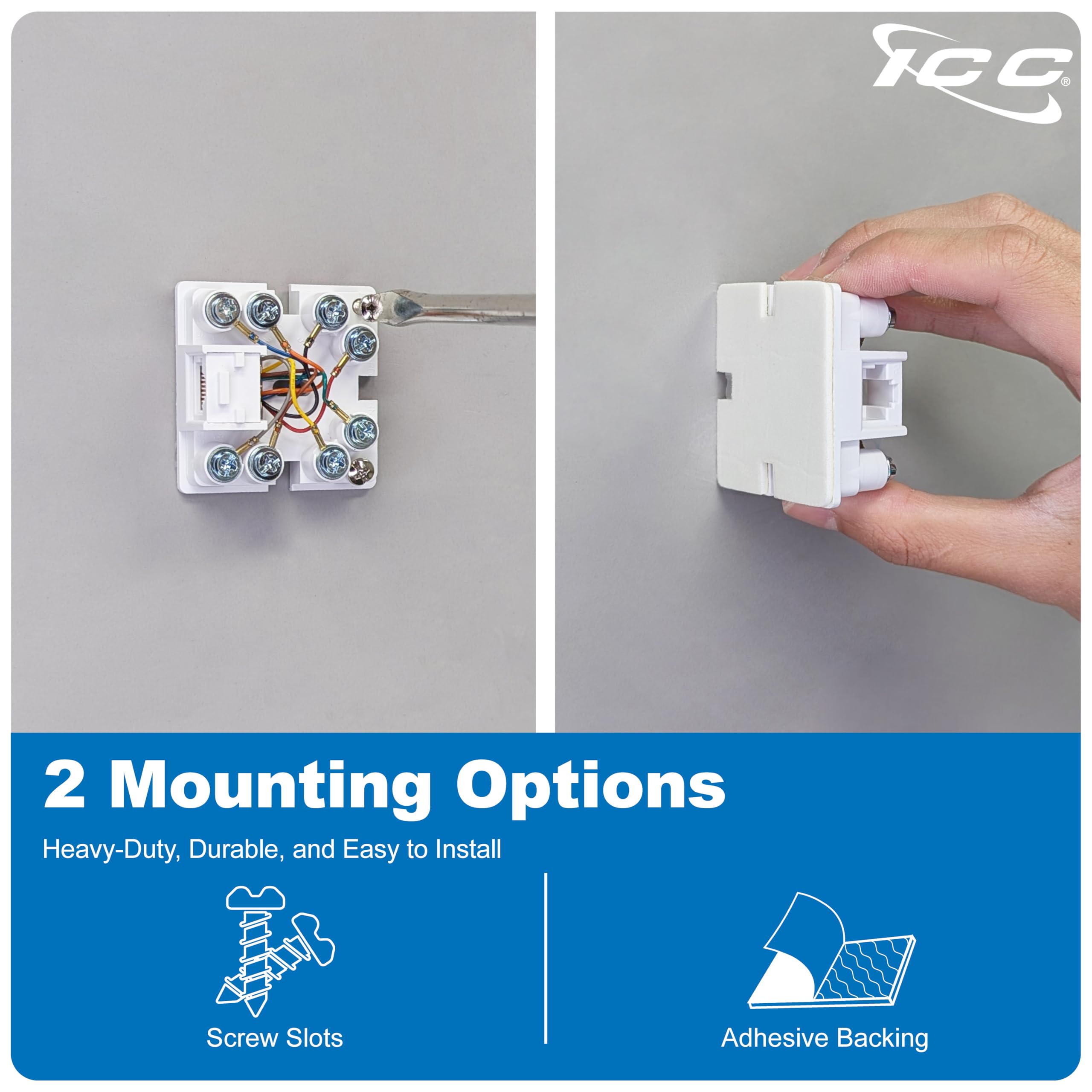

- MULTIPLE MOUNTING OPTIONS: Adhesive backing and screws included for flexible mounting in office or home environments
- RUGGED HOUSING: Durable construction designed for professional alarm/security and voice connectivity applications
Specifications
Material:
Surface Mount Jack Housing: ABS, UL 94V-0
Spring Wire Contacts: Phosphor bronze gold plating over 100 microinch nickel
Gold Plating: 1.27 micron/50 micro inch min
Wire Leads: 26 AWG stranded wire
Termination Screws: 15 lbs/inch min torque zinc chromatic plated steel
Terminal Lugs: Brass
Mechanical:
Force: 900 grams
Retention: 17 lbs between jack and plug
Crimp Tensile strength: 4.0-500 lbs
Electrical:
Current rating: 1.5 amp max
Dielectric withstanding voltage: 1000 volts RMS, 60 GHz
Insulation resistance: 10 mega ohms
Contact Resistance: < 20 milliohms
Color:
Color XX: IV-Ivory, WH-White
