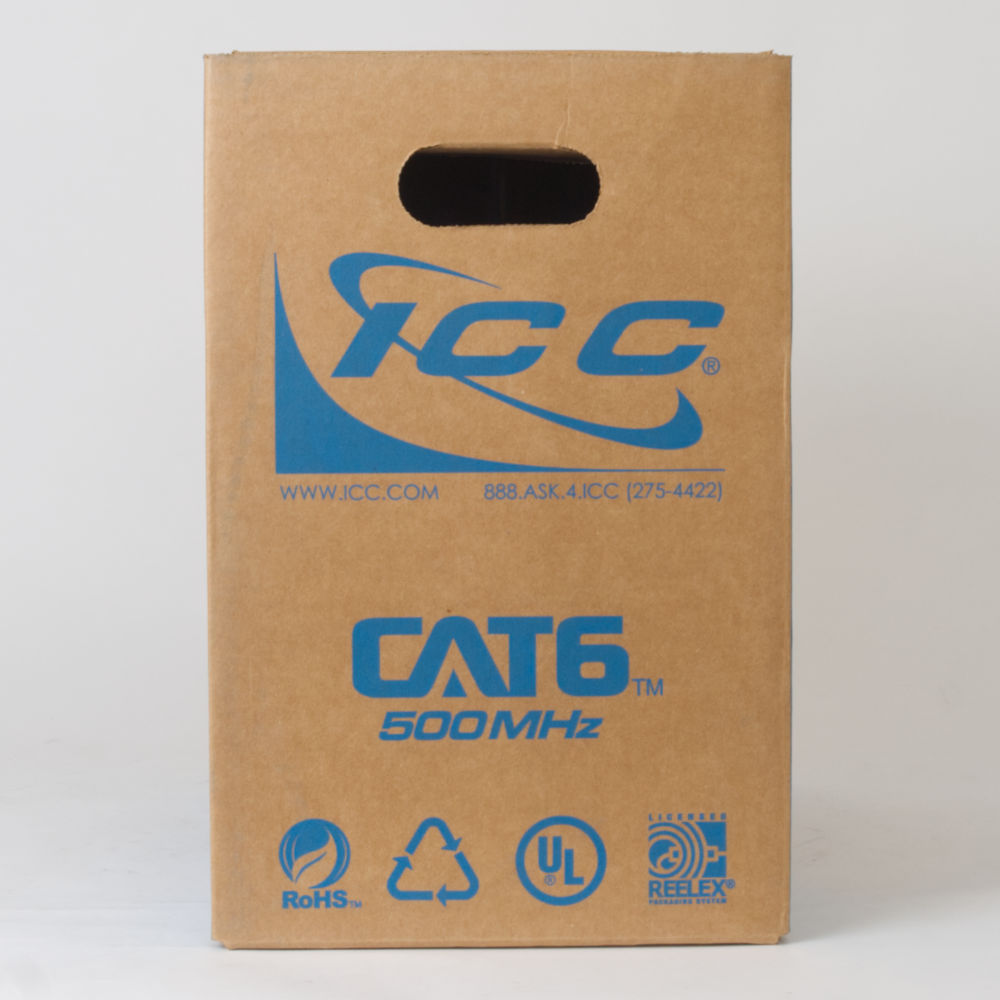

CAT6 Bulk Cable UTP Plenum Back ICCABP6VBL
CAT6 Bulk Cable UTP Plenum Illustration ICCABP6VBL
CAT6 Bulk Cable UTP Plenum Close Up ICCABP6VBL
CAT6 Bulk Cable UTP Plenum Close Up2 ICCABP6VBL

500Mhz CAT6 Bulk Cable with 23 AWG UTP Solid Wires, CMP Jacket in a Pull Box, 1000 Feet

Available at these Premier Distributors
Jacket: Plenum
Performance: CAT6
Clear
SKU: N/A Categories: ,
UPC:

Country of Origin (subject to change): United States

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Category 6 500MHz CMP/UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified.  Available in spools of 1000 feet in a convenient pull box dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today’s demanding voice, data, video, and security applications in commercial and residential installations.

Features

• Exceeds TIA 568-C.2 Category 6.

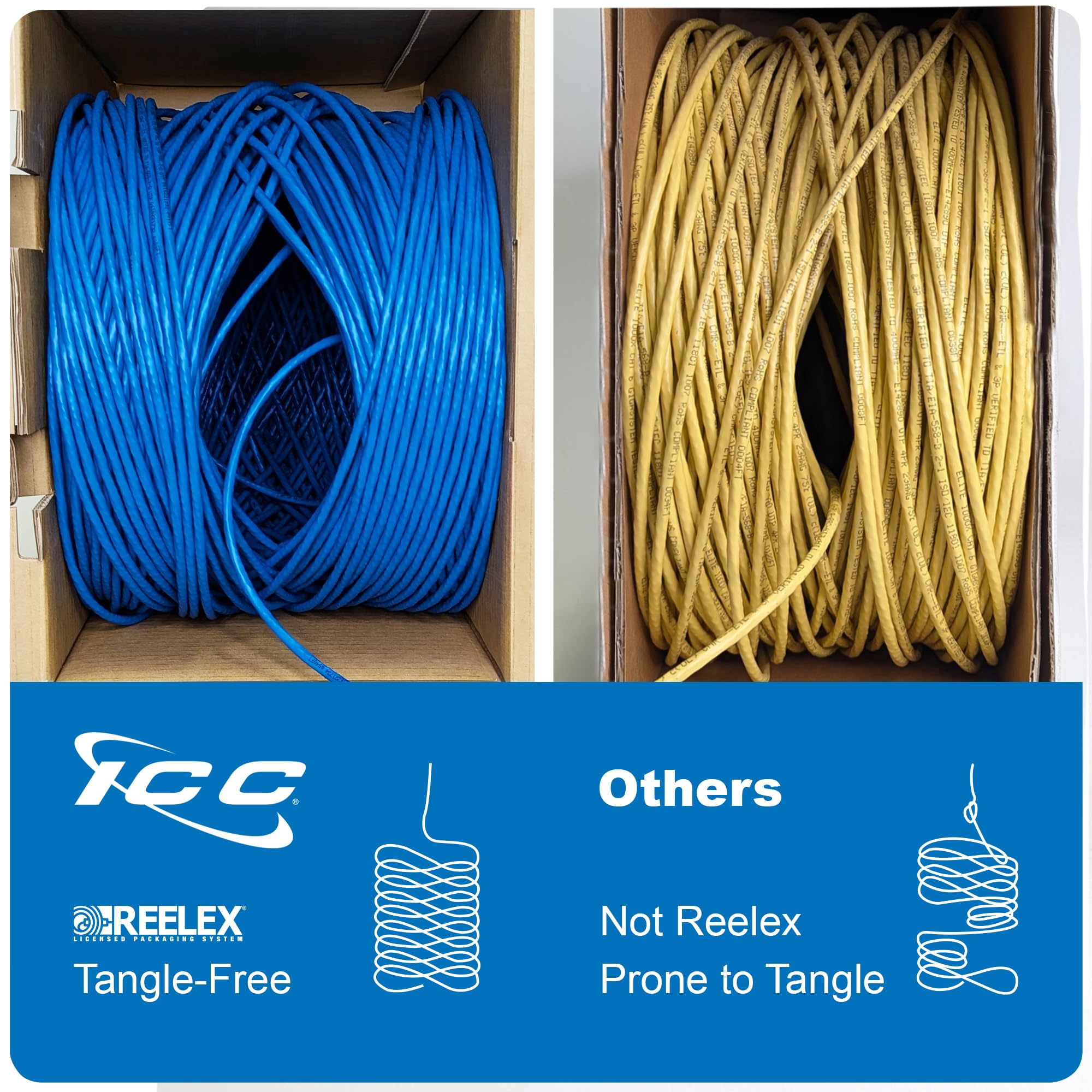

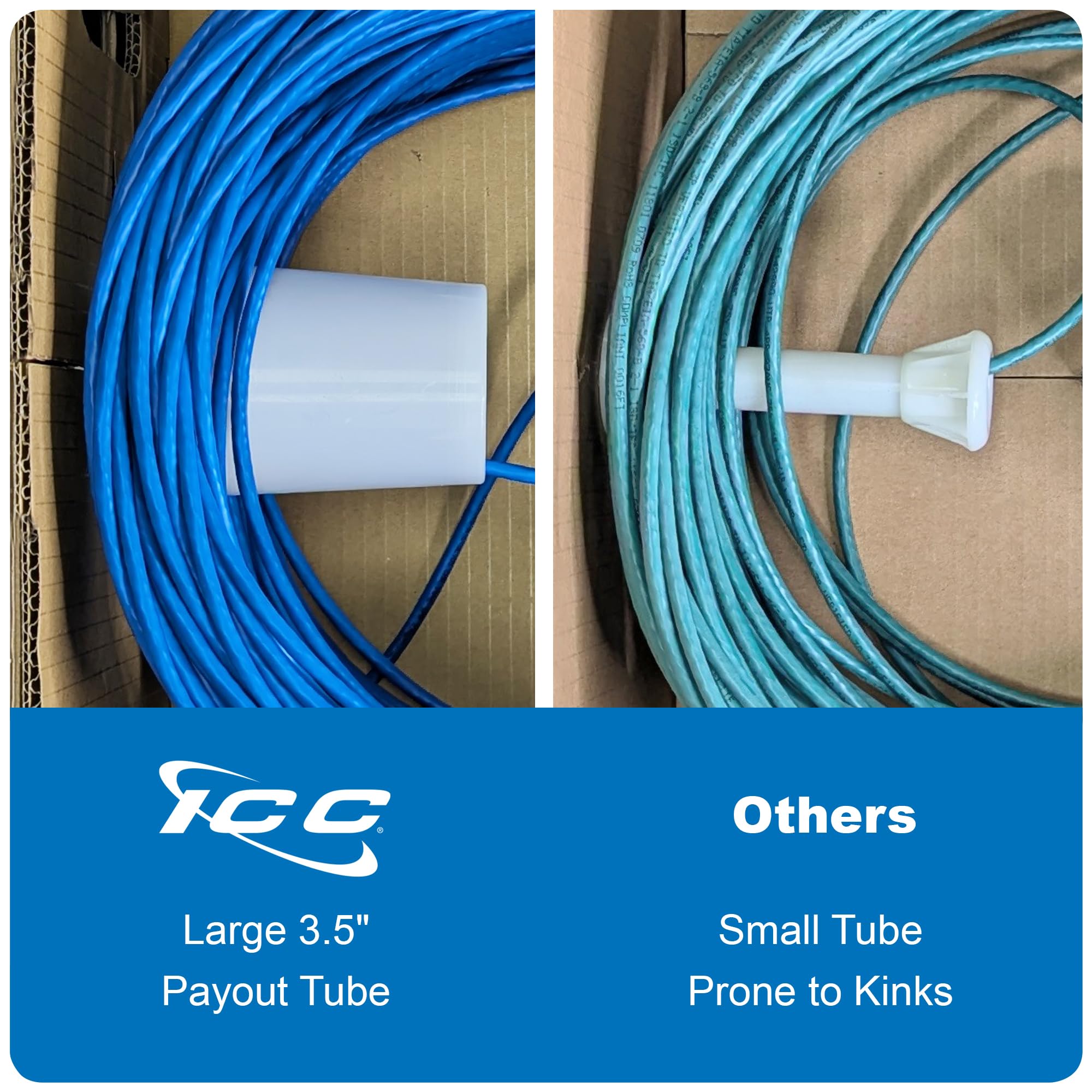

• Easy to dispense cable with REELEX design box, saving time and energy on the job site.

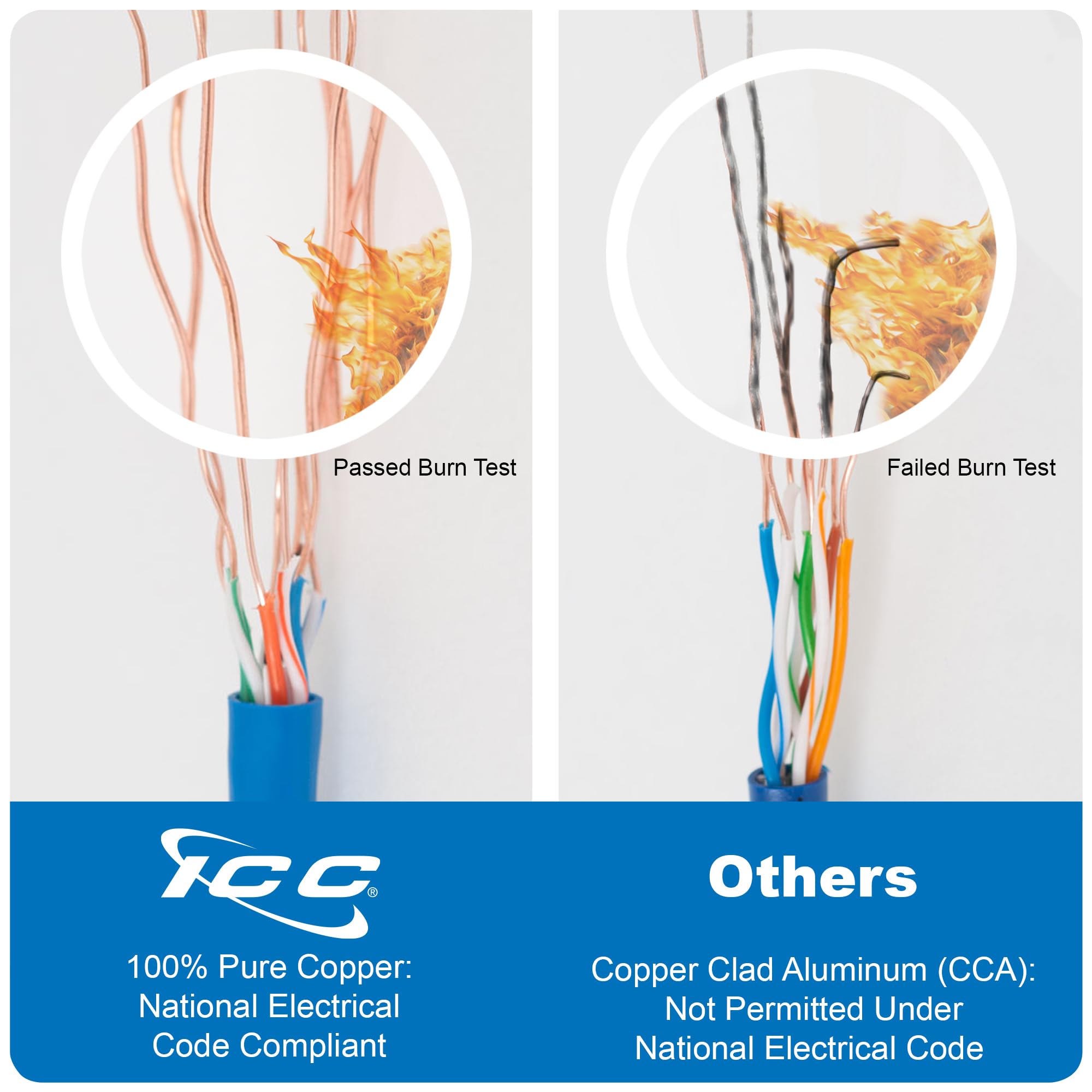

• Bare Solid Copper Wire construction to assure performance and quality.

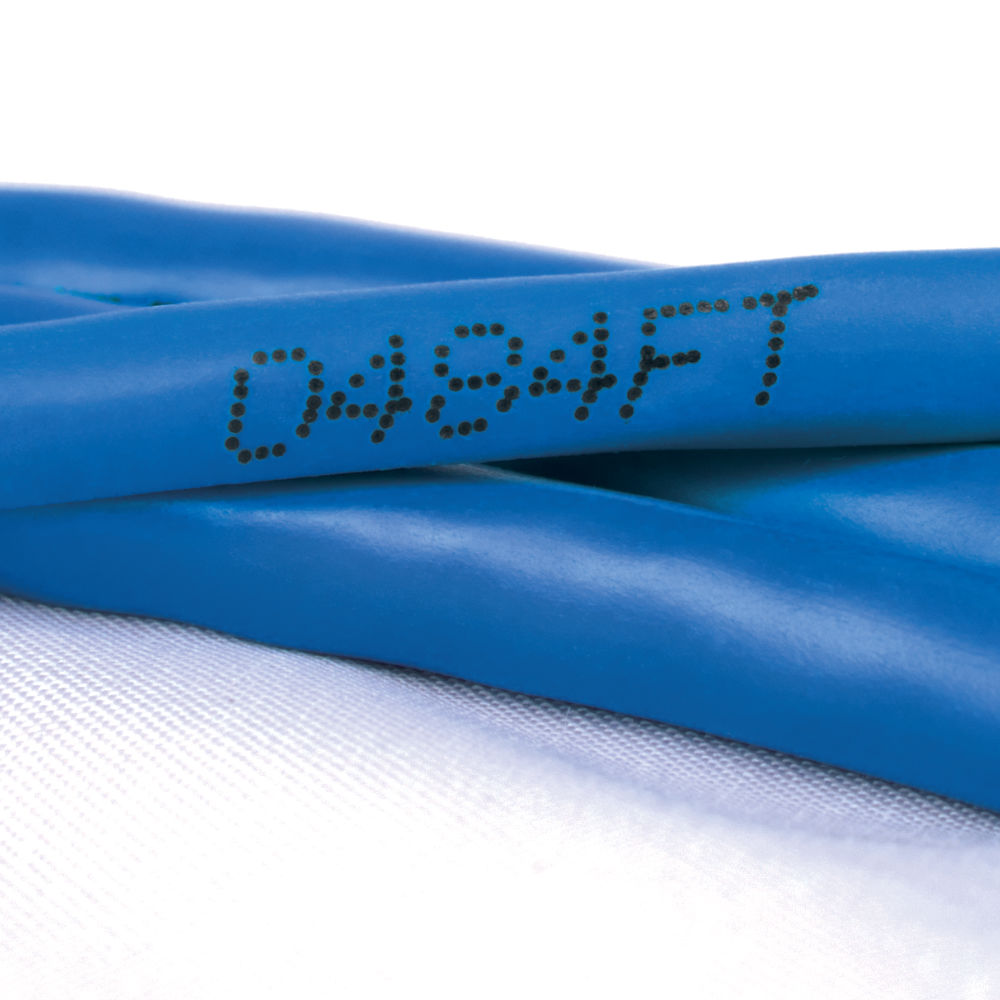

• Convenient sequential footage markings for usage tracking.

• Plenum (CMP) rated required in most commercial installations.

• Ideal for data, digital video, broadband, and baseband analog video.

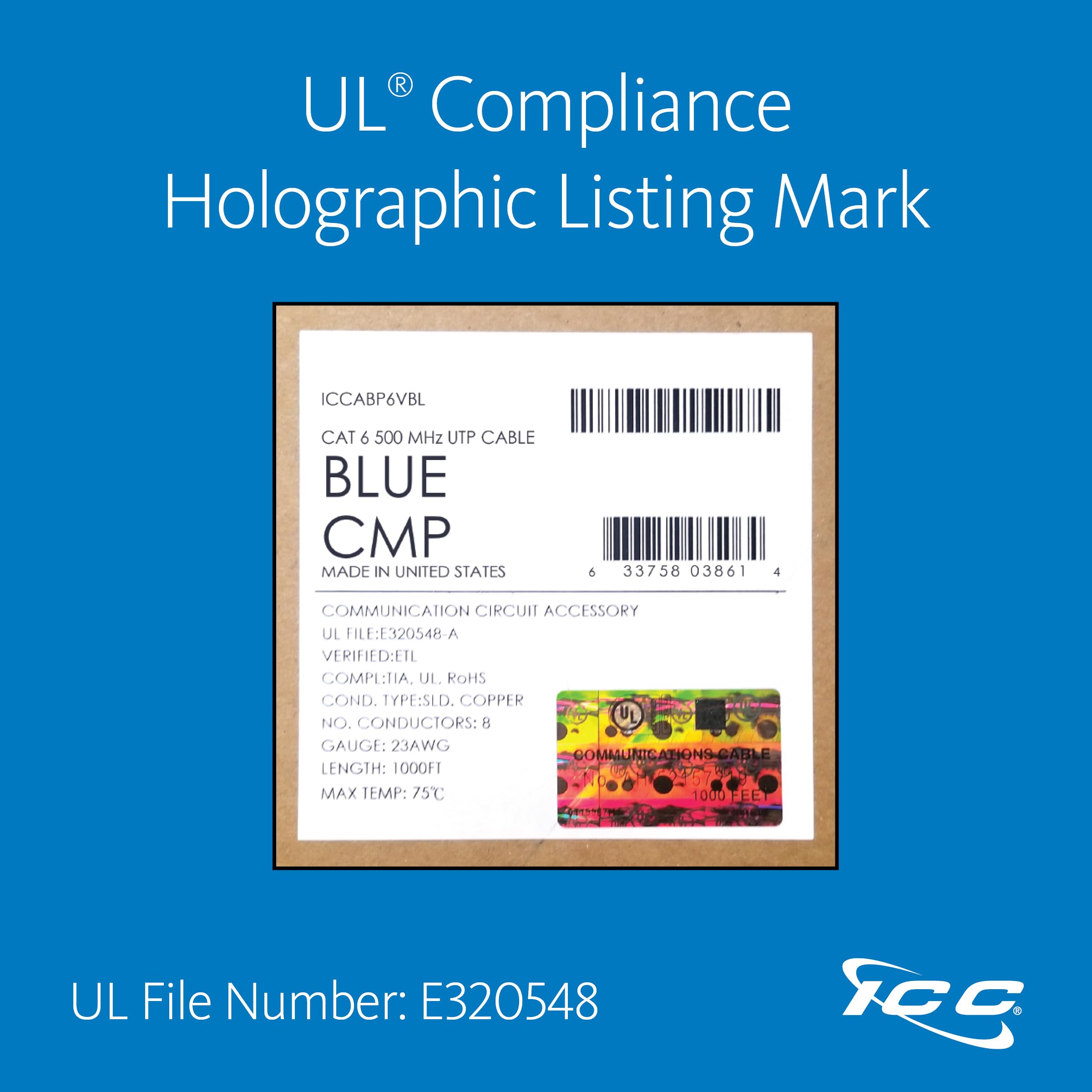

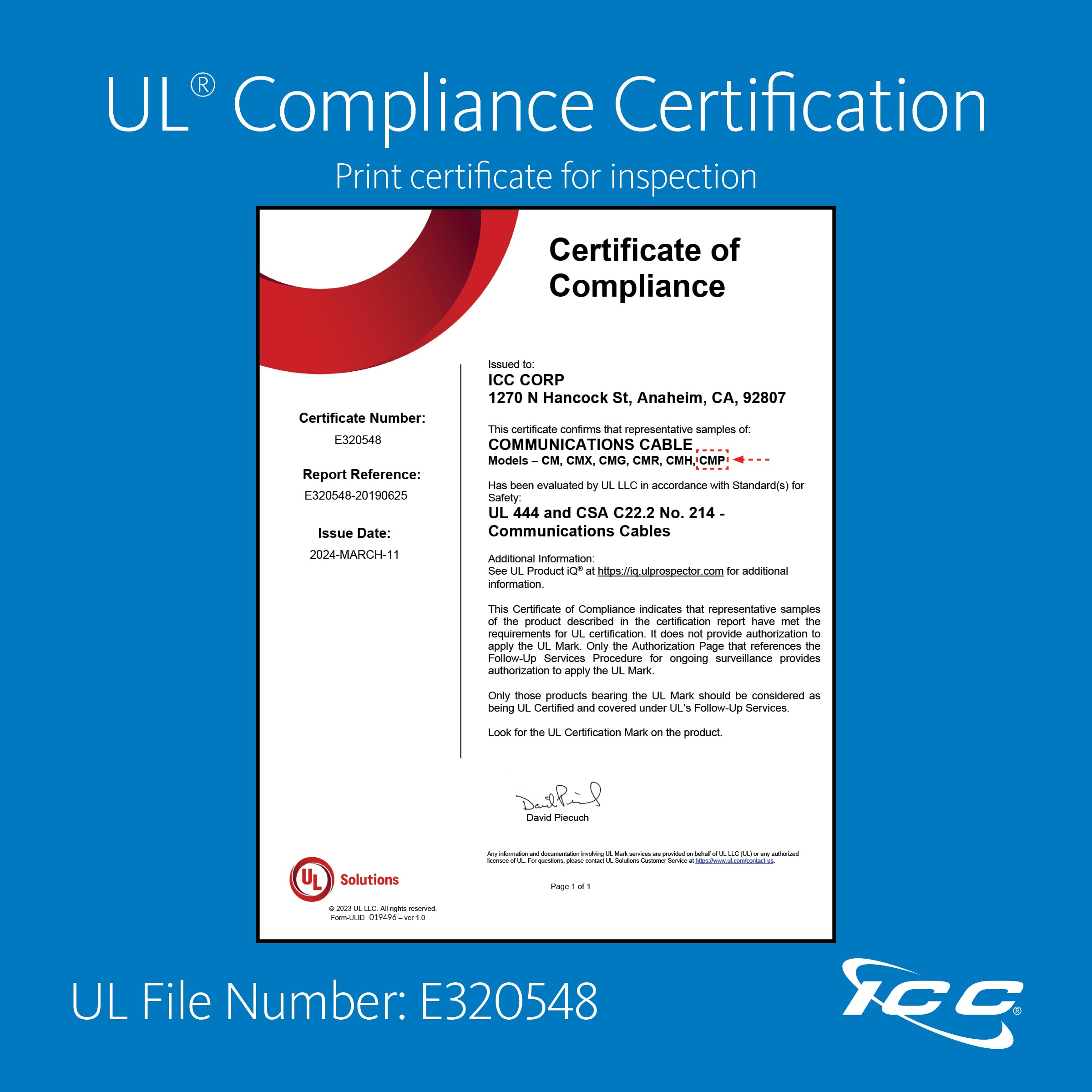

• UL listed.

Applications

Standard:

ANSI/TIA 568-C2

ANSI/TIA 862

ISO/IEC 11801

ICEA S-102-700

ICEA S-116-732

NEC/CEC Type CMP

ROHS Compliant Directive 2002/95/EC

UL 444

10/100/1000Base-T

IEEE 802.3at for PoE Plus

High Definition Video

Digital Broadcast Video/IP Video/VoIP

ISDN/ADSL

155Mbps ATM

Conductor: Solid Bare Copper

Insulation: FRPE

Jacket: FR-PVC

Component: 4 twisted pair

Insulation Dia. (in): 0.039

Outer Dia. (in): 0.200″

Sequential footage marking for easy usage tracking.

Packaged in a pull box.

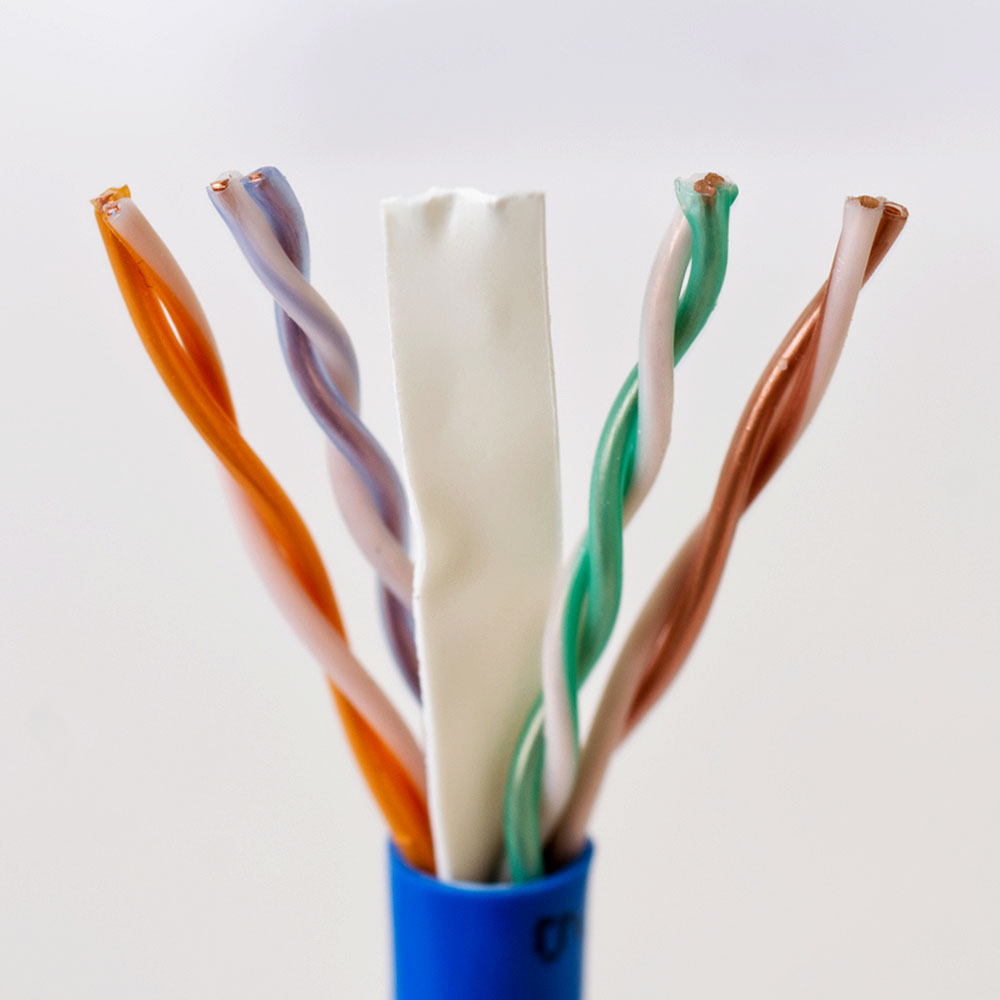

Wired pairs are vividly colored for quick identification.

Temperature Rating (°F)

Installation temperature: 32 to 140 Fahrenheit (°F)

Operating temperature: -4 to 167 Fahrenheit (°F)
