Angled Faceplate with 2 Angled Ports for EZ/HD Style in Single Gang IC107DA2WH
Angled Faceplate with 2 Angled Ports for EZ/HD Style in Single Gang IC107DA2WH
Angled Faceplate with 2 Angled Ports for EZ/HD Style in Single Gang Side IC107DA2WH

Angled Faceplate with Two Angled Ports for EZ®/HD Style in Single Gang

Ports: 2 Angled
  • Angled Faceplate with 1 Angled Port for EZ/HD Style in Single Gang IC107DA1WH
  • Angled Faceplate with 2 Angled Ports for EZ/HD Style in Single Gang IC107DA2WH
  • Faceplate with One Port Flat and One Port Angled for EZ/HD Style in Single Gang IC107AF2WH
  • Angled Faceplate with 4 Angled Ports for EZ/HD Style in Single Gang IC107DA4WH
  • Faceplate with Two Ports Flat and Two Ports Angled for EZ/HD Style in Single Gang IC107AF4WH
  • Angled Faceplate with 4 Flat and 4 Angled Ports for EZ/HD Style in Double Gang in White IC107AF8WH
Station ID: None
Clear
SKU: N/A Categories: , ,
UPC:

Country of Origin: Taiwan

Warning SymbolCalifornia Prop 65 Warning

Description

ICC offers angled faceplates, also known as wall plates, in a classic style. ICC’s angled faceplates are configured to fit a standard single gang outlet box. They come with two port which can be configured with modular connectors for voice, data, audio, video and fiber optic connectivity. ICC offers a wide selection of colored modular connectors to help identify the port to the workstation. Also, the housing of the connectors mounts flush with the front faceplate. This makes the outlet appear as one complete piece and aesthetically pleasing. These angled faceplates are made with tough ABS plastic for long-lasting use and comply with UL 94 plastics flammability standard.

Features

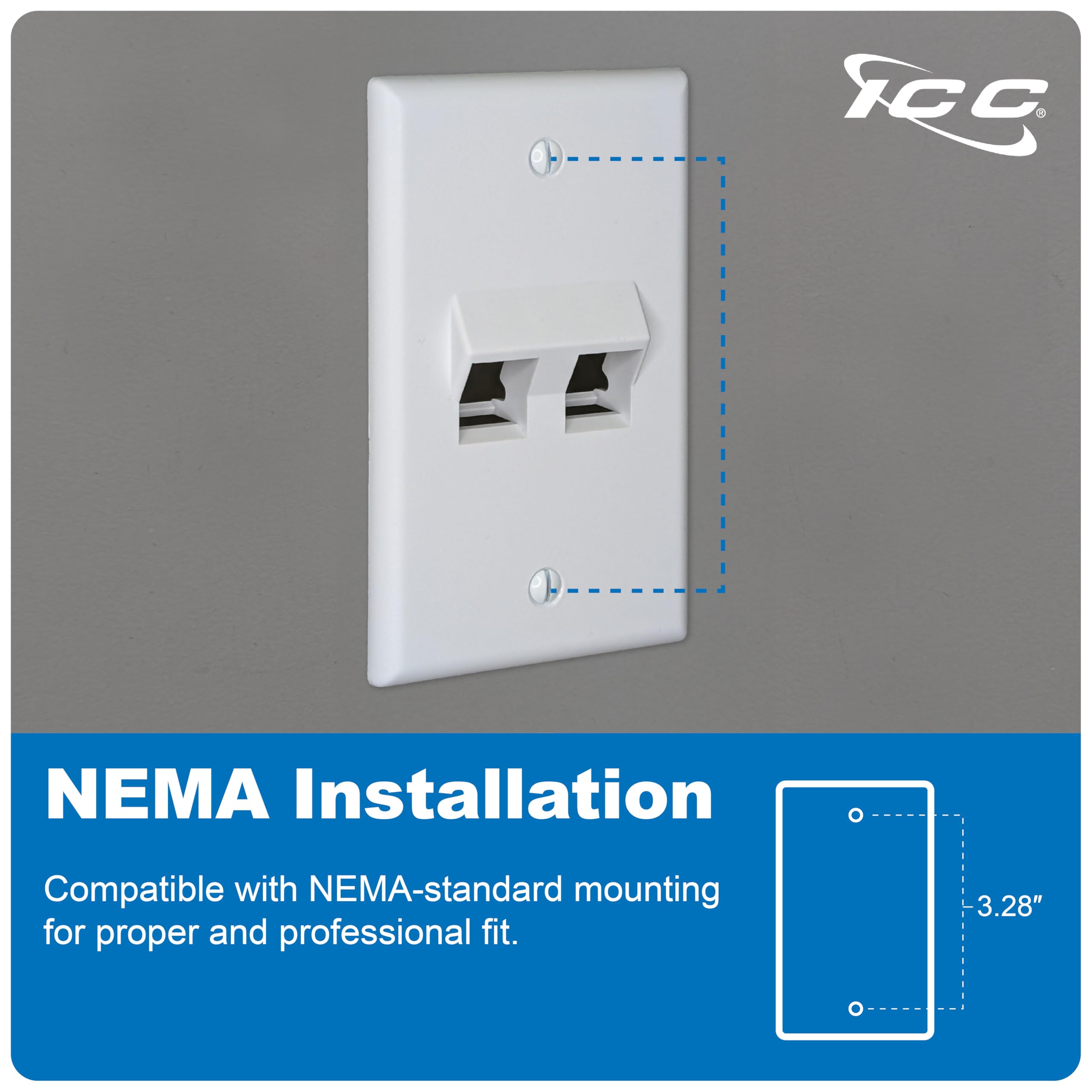

  • Configured to fit standard single gang outlet box.
  • Designed to support the distribution of voice, data, and other communication.
  • Rugged and durable construction.

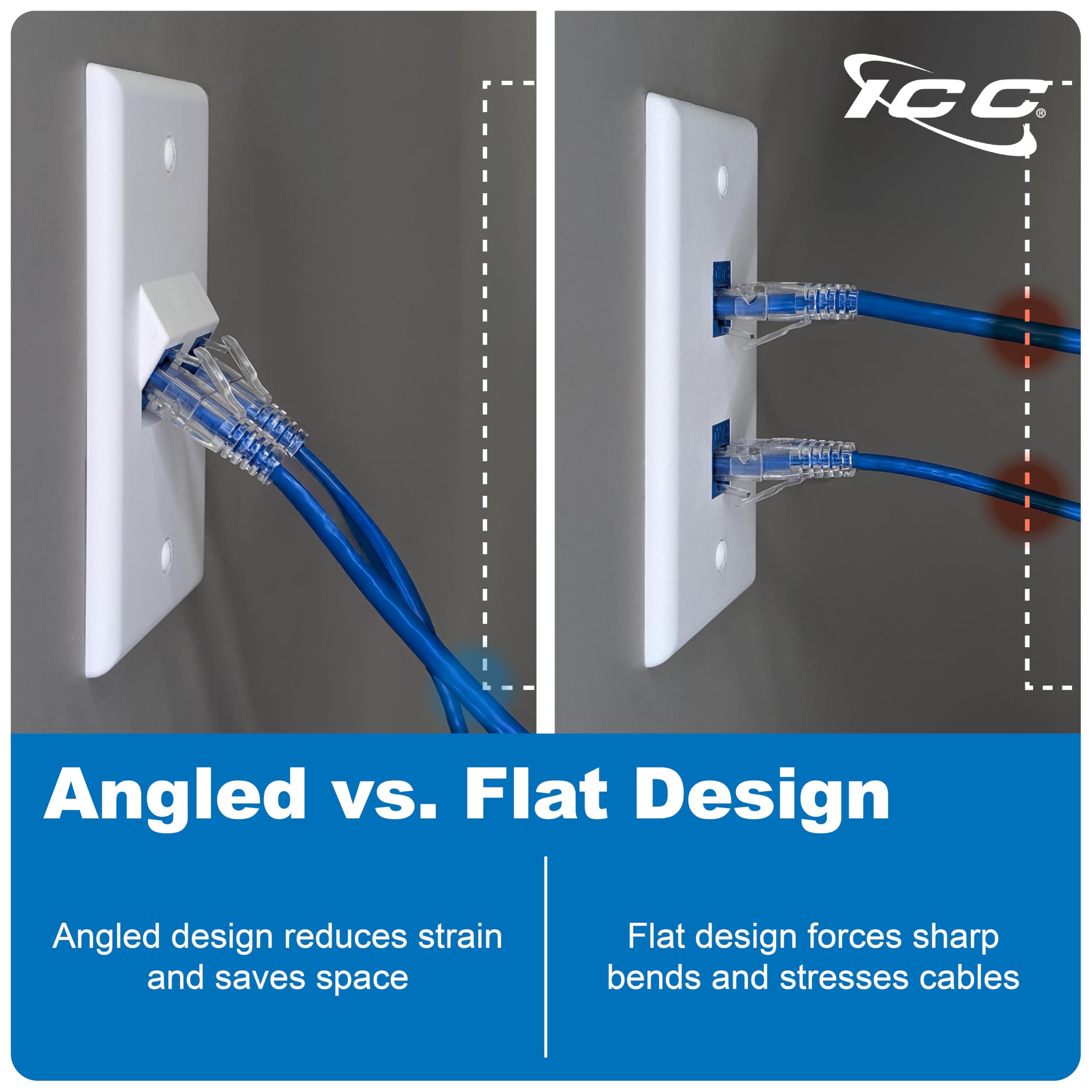

  • Angled opening provides for a low profile and strain relief.

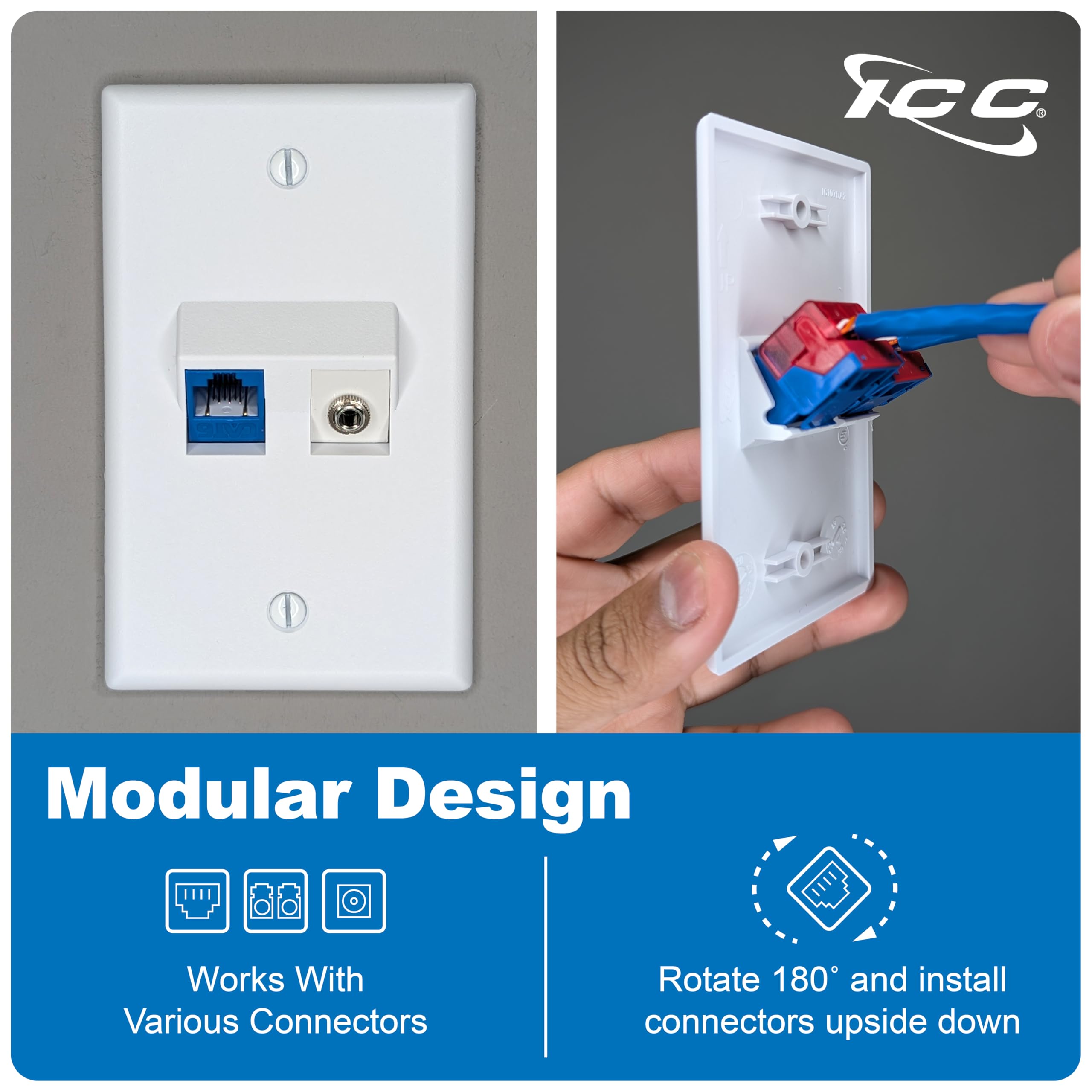

  • Accommodates a wide variety of easy to snap-in modules.
  • Providing configuration flexibility.
  • Accepts all modules.
  • Angled port is not compatible with HDMI module.

Specifications

Material:
Housing: ABS, UL 94V-0
Finish: Texture
Color:
Color XX: IV-Ivory, WH-White
