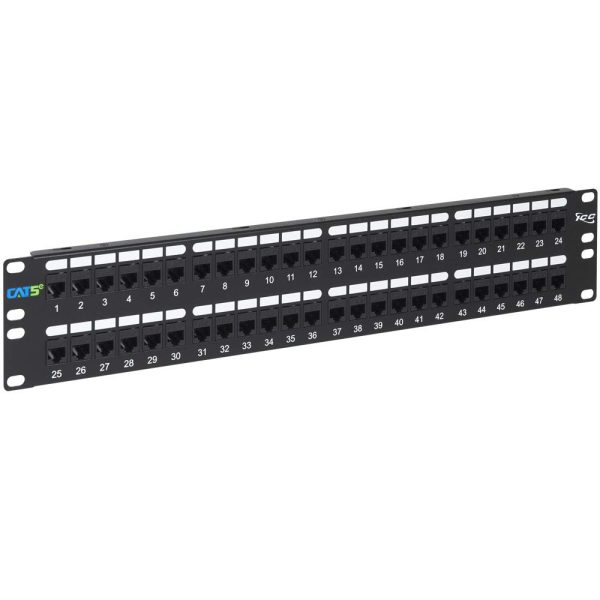

CAT5e Feed-Through Patch Panel for 48 Ports in 2 RMS

SKU: ICMPP48CP5 Categories: ,

Country of Origin: United States

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Category 5e feed-through patch panels are designed for quick field installation and to save end-users punch downtime. The 48-port feed-through patch panel couples ports consisting of RJ-45-to-RJ-45 connection on both sides, which allows quick patch cords connection without the need to punch down UTP wires on the patch panels. The standard 48-port consist of 2U or rack mount spaces (RMS). All patch panels are fully loaded with Category 5e modular couplers and tested to ensure compliance with ANSI/TIA-568 Category 5e performance standards.

Features

  • Eliminate punching down UTP wires to the patch panels.
  • Quick installation, no punch down required.
  • Get 48 ports in 2U of rack mount space.
  • Features RJ-45-to-RJ-45 connection on both sides of the patch panel.
  • Ideal solution for consolidation points such as moves, adds, and changes.
  • Designed to fit standard 19″ wide racks and cabinets.
  • Rack-mounted reinforced steel panel with pre-numbered ports.
  • Flush mount design adds stability by allowing a rigid fit.

Specifications

Material:
Blank Patch Panel: 16 GA CRS
Surface Finish: Black Powder Coat
6 Port HD Bezel: ABS, UL 94V-0
CAT 5e Coupler:
Housing: ABS, UL 94V-0
Color: Black
Contact: Phosphor Bronze Gold Plating over 100 microinch nickel
Gold Plating: 1.27 micron/50 micro
Electrical:
Current Rating: 1.5 amp max
Voltage Rating: 150 Volts Alternating
Dielectric Withstanding Voltage: 1000v RMS, 60 HZ
Insulation Resistance: 10 mohms
Mechanical:
Force: 5 lbs max
Plug Retention in Jack: 20 lbs min
Durability: 750 cycles
