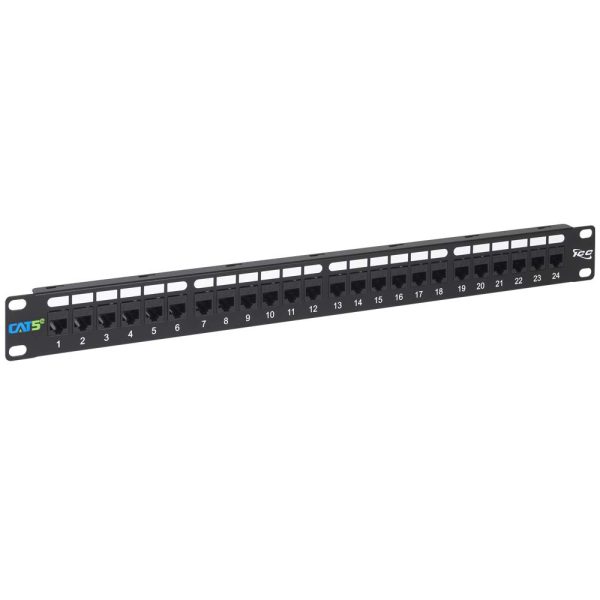

CAT5e Feed-Through Patch Panel with 24 Ports in 1 RMS

CAT5e Feed-Through Patch Panel with 24 Ports in 1 RMS

Performance: CAT5e
  • cat6-feed-through-patch-panel-24-ports-1-rms-icmpp24cp6-1000-revb
  • cat5e-feed-through-patch-panel-24-ports-1-rms-icmpp24cp5-1000-revb
Ports: 24
Rack Space: 1
  • 1
  • 2

In stock

UPC: 633758038478

Country of Origin (subject to change): United States

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Category 5e feed-through patch panels are designed for quick field installation and to save end-users punch downtime. The 24-ports feed-through patch panel couples ports consisting of RJ-45-to-RJ-45 connection on both sides, which allows quick patch cords connection without the need for punch down UTP wires on the patch panels. The standard 24-port consists of 1U or rack mount spaces (RMS). All patch panels are fully loaded with Category 5e modular couplers and tested to ensure compliance with ANSI/TIA-568 Category 5e performance standards.

Features

  • Eliminate punching down UTP wires to the patch panels.
  • Quick installation, no punch down required.
  • Get 24 ports in 1U of rack mount space.
  • Features RJ-45-to-RJ-45 connection on both sides of the patch panel.
  • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
  • Ideal solution for consolidation points such as moves, adds, and changes.
  • Designed to fit standard 19″ wide racks and cabinets.
  • Rack-mounted reinforced steel panel with pre-numbered ports.
  • Flush mount design adds stability by allowing a rigid fit.

Specifications

Material:

Blank Patch Panel: 16 GA CRS

Surface Finish: Black Powder Coat

6-Port HD Bezel: ABS, UL 94V-0

CAT 5e Coupler:

Housing: ABS, UL 94V-0

Color: Black

Contact: Phosphor Bronze Gold Plating over 100 microinch nickel

Gold Plating: 1.27 micron/50 micro

Electrical:

Current Rating: 1.5 amp max

Voltage Rating: 150 Volts Alternating

Dielectric Withstanding Voltage: 1000v RMS, 60 HZ

Insulation Resistance: 10 mohms

Mechanical:

Force: 5 lbs max

Plug Retention in Jack: 20 lbs min

Durability: 750 cycles
