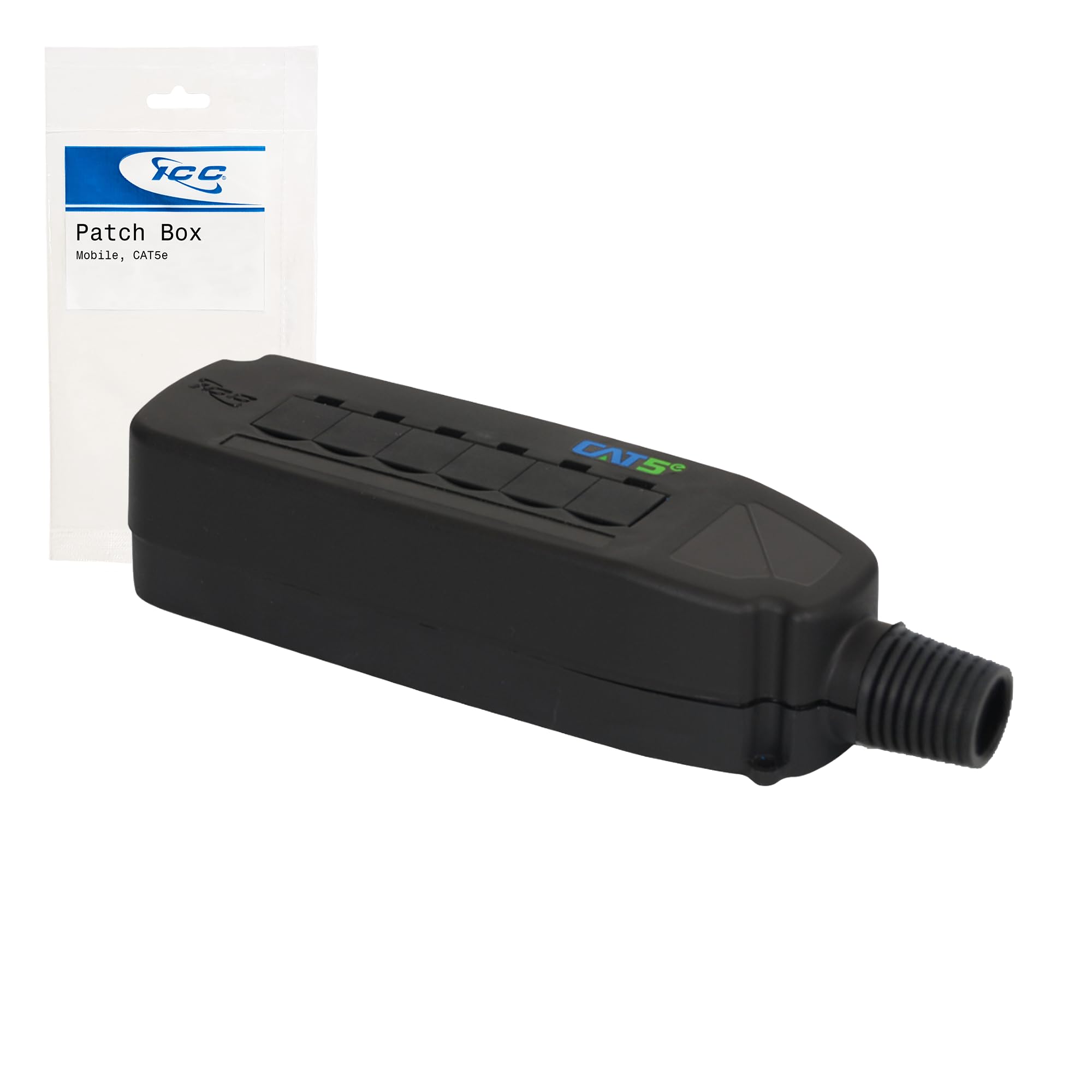

CAT5e Mobile Patch Box 6-Ports ICMPPMB506

CAT5e Mobile Patch Box with 6 Ports

Connector: 8P8C
  • CAT5e Mobile Patch Box 6-Ports ICMPPMB506
  • Configurable Mobile Patch Box 6-Ports IC107MB6BK
Performance: CAT5e

In stock

SKU: ICMPPMB506 Categories: ,
UPC: 633758018487

Country of Origin (subject to change): Taiwan

Warning SymbolCalifornia Prop 65 Warning


Provides a 6-port CAT5e outlet appropriate for open architectural environments, suitable for use with 4 or 25-pair cables. Includes an integrated CAT5e module, a base, strain relief, cable ties, and mounting screws. Can be wall mounted using screws or magnets (sold separately) or can be hung loose.


  • Provides a 6-port outlet appropriate for open architectural environments.
  • Suitable for use with either 4-pair or 25-pair cable.
  • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
  • Rugged construction allows for long-lasting use.
  • Optional mounting on steel surfaces with magnetic magnets (not included).
  • Enhanced crosstalk cancellation reduces return loss.
  • Exceeds ANSI/TIA-568-B.2 Category 6 connecting hardware requirements.
  • Used with CAT5e patch cords and 110 punch down tool.
  • T568A or T568A wiring patterns.


Material:Jack Housing: ABS, UL 94V-0Spring Wire: Square spring wire, tempered phosphorous bronze110 Connector: Copper alloy, 100 microinches of bright solder over 100-micron inches of nickel underplateGold Rating: 50 micro inches of gold over 100 micro inches of nickelCover and Base: Polypropylene, UL 94V-0Strain Relief: Soft PVC, UL 94V-0Dust Cover: Soft PVC, UL 94V-0Electrical:Current Rating: 1.5 amps maxDC Resistance: 1 ohms maxContact Resistance: 5 milliohmsMechanical:Force: 100 gramsTemperature Range: -40 degrees C to 150 degrees FPlug Retention Force: 30 lbs between jack and plugPhysical:Wire leads: 26 AWG solid wireColor:Color XX: BK-Black
