Features

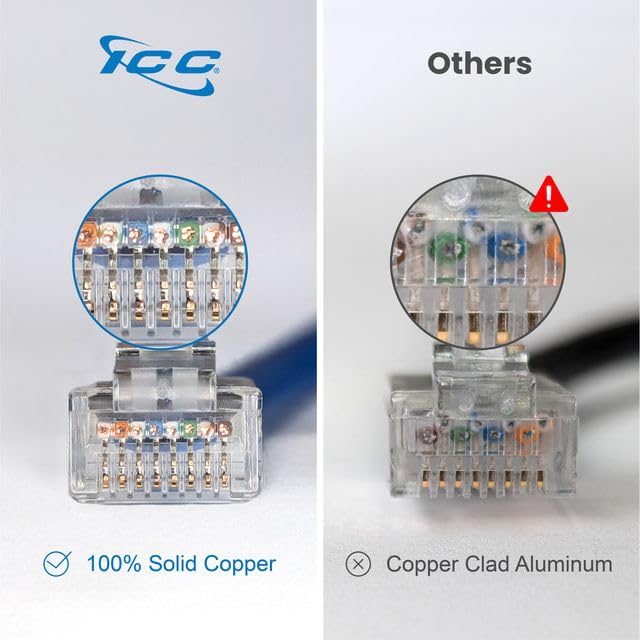

- NATIONAL ELECTRICAL CODE (NEC) COMPLIANT: Built with 100% stranded pure bare copper conductors, meeting NEC Section 800.179, which mandates that “Conductors in communications cables, other than coaxial, shall be copper.” Rated for 75°C and 300V, CAT6 slim patch cables support stable network communications while reducing fire hazards
- PoE TYPE 2 RATED PATCH CABLE: This CAT6 slim Ethernet cable supports Power over Ethernet (PoE) Type 2 up to 30W, suitable for devices such as IP cameras, access points, and other network-powered equipment. The patch cable supports 550 MHz performance and is ETL and UL listed for safety and compliance

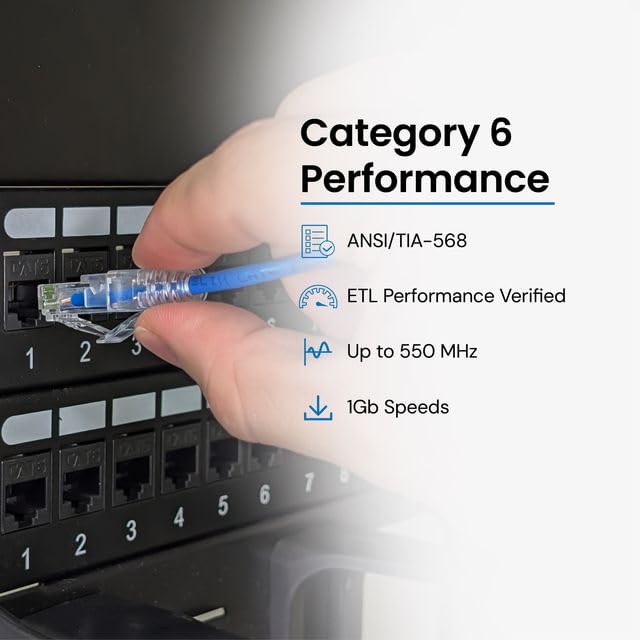

- DATA CENTER GRADE PERFORMANCE: CAT6 slim patch cables are wired to T568B and factory tested to meet TIA performance standards, supporting 10/100/1000 Mbps Gigabit Ethernet with bandwidth up to 550 MHz for structured cabling environments
- 50 MICRO-INCH GOLD-PLATED CONTACTS: Contacts are plated with 50 micro-inches of gold over phosphor bronze to resist corrosion and support repeated plug-to-jack insertion cycles

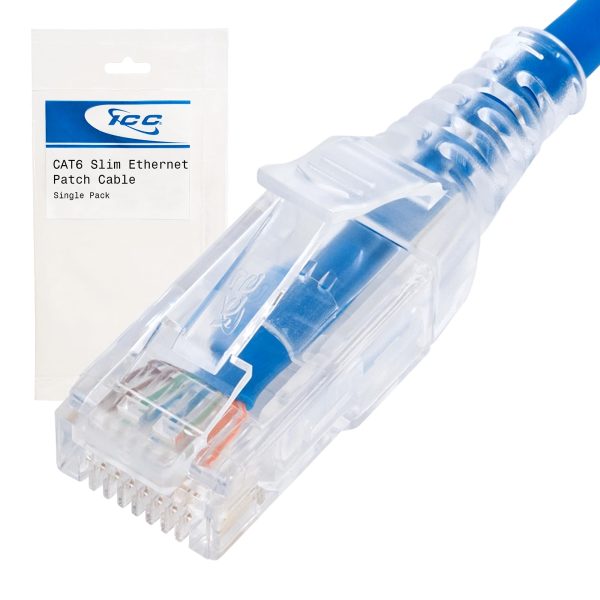

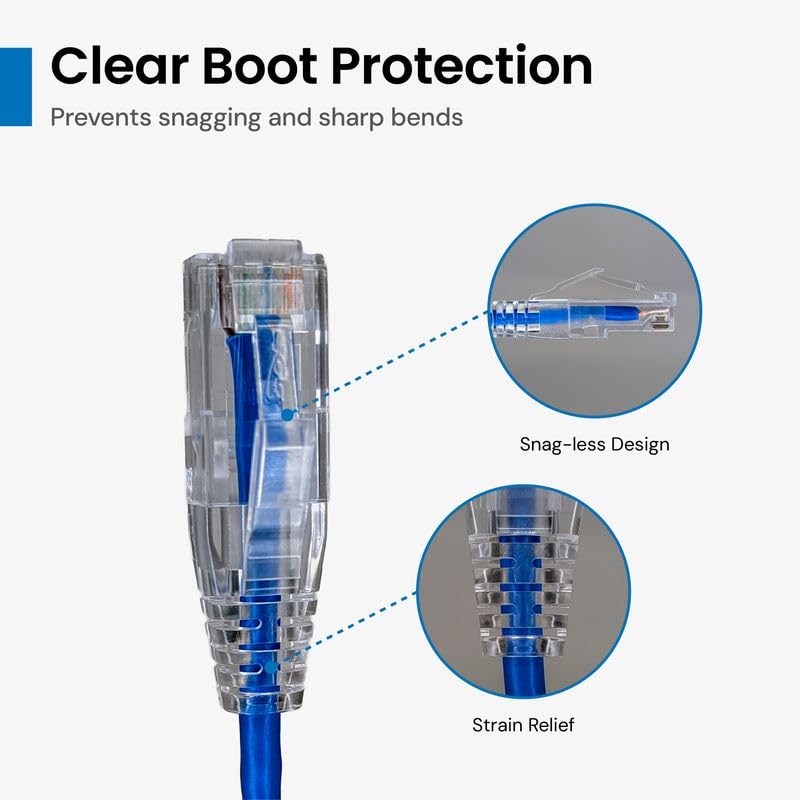

- CLEAR BOOT WITH CLIP PROTECTION: Transparent boot provides a uniform look with the modular plug, prevents snagging on adjacent cables, and limits over-bending at the connector
- SLIM 28 AWG DESIGN: Constructed with 28 AWG stranded conductors to reduce cable diameter, improve airflow, and minimize congestion in high-density patching areas
- INDOOR USE: Designed for indoor network installations using PVC jacket material. Not intended for outdoor or direct burial applications
Specifications
Electrical/Physical:
Cable:
Temperature Rating, Max 75°C
Capacitance, Mutual Max. 5.6nf/100m, 1kHz @ 20°C
Dielectric Withstands, Min Ac-500v/1 Min @ 20°C
Voltage Rating, Max 300V
D.C. Resistance, Max 22:3Ω/km @ 20°C
Impedance, Characteristic, Nom 100Ω±15 @ 1-100 MHz 100Ω±5 @ 100MHz
Modular Plug:
Ul Applications: Rated 2A, 150V
Resistance Of Insulation: 5000 Megaohms
Resistance Of Termination: 35 Milliohms Max @ -40°C To 70°C
Dielectric Withstanding Voltage: 500 Volts AC
Material & Finish:
Cable: Category 6 Patch Cable
Jacket: Material: PVC
Overall Diameter: 0.149″±0.008″
Conductor:
Insulation: High-Density Polyethylene
Overall Diameter: 0.38″±0.002″
Average Thickness: 0.007″
Conductor: 28 AWG (7×0.0124”) Ul Rated, Bare Copper Wire, Stranded
Performance Rating: Category 6
Modular Plug With Loading Bar: UL And cUL Recognized
Housing: PC, UL94V-O
Color: Clear
Contact: Phosphor Bronze, 0.014 Inch Thick
Gold Plating: 1.27 Microns/50µ” Min On Contacts
No. Of Contacts: 8
Strain Relief Boot:
Material: PC, UL94v-0
Mechanical:
Cable-To-Plug Tensile Strength: 20 lbs (89N) Min
Durability: 200 Mating Cycles Min
Color:

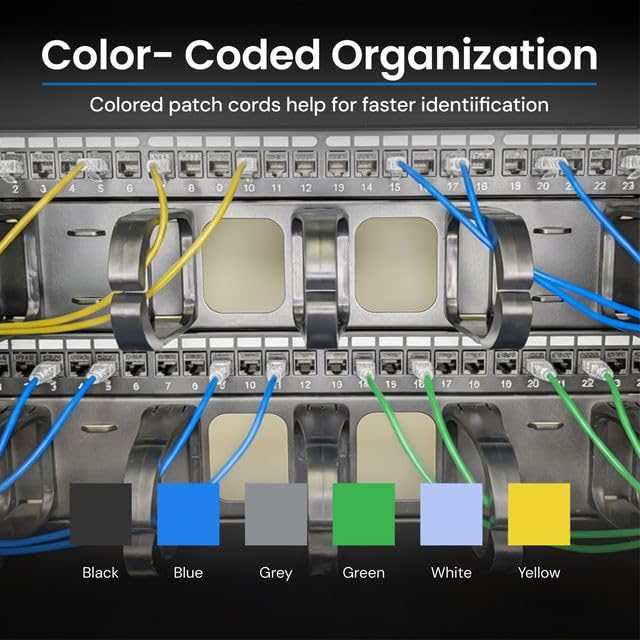

Colors XX: BK-Black, BL-Blue, GN-Green, GY-Gray, OR-Orange, RD-Red, WH-White & YL-Yellow
