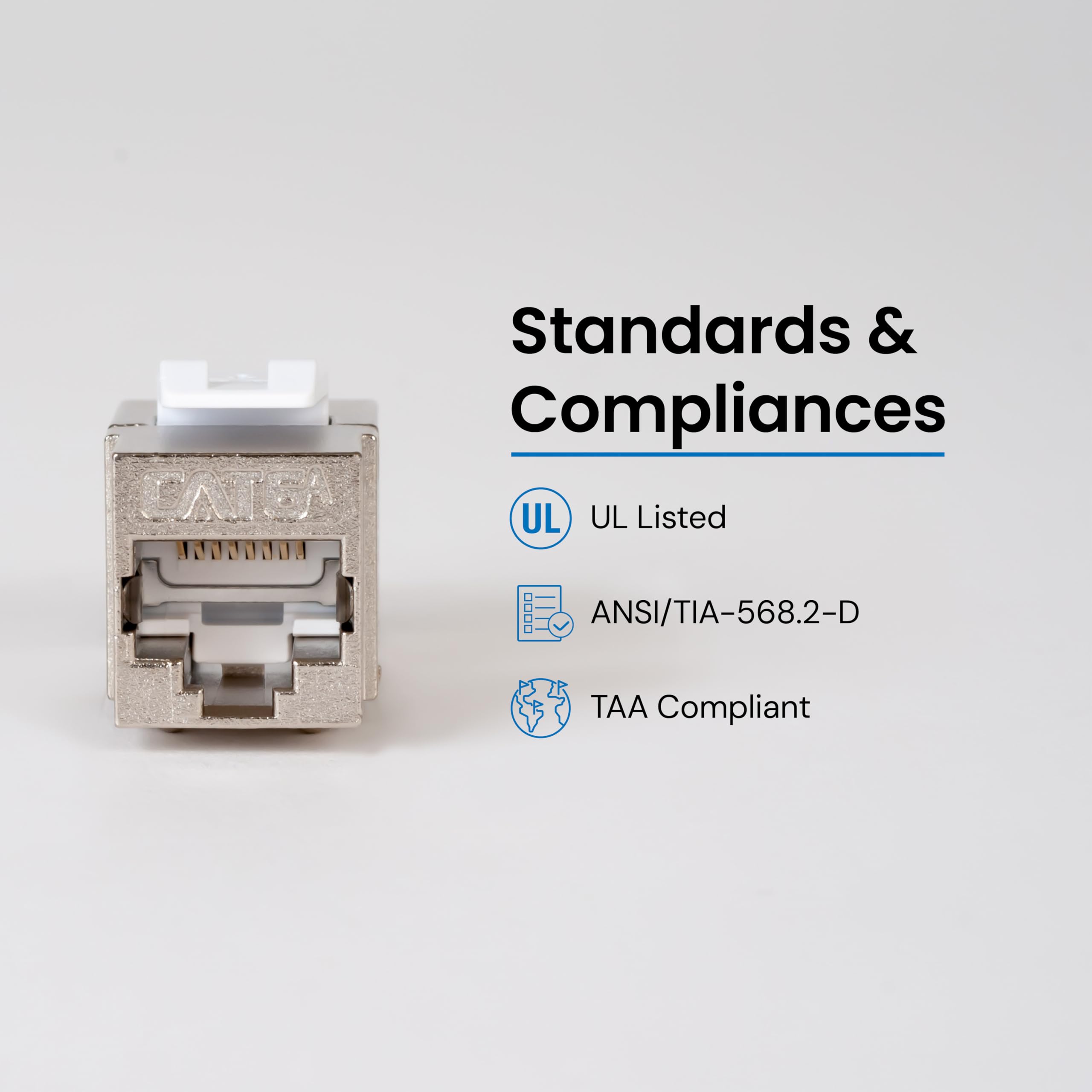

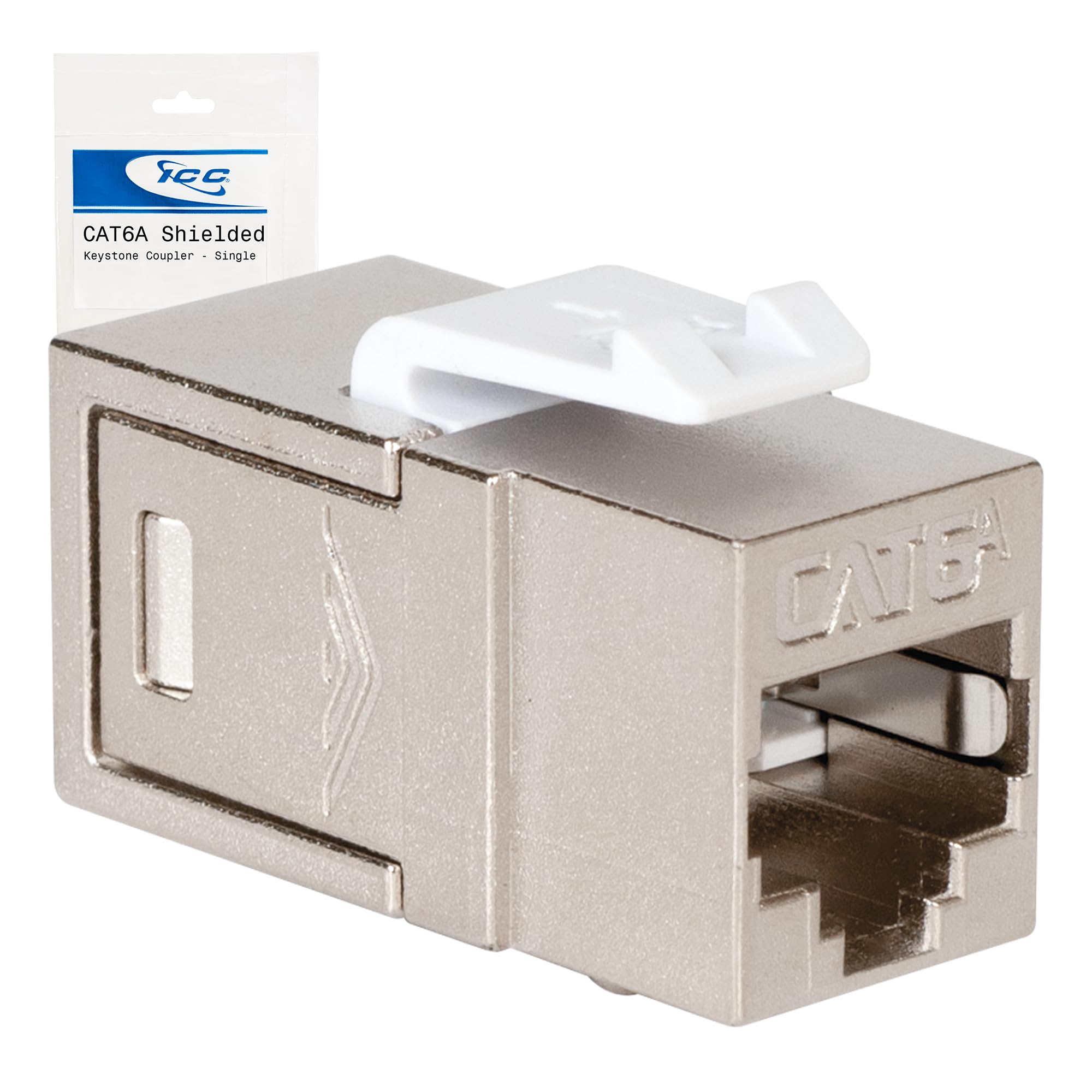

ICC Category 6A FTP feed-through in-line coupler has a die-cast metal housing to shield and protect data transmission from harmful Electromagnetic Interference (EMI) commonly present around power cables, heavy machinery and external noises that cause Alien Crosstalk. The coupler has 8-position 8-conductor RJ-45 keystone jacks on both ends to connect two CAT 6A patch cords without requiring termination. The contacts within each port are made using high-quality phosphor bronze plated with 70~100 micro-inch nickel and then plated with 50 micro-inches of gold. The insertion force of the eight contacts is 900 GMS. The retention strength is 7.7 KGS between the jack and plug. The keystone jack can withstand 750 insertion and removal cycles from an RJ45 CAT6A patch cable. The CAT6A keystone coupler is built with PCB technology to provide maximum performance and superior signal quality. The feed-thru CAT 6A coupler is factory tested to exceed ANSI/TIA-568.2-D Category 6A connecting hardware requirements without degradation in performance.

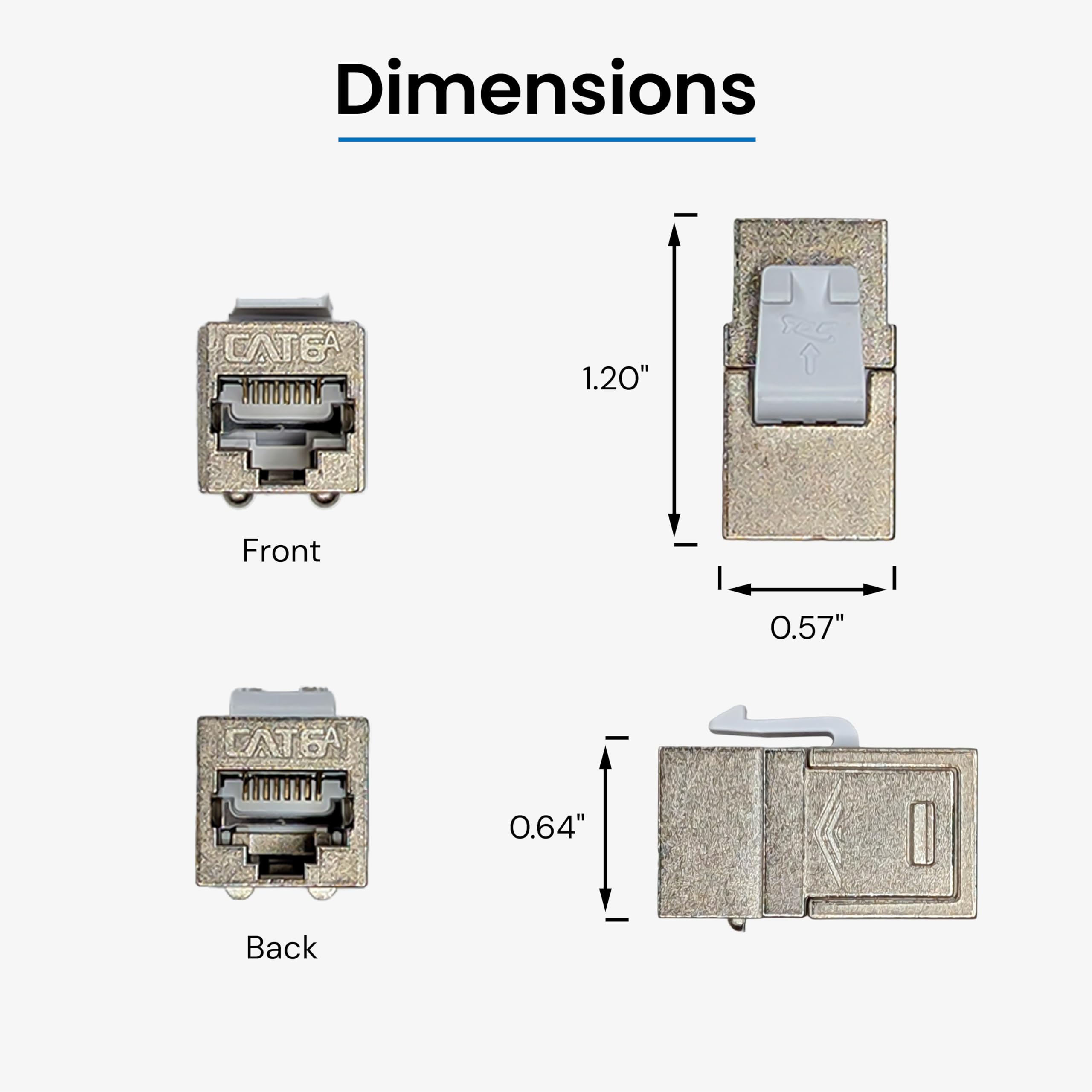

|Shipping Dimensions (L x W x H)
||7.25 × 6.3 × 0.2 in
CAT6A Shielded HD
|Country of Origin (subject to change)
- Shielded housing protects against electromagnetic interference (EMI)
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.

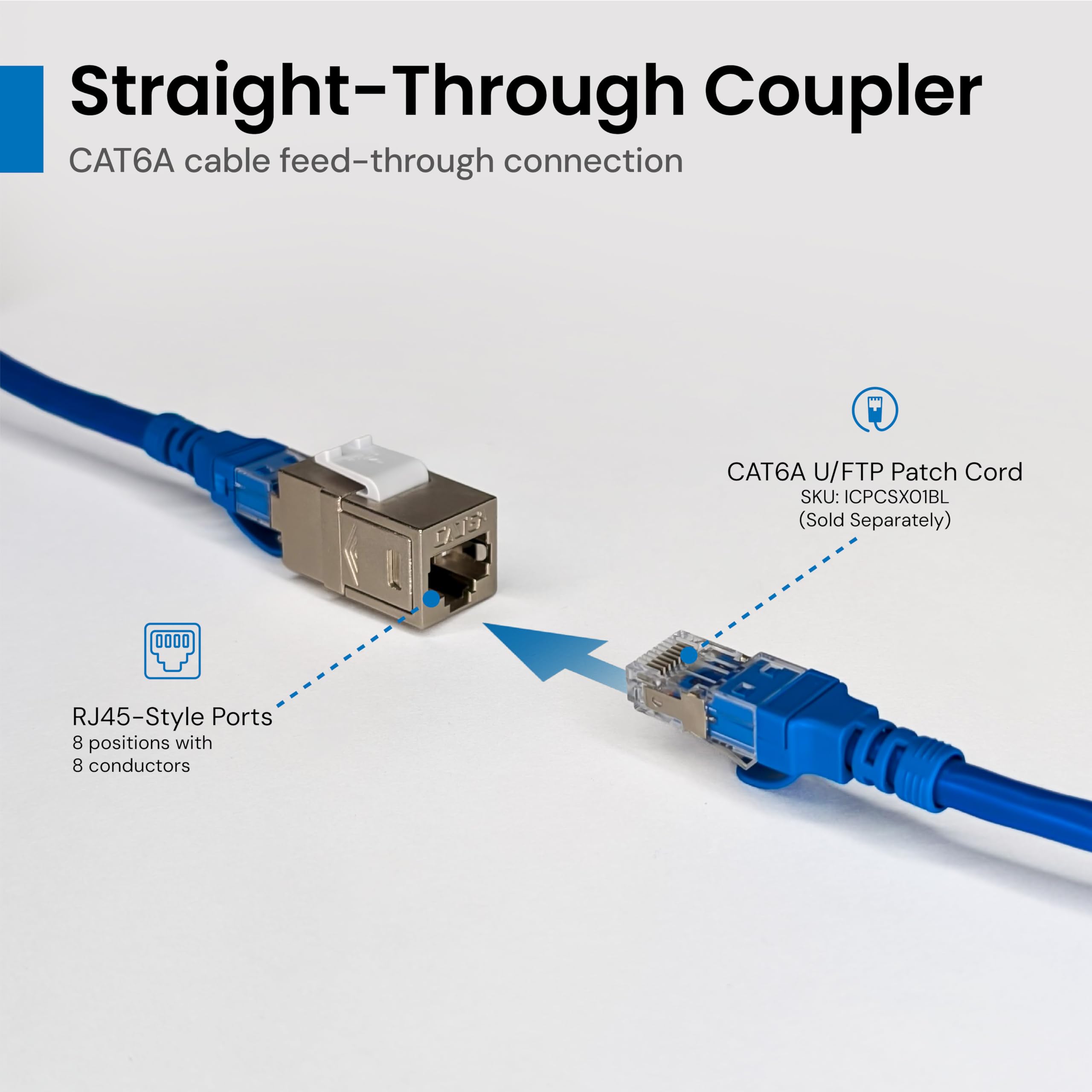

- Provides pin 1-1 RJ-45 CAT6A coupling.
- High-density footprint allows for greater connectivity in tight spaces.

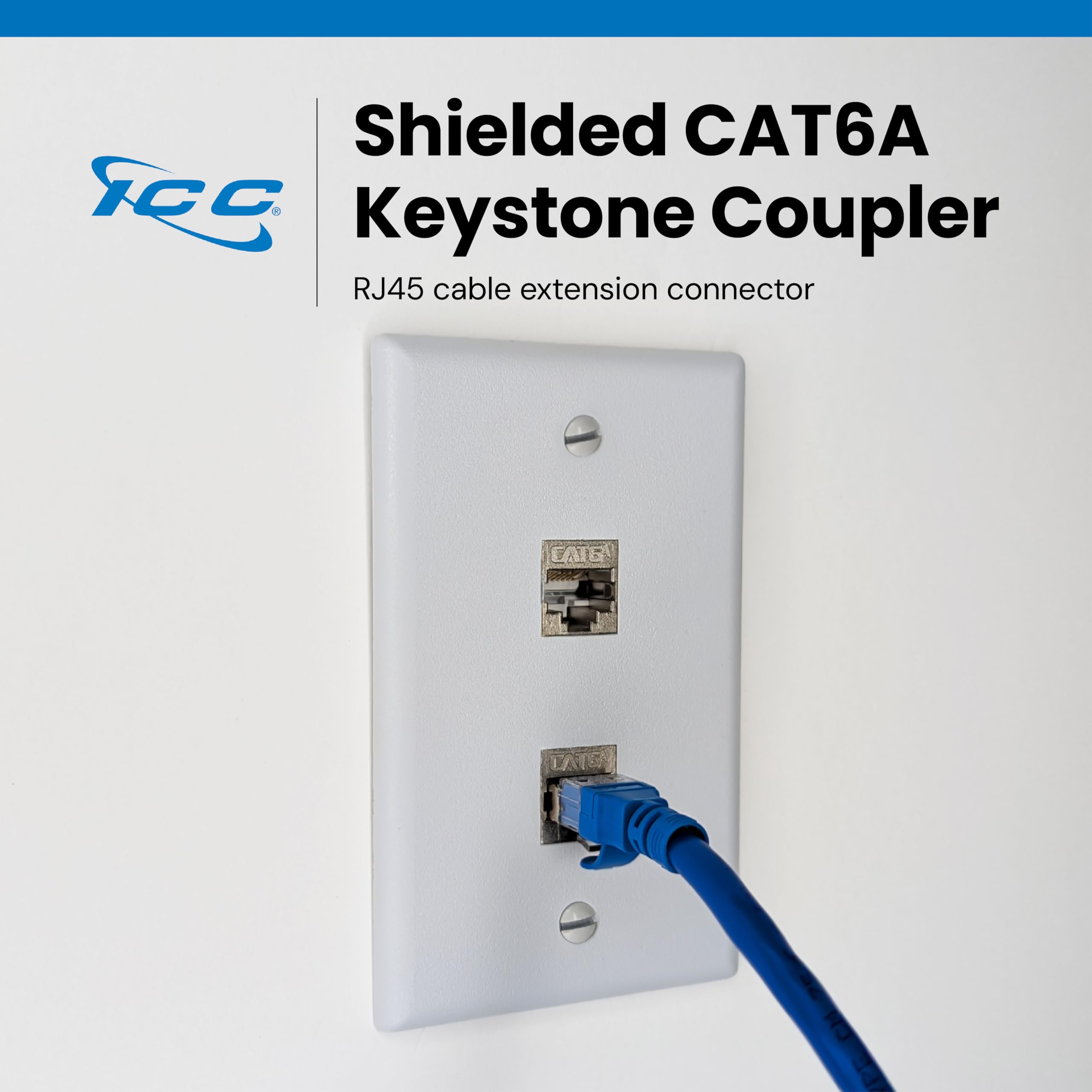

- Works with all Work Area Outlets faceplates, inserts, and surface mount boxes.
- Backwards compatible with lower category-rated systems (CAT6 and CAT5e).
Storage:-40 to 70°C, Operational:-10 to 60°C
Relative Humidity (Operational): Maximum Noncondensing 93%
Voltage Rating: 100 Volt D.C.
Current Rating: 1.5 AMPS
Insulation Resistance: 500 mega ohm min
Dielectric Withstanding Voltage: 1,000 volts D.C. or A.C., 60 Hz
Mating Force: 5 lbs. Max
Unmating Force: 5 lbs. Max
Plug Retention in Jack: 20 lbs. Min
Durability: 750 Cycles
Material and Finish:

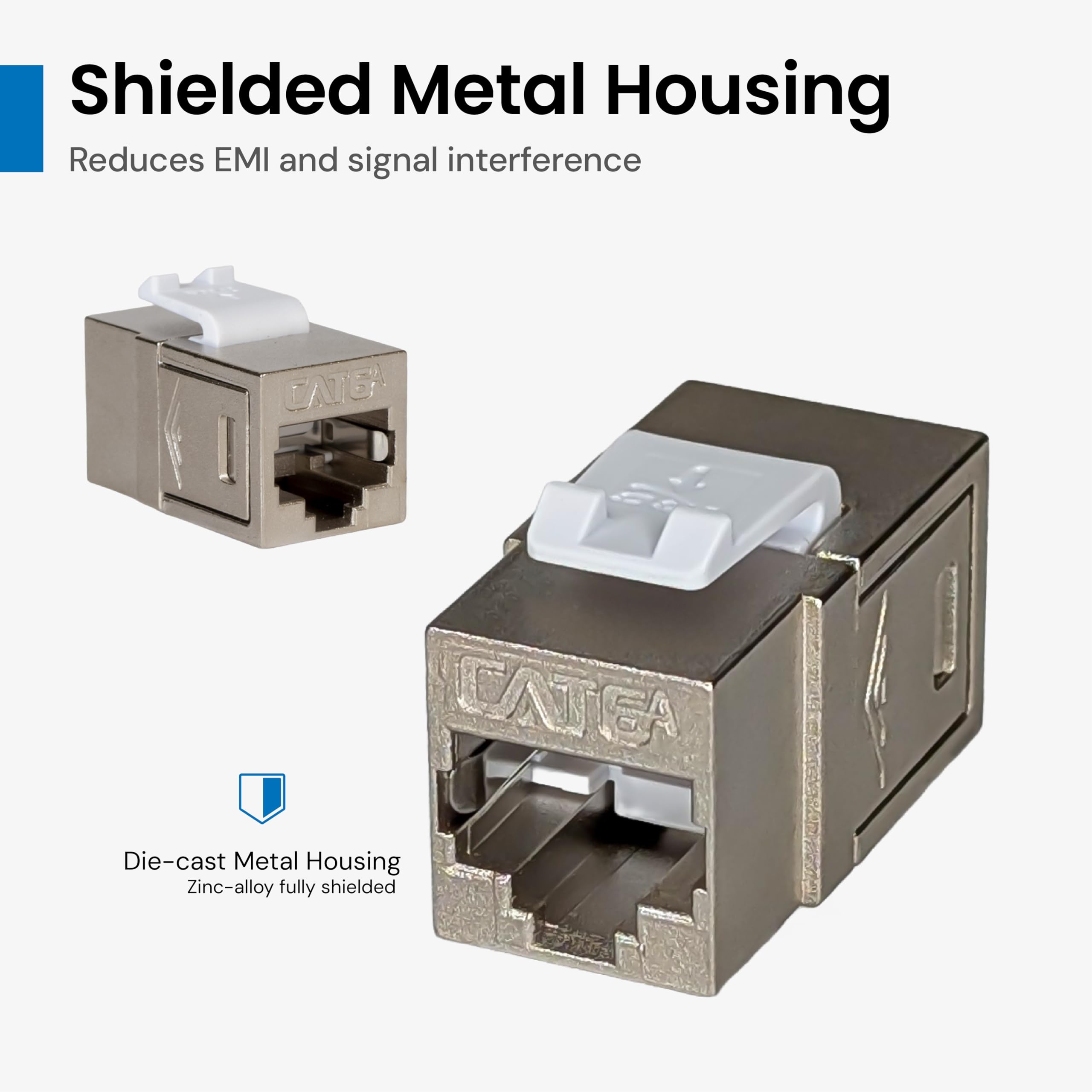

Housing: Zinc-Alloy Fully shielded

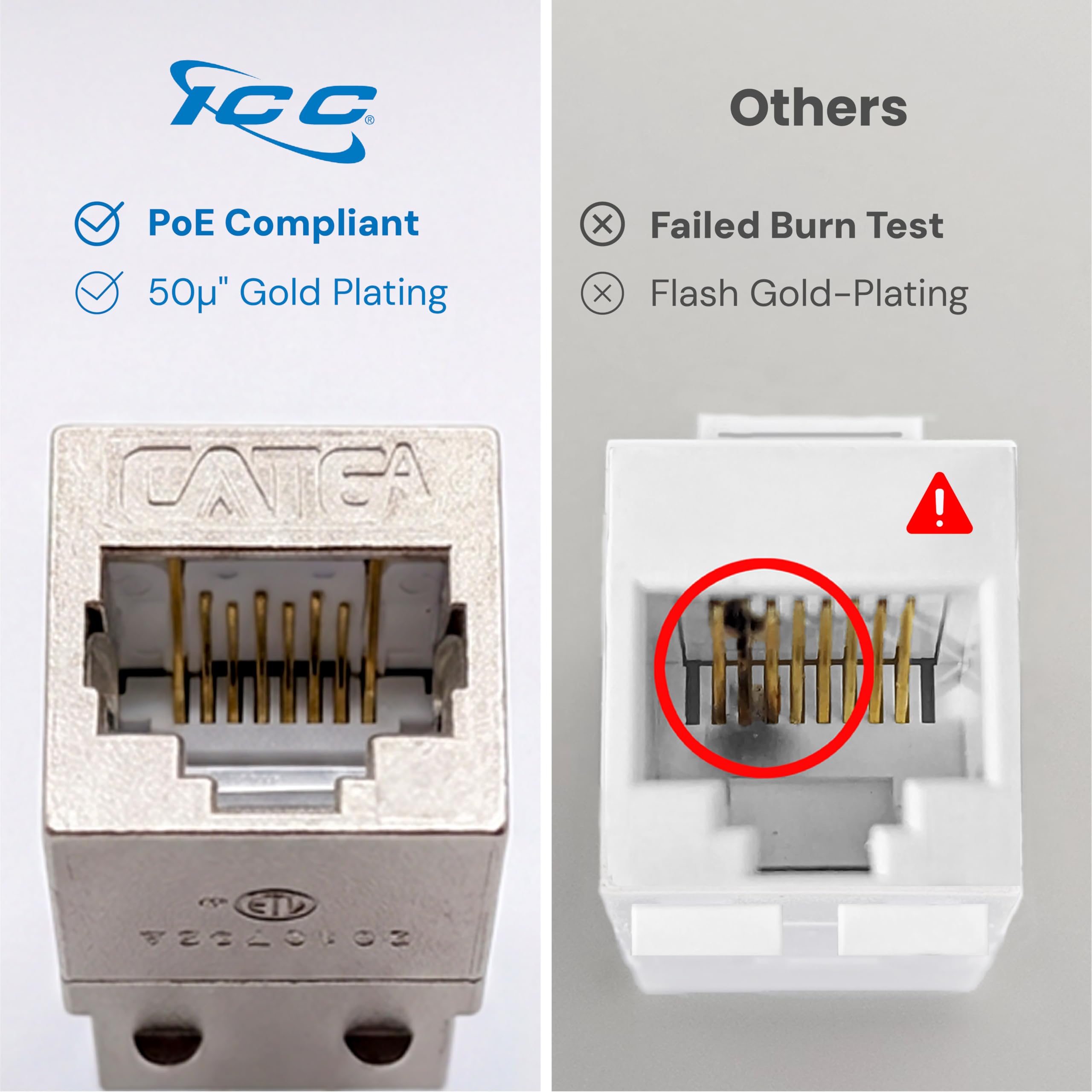

Contact: Phosphor Bronze Alloy Plated with 50 μin of Gold
over 70~100 μin of Nickel
Gold Plating: 1.27 Micron/ 50 Micro inch Min
