Male to Blunt Telco Cable Assembly in 25 Pair
| Style: Male-Blunt |
|
Country of Origin (subject to change): China
California Prop 65 WarningDescription

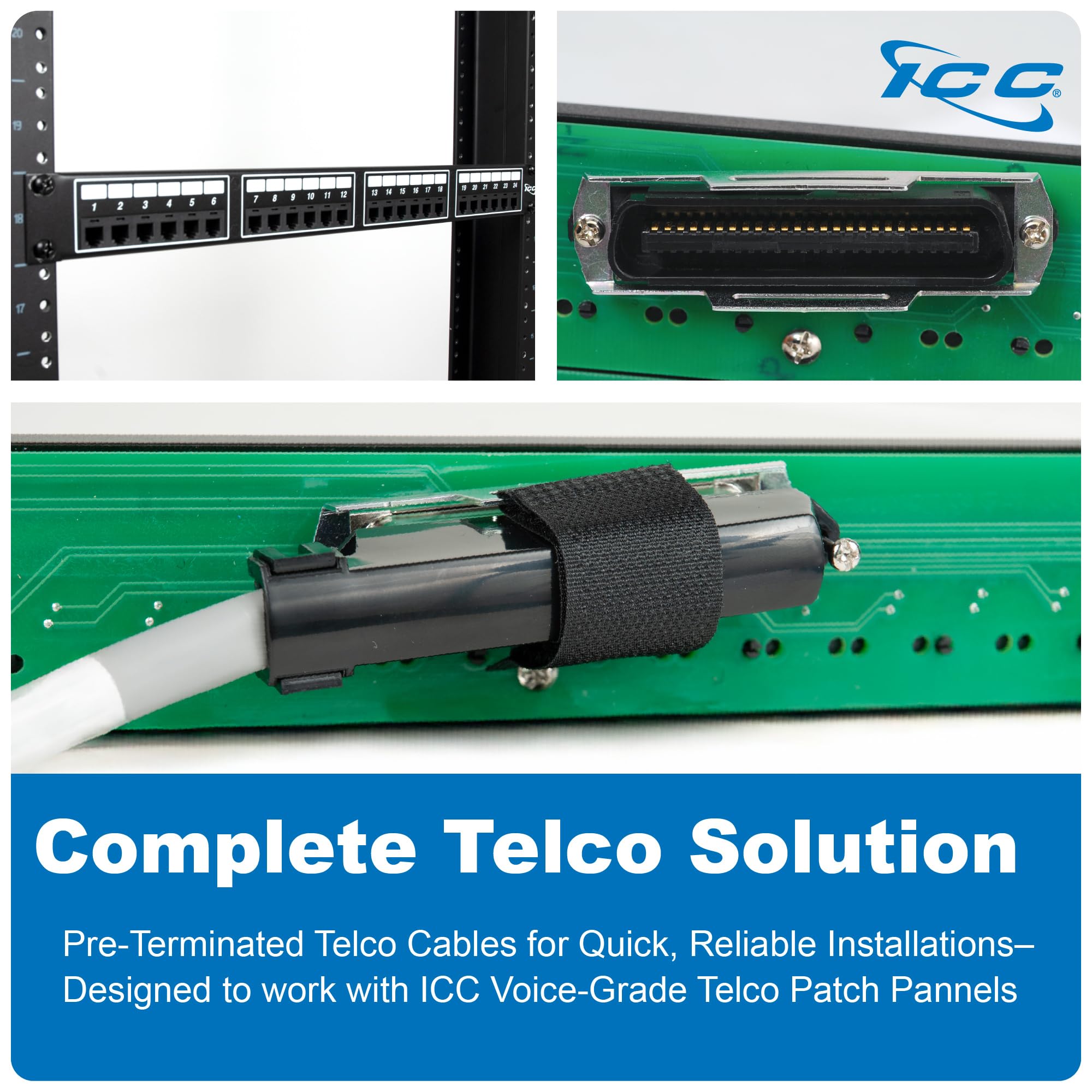

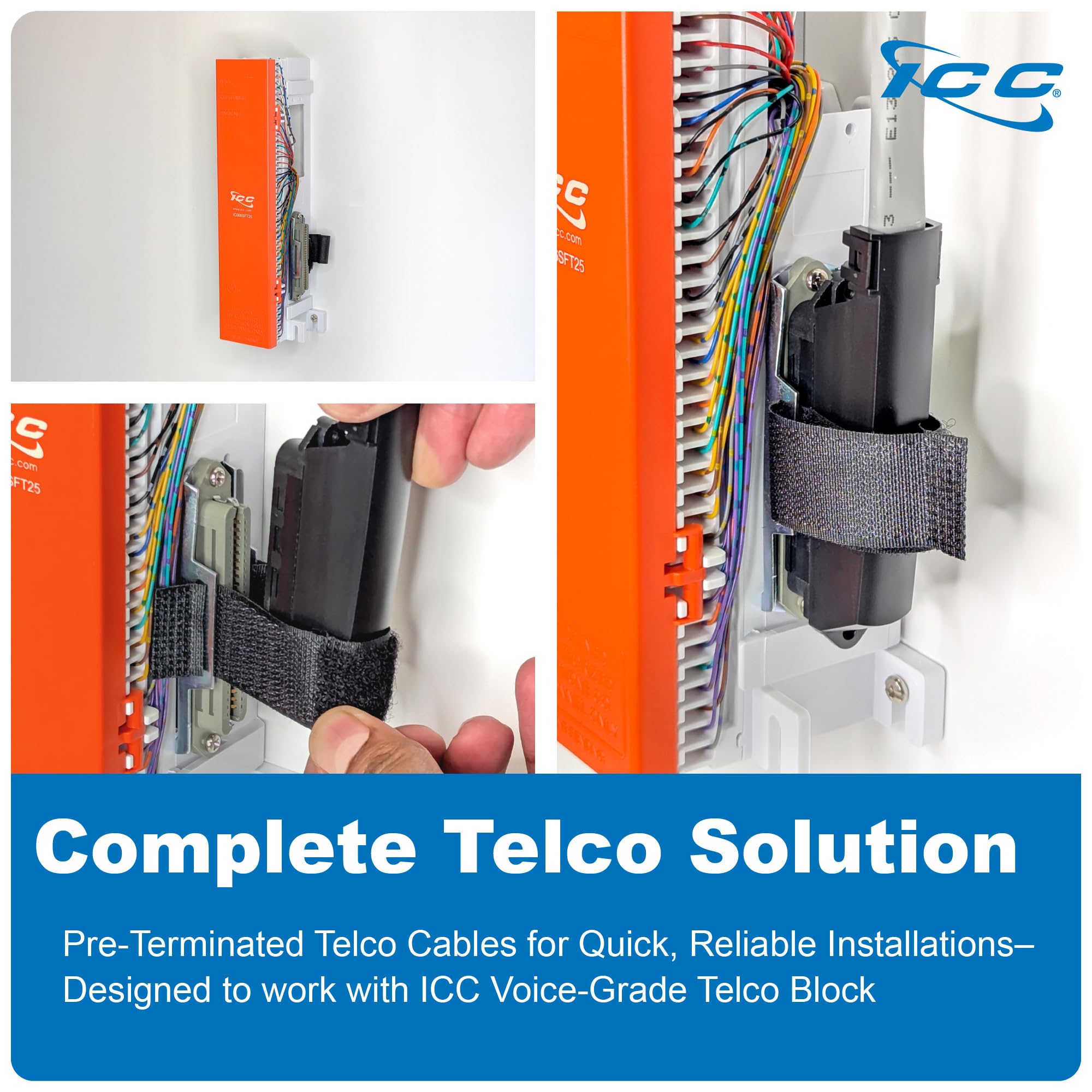

The male-to-blunt 25-pair Telco Cable Assembly provides connectivity for voice and data applications. It can be used on patch panels, punch down boxes, distribution boxes, and ICC’s 66 and 110 wiring blocks.
Features
- Designed for use with voice and low data applications with punch down blocks, patch panels, and distribution boxes.
- Can also be used as extension cables.
- 24 AWG unshielded twisted pair (UTP) Category 3 rated cable.
- Includes one 50-pin male telco connector (RJ21).
- Available in 5, 10, 15, and 25 FT.
Specifications

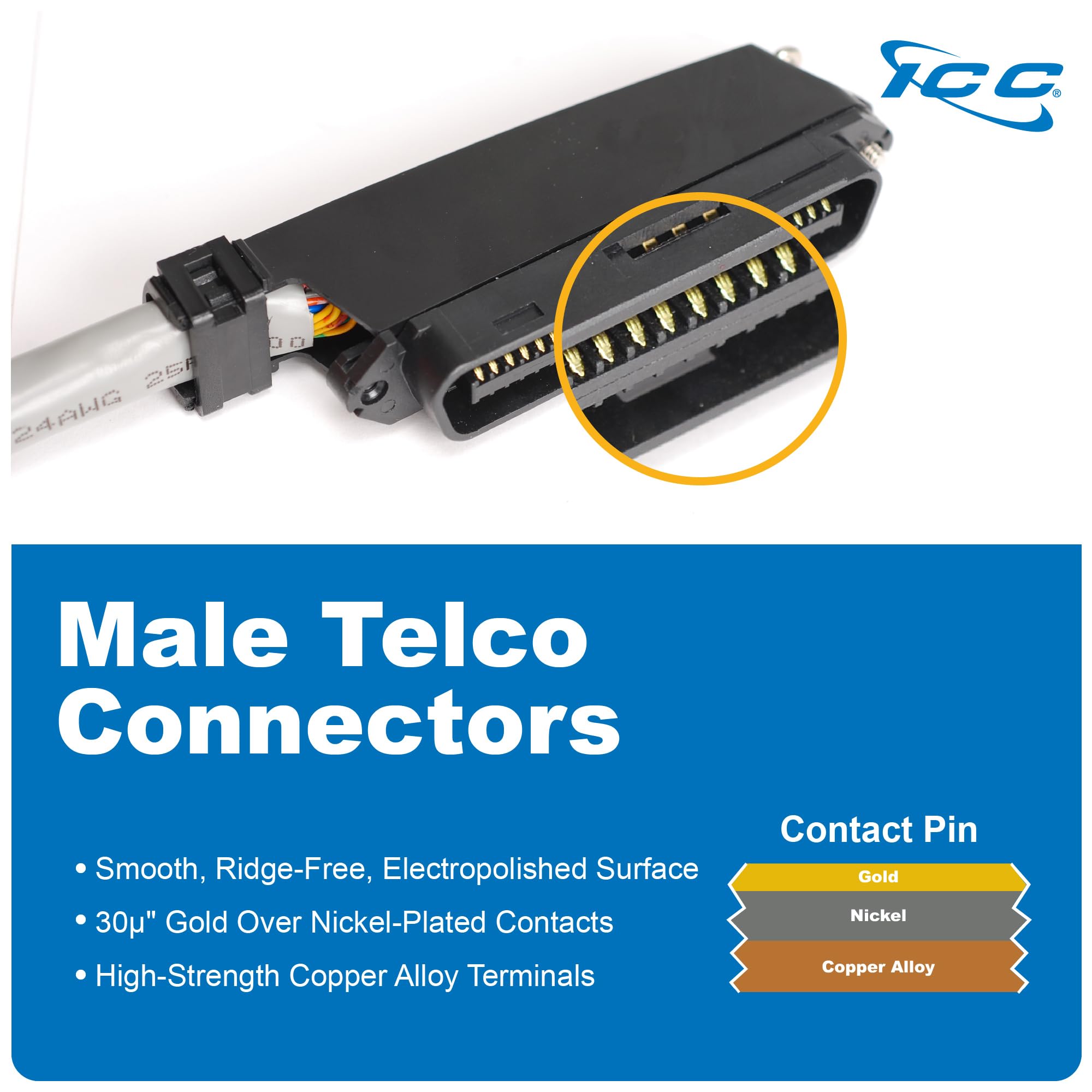

Male 50 Pin Telco Connector:
Material:
High Strength Copper Alloy Contacts
High Impact Thermo Plastic Housing and Cover
Finish: 30 micro inches of Gold over Nickel Plating in mating contact area
Color: Black
25 Pair CAT 3 Telco Cable:
Material:
24 AWG Solid Copper Conductors
PVC Insulation and Jacket
CMR
Color: Gray
Length XX: 05-5 ft, 10-10 ft, 15-15 ft and 25-25 ft
