Female to Male Telco Cable Assembly in 25 Pair

Clear
SKU: ICPCSTFMXX Categories: ,

Description

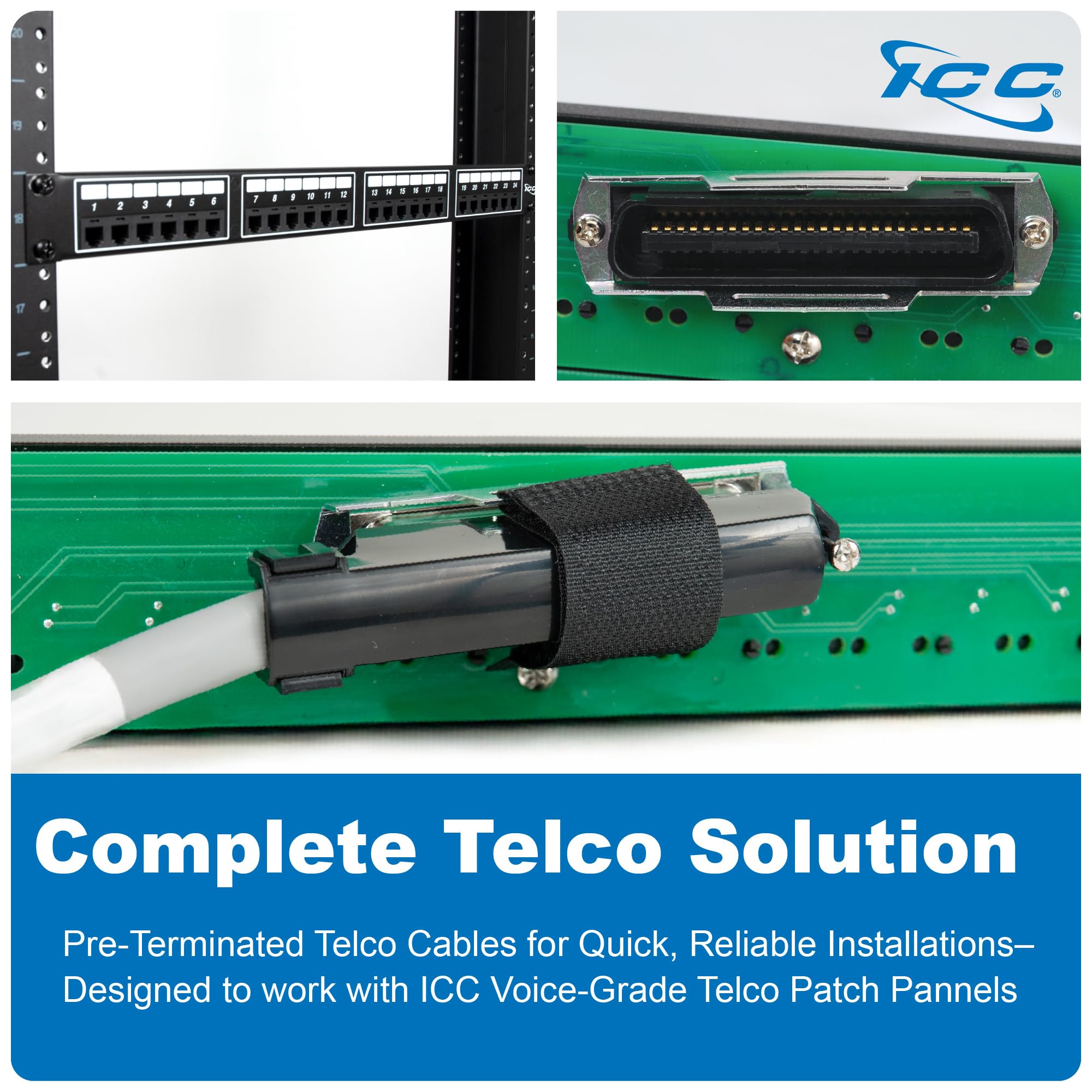

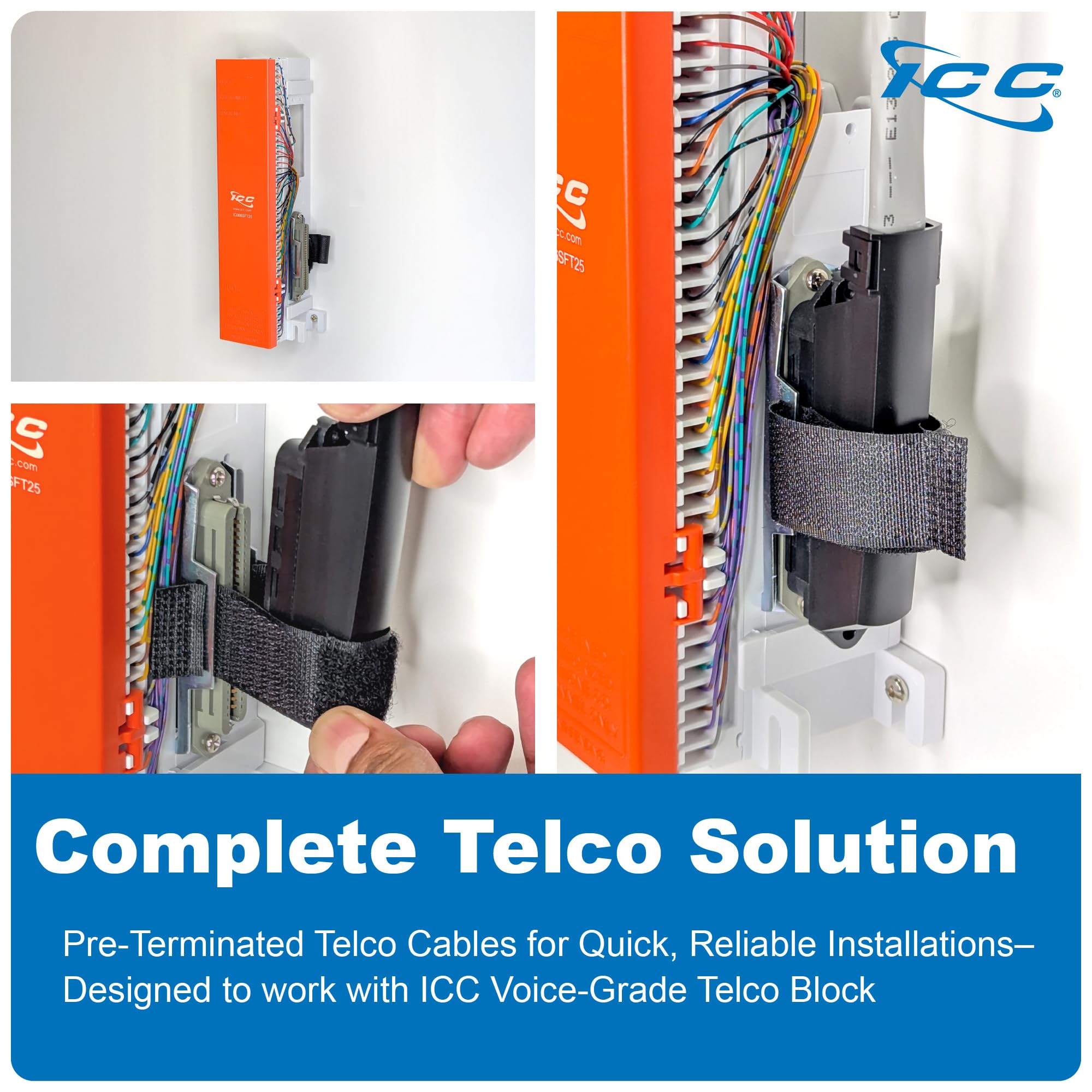

The female-to-male 25-pair Telco Cable Assembly provides connectivity for voice and data applications. It can be used on patch panels, punch down boxes, distribution boxes, and ICC’s 66 and 110 wiring blocks.

Features

  • Designed for use with voice and low data applications with punch down blocks, patch panels, and distribution boxes.
  • Can also be used as extension cables.
  • 24 AWG unshielded twisted pair (UTP) Category 3 rated cable.
  • Includes one 50-pin male telco connectors (RJ21) and one 50-pin female telco connector (RJ21)
  • Available¬†in 5, 10, 15, and 25 ft.

Specifications

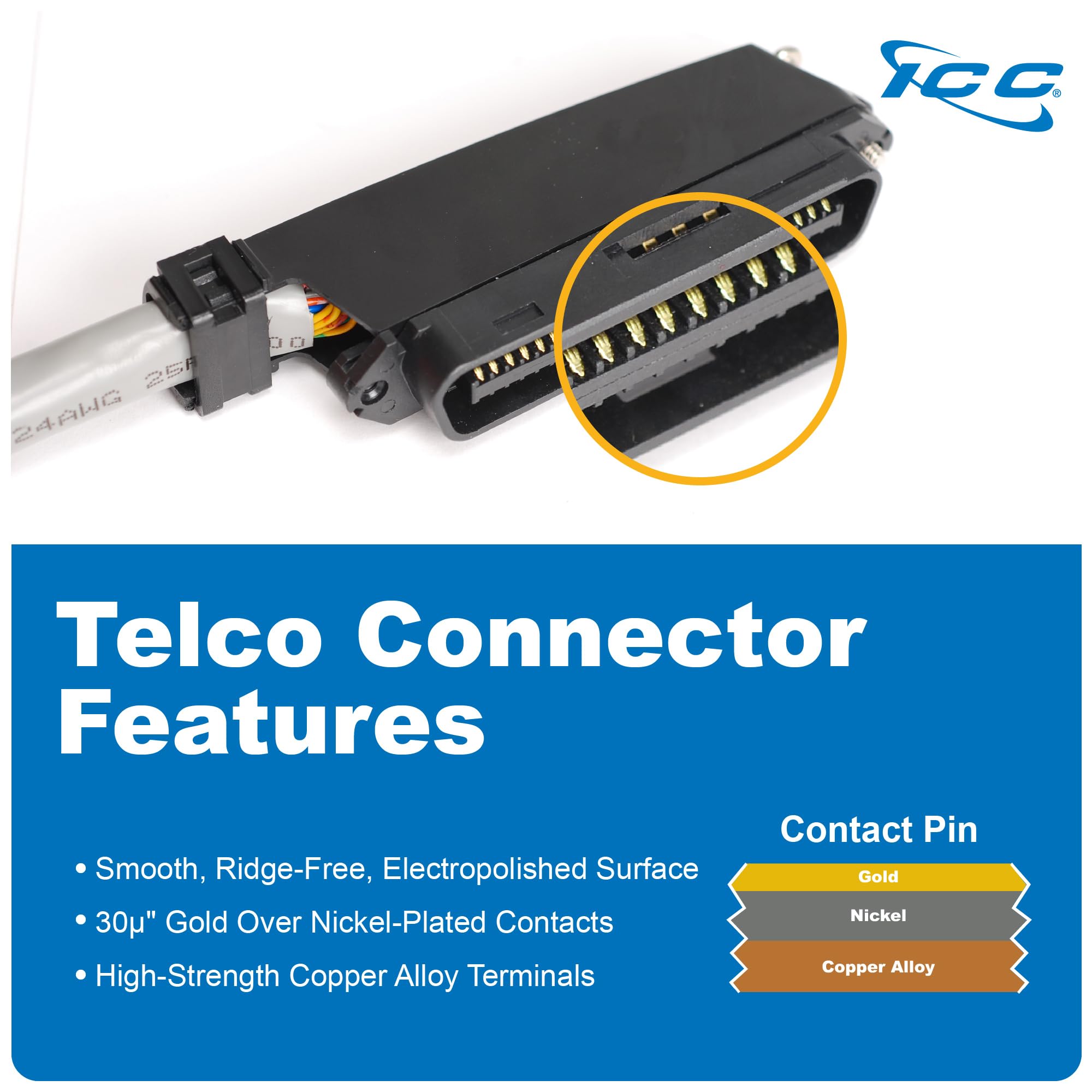

Male & Female 50-Pin Telco Connectors:
Material:
High Strength Copper Alloy Contacts
High Impact Thermo Plastic Housing and Cover
Finish: 30 micro inches of Gold over Nickel Plating in mating contact area
Color: Black

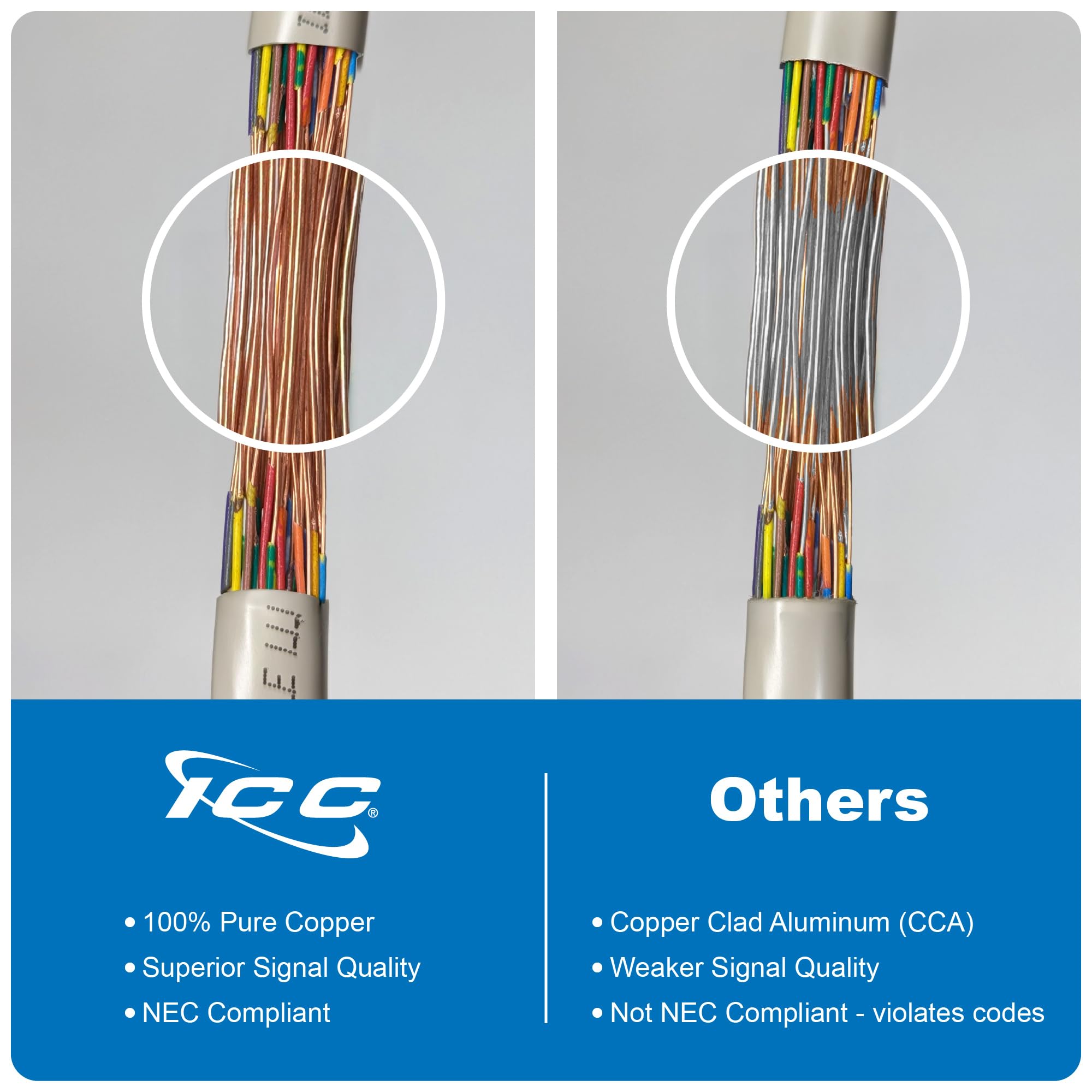

25 Pair CAT 3 Telco Cable:
Material:
24 AWG Solid Copper Conductors
PVC Insulation and Jacket
CMR
Color: Gray
Length XX: 05-5 ft, 10-10 ft, 15-15 ft, and 25-25 ft
