CAT6 Clear Boot Patch Cord
ICC’s CAT6 unshielded twisted pair (UTP) patch cords exceed all performance requirements up to 550 MHz. They are ETL verified to ANSI/TIA-568-C.2 and UL listed. These patch cords are made from low-profile, snag-free boots for high-density applications. They are available in the most popular stock length and in a variety of colors to easily differentiate connection types.
- 100% Factory Tested, 50 Micro Inch Gold-plated contacts.

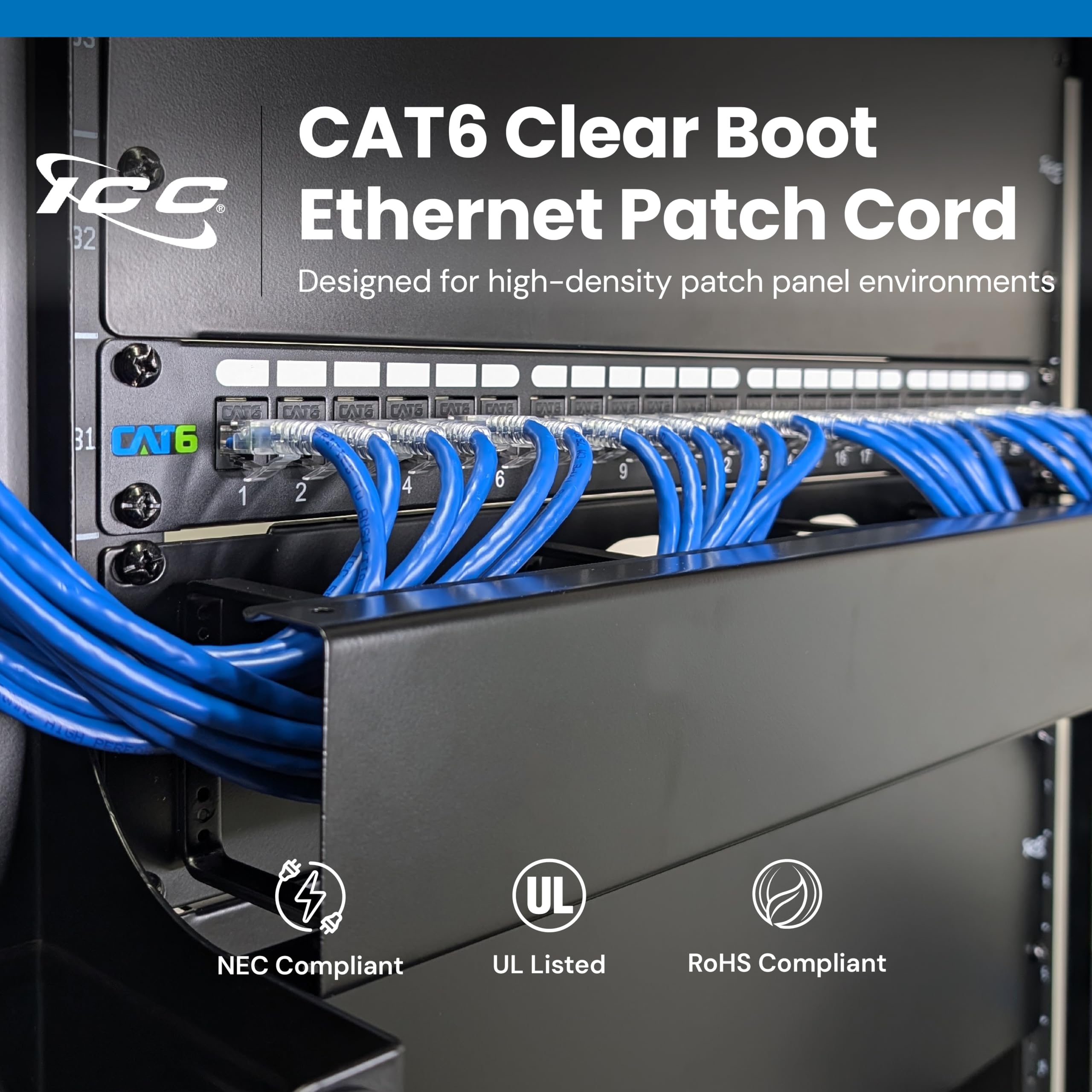

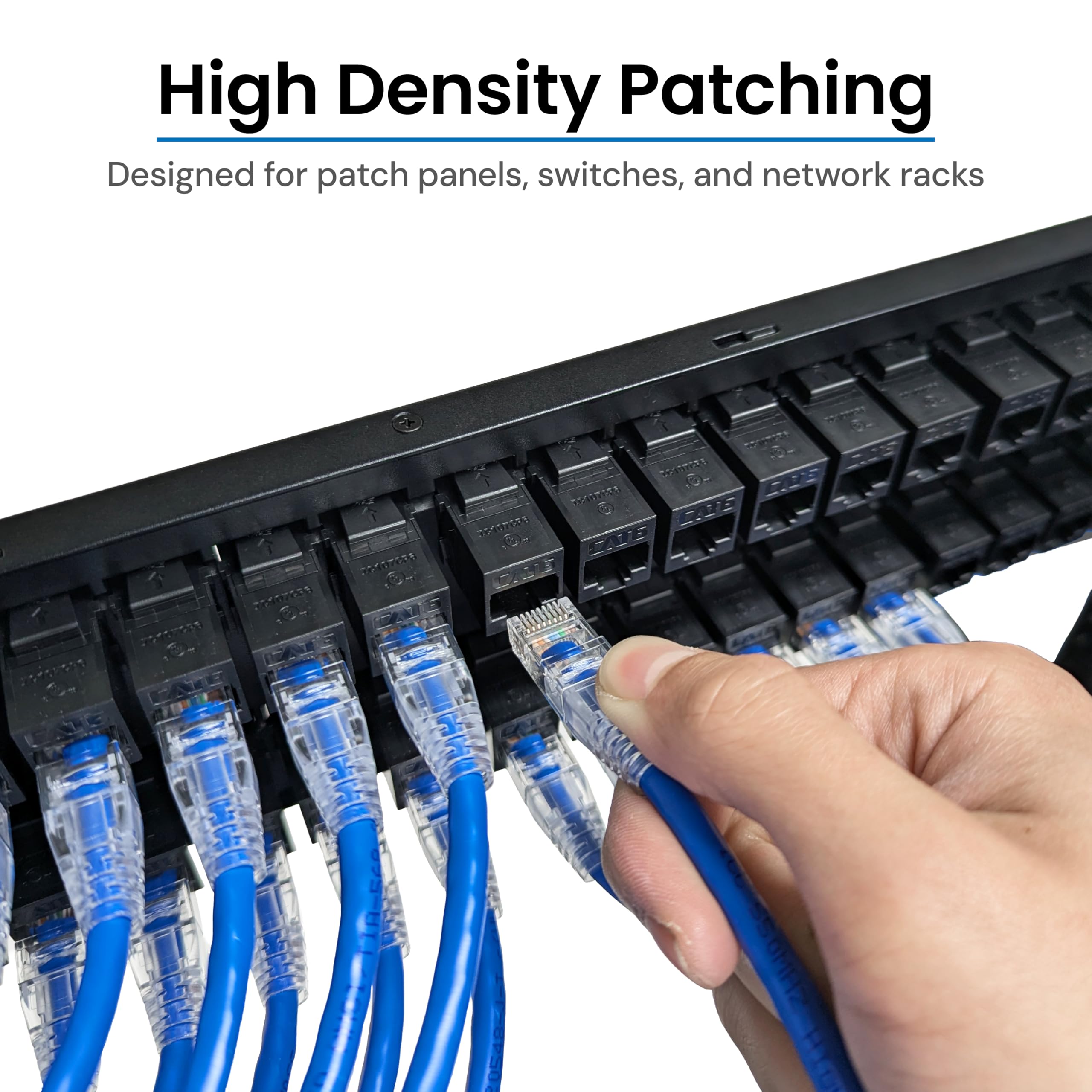

- Low Profile boots for high-density applications.
- No width wasted on boot.
- Backward compatible with all lower rated category components.
- Constructed with Ultra Flexible, EZ release, Snag Free Molded Strain relief.
- Stranded bare 24 AWG copper wire.
- Safety: UL listed with 94V-0 rated plugs, CSA, CMG, FT4 Flame rated.
Operating Temperature -20°C to 80°C
Velocity of Proportion NOM 67%
Capacitance, Mutual 14.5 PF/FT at 1 MHz
Dielectric withstands, min 1500V RMS
D.C Resistance, max 93.2 ohms/km at 20°C
Impedance, Characteristic, NOM 100.0 OHMS
±15 at 1 to 100 MHz
±20 at 100 to 350 MHz
UL Applications: 250 Volts max, at 2 AMPS
Resistance of Insulation: 500 Megaohms
Resistance of Termination: 35 Milliohms max at -40°C to -70°C
Dielectric Withstanding Voltage: 500 Volts AC
Material and Finish:
Cable: CAT6 Patch Cable
Jacket: Material: PVC
Overall Diameter: 0.250″ max
Average Thickness: 0.020″
Insulation: Material: High-Density Polyethylene
Overall Diameter: 0.038″
Average Thickness: 0.007″
Conductor: 24 AWG (7×32) UL Rated, Bare Copper Wire, Stranded
Performance Rating: CAT6
Modular Plug with Loading Bar: UL and cUL Recognized
Housing: Polycarbonate, UL 94V-0
Contact: Phosphor Bronze, 0.014 inch thick
Gold Plating: 1.27 microns/50 micro inch min on contacts
No. of contacts: 8
Strain Relief Boot:
Material: 70P PVC
Cable to Plug Tensile strength: 20 lbs (89N) min
Durability: 200 mating cycles min
Color XX: BL-Blue, BK-Black, GN-Green, GY-Gray, OR-Orange, RD-Red, WH-White, YL-Yellow
