CAT6 Molded Boot Patch Cord

Clear
SKU: ICPCSKZZXX Categories: , ,

Description

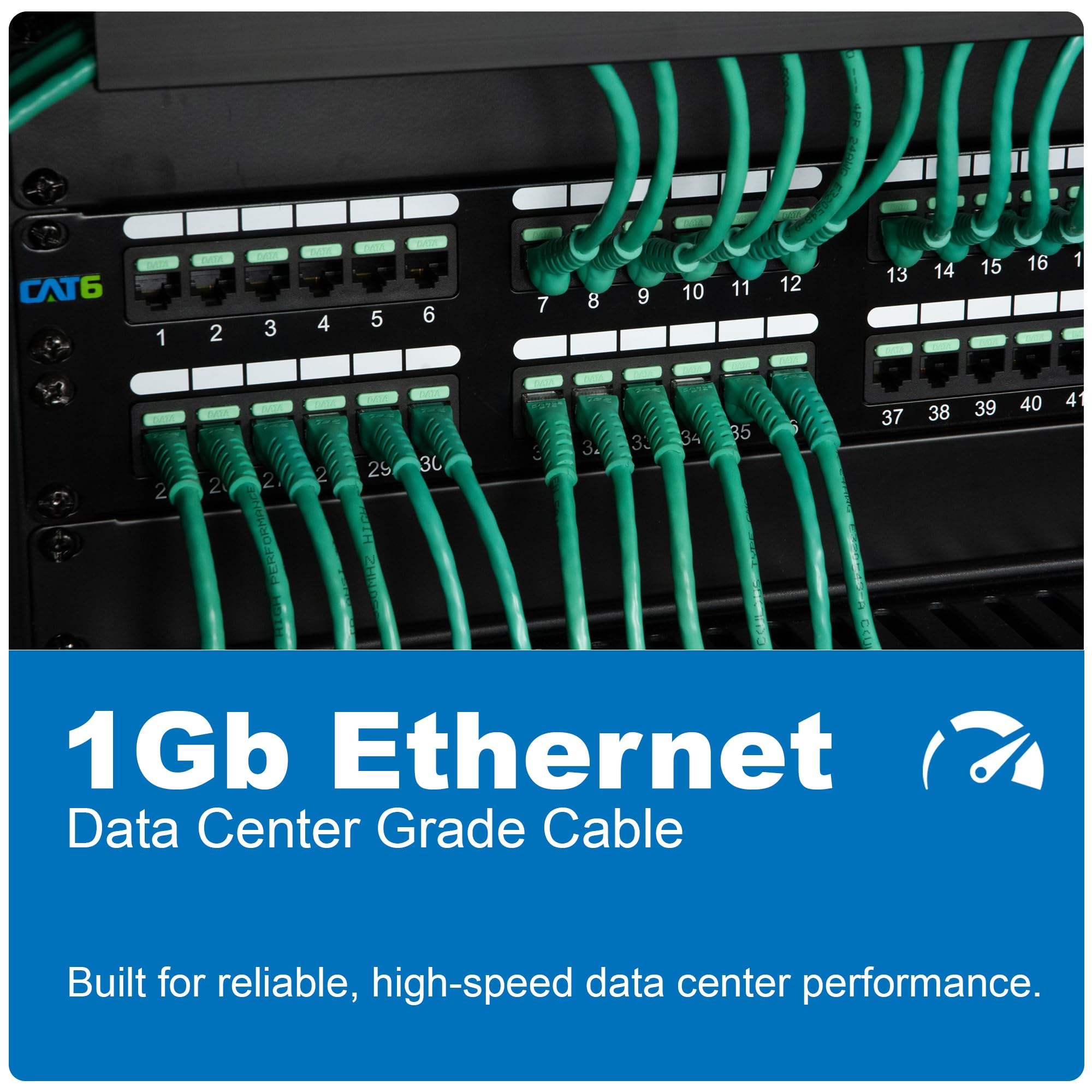

ICC’s CAT6 unshielded twisted pair (UTP) patch cords exceed all performance requirements up to 550 MHz, ETL verified to ANSI/TIA-568-C.2 and is UL listed. These patch cords are made from low profile snag-free boots for high-density applications. They are available in a variety of colors to easily differentiate connection types and with the most popular stock lengths.

Features

  • 100% Factory Tested, 50 Micro Inch Gold plated contacts.

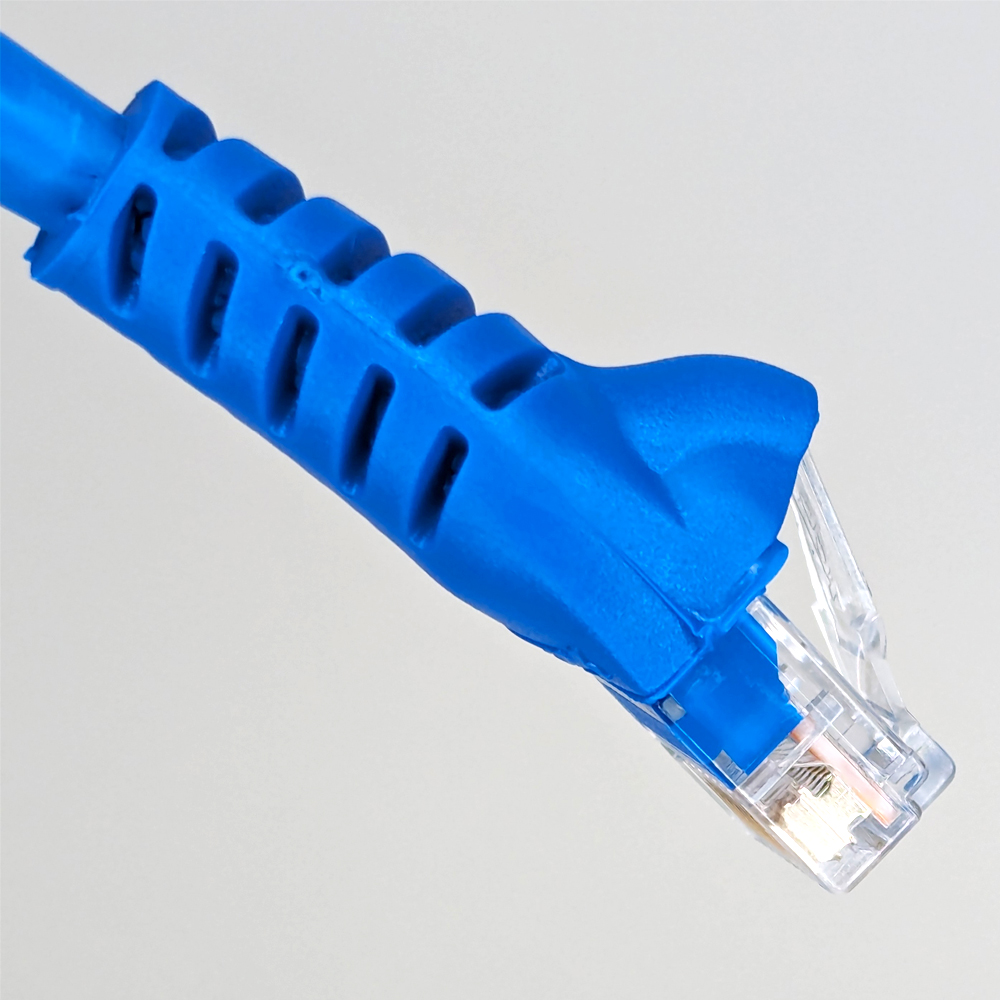

  • Low Profile boots for high-density applications.
  • No width wasted on boot.
  • Backwards compatible with all lower rated category components.
  • Constructed with (Ultra Flexible, EZ release, Snag Free Molded Strain relief).

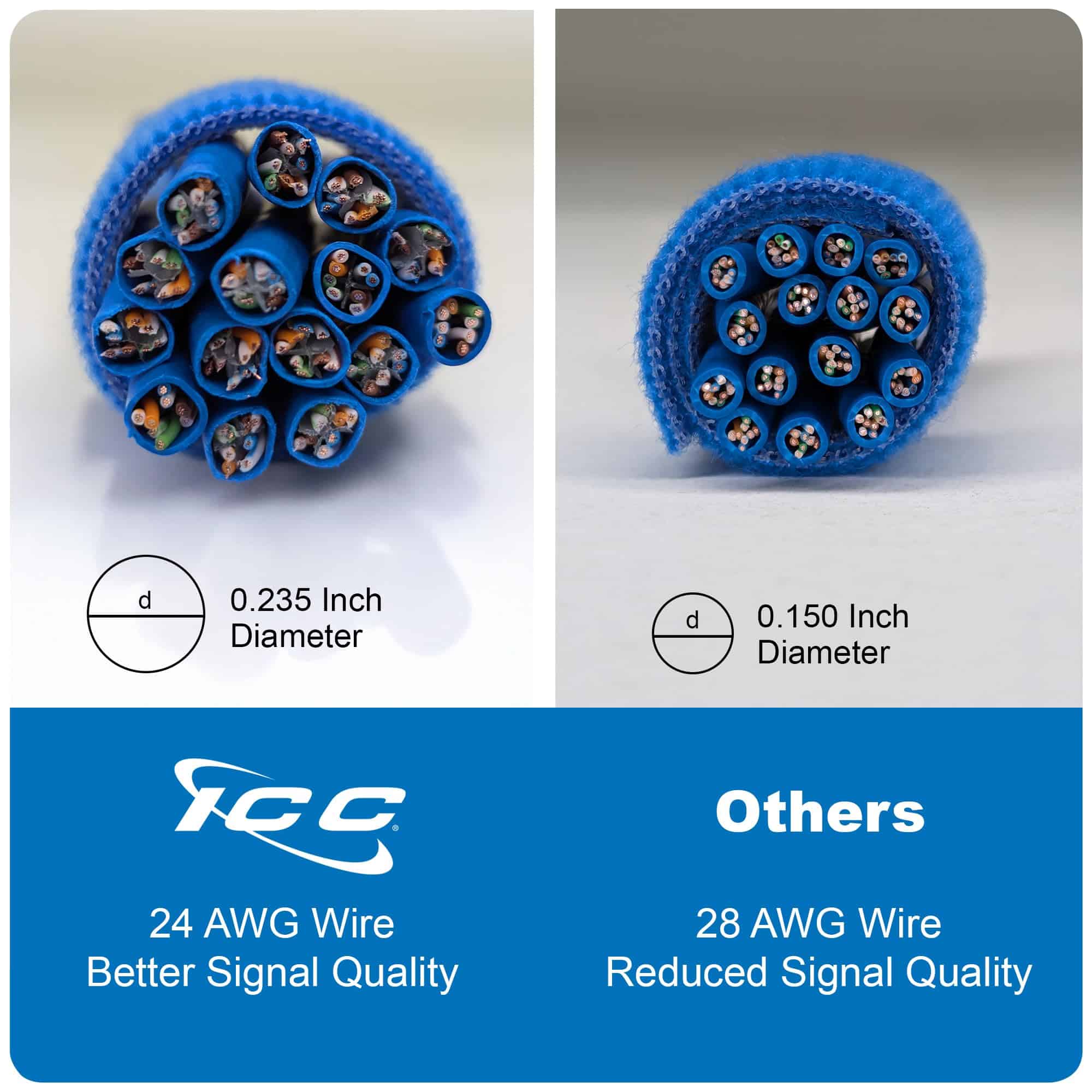

  • Stranded bare 24 AWG copper wire.
  • Safety: UL listed with 94V-0 rated plugs, CSA, CMG, FT4 Flame rated.
  • Available in 8 colors (Blue, Black, Green, Gray, Orange, Red, White, Yellow).
  • Available in 7 lengths (1, 3, 5, 7, 10, 14, 25 ft).

Specifications

Electrical/Physical:
Cable:
Operating Temperature -20°C to 80°C
Velocity of Proportion NOM 67%
Capacitance, Mutual 14.5 PF/FT at 1 MHz
Dielectric withstands, min 1500V RMS
D.C Resistance, max 93.2 ohms/km at 20°C
Impedance, Characteristic, NOM 100.0 OHMS
±15 at 1 to 100 MHz
±20 at 100 to 350 MHz
Modular Plug:
UL Applications: 250 Volts max, at 2 AMPS
Resistance of Insulation: 500 Megaohms
Resistance of Termination: 35 Milliohms max at -40°C to -70°C
Dielectric Withstanding Voltage: 500 Volts AC
Material and Finish:
Cable: CAT6 Patch Cable
Jacket: Material: PVC
Overall Diameter: 0.250″ max
Average Thickness: 0.020″
Insulation: Material: High-Density Polyethylene
Overall Diameter: 0.038″
Average Thickness: 0.007″
Conductor: 24 AWG (7×32) UL Rated, Bare Copper Wire, Stranded
Performance Rating: CAT6
Modular Plug with Loading Bar: UL and cUL Recognized
Housing: Polycarbonate, UL 94V-0
Color: Clear

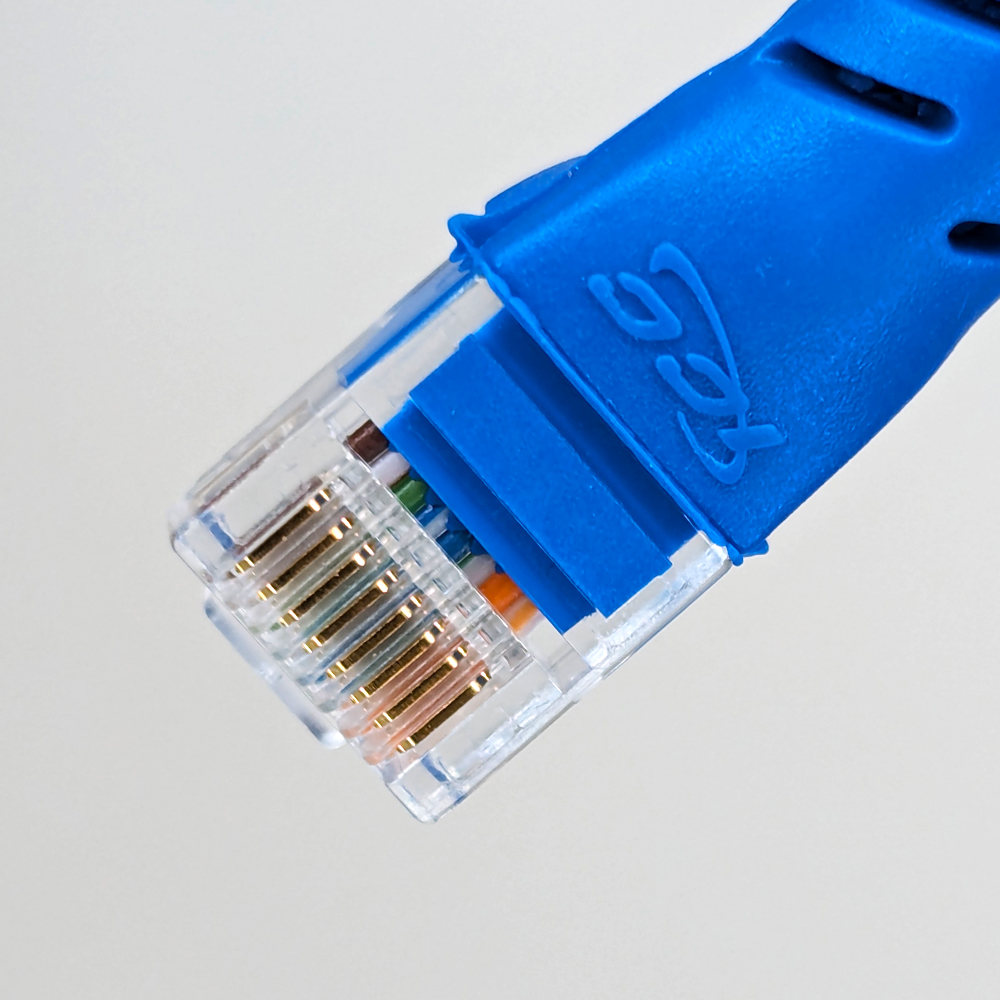

Contact: Phosphor Bronze, 0.014 inch thick

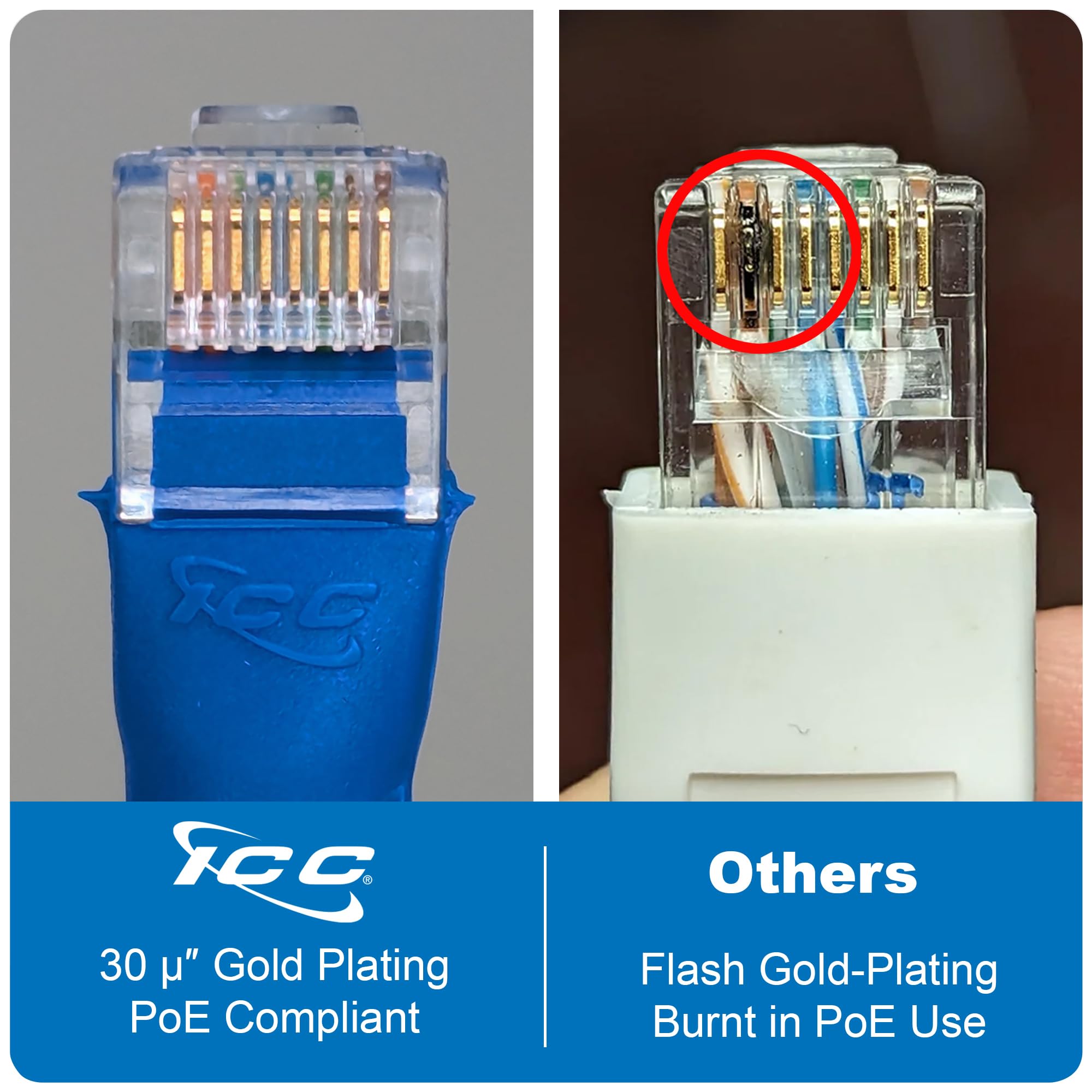

Gold Plating: 1.27 microns/50 micro inch min on contacts
No. of contacts: 8
Strain Relief Boot:
Material: 70P PVC
Mechanical:
Cable to Plug Tensile strength: 20 lbs (89N) min
Durability: 200 mating cycles min
Color:
Color XX: BL-Blue, BK-Black, GN-Green, GY-Gray, OR-Orange, RD-Red, WH-White, YL-Yellow

Additional information

Weight:

0.00 LBS

Type:

Patch Cords

Performance:

CAT6

Style:

Male

Length:

1 FT, 3 FT, 5 FT, 7 FT, 10 FT, 14 FT, 25 FT

Color

Black, Blue, Gray, Green, Orange, Red, White, Yellow

Packaging

Single, 25-Pack
