Description

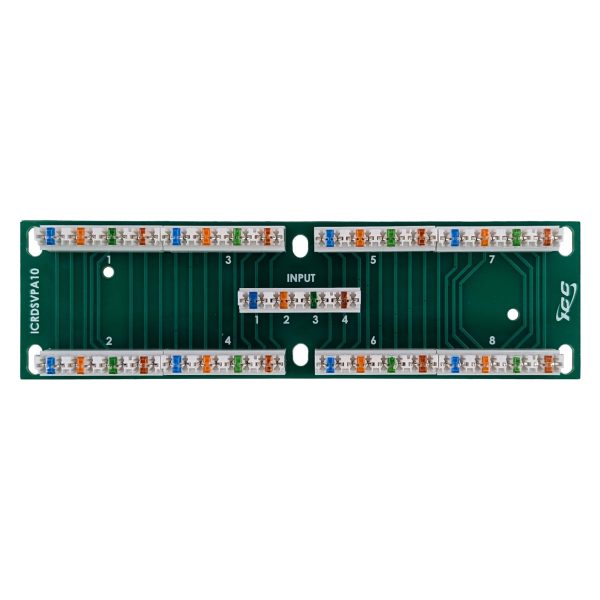

ICC’s Mini Telephone Module provides reliable voice distribution in compact installations. Designed for ICC’s Mini Distribution Center, it supports up to 4 incoming telephone lines with 8 outputs/extensions. When bridged, 2 lines provide 16 outputs/extensions per line, or 1 line provides 32 outputs/extensions. Built with high-quality lightweight PCB, the module features a quick tab and screw mounting system for left or right side placement and front-mounted 110 punch-down terminals for termination while installed. UL Listed, it ensures safe and standards-based residential telephone distribution.
Features
- SUPPORTS UP TO 4 TELEPHONE LINES: Distributes 4 incoming lines to 8 outputs/extensions; bridged for 16 outputs per line (2 lines) or 32 outputs (1 line)
- COMPACT DESIGN: Built for ICC’s Mini Distribution Center; lightweight PCB construction for space-limited installations
- EASY MOUNTING: Quick tab and screw system secures module inside the MDC with left or right side mounting options
- FRONT-MOUNTED TERMINALS: 110 punch-down terminals allow termination while the module is mounted inside the enclosure
- UL LISTED: Certified safe and reliable for residential structured cabling
Specifications
Material:
PCB: Glass Epoxy FR4 copper clad .062 inch thick per mil p 13949
110 Block:
ABS, UL 94V-0
Spring Wire: Square Spring Wire, Tempered Phosphor Bronze
110 Connector:
Copper Alloy, 100 microinches of Bright Solder
Over 100 micro inch of nickel underplate
Gold Rating: 50 micro inches of Gold over 100 microinches of Nickel
Finish: PCB: Electroplated Solder with Hot Solder Dip
Wiring in Accordance with T568A Standard
