Mounting Box Junction with Single Gang

Mounting Box Junction in Single Gang

Style: Junction Box
  • Mounting Box in Single Gang
  • Faceplate Mounting Box in Single Gang
  • Mounting Box Junction with Single Gang
Gang: Single
SKU: N/A Categories: ,

Country of Origin (subject to change): Taiwan

Warning SymbolCalifornia Prop 65 Warning


ICC’s offers Mounting Box Junction’s used to mount solutions for a variety of media. Two-piece mounting box interfaces with all sizes of raceway applications. Mounting Box Junctions are designed with versatility for a professional appearance. This particular junction is equipped with a single gang application.

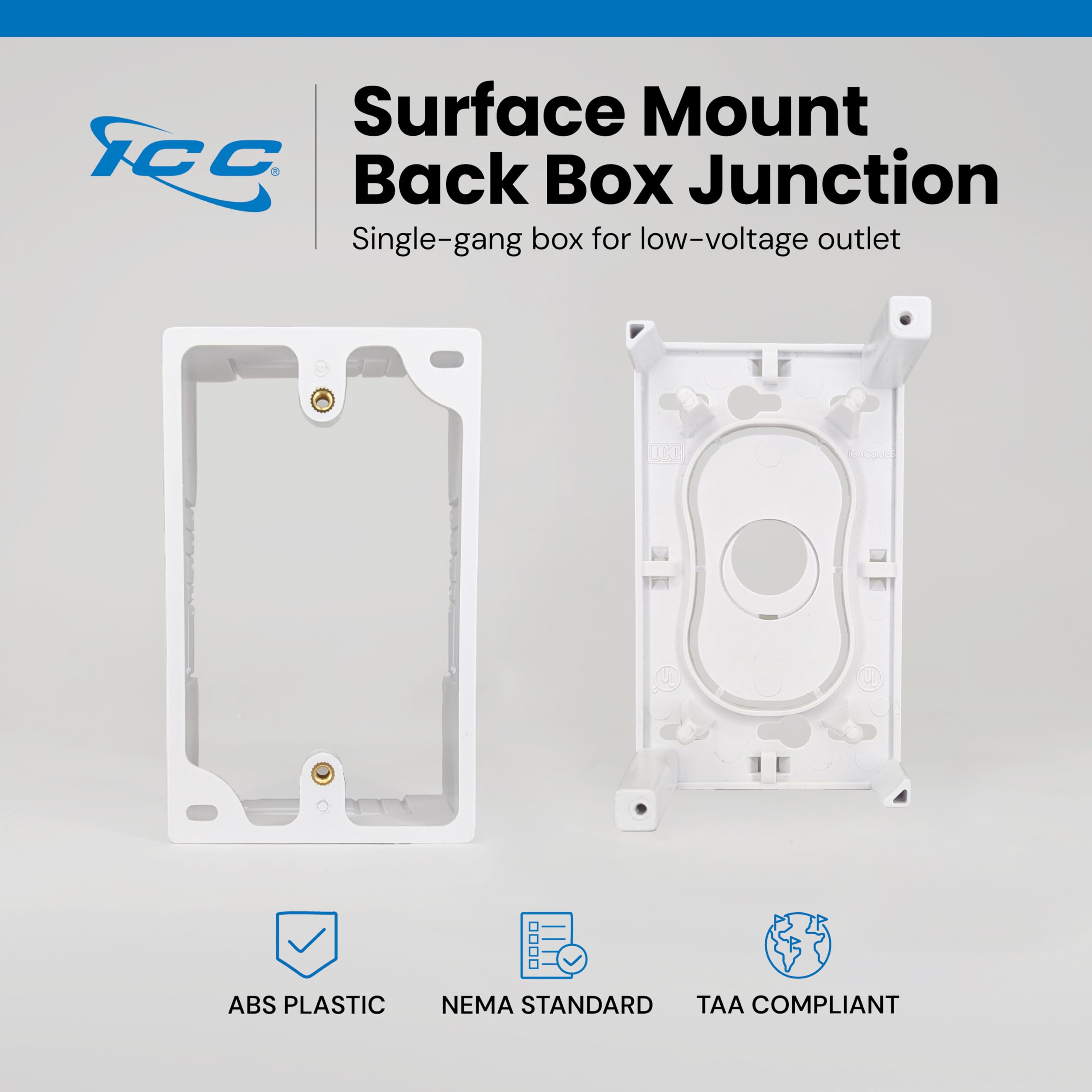

  • 2-piece design provides a surface mounted solution for a variety of media.
  • Including voice, data, CATV, fiber, audio, and video distribution to the work area.

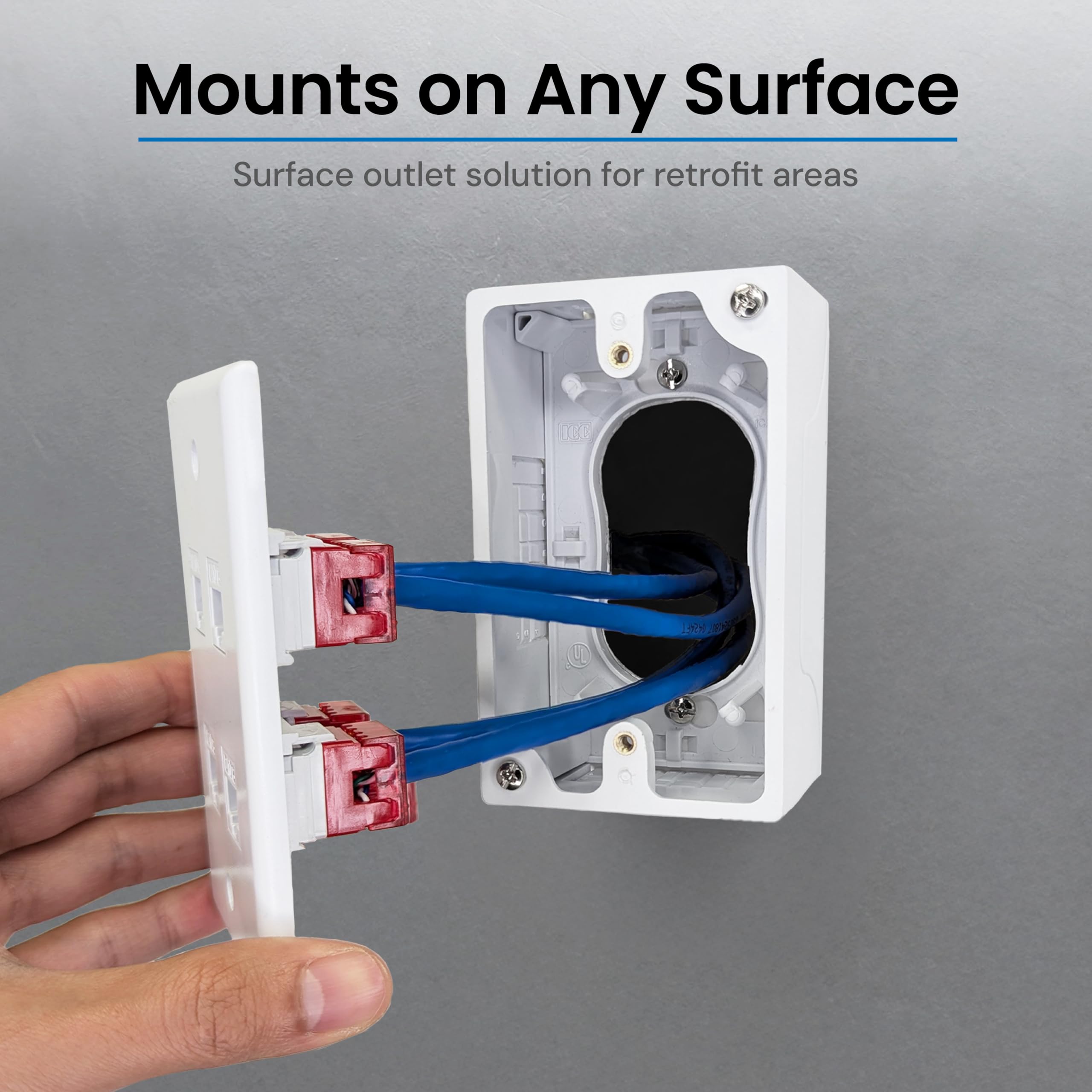

  • Fits standard NEMA single gang electrical boxes.
  • Used with 3/4″ W, 1 1/4″ W, and 1 3/4″ W raceway systems.
  • Multiple mounting options including adhesive backings and screws.
  • Integrated internal routing posts and cable management system.
  • Rear cable entry for clean external appearance.
  • Rugged and durable construction.
  • Raceway knockouts integrate with raceway systems.
  • Accommodates all faceplates.
  • UL listed.

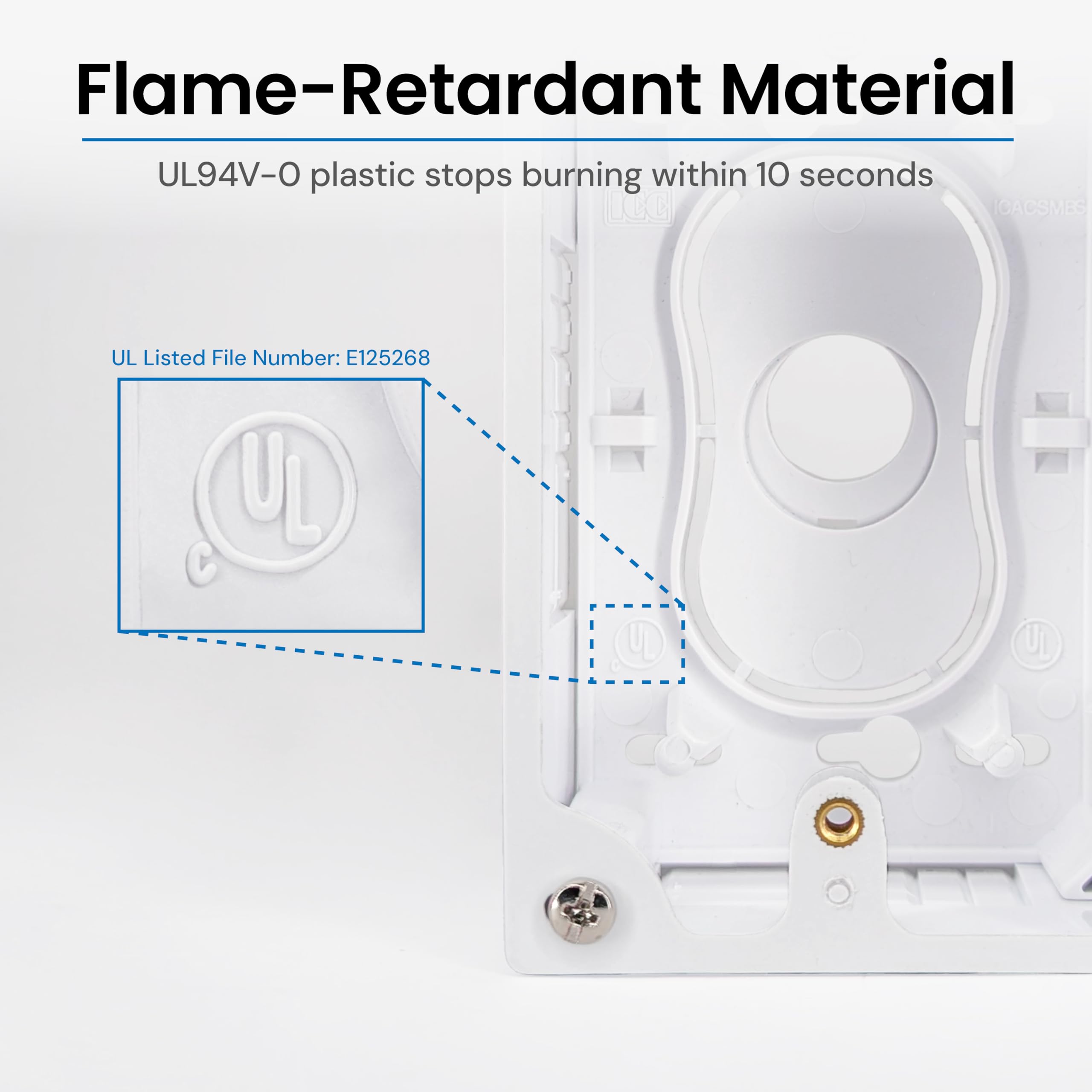

Material: ABS, UL 94V-0

Surface Finishing: Texture

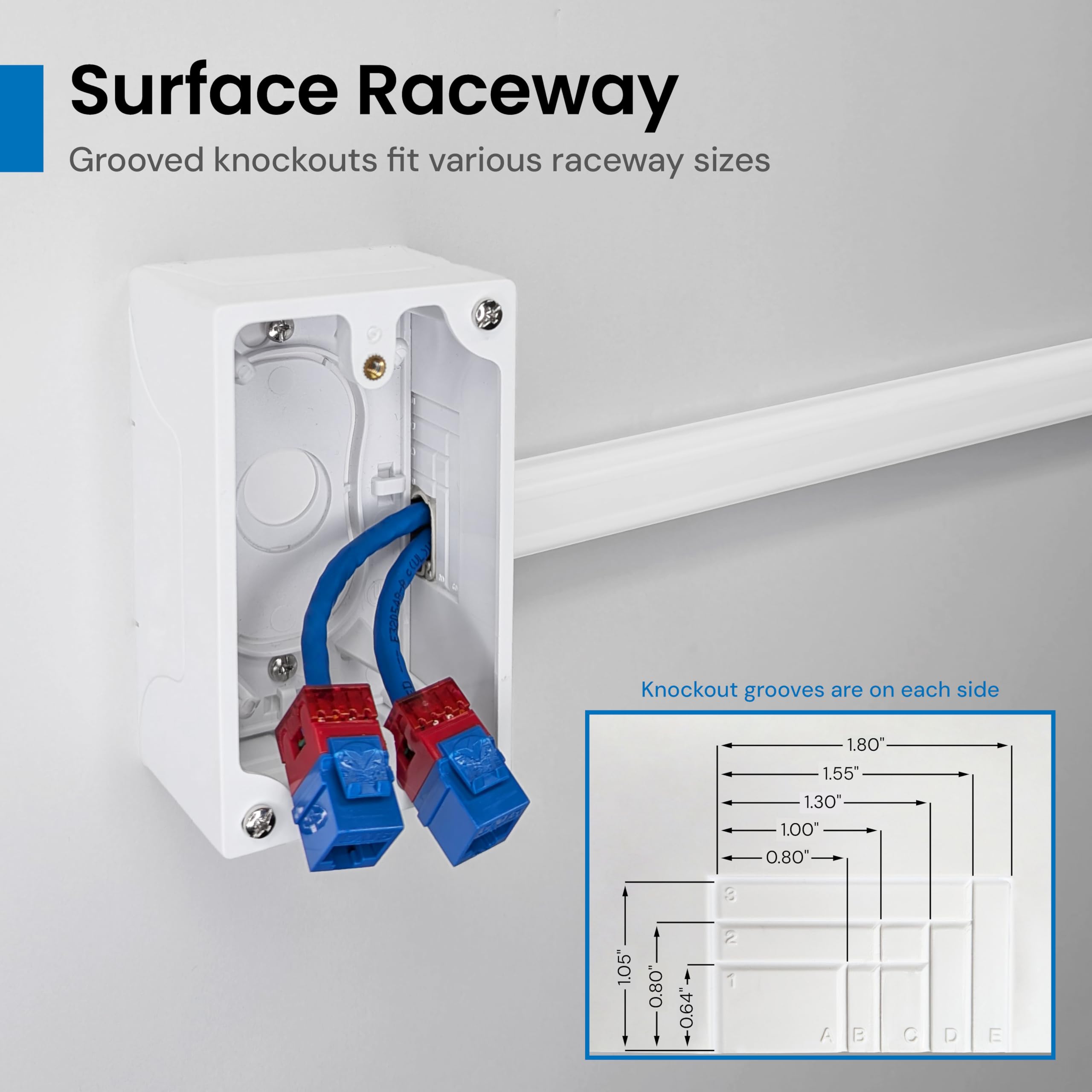

Knockout Dimensions: .08″X.55″ , 1.30″X.85″ , 1.80″X1.05″


Color XX: IV-Ivory, WH-White
