Description
The feedthrough in-line coupler modular jacks are 6-position 6-conductor (6P6C), connect two modular cords; Pin 1 to Pin 1. Compatible with RJ11/14 and 25 modular jacks and plugs.
Features
- Provides pin 1-1 RJ-11 voice coupling.

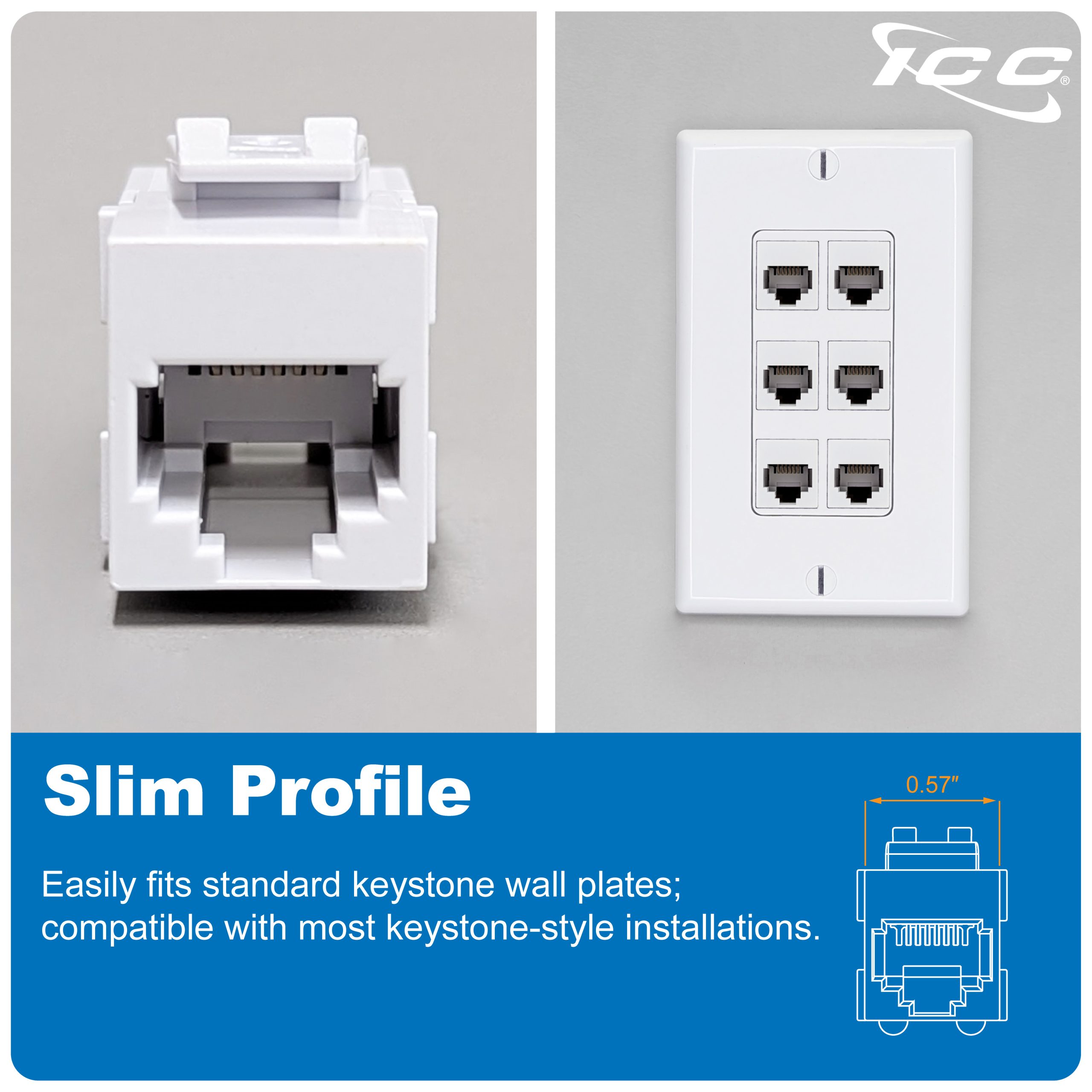

- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area.
- Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
- Used with all line cords.

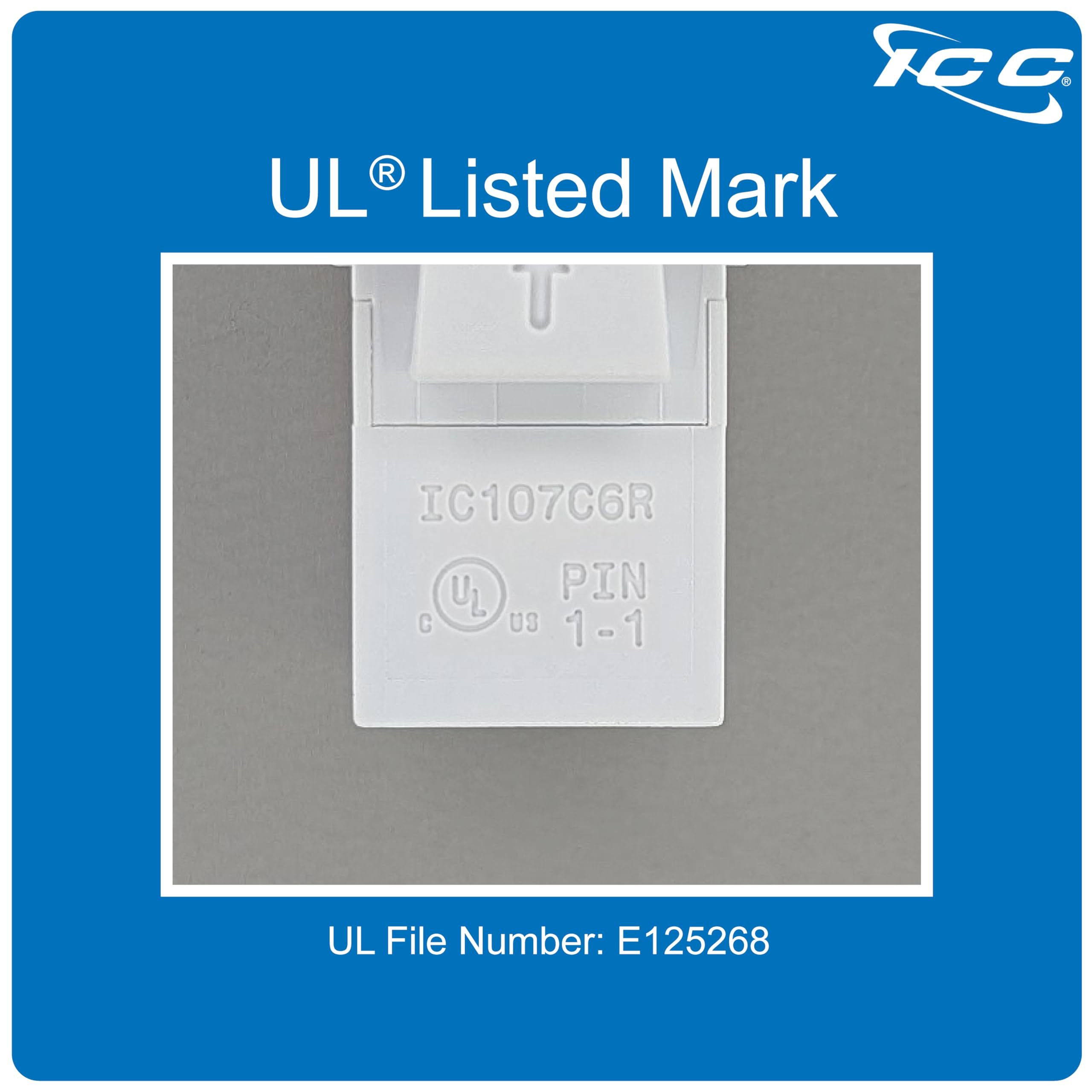

- UL listed.
Specifications
Material:
Housing: ABS, UL 94V-0
Contact: Phosphor Bronze Gold Plating Over 100 microinch Nickle

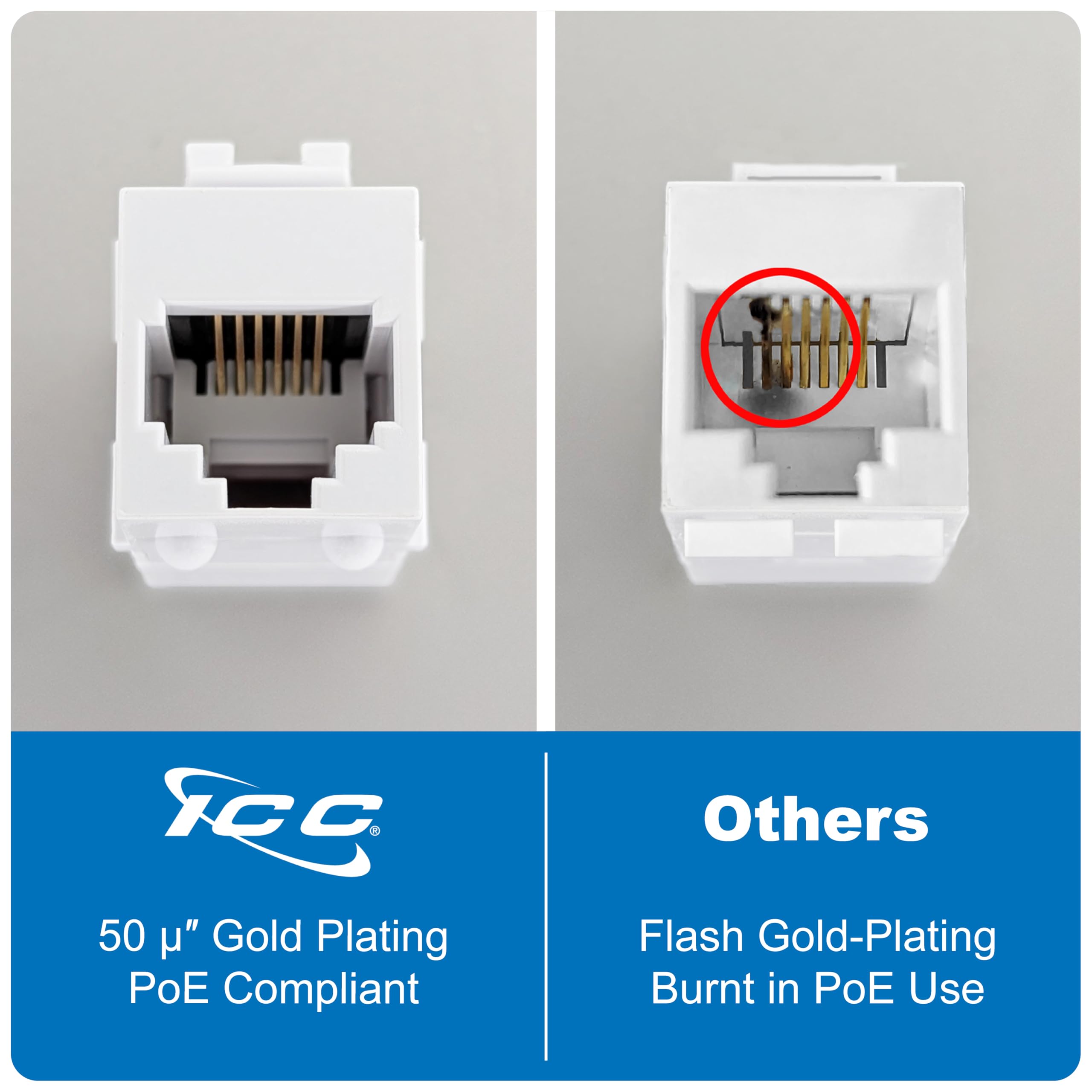

Gold Plating: 1.27 micron/50 micro in min
Electrical:
Current Rating: 1.5 amps max
Voltage Rating: 150 volts alternating
Dielectric Withstanding Voltage: 1000 volts RMS, 60 HZ
Insulation Resistance: > 10 mohms
Mechanical:
Mating Force: 5 lbs max
Unmating Force: 5 lbs max
Plug Retention in Jack: 20 lbs min
Durability: 750 cycles
Color:
Color XX: BK-Black, WH-White
