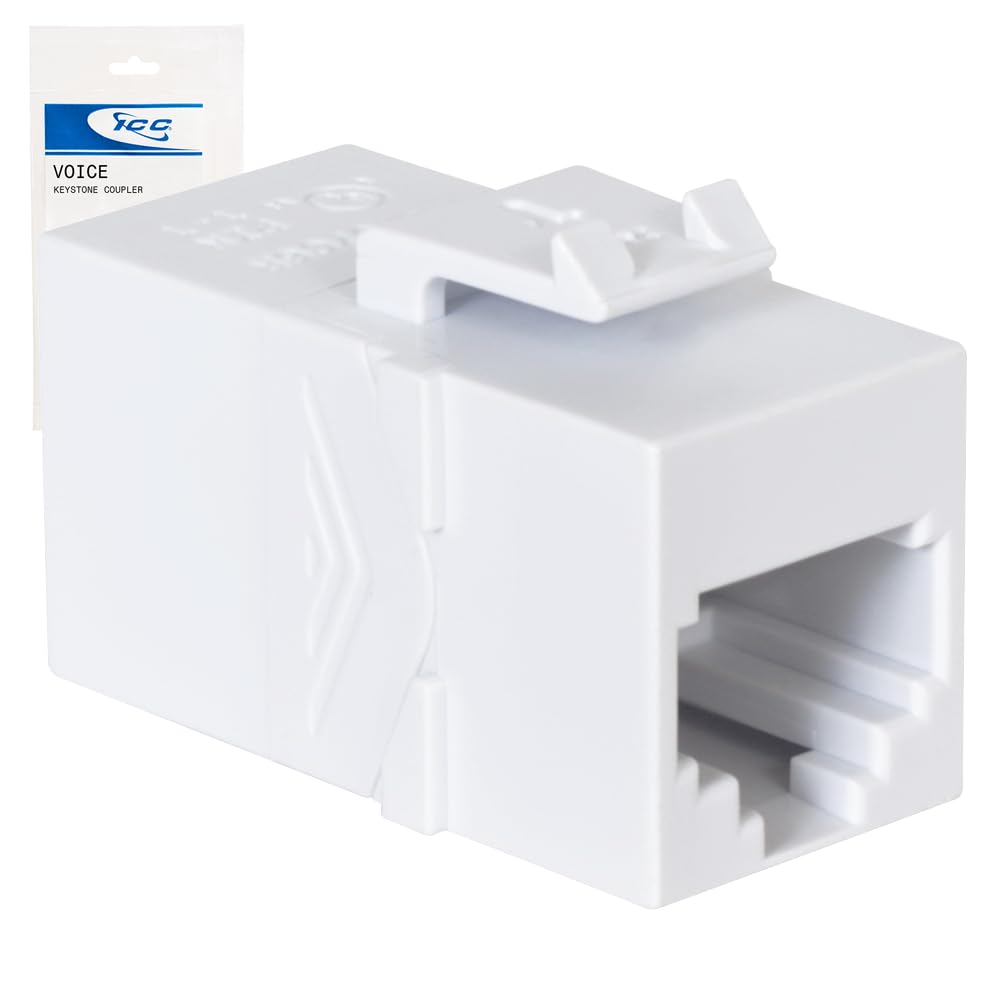

Voice RJ11 Keystone Coupler with Pin 1-6 for HD Style

Clear

Description

The feedthrough in-line coupler modular jacks are 6-position 6-conductor (6P6C), connect two modular cords; Pin 1 to Pin 1. Compatible with RJ11/14 and 25 modular jacks and plugs.

Features

  • Provides pin 1-6 RJ-11 voice coupling.
  • Reduced rear footprint allows for greater connectivity density.
  • Provides for more port configurations in a smaller area.
  • Works with all Work Area Outlets Faceplates, inserts, surface mount boxes.
  • Used with all line cords.
  • UL listed.

Specifications

Material:
Housing: ABS, UL 94V-0
Contact: Phosphor Bronze Gold Plating over 100 microinches of nickel
Gold Plating: 1.27 micron/50 micro inch min
Electrical:
Current Rating: 1.5 amps max
Voltage Rating: 150 volts alternating
Dielectric withstanding Voltage: 1000 volts RMS, 60 HZ
Insulation Resistance: > 10 mohms
Mechanical:
Mating Force: 5 lbs max
Unmating Force: 5 lbs max
Plug retention in Jack: 20 lbs min
Durability: 750 cycles
Color:
Color XX: BK-BLack, GY-Gray, IV-Ivory, & WH-White
