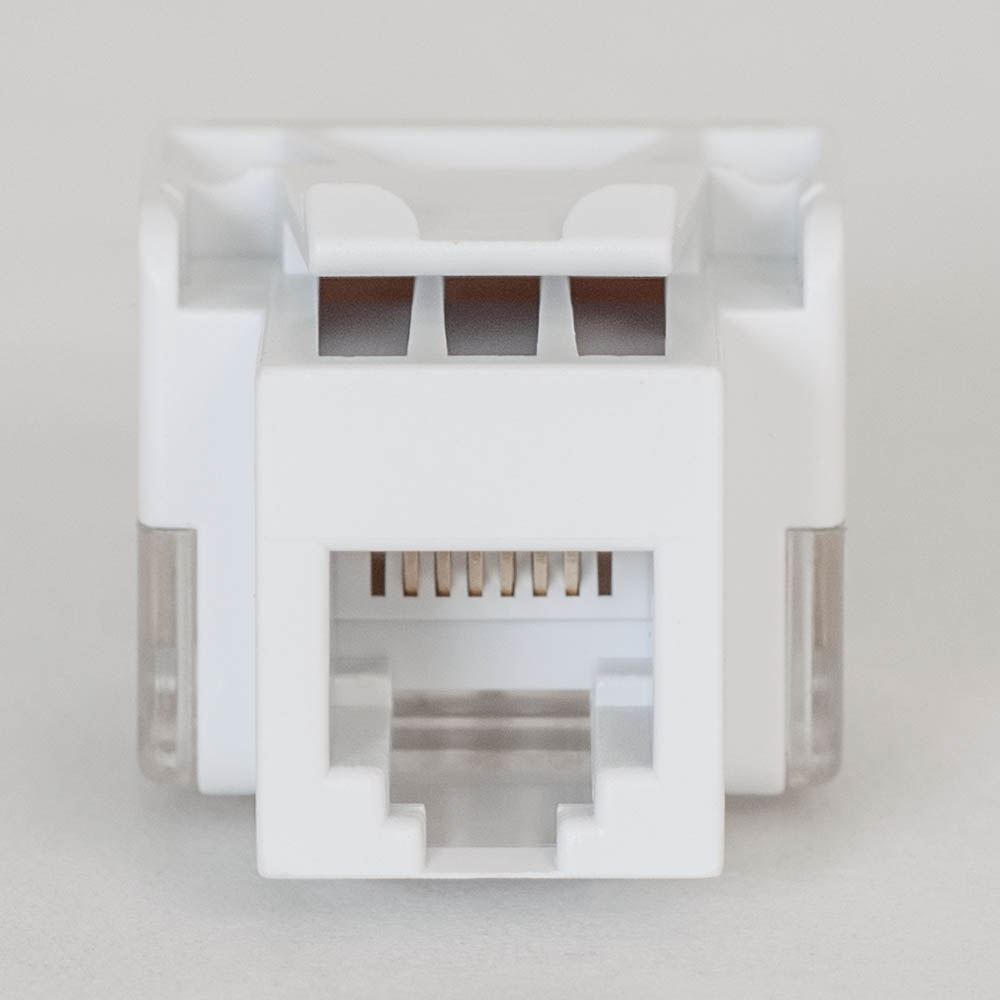

Voice RJ11 Keystone Jack for EZ Style

Clear
SKU: IC1076V0XX Categories: , ,

Description

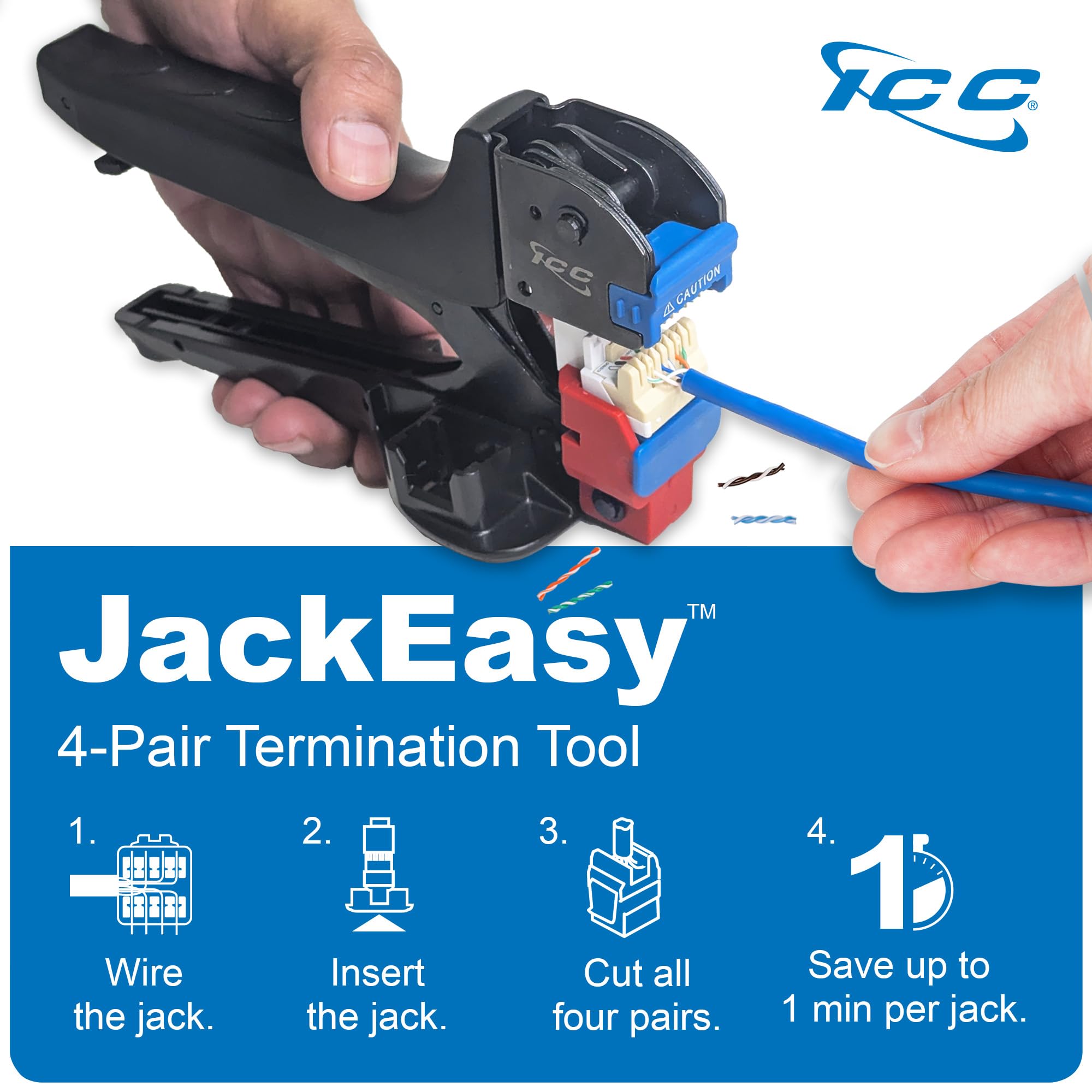

The EZ® voice modular jacks, RJ-11 keystone jacks 6-position 6-conductor (6P6C), is designed for business system applications. The modular jacks utilize IDC termination, accepts 22-24 AWG solid wire. Termination can be done using 110 punch down tool, or by using the Jackeasy termination tool for fast and easy termination. For use with applications: Apple Talk, Voice, and Arcnet. Compatible with RJ11/14 and 25 keystone jacks and plugs.

Features

  • Designed for all voice connectivity applications.
  • Lead frame technology provides maximum performance.

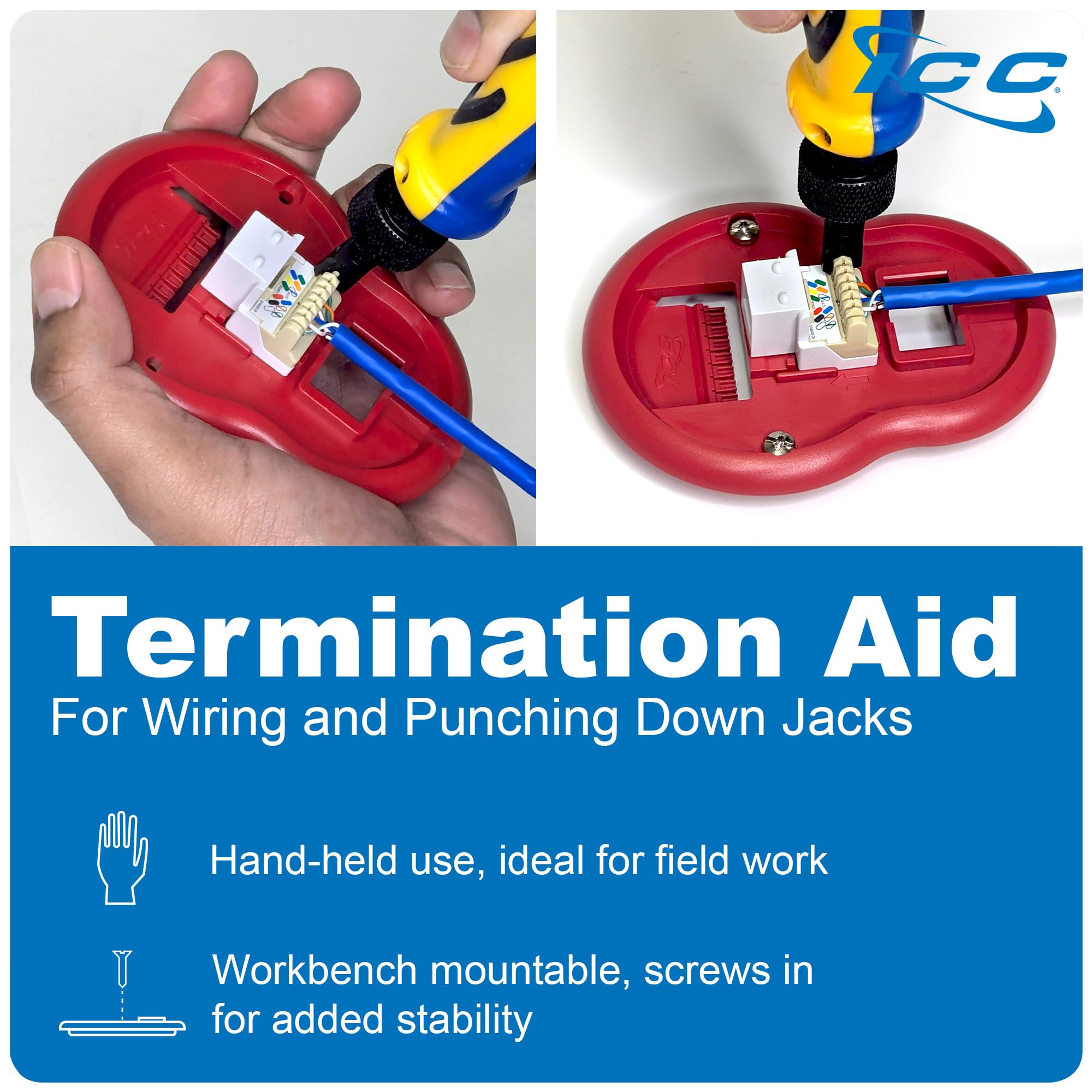

  • Terminate with 110 punch down tool ICACSPDT00.
  • Includes an integrated USOC/UTP color wiring diagram.

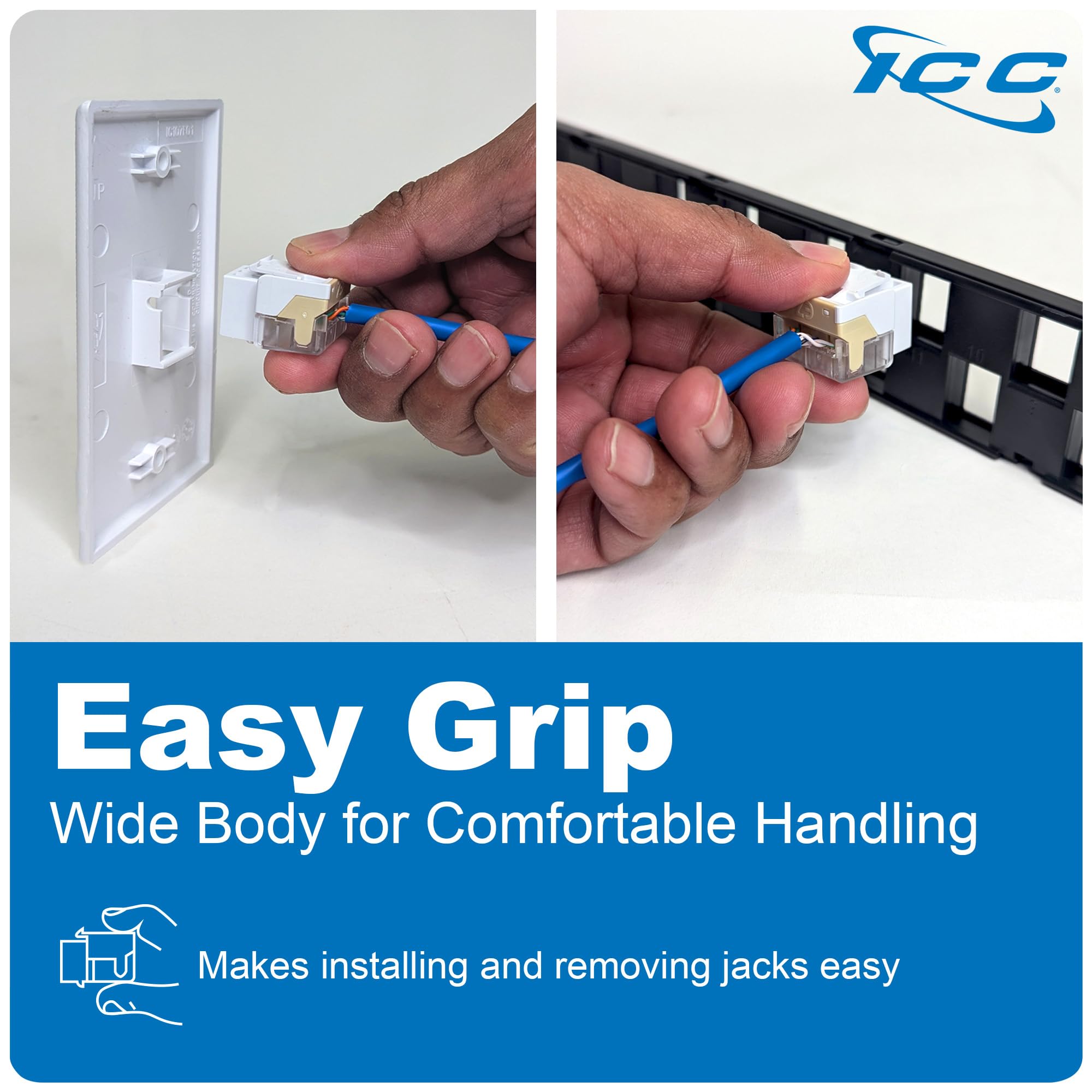

  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • Works with all telephone line cords.

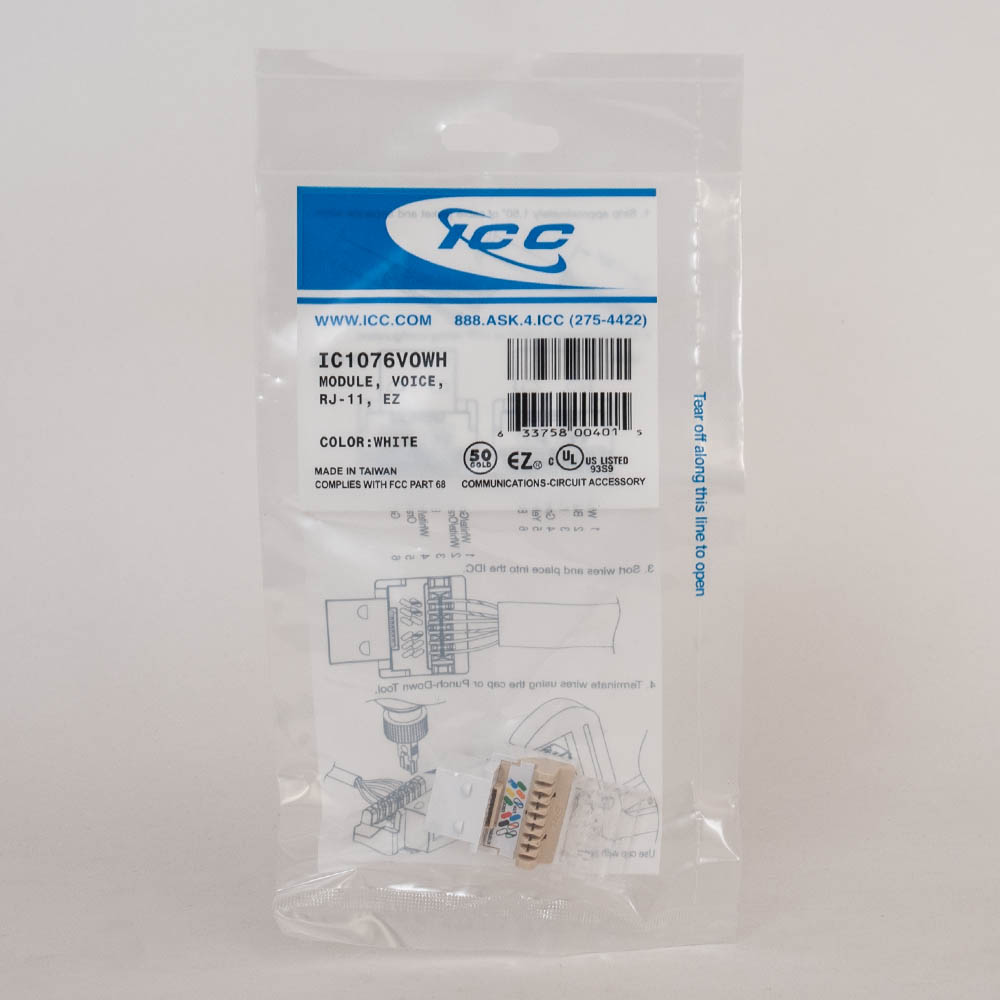

  • Installation instructions included.
  • UL listed.

Specifications

Material:
Housing: ABS, UL 94V-0

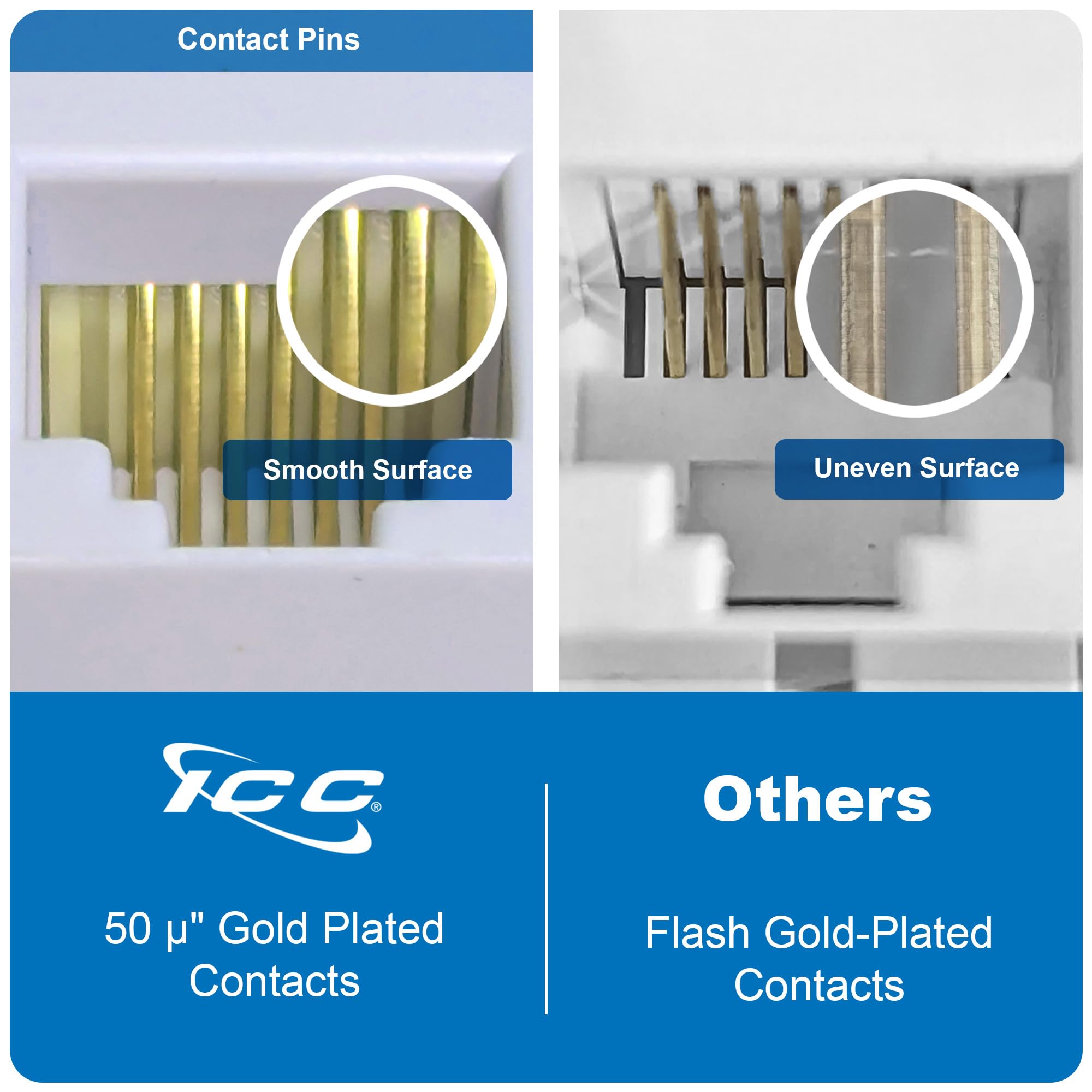

Contact: Phosphor bronze Alloy plated with 50 micro inches of gold over 70-100 micro inches of nickel
Electrical:
Current rating: 1.5 amps max
Voltage rating: 150 volts alternating
Dielectric withstanding voltage: 1000 volts RMS, 60Hz
Insulation resistance: >10 mohms
Mechanical:
Mated force: 5 lbs max
Unmated force: 5 lbs max
Plug retention force: 20 lbs min
Durability: 750 cycles
Gold plating: 1.27 micron/50 micro inch min
Connector: insulation displacement connector (IDC) accepts 22-24 AWG solid wire
Termination Cap:
Material: PC, UL 94V-0
Color: Clear
Color:
Color XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, WH-White, & YL-Yellow

Additional information

Product Type

Keystone Jacks

Performance

Voice

Style

EZ

Connector Type

6P6C

Color

Almond, Black, Blue, Gray, Green, Ivory, Orange, Purple, Red, White, Yellow

Packaging

Single, 25-Pack, 400-Pack
