350Mhz CAT5e Bulk Cable with 24 AWG UTP Solid Wires, CMR Jacket in a Pull Box, 1000 Feet
Available at these Premier DistributorsJacket: Riser |
Country of Origin (subject to change): Taiwan
Description
ICC’s CAT5e 350 MHz UTP solid cables are manufactured per TIA 568-C.2 industry performance standards and are UL and cUL listed and verified. Available in spools of 1000 ft CMR (Riser) and CMP (Plenum) rated in an EZ pull dispensing carton, and constructed with sequential footage markings on the outer jacket for convenient usage tracking. These cables offer a competitive cable solution designed to provide the performance necessary for today’s growing voice, data, video, and security applications in commercial and residential installations. They complete the site cabling system with the value and reliability of ICC.
Features
- TIA 568-C.2 Category 5e.
- UL Type CMR for Riser.
- UL 444.
Specifications
Standard:
UL44, ISO/IEC 11801, TIA 568 C.2
2002/95/EC (ROHS)
Construction:
Size: 24 AWG
Conductor:
Solid Bare Copper
Insulation:
Material: HDPE
Jacket:
Material: FR PVC
Diameter .189 – .007 (4.8MM – .2)
RIP Cord:
Material: Polyester
10 Base-T
100Base-T (IEEE 802.3u)
1000 Base-T
High Definition Video
Digital Broadcast Video/IP Video/VoIP
ISDN/ADSL
155Mbps ATM

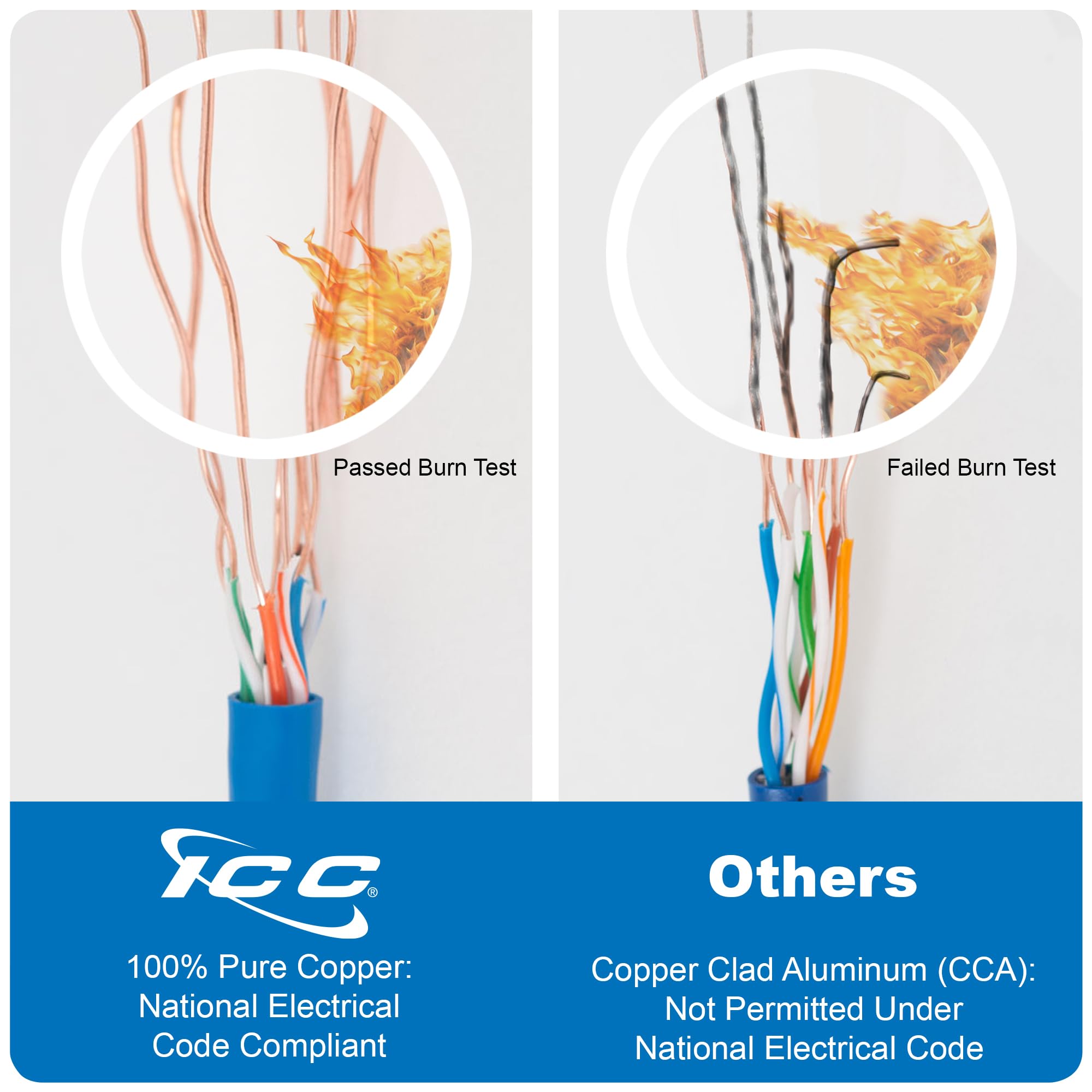

Conductor: Solid Bare Copper

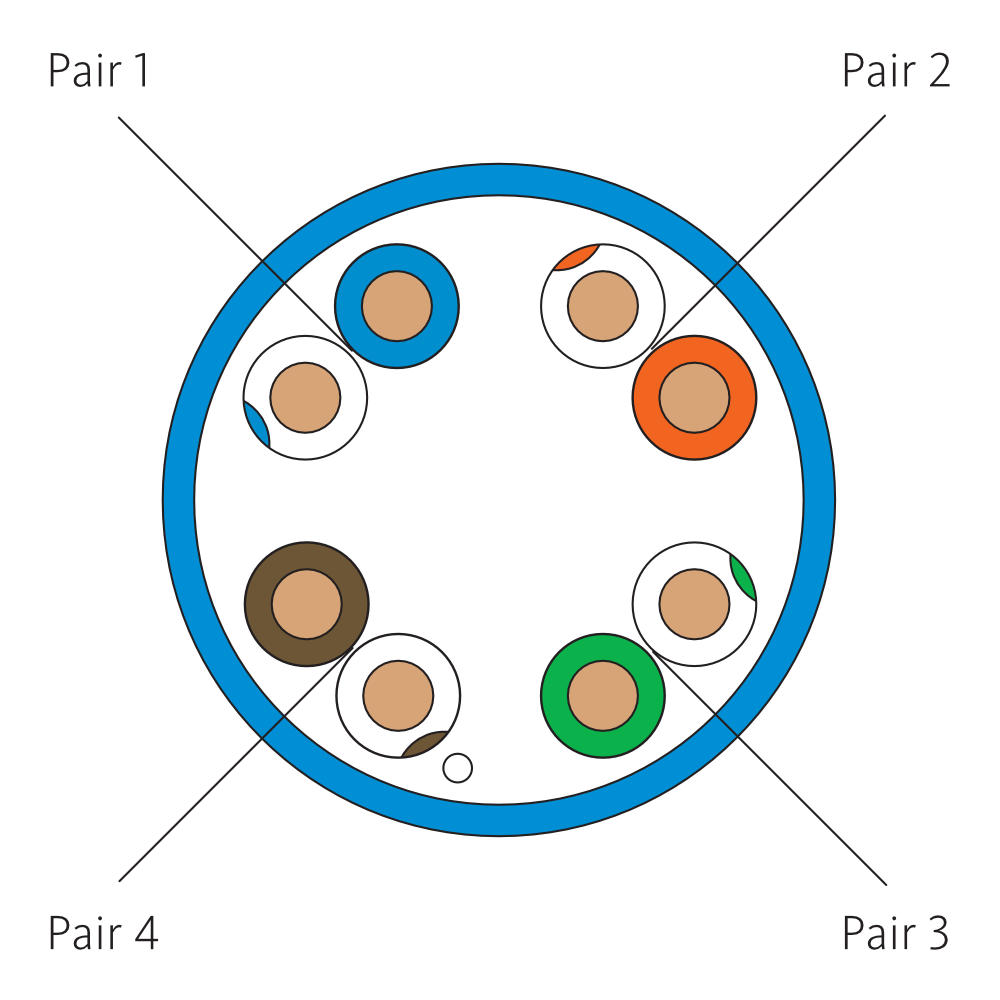

Component: 4 twisted pair
Insulation: HDPE
Insulation Dia.(in): 0.036
Jacket: FR-PVC
Outer Dia.(in): 0.189″

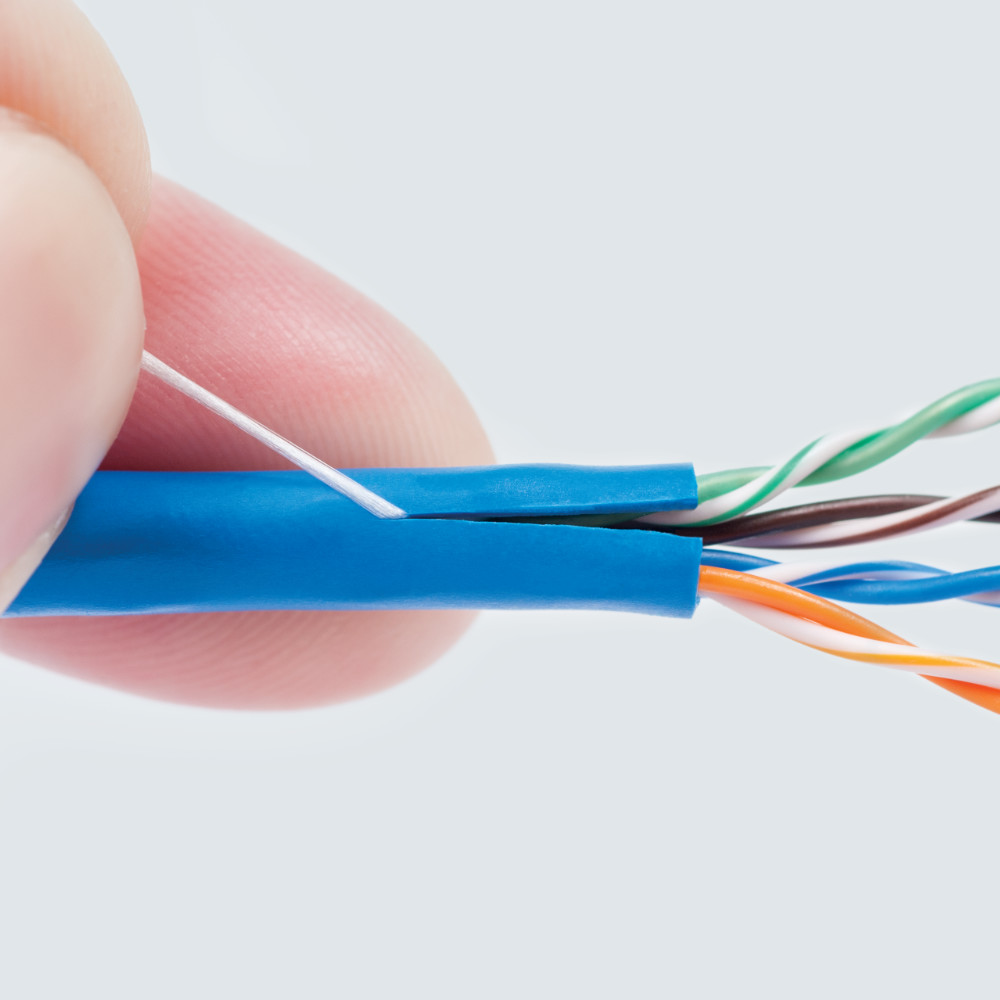

Rip cord pulled under jacket
Sequential footage marking for easy usage tracking

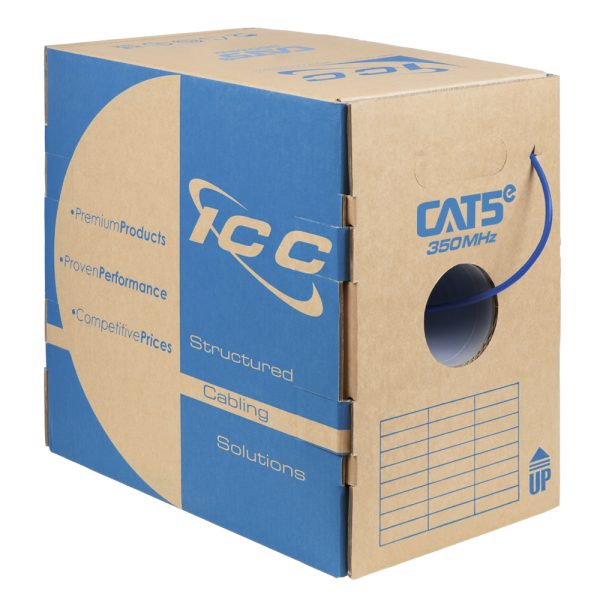

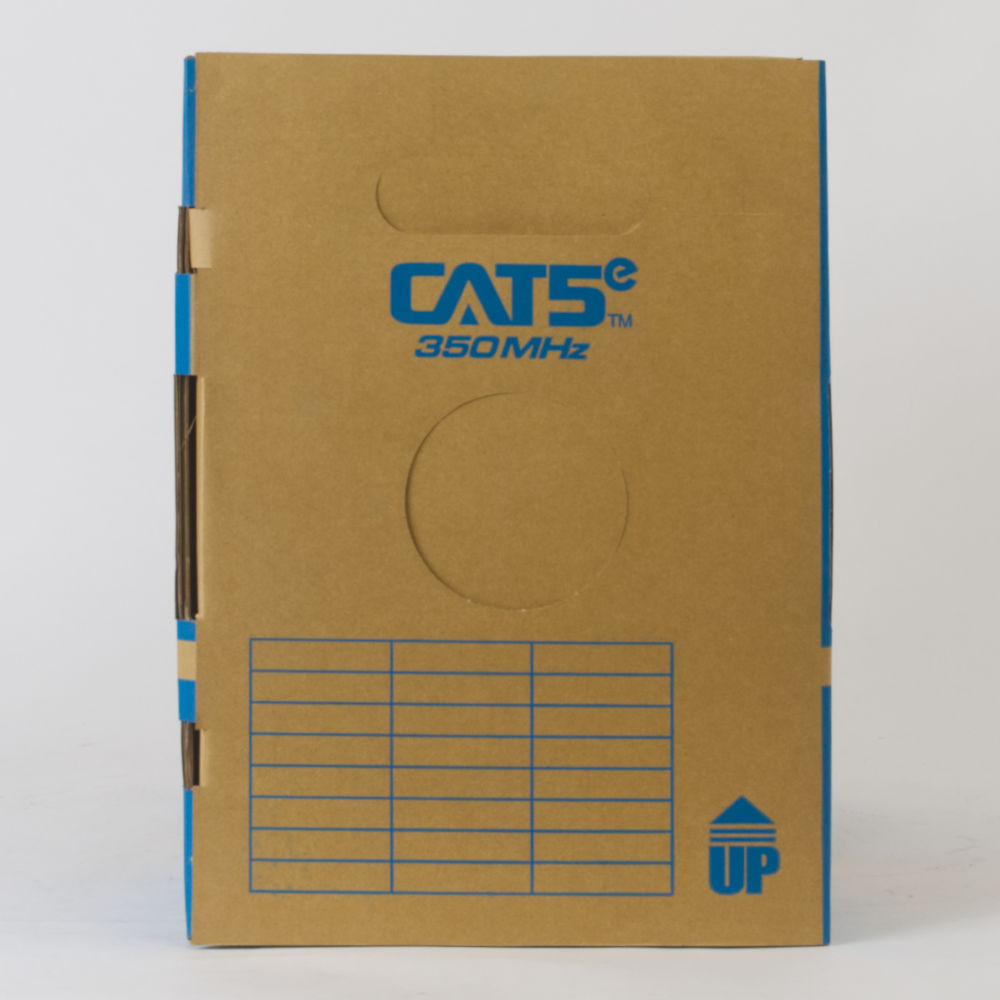

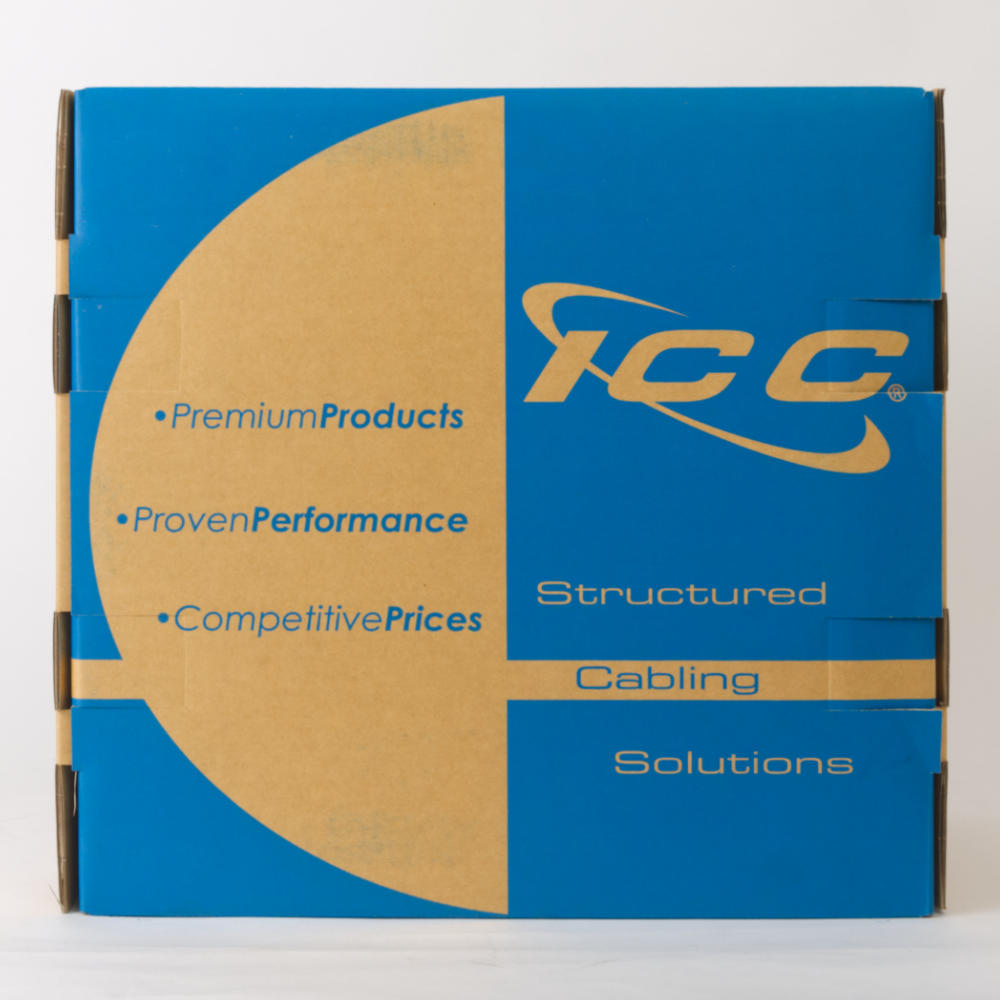

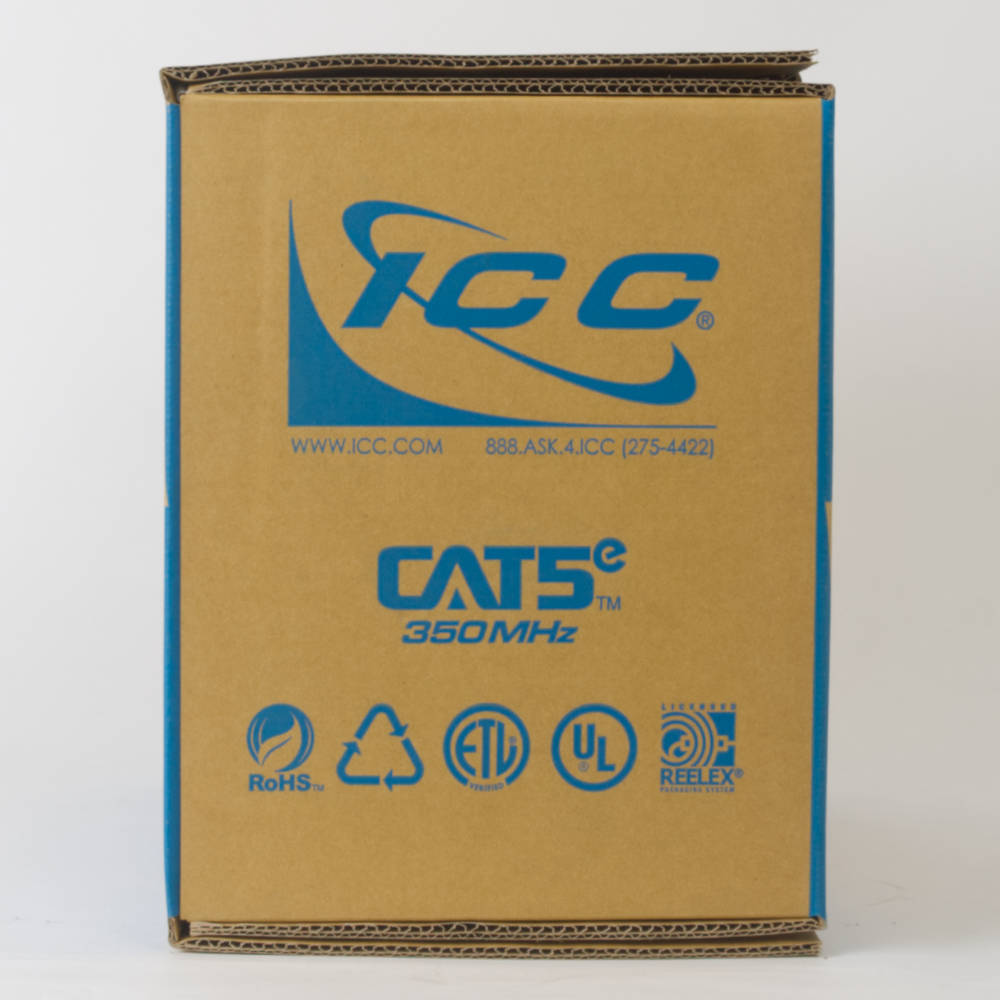

Packaged EZ pull box
Weight: 21.60 lbs

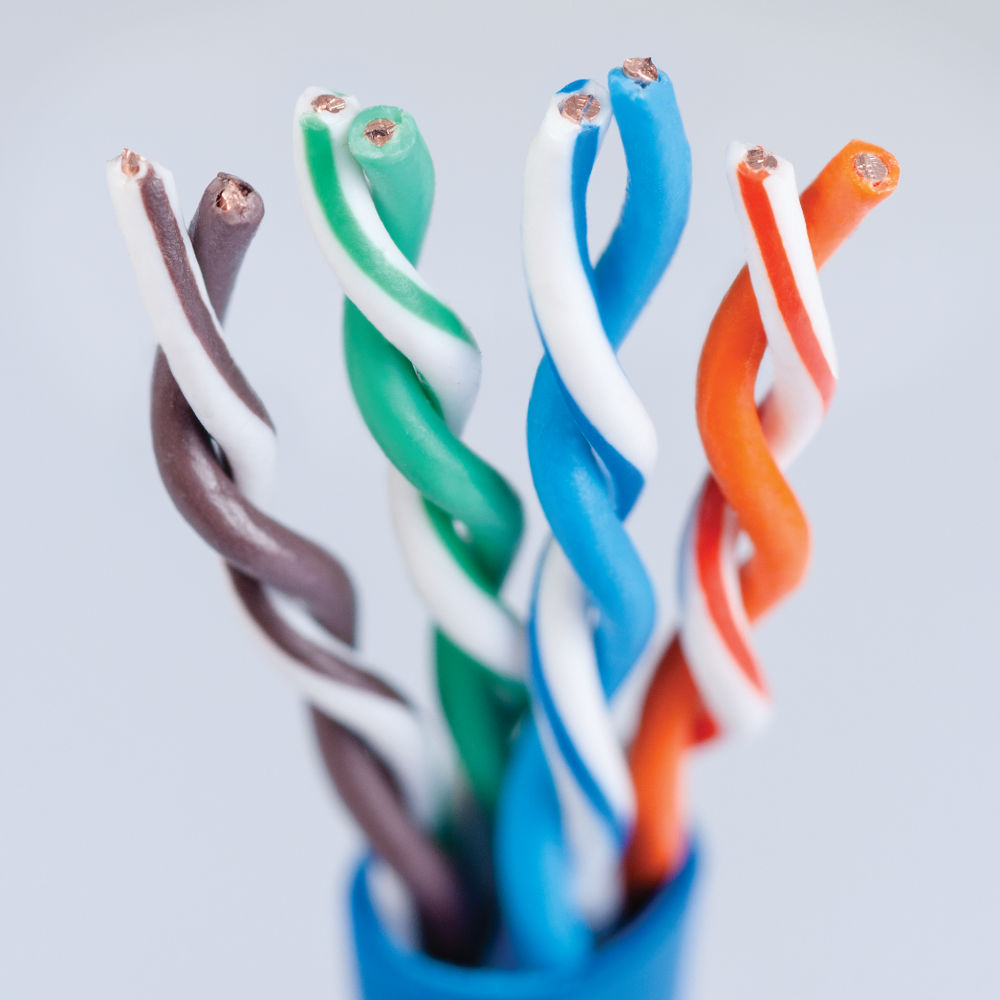

Wired pairs are vividly colored for quick identification
Temperature Rating (°F)
Installation temperature: 32 to 140 Fahrenheit (°F)
Operating temperature: -4 to 167 Fahrenheit (°F)
Color:
Color XX: BL-Blue, GR-Green, GY-Gray, WH-White, YL-Yellow
