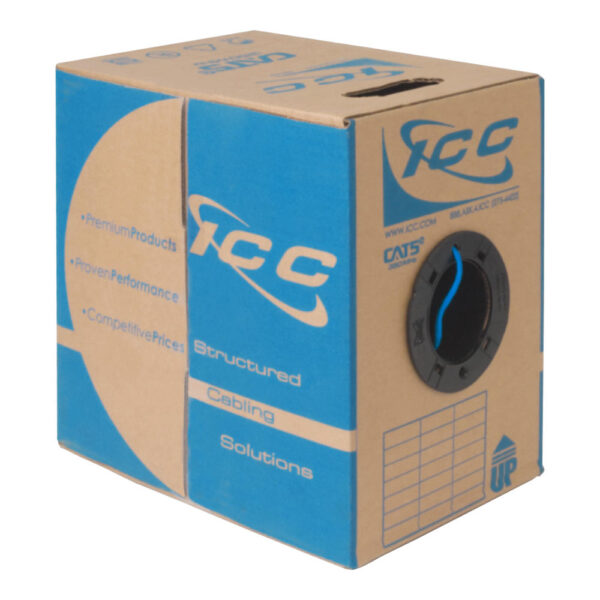

CAT5e Bulk Cable UTP Plenum ICCABP5EBL
CAT5e Bulk Cable UTP Plenum ICCABP5EBL
CAT5e Bulk Cable UTP Plenum Front ICCABP5EBL
CAT5e Bulk Cable UTP Plenum Side ICCABP5EBL
CAT5e Bulk Cable UTP Plenum Back ICCABP5EBL
CAT5e Bulk Cable UTP Plenum Illustration ICCABP5EBL
CAT5e Bulk Cable UTP Plenum Close Up ICCABP5EBL
CAT5e Bulk Cable UTP Plenum Close Up2 ICCABP5EBL
CAT5e Bulk Cable UTP Close Up3 ICCABP5EBL

350Mhz CAT5e Bulk Cable with 24 AWG UTP Solid Wires, CMP Jacket in a Pull Box, 1000 Feet

Available at these PCSDs
Jacket: Plenum
Clear
SKU: N/A Categories: ,
UPC:

Country of Origin: United States

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s CMR and CMP UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified. Available in spools of 1000 feet in a convenient EZ pull dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today’s demanding voice, data, video, and security applications in commercial and residential installations.

Features

  • TIA 568-C.2 Category 5e.
  • UL Type CM for non-plenum.
  • UL Type CMP for plenum.
  • UL 444.

Specifications

Standard:
ANSI/TIA 568 C.2
ANSI/TIA 862
ISO/IEC 11801 Ed 2.0
ICEA S-90-661
NEC/CEC Type CMP
ROHS Compliant Directive 2002/95/EC
UL 444
Construction:
Conductor: 24 AWG, Solid Bare Copper
Jacket:
Material: Low Smoke, Flame Retardant PVC
Diameter: .180
Insulation: Fluoropolymer/dual layer polyolefin
RIP Cord:
Material: Polyester
10 Base-T
100Base-T (IEEE 802.3u)
1000 Base-T
High Definition Video
Digital Broadcast Video/IP Video/VoIP
ISDN/ADSL
155Mbps ATM
CAT 5e 350 MHz CMP (Plenum) Rated
Conductor: 24AWG Bare Solid Copper for CAT5e
Convenient dispensing via EZ Pull (CAT5e)
Sequential footage marking for easy usage tracking
ETL Verified for TIA/EIA568-B.2
ROHS Compliant
Available jacket color: Blue
Wired pairs are vividly colored for quick identification
Temperature Rating (°F)
Installation temperature: 32 to 140 Fahrenheit (°F)
Operating temperature: -4 to 167 Fahrenheit (°F)
Color:
Color XX: BL-Blue, GR-Green, GY-Gray, WH-White, YL-Yellow
