650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires, CMR Jacket, 1000 Feet
Available at these Premier DistributorsJacket: Riser | |
Shielding: Unshielded |
Country of Origin (subject to change): Taiwan
Description
ICC’s CAT6A 10Gig FTP shielded cable provides transmission performance beyond 650MHz. The cable exceeds TIA Alien Crosstalk requirements and is ETL verified to TIA-568-C.2 standard for supporting 10Gig Ethernet applications (10GBASE-T). It is designed with a unique spline to minimize Alien Crosstalk from neighboring cables. The outer diameter is 7.6mm and the diameter of the conductor insulation is 1.18mm. The cable supports high bandwidth applications, such as data centers and other data-intensive or backbone requirements. This cable qualifies for ICC’s Lifetime Performance Limited Warranty when installed by ICC Certified Installer (conditions apply). The cable comes packaged on a reel.
Features
- ETL Verified to TIA-568-C.2.

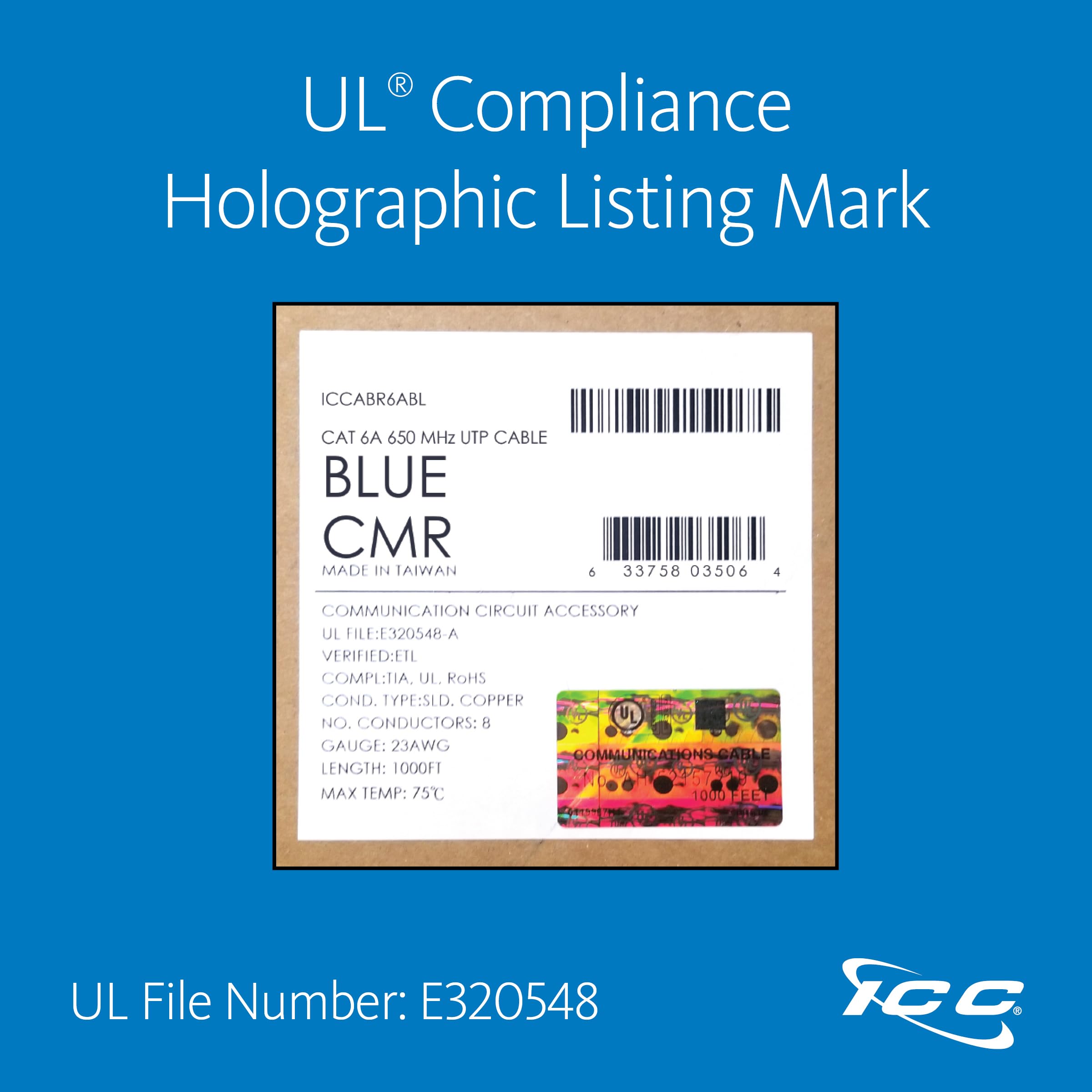

- UL Type CMR for non-plenum.
- FT4.

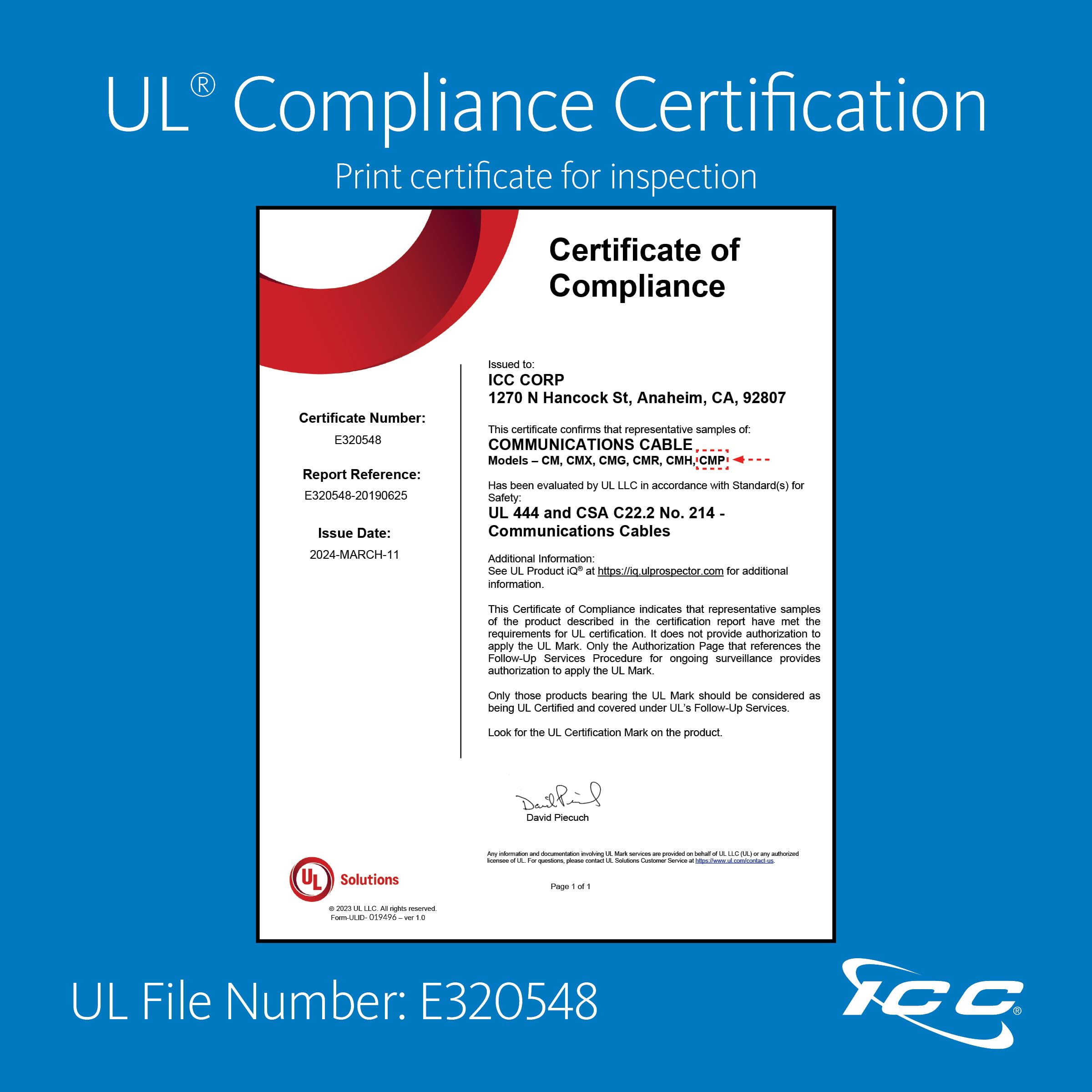

- UL 444.
Specifications
Standard:
IEEE 802.3an
TIA-568-C.2
RoHS
ICEA S-116-732
Construction:
Size: 23 AWG
4 twisted pair
Conductor:

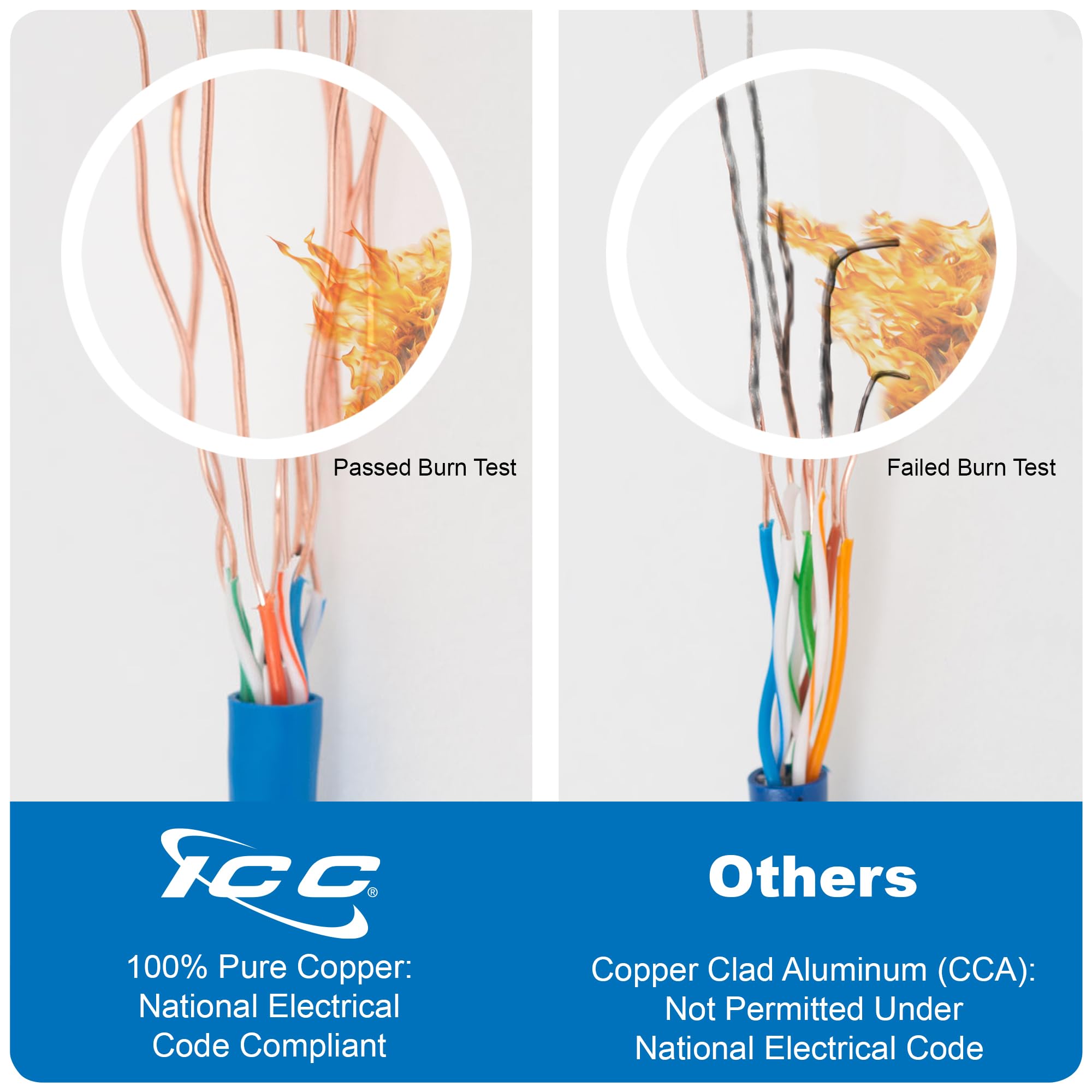

Solid Bare Copper
Insulation
Material: PE
Insulation Dia.(in): P1: 0.045″±0.002″, P2: 0.043″±0.002″, P3: 0.046″±0.002″, P4: 0.043″±0.002″
Jacket:
Material: PVC
Insulation Dia.(in): 0.33″±0.008
RIP Cord:
Material: Polyester
X Separator
Material: PE
10 Base-T
100Base-T (IEEE 802.3u)
1000 Base-T
High Definition Video
Digital Broadcast Video/IP Video/VoIP
ISDN/ADSL
622Mbps ATM
Sequential footage marking for easy usage tracking.
Packaged on a reel (Size: 15.75″W X 13.00H)
Weight: 51.8 LBS
Temperature Rating (°F)
Installation temperature: 32 to 140 Fahrenheit (°F)
Operating temperature: -4 to 167 Fahrenheit (°F)
