9″ Wiring Enclosure Voice and Data Combo with Cover (Model W)
Enclosure Size: 9" | |
Combo Type: Voice / Data | |
Packaging: Single |
In stock
UPC: 633758093170Country of Origin (subject to change): China
Description

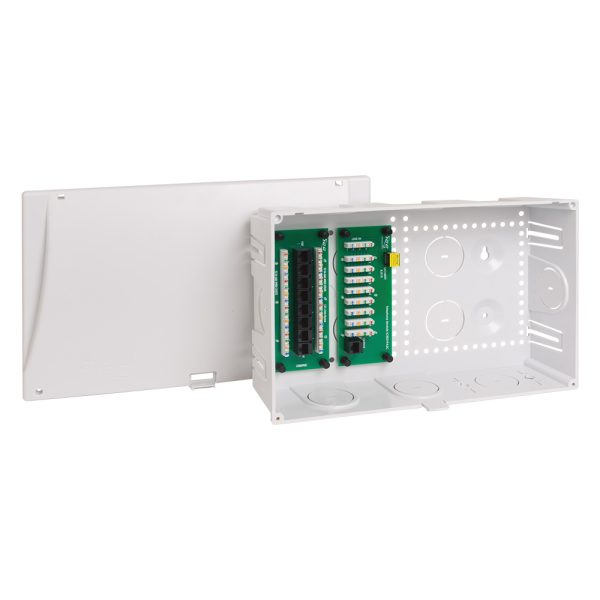

ICC’s 9-inch plastic residential wiring enclosure is designed for small homes, condos, multi-unit dwellings, and retrofitting existing homes. The enclosure comes in a combo, so there is no need to shop for individual components. Connectivity modules, cover, and mounting hardware are included. The enclosure is made using high quality and lightweight ABS plastic that is ETL listed. Modules can be mounted horizontally or vertically, facilitating easier layout and wiring. ICC’s 9-inch residential wiring enclosure is aggressively priced while still providing all of the features and benefits required for installing structured cabling and managing connectivity applications within the residence. The unit has ample space to accommodate additional modules for other applications. Knockouts are designed around the enclosure for cable entry and exit. The enclosure is designed with a padlock option to help restrict access. The enclosure can be installed between wall studs or on the surface of the wall. The Voice Module has 8 ports, up to 4 incoming phone lines, up to 32 extensions, and two built-in ports: RJ-31X and Expansion. ICC’s Data Modules are TIA® Category 6 rated with 8-ports, and are for broadband internet access to 8 computers or Ethernet devices.
Features
- Designed with high quality, lightweight plastic.
- Serves as a structured media enclosure providing a central distribution point for voice, data, video, audio, or security services.
- Modules are packaged separately for subsequent installation.
- Allows for internal modules to be mounted horizontally or vertically.
- Integrated snap-in module system.
- Includes 3 top, 3 bottom, 4 rear, and 2 side knockouts for routing cables.
- Includes a knockout for an optional AC power outlet (not included) to provide power distribution.
- Mount between 16-inch wall studs or on a wall.
- Designed with a padlock option for additional security (padlock not included).
- Complies with TIA-568-C, TIA-570-B, and TIA-607 standards.
- ETL Listed.
Specifications
Enclosure
Material: ABS, UL 94V-0
Surface Finish: Matte
Connectivity Modules
For individual module specifications please see the “Product Documents” tab
Package Includes:
- 9″ Plastic Net Media Center Box, 1 Piece
- Net Media Center Plastic Cover, 1 Piece
- CAT 6 Module, Data, 8-Port, 1 Piece
- Telephone Module, 8-Port w/ RJ31X, 1 Piece
- #6-32x 1″, Pan Head. Tapping Screw,Phillips, Zinc Plated Steel, 2 Pieces
- #10-24 X 1″, Wood Screw, 4 Pieces
- Wiring Location Sheet, 1 Piece
