ICC CAT6A RJ45 Inline Keystone Couplers, 8P8C Female-to-Female Jacks, Feed-Through PCB Modules for Wall Plates & Patch Panels, UL Listed

Features

• RJ45 INLINE CONNECTION: CAT6A-rated coupler with female-to-female 8P8C jack for extending Ethernet patch cables
• PCB SIGNAL PATH: Built with PCB technology to support 10GbE signal transmission and high-speed data performance

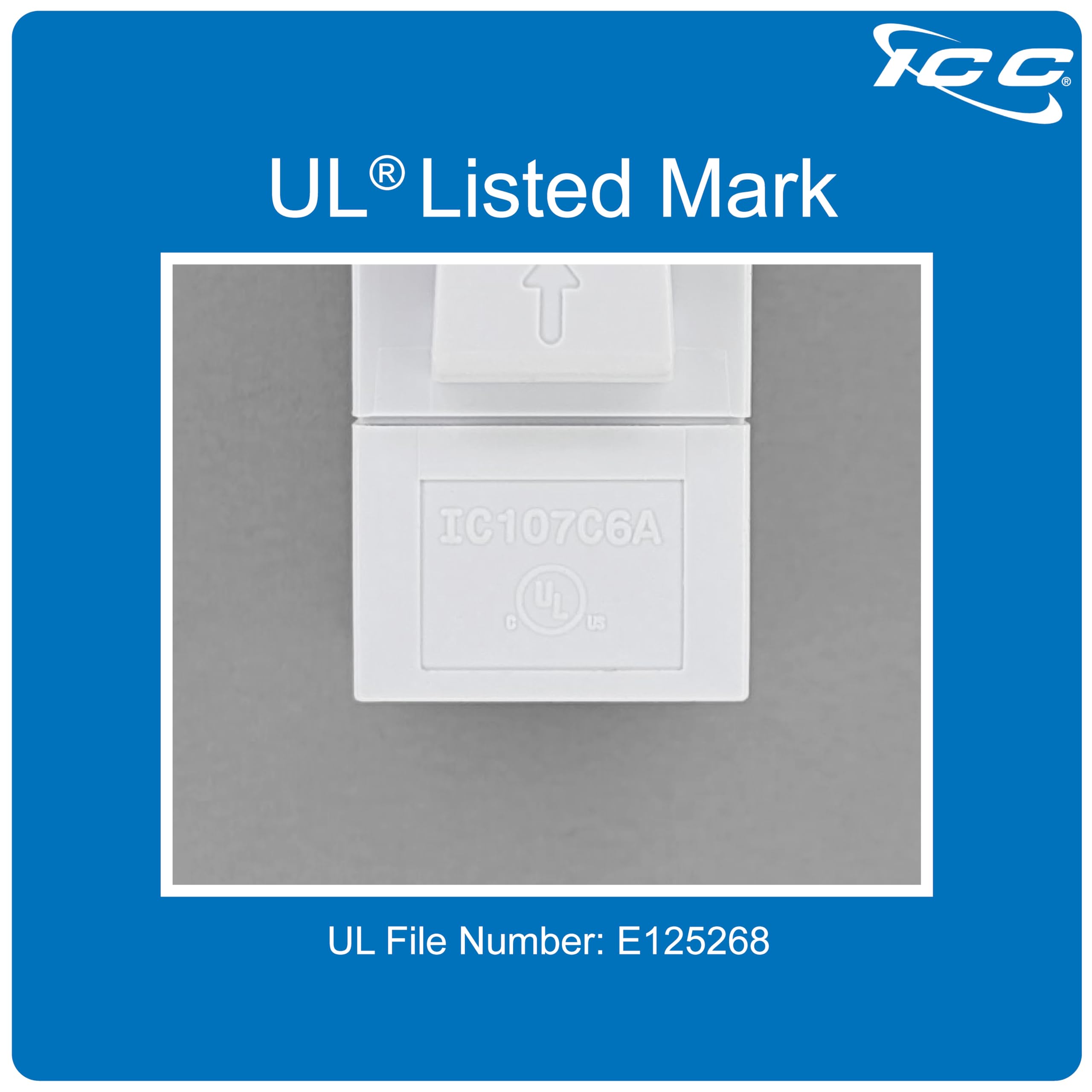

• UL AND TAA COMPLIANT: UL Listed (UL 94V-0), TAA compliant, and Section 889 certified for government installations

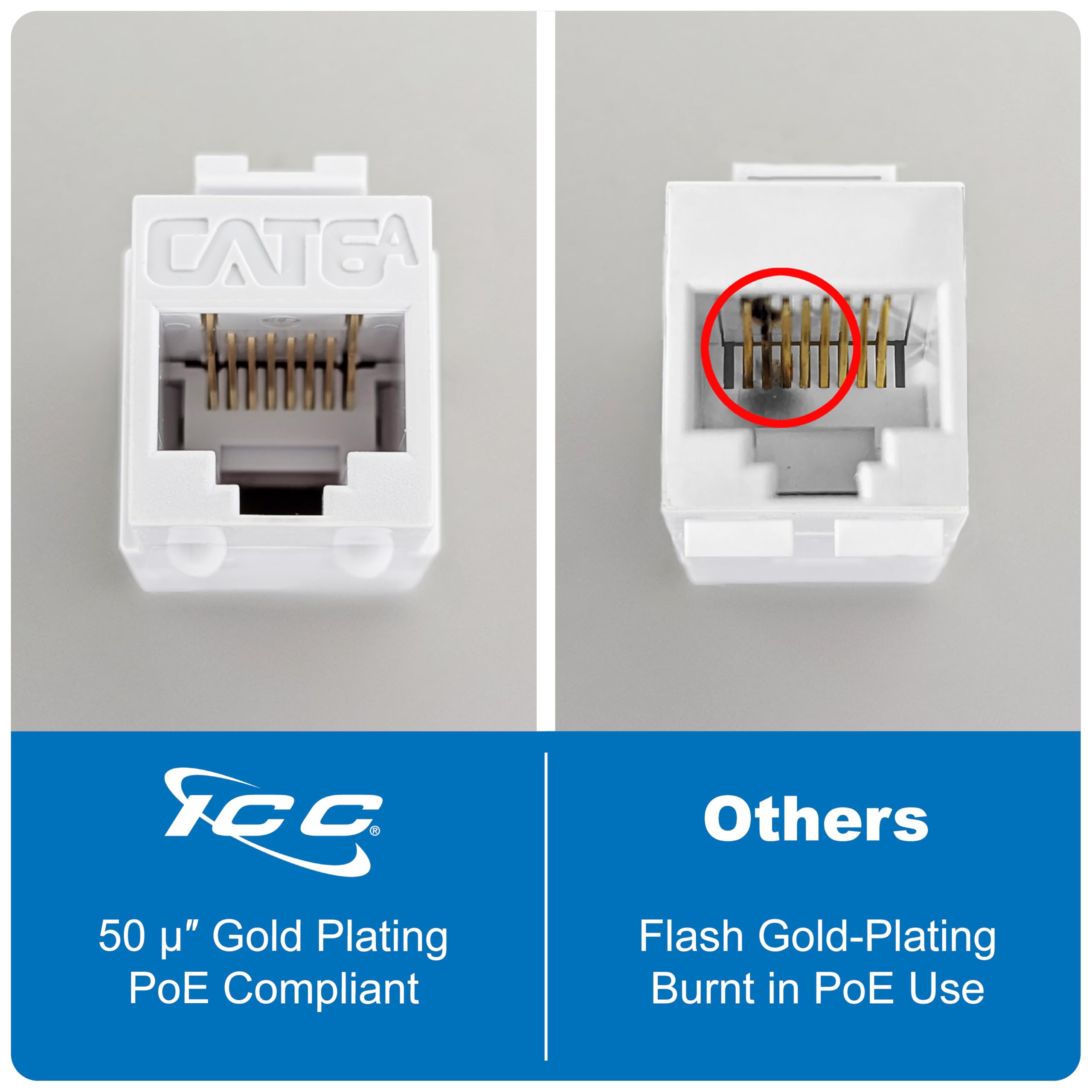

• POE++ AND GOLD CONTACTS: Supports PoE++ for high-power devices; 50 micro-inch gold-plated contacts for durability
• KEYSTONE STYLE: Compatible with ICC wall plates, patch panels, and surface mount boxes

Specifications

Transmission Performance:

Meet all requirements specified in channel requirement of ISO/IEC 11801,

class E, ANSI/TIA-568-C.2, CAT6

Electrical:

Electrical Insulation Transmission: 500 min at 100v D.C

Dielectric Withstanding Voltage: 1000v D.C. or A.C. peak contact to contact at 60hz for 1 min

Mechanical:

Insertion/Extraction Life : 750 cycles minimum

Physical:

Housing High Impact, flame retardant plastic, UL 94V-0

Spring Wire: Phosphor Bronze Alloy Plated with 50 Micro-Inch of Gold

Color:

Color XX: BK-Black, WH-White
