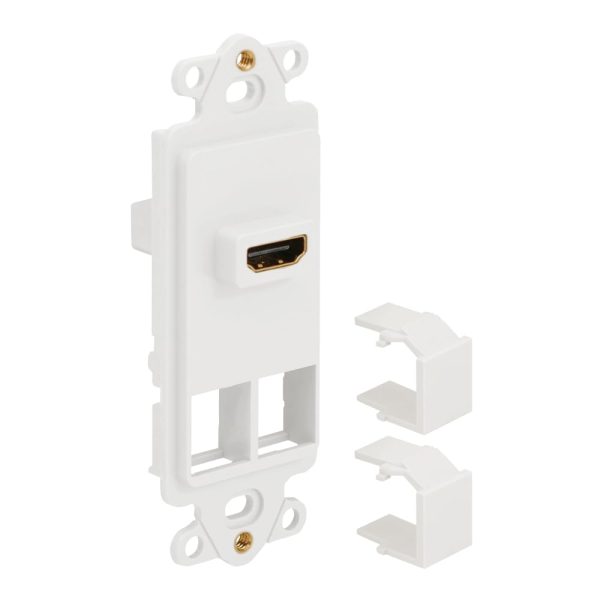

Decorex Insert with 1 HDMI Connector and 2 Ports for HD Style

Clear

Description

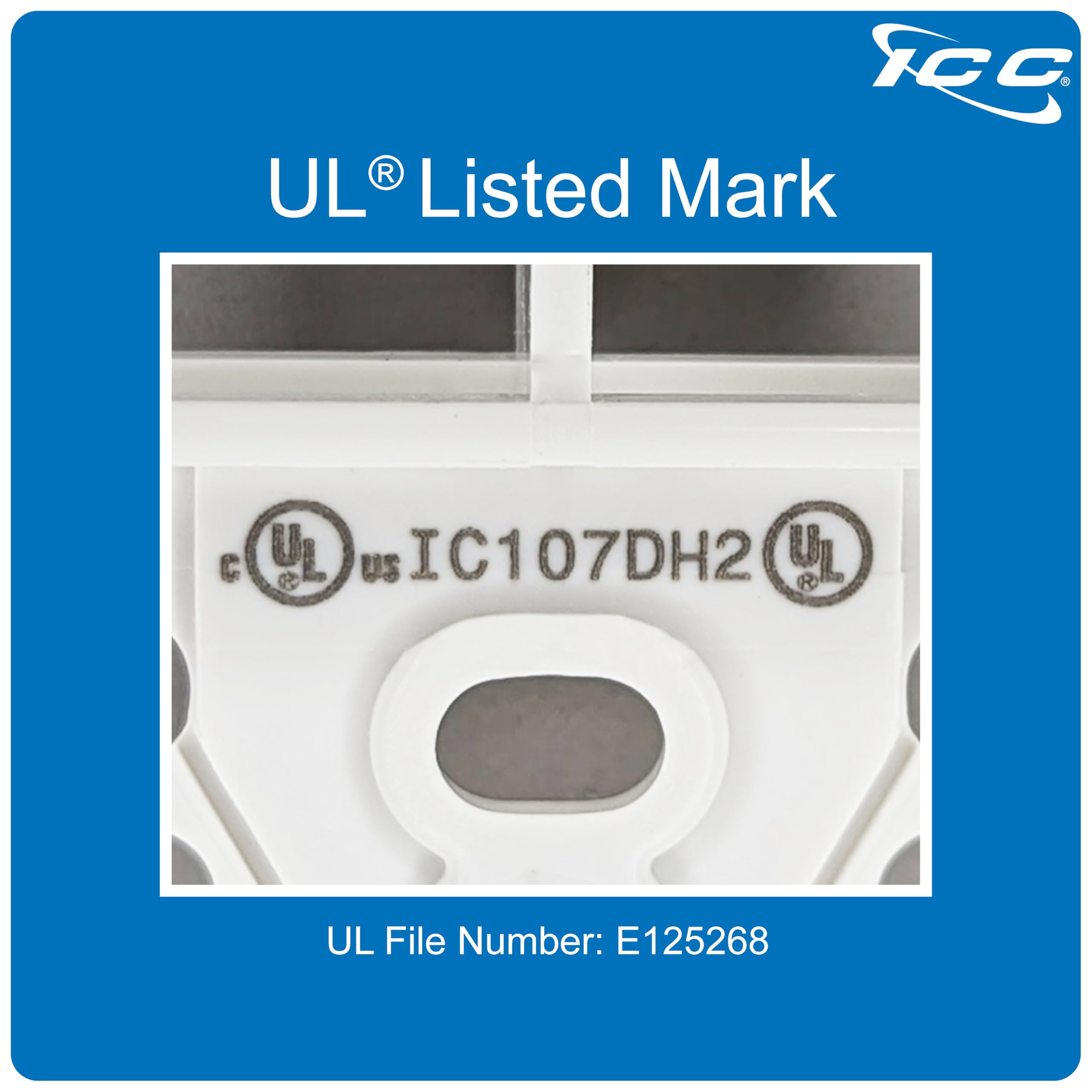

ICC offers HDMI Decorex inserts. ICC’s Decorex inserts are designed to work with Decorex faceplates, or commonly known as wall plates. Decorex inserts with two ports fill the open space making the outlet appear as one complete piece and aesthetically pleasing. Decorex inserts are configured to fit a standard single gang outlet box. These Decorex inserts are made of tough ABS plastic for long-lasting use and comply with UL 94 plastics flammability standard.

Features

  • 99.99% Oxygen Free Copper conductors with gold plating.
  • Copper Foil shielding for rejection of EMI and RFI.
  • Designed to distribute high-quality video, audio, and other communication needs.
  • With contemporary styling for commercial or residential applications.

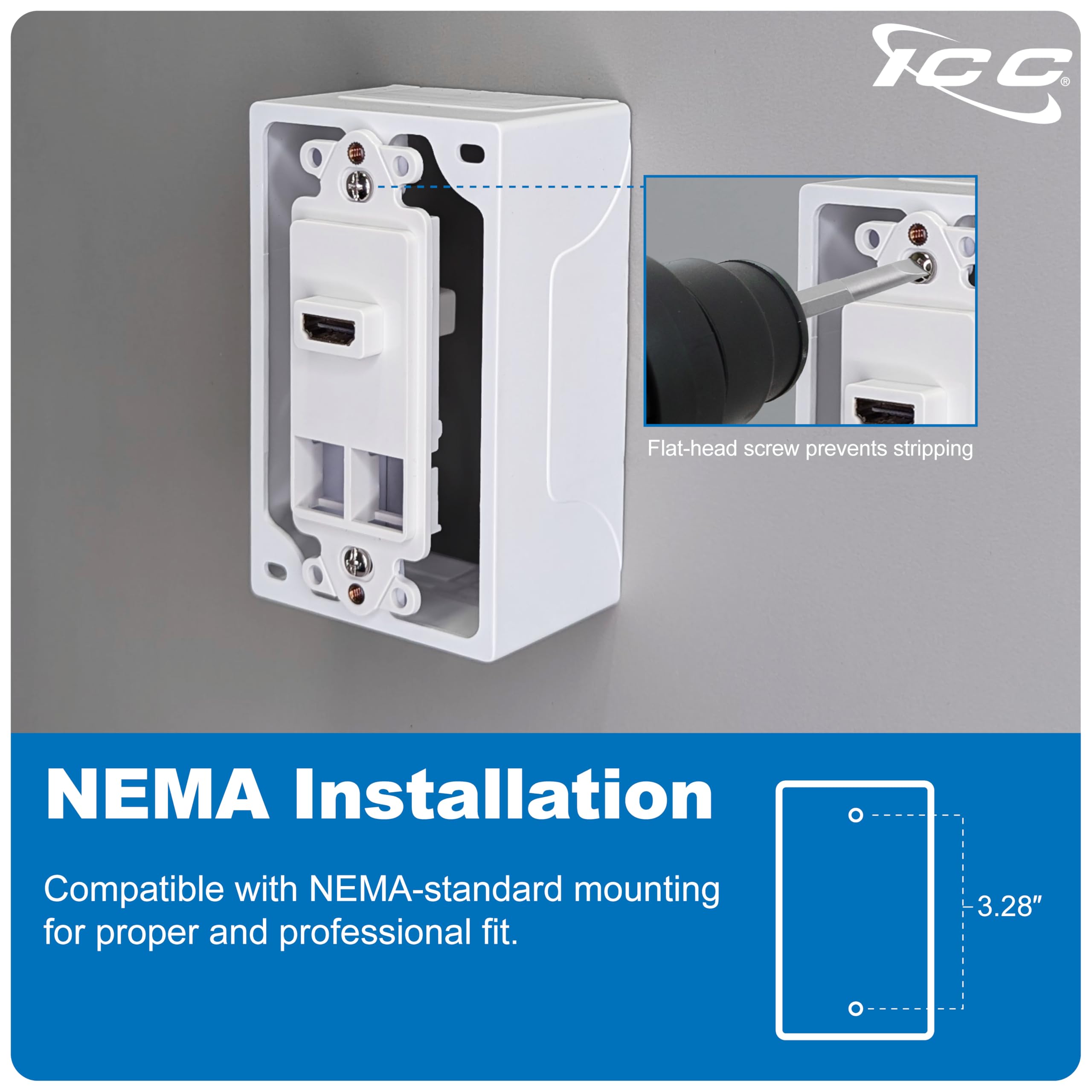

  • Fits standard NEMA electrical boxes.
  • Rugged and durable construction.
  • Designed for a consistent look with the standard decorator style faceplates.
  • Accommodates a wide variety of easy to snap-in modules, providing configuration flexibility
  • HDMI (High Definition Multimedia Interface) connectors are ideal for high-definition video
    and audio devices
  • HDMI (High Definition Multimedia Interface) are certified and support standard, enhanced
    and high-definition video (up to 1080p) along with 8 channels of digital audio on a single cable
  • Compatible with all HD modules and Decorex faceplates
  • Supports v1.2, v1.3, v1.4a, 720p, 1080i, 1080p, 3D, and HDCP; typical maximum distance
    for HDMI cable is 33ft. (10 meters)
  • Support 4K ultra HD video

Specifications

Housing:
Material: ABS, UL 94V-0
Mechanical:
Finish: Brass with flush gold plating
Electrical:
100 ohms max
100 percent open short mis-wire test
Contact Resistant: 2 ohm max
Insulation Resistant: 10 Megaohm min
Withstand Voltage: 0.1 sec. DC 200V
Hi-Pot: AC 200v 1.0 mA
Color:
Color XX: IV-Ivory, BK-Black, WH-White
