Description

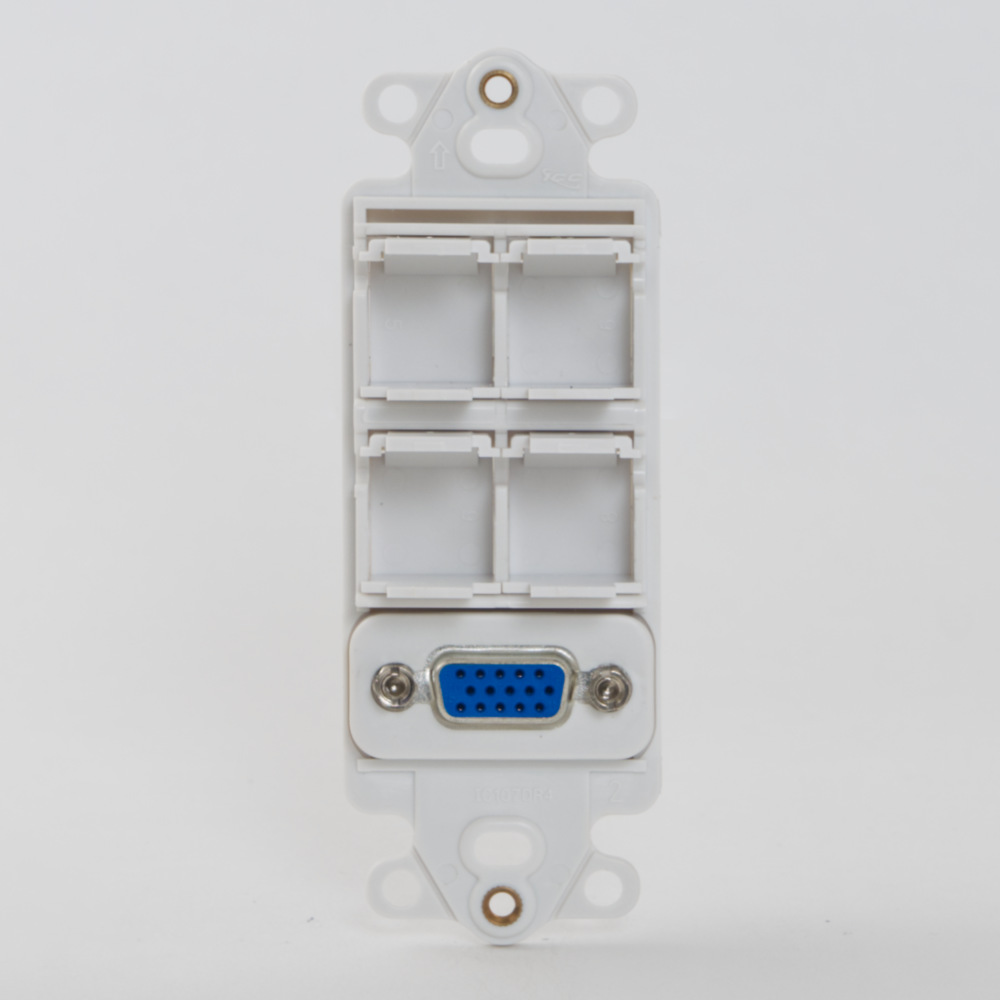

ICC offers Decorex inserts. ICC’s Decorex inserts are designed to work with Decorex faceplates, or commonly known as wall plates. Decorex inserts with VGA connector and four ports fill the open space making the outlet appear as one complete piece and aesthetically pleasing. Decorex inserts are configured to fit a standard single gang outlet box. These Decorex inserts are made of tough ABS plastic for long-lasting use and comply with UL 94 plastics flammability standard.
Features
- Designed to support the distribution of video, voice, data.
- With contemporary styling for commercial or residential applications.
- VGA connector and four ports with HD Style.
- RGB connector is ideal for the transmission of high-quality video.

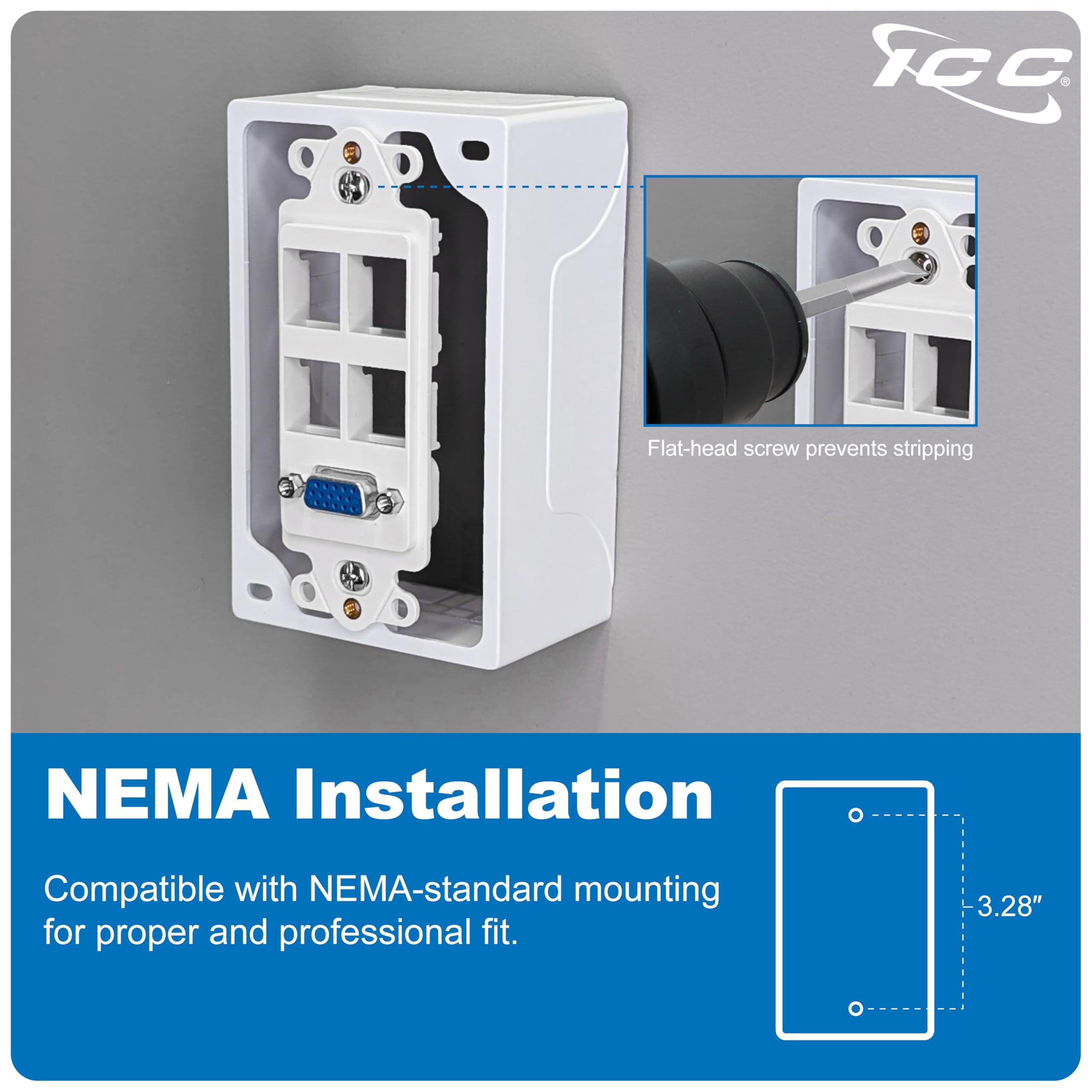

- Fits standard NEMA electrical boxes.
- Rugged and durable construction.
- Designed for a consistent look with standard decorator style faceplates.
- Compatible with all Decorex faceplates.

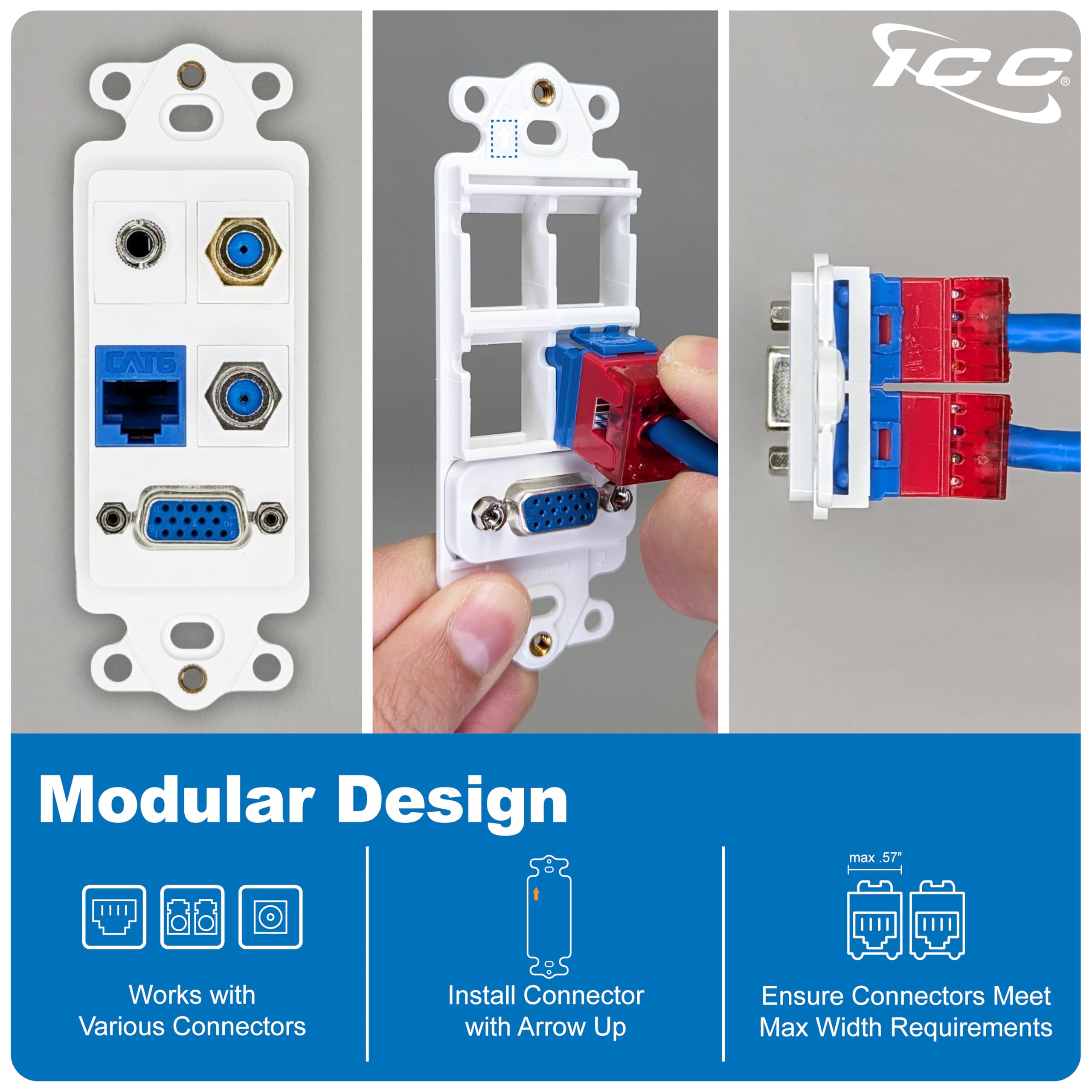

- Accommodates a wide variety of easy to snap-in modules.
- Providing configuration flexibility.
- Compatible with all ICC HD modular connectors and keystone jacks.
Specifications
Material:
Material: ABS, UL 94V-0
Finish: Glossy
Mechanical:
Shell: Zinc plated steel
Pin Contact: Phosphor Bronze
Insulator: PBT and glass fiber reinforced UL 94V-0
Number of contacts: 15
Electrical:
Current Rating: 5 amp
Dielectric strength: 1000v for one minute
Insulator Resistance: 1000m ohm min at 500v DC
Temperature: -55 degrees C to 105 degrees C
Color:
Color XX: IV-Ivory, WH-White, AL-Almond
