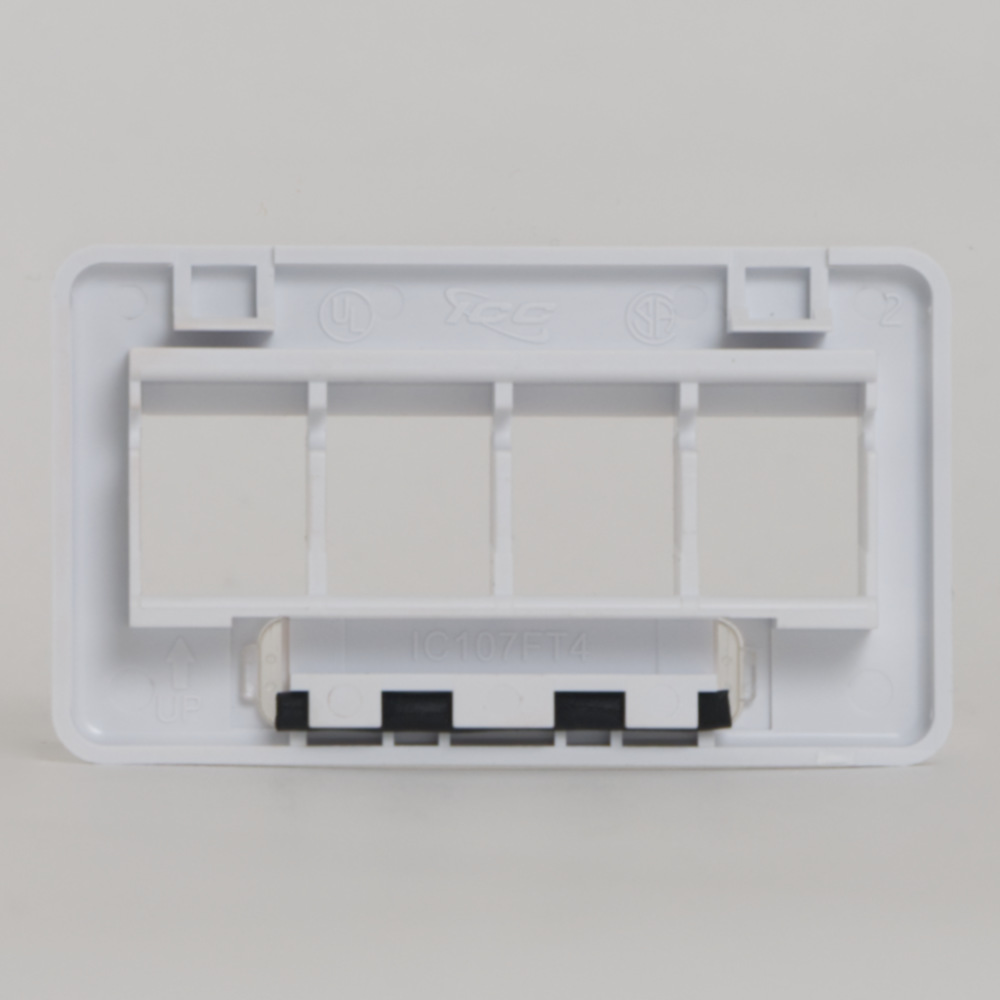

Modular Furniture Faceplate 4 Port Back IC107FT4WH

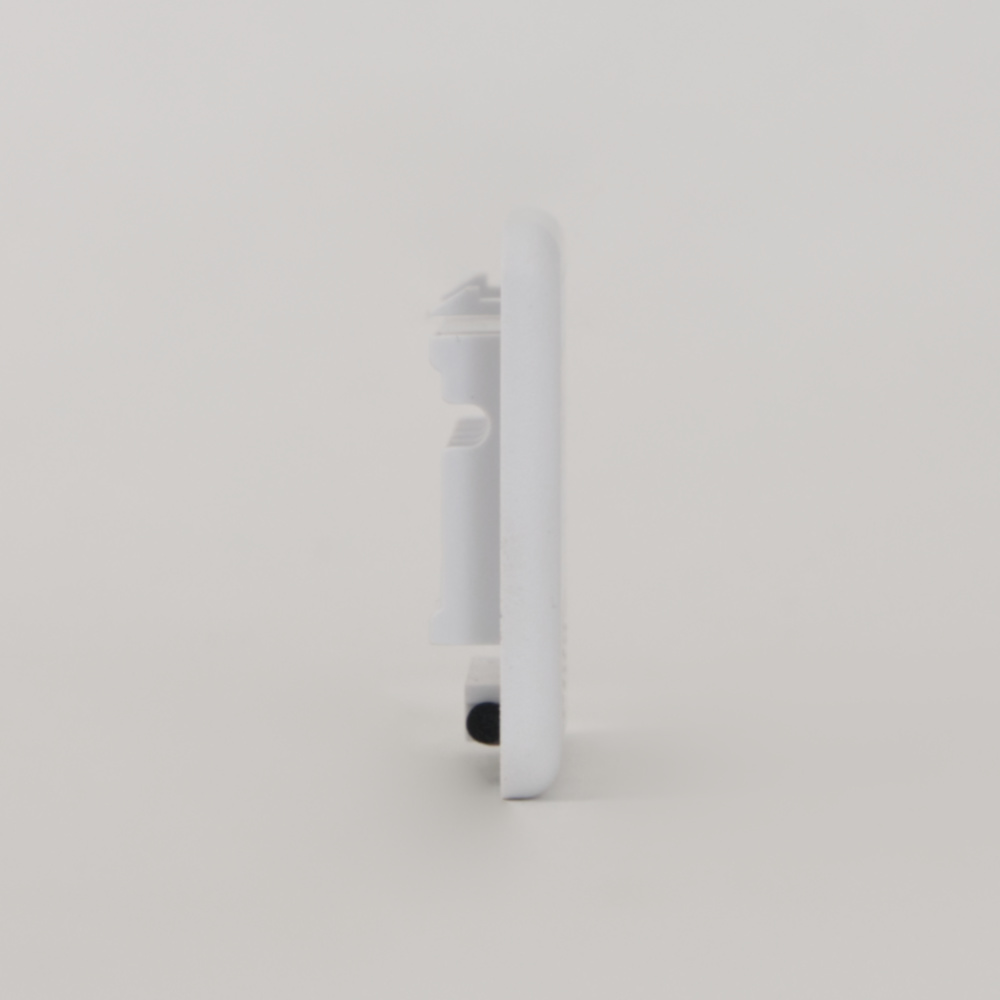

Modular Furniture Faceplate 4 Port Side IC107FT4WH
Modular Furniture Faceplate 4 Port IC107FT4WH
Modular Furniture Faceplate 4 Port Back IC107FT4WH
Modular Furniture Faceplate 4 Port Side IC107FT4WH

Modular Furniture Faceplate with 4 Ports for HD Style in TIA Size

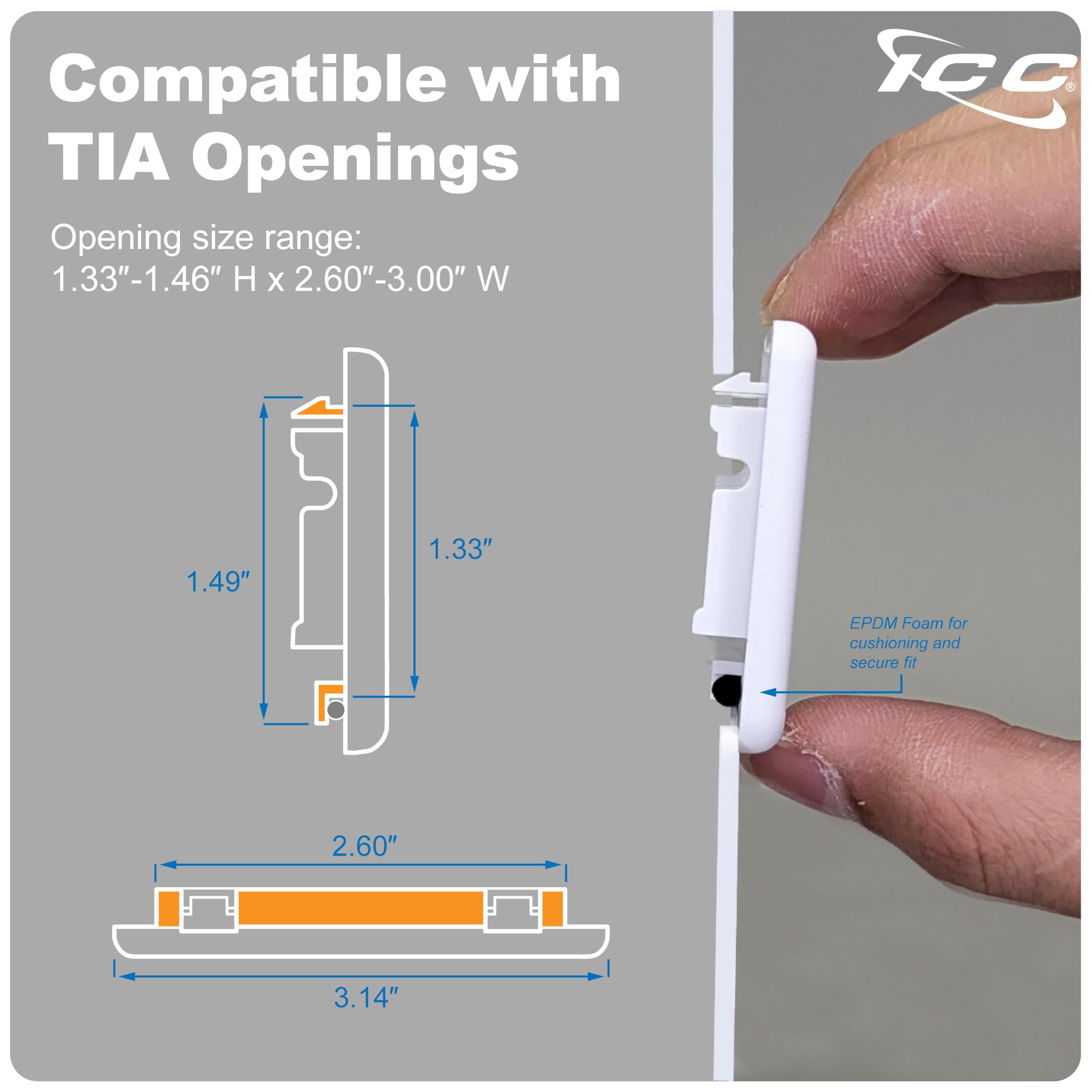

Opening Size: TIA - 1.33" H x 2.60" W
  • Modular Furniture Faceplate 3 Port IC107FM3WH
  • Modular Furniture Faceplate 4 Port NEMA IC107FN4WH
  • Modular Furniture Faceplate 4 Port IC107FT4WH
  • Furniture Universal Faceplate 4 Ports IC108UF4WH
SKU: N/A Categories: , ,
UPC:

Country of Origin (subject to change): Taiwan, TAA compliant

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Furniture Faceplates are equipped to support keystone jacks such as voice, data. Our faceplates are fitted to install connectivity within the furniture. Ideal for installations such as conference rooms, computer labs, classrooms, and office cubicles. Designed with installation versatility, these faceplates provide a professional appearance. This particular faceplate is designed in HD style in TIA style.

Additional information

Shipping Weight N/A
Product Type

Faceplates

Style

Furniture

Opening Size

TIA – 1.33" H x 2.60" W

Connector

Configurable

Jack Style

HD

Ports

4

Color

Black, Gray, Ivory, White

Packaging

Single

Country of Origin (subject to change)

Taiwan, TAA compliant

Product Documents

Product Documents

Features

  • 1-piece design.
  • Accepts four (4) high-density modular connectors.
  • Available for standard NEMA and TIA furniture cutout size.
  • Provides connectivity at the workstation.
  • Designed to support the distribution of voice and data.
  • Ideal for use in high-density applications with more connectivity in less space.
  • TIA opening with snap-in design integrates into popular modular furniture brands.
  • Rugged and durable construction.
  • Accommodates a wide variety of easy to snap-in modules.
  • Providing configuration flexibility.
  • Accepts all high density (HD) modules.
  • ANSI/TIA-568-C and UL 1863 compliant.

Specifications

Material:

Material: ABS, UL 94V-0

Physical:

Surface Finishing: Texture

Color:

Color XX: BK-Black, GY-Gray, IV-Ivory, WH-White
