Description
ICC’s MTP® patch cord has female connectors on both ends. It helps reduce cabling by consolidating 12 OM3 multimode fiber strands into a single jacket. This multi-fiber patch cord is ideal for backbone, long-range cabling. It’s designed with precision-molded MT ferrules and precise housings for perfect fiber alignment during mating. The push and pull lock ensures a reliable connection with MTP connectors.
Features

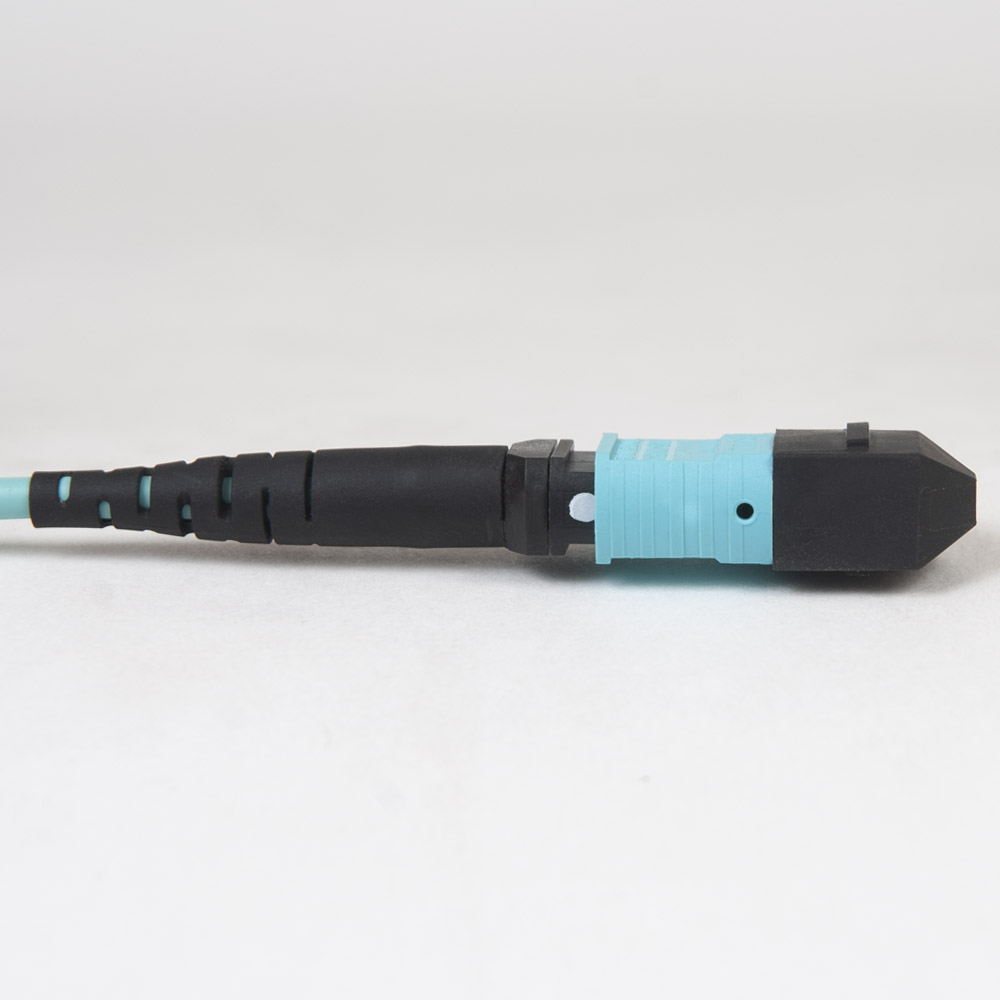

- 12 strand MTP female connector without pins.
- Type A polarity, 1 to 1 wiring.
- Laser Optimized (LOMMF) and bend-insensitive Corning® ClearCurve® fiber.
- Plenum-rated jacket.
- Push and pull connector.

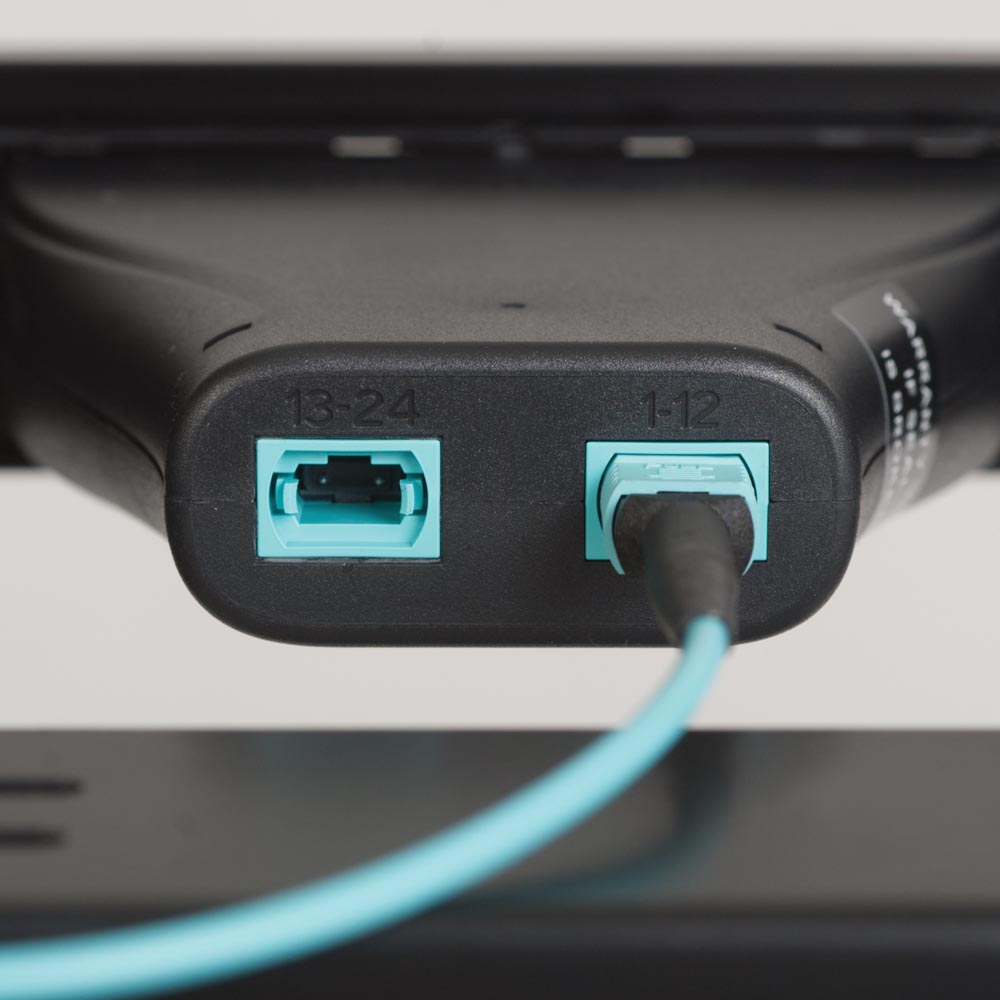

- Compatible with MPO adapter panels and cassettes.
- TIA compliant.
- Available in 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, and 100 meter lengths.
- 100% factory tested.
Specifications
Cable:
Fiber Counts: 12 Fiber Round Cord
Fiber Type: OM3 Multimode 50/125µm
Attenuation: 2.3/0.6 dB/km at 850/1300 nm
Bandwidth: 3500/500 MHz.km EMB at 850/1300 nm
Jacket Rating: Plenum
Cable Data:
Cable diameter: 0.11 in ± 0.007 in (3.0 mm ± 0.2mm)
Weight: 12 lbs/ft
Bend radius: 1.2″min
Loading: 135 lbs max
Impact cycle: 1500
MTP Connector:
Ferrule: PPS Thermoplastic
Insertipon Loss: 0.5dB typical, 0.75dB max
Return Loss: ≥60dB
Compliance:
ANSI/TIA-568-C.3
Color:
Aqua
*MTP is a registered trademark of US Conec Ltd. ClearCurve is a registered trademark of Corning.
