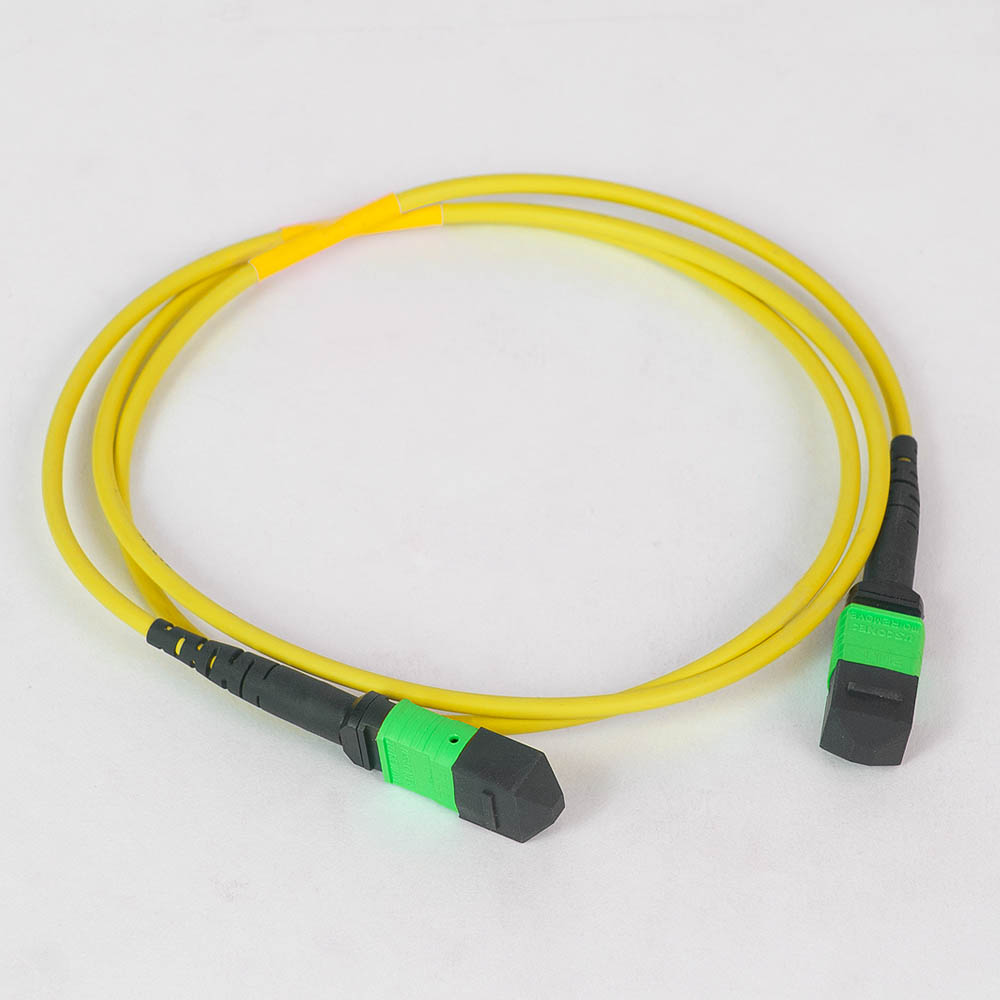

MTP-MTP Plenum Singlemode 9/125 (OS2) Type A Fiber Optic Patch Cable with 12 Fibers in Yellow
| Mode: OS2/SM | |
| Polarity: Type A (1 to 1) | |
| Guide Pins: No - No |
Lead Time: 2 Weeks
Country of Origin (subject to change): Taiwan
California Prop 65 WarningDescription

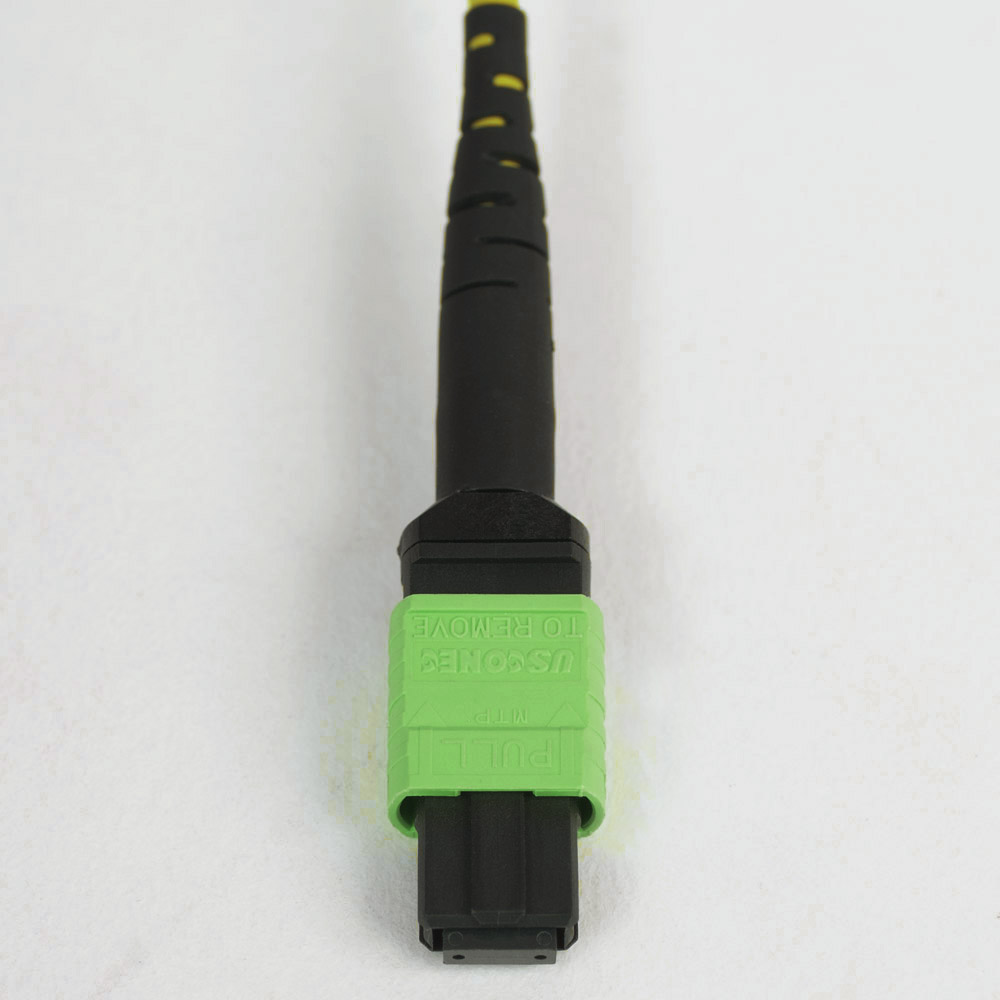

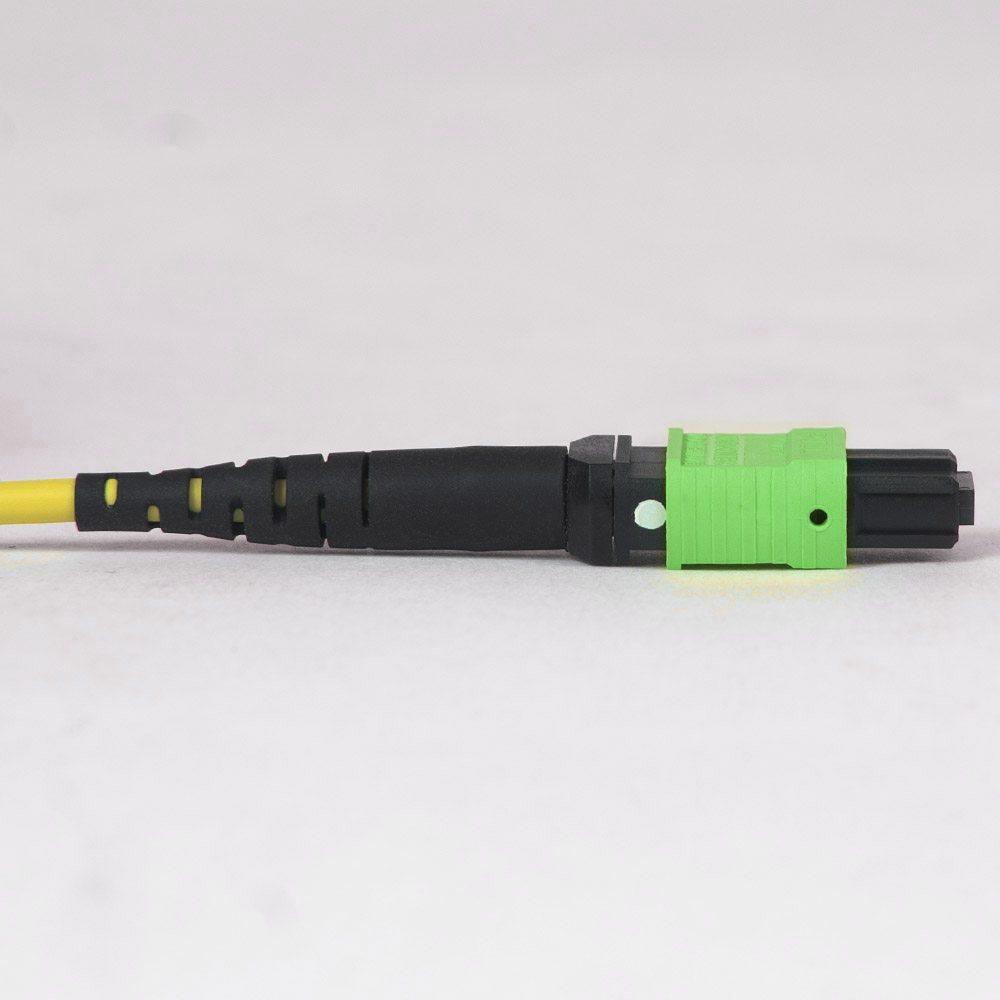

ICC’s MTP®* patch cord has female connectors on both ends. It helps reduce cabling by consolidating 12 OS2 singlemode fiber strands into a single jacket. This multi-fiber patch cord is ideal for backbone, long-range cabling. It’s designed with precision-molded MT ferrules and precise housings for perfect fiber alignment during mating. The push and pull lock ensure a reliable connection with MTP connectors.
Features
- 12 strand MTP female connector without pins.
- Type A polarity, 1 to 1 wiring.
- Bend-insensitive fiber.
- Plenum-rated jacket.
- Push and pull connector.
- Compatible with MPO adapter panels and cassettes.
- TIA compliant.
- Available in 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, and 100 meter lengths.
- 100% factory tested.
Specifications
Cable:
Fiber Counts: 12 Fiber Round Cord
Fiber Type: OS2 Singlemode
Jacket Rating: Plenum
Cable Data:
Cable diameter: 0.11 in ± 0.007 in (3.0 mm ± 0.2mm)
Weight: 12 lbs/ft
Bend radius: 1.2″min
Loading: 135 lbs max
Impact cycle: 1500
MTP Connector:
Ferrule: PPS Thermoplastic, APC
Insertipon Loss: 0.5dB typical, 0.75dB max
Return Loss: ≥60dB
Compliance:
ANSI/TIA-568-C.3
Color:
Yellow
*MTP® is a registered trademark of US Conec Ltd.
