MTP-MTP Plenum Singlemode 9/125 (OS2) Type B Fiber Optic Patch Cable with 12 Fibers in Yellow
|Polarity: Type B (1 to 12)|
|Guide Pins: No - No|
Lead Time: 2 Weeks
Country of Origin (subject to change): Taiwan

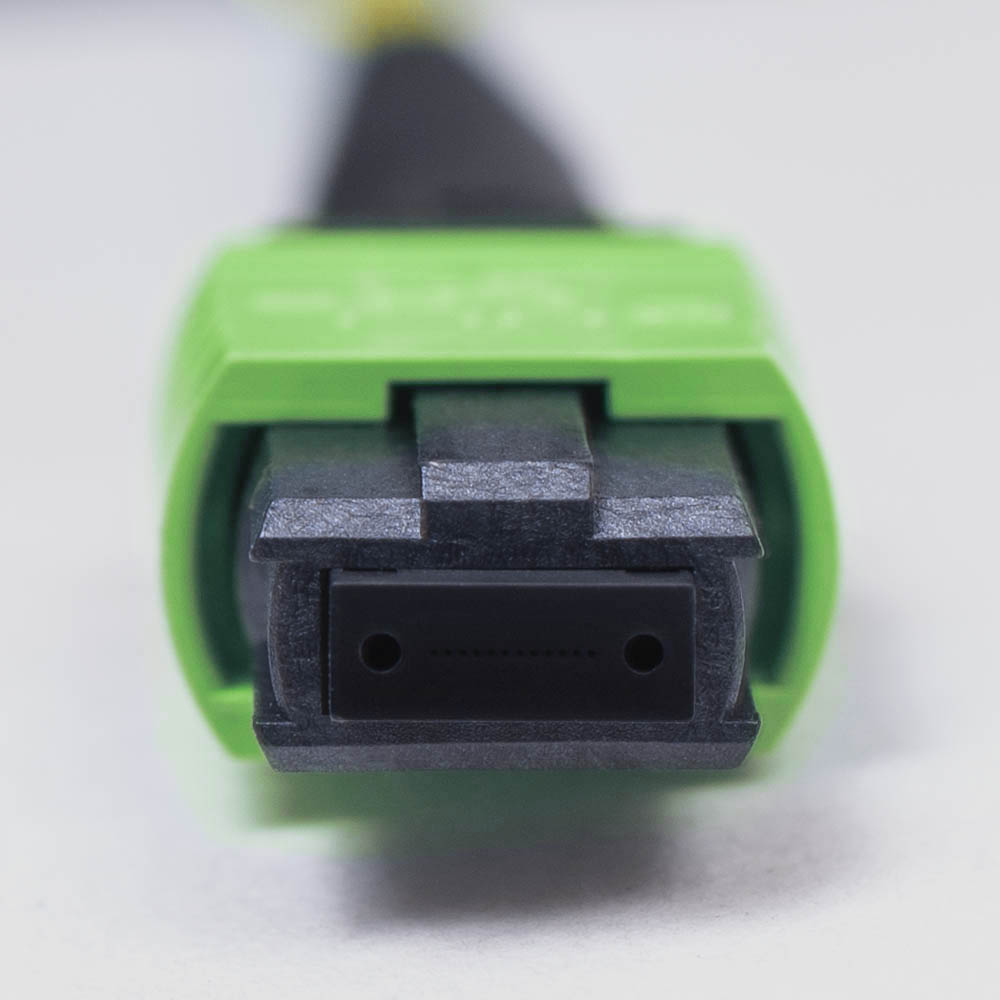

ICC’s MTP®* patch cord has female connectors on both ends. It helps reduce cabling by consolidating 12 OS2 singlemode fiber strands into a single jacket. This multi-fiber patch cord is ideal for backbone, long-range cabling. It’s designed with precision-molded MT ferrules and precise housings for perfect fiber alignment during mating. The push and pull lock ensure a reliable connection with MTP connectors.
- 12 strand MTP female connector without pins.
- Type B polarity, 1 to 12 wiring.
- Bend-insensitive fiber.
- Plenum-rated jacket.
- Push and pull connector.
- Compatible with MPO adapter panels and cassettes.
- TIA compliant.
- Available in 5, 10, 15, and 20 meter lengths.
- 100% factory tested.
Fiber Counts: 12 Fiber Round Cord
Fiber Type: OS2 Singlemode
Jacket Rating: Plenum
Cable diameter: 0.11 in ± 0.007 in (3.0 mm ± 0.2mm)
Weight: 12 lbs/ft
Bend radius: 1.2″min
Loading: 135 lbs max
Impact cycle: 1500
Ferrule: PPS Thermoplastic, APC
Insertipon Loss: 0.5dB typical, 0.75dB max
Return Loss: ≥60dB
*MTP® is a registered trademark of US Conec Ltd.
