Description

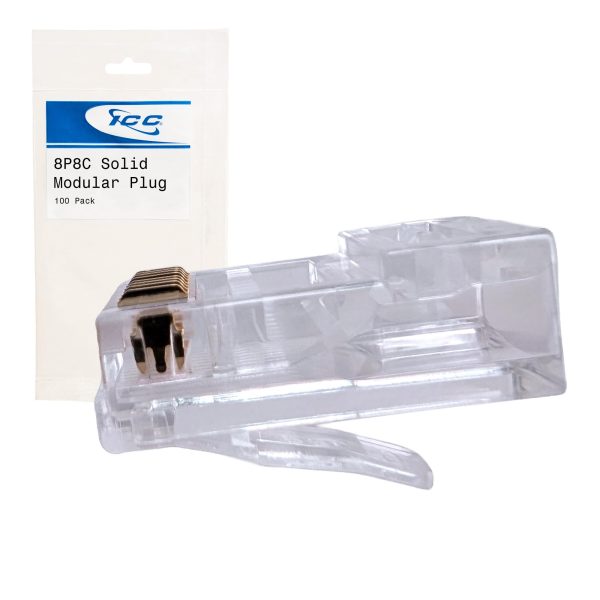

ICC CAT6 RJ45 modular plugs with oval entry design are optimized for terminating solid copper Ethernet cable in structured cabling applications. The oval entry helps guide conductors into the plug body, supporting smoother cable insertion and more consistent terminations. These 8-position, 8-conductor RJ45 modular plugs are designed for CAT6 Ethernet cable and are compatible with standard modular plug crimping tools for custom patch cord assembly. Supplied in a 100-pack quantity, these modular plugs support batch terminations, maintenance work, and ongoing installation needs.
Features
- OVAL ENTRY CONNECTOR DESIGN: Oval cable entry helps guide conductors into the plug body for smoother cable insertion
- OPTIMIZED FOR SOLID COPPER CABLE: Connector geometry optimized for terminating solid copper Ethernet conductors
- CAT6 RJ45 MODULAR PLUG (8P8C): 8-position, 8-conductor RJ45 modular plug designed for CAT6 Ethernet cable terminations
- STANDARD CRIMP TERMINATION: Designed for use with standard modular plug crimping tools for custom patch cord assembly
- 100 PACK FOR INSTALLATION EFFICIENCY: Includes 100 CAT6 RJ45 modular plugs for batch terminations, maintenance work, and spares
Specifications
Electrical:
Current/Voltage Rating: 1.5 AMPS/ 30 VAC 42 VDC
Dielectric Withstanding Voltage: 1000 Volts RMS, 1 min (60 Hz)
Insulation Resistance: 5000 ohms min
Termination Resistance: 35 milliohms max after environmental testing
Material and Finish:
Housing: PC, UL 94V-2
Color: Clear
Contact: Phosphor Bronze, Gold plating over 100 microinch Nickel
Gold Plating: 1.27 micron/50 micro inch min
