Description

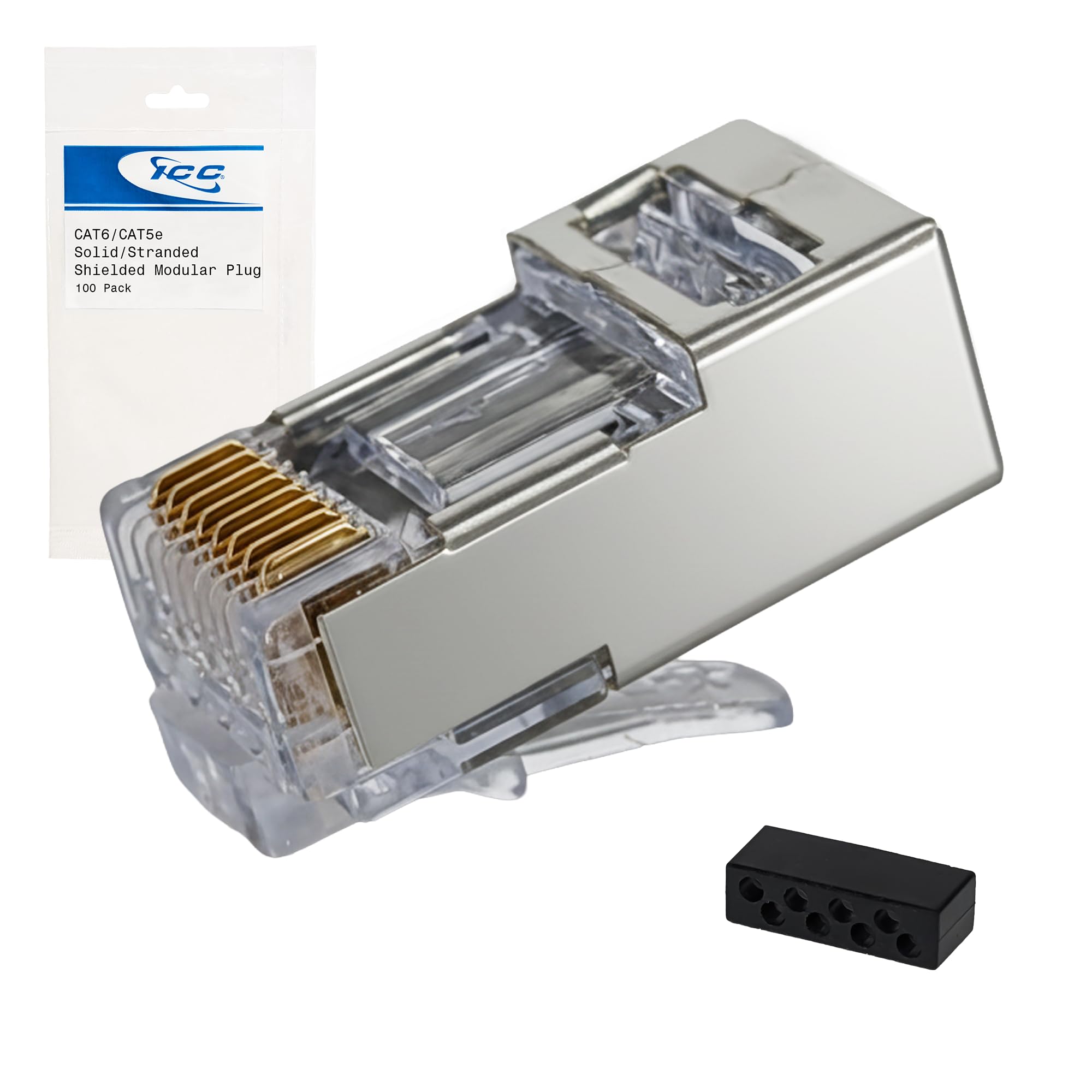

ICC’s one-piece shielded modular plug with a loading bar suits CAT6 and CAT5e FTP or STP cable installations. It accepts 24-23 AWG solid or stranded cable for optimum protection against EMI and RFI interferences.
Features
- Designed for CAT6 and CAT5e, 8-position 8-conductor, shielded, solid or stranded wire.
- Ideal for customization of cords for voice or high-speed data applications.
- Accepts 24-23 AWG solid or stranded.
- Used with crimping tools.
- UL Recognized.
Specifications
Electrical:
Current/Voltage Rating: 1.5 AMPS/ 30 VAC 42 VDC
Contact Resistance: 10 milliohms max
Performance:
Meets or Exceeds CAT6 TIA 568 A-B.2
Insertion/Extraction Life: 1000 Cycles
ROHS Compliant
Operation Temperature: -40 degrees C ~ +85°C
Material and Finish:
Housing: Polycarbonate, UL 94V-0
Contact: Phosphor Bronze, .0012 Thick
Gold Plating: Standard Plating is 1.27 micron/50 micro-inch Gold over 100 micro-inch nickel
Shield:
Material: .012 Thick CDA-260, 1/4 Hard Brass
Plating: 100-150 micro-inch Tin plated, 100% Tin
Loading Bar:
Color: Black
Maximum Stranded/Solid Conductor Diameter: 0.042″
California Prop 65 Warning
