F-Type Keystone Jack for 2 GHz with Gold Plated Connector for HD Style

2 GHz F-Type Modular Jack with Gold Plated Connector in HD Style

Style: F-Type 2 GHz Gold Plated
  • F-Type Keystone Jack with 3 GHz Nickel Plated Connector for HD Style
  • F-Type Keystone Jack with 2 GHz Nickel Plated Connector for HD Style
  • F-Type Keystone Jack with 3 GHz Gold Plated Connector for HD Style
  • F-Type Keystone Jack for 2 GHz with Gold Plated Connector for HD Style
  • F-Type Compression Modular Jack with Nickel Plated Connector in HD Style
  • HDMI Modular Coupler in HD Style
  • Audio Speaker Connector with Patented Front and Rear Push Buttons for HD Style
  • Audio Speaker Connector with Patented Front Push Buttons for HD Style
  • Audio Speaker Connectors with Red and Black Gold Plated Binding Posts and Female Banana Plugs for HD Style
  • Audio Speaker Connectors in Black with Red and Black Front Spring Clips
  • 3.5 mm Stereo Audio Coupler Module in White
  • 3.5 mm Stereo Audio Coupler Module
  • USB 3.0 Modular Coupler in White for HD Style
  • USB A to B Female to Female Modular Connector for HD Style in White
  • RCA to RCA Keystone Jack with Gold Plated Connector and Red Insert for HD Style in White
  • BNC Keystone Jack for 75 Ohm with Nickel Plated Connector for HD Style
  • BNC Keystone Jack for 75 Ohm with Nickel Plated Connector for HD Style
  • RCA to IDC Keystone Jack with Gold Plated Connector and White Insert for HD Style
  • RCA to IDC Keystone Jack with Gold Plated Connector and Red Insert for HD Style in White
Clear
UPC:

Country of Origin: China

Warning SymbolCalifornia Prop 65 Warning

Description

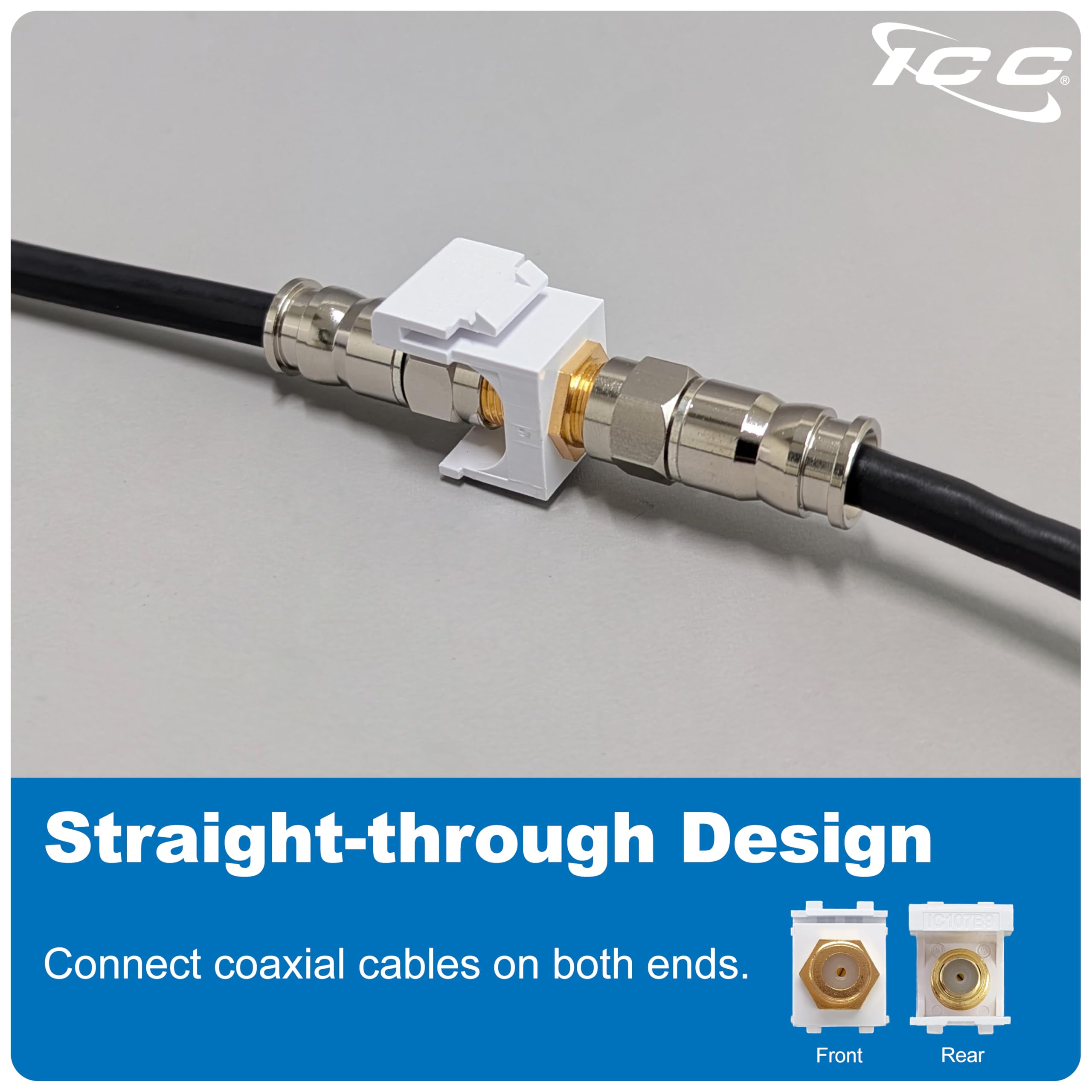

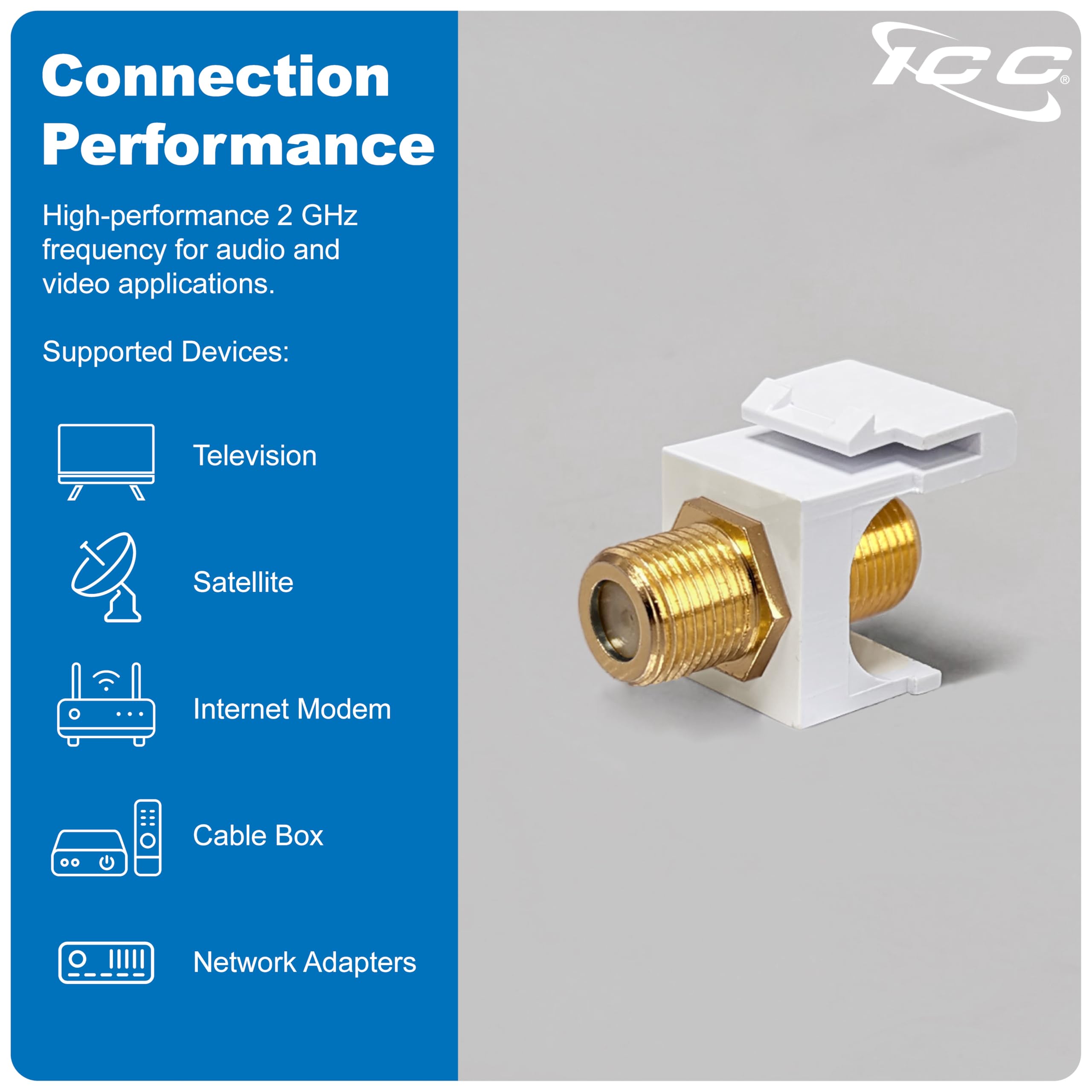

The F-Type modular jacks are ideal for several types of media including: Audio, Video, Cable, or Antenna Input. These high-performance modular jacks provide a clean connection point for wired electronics to wall outlets allowing cables to be hidden within the walls or cabinetry. They provide superior signal quality with minimal noise for today’s video and audio systems. They are fully compatible with ICC?s modular wall plates and multi-media panels.

Features

  • Gold plating for improved performance with superior signal quality with minimal noise
  • Used for audio and video applications.
  • Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coaxial cables.
  • Provides a clean and neat appearance installation.

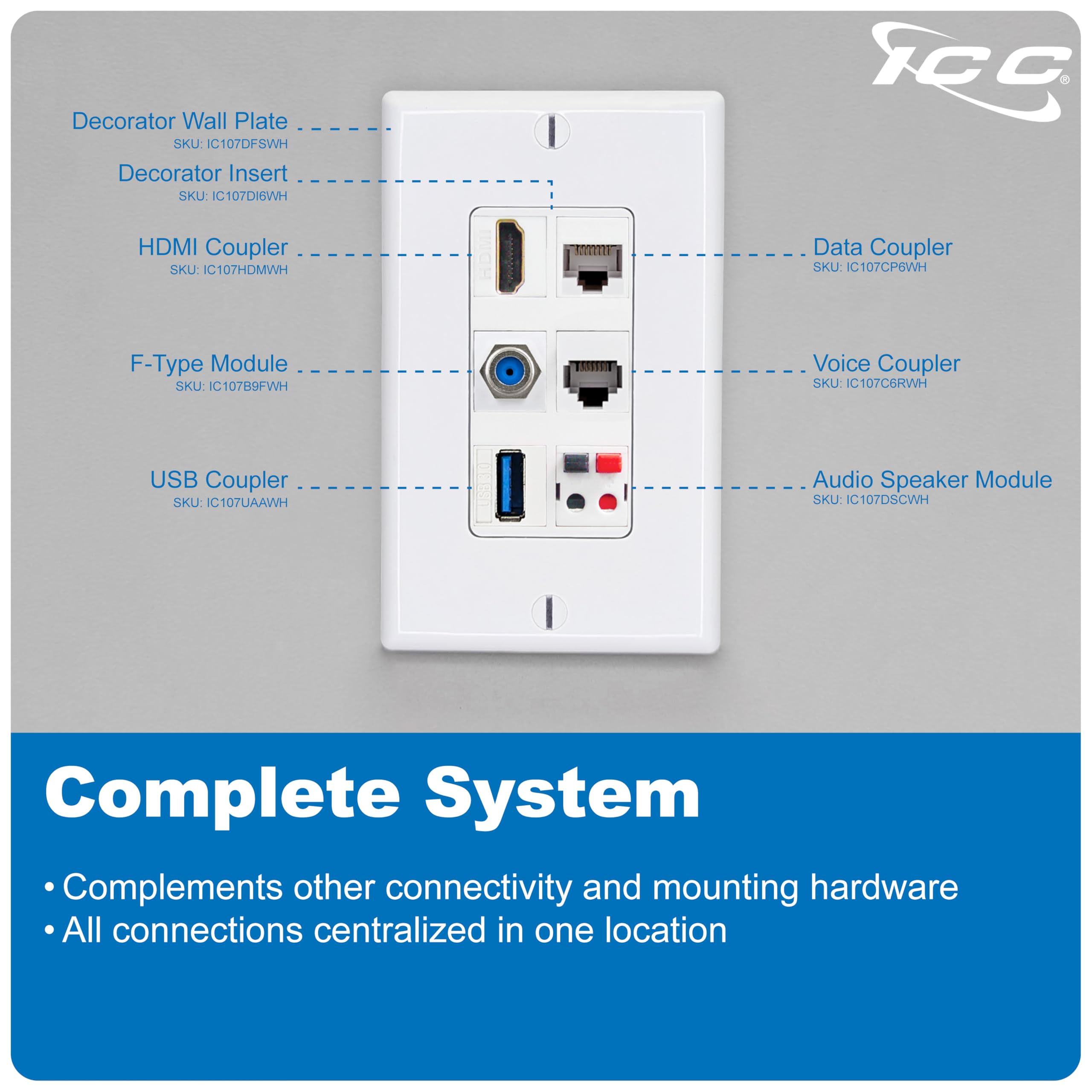

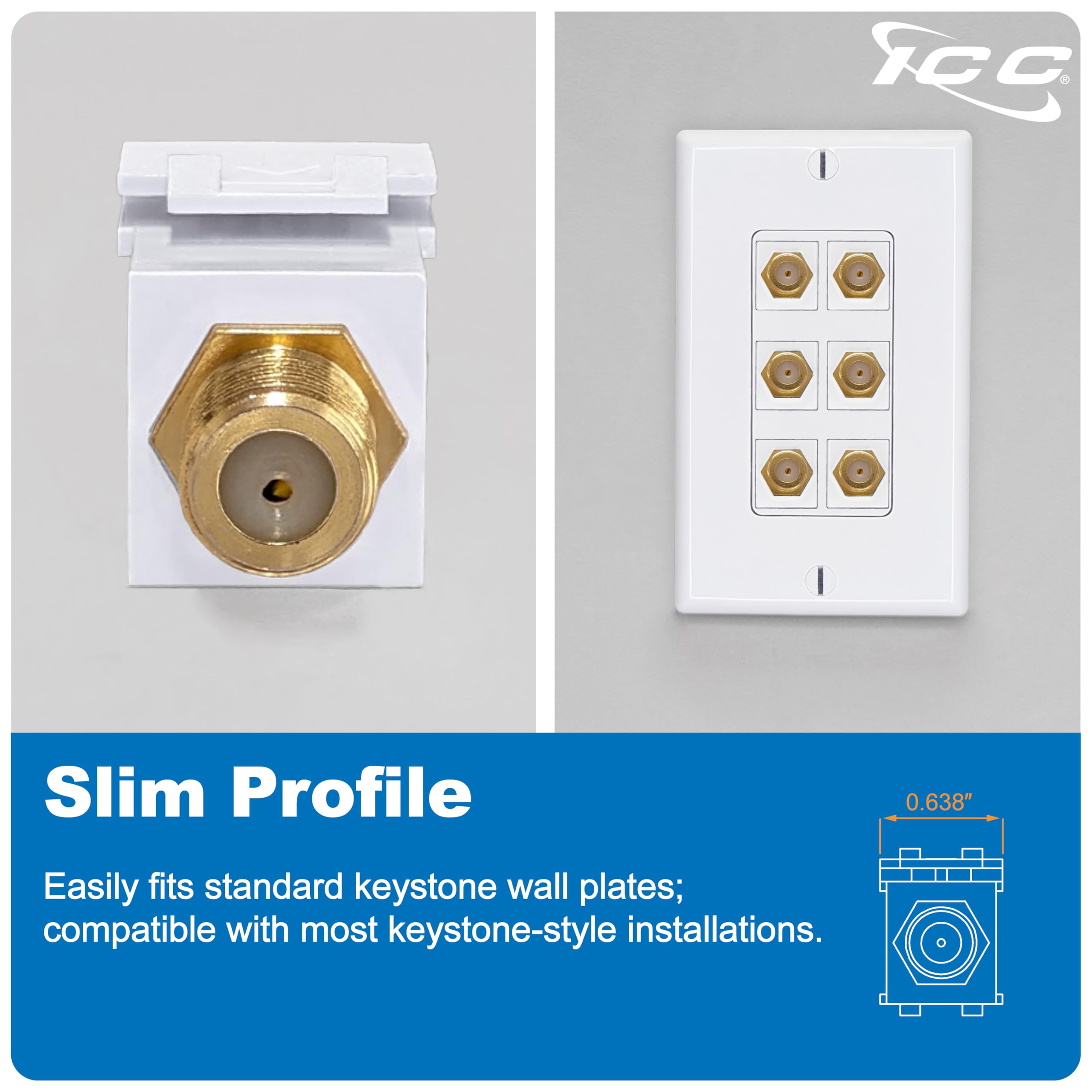

  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • UL listed.

Specifications

Material:
Housing: ABS, UL 94V-0B
Gold Plated F-Type Connector:
Bronze with 3 Gold Plating
Insulator Color: White
Holding Force > 80 grams
F-Type Connector Thread: 3/8-32 UNEF-2A
Electrical:
Return Loss of -20 dB max
Insulation Resistance > 5000 mohm
Insertion Loss < 0.3 dB
Color:
Color XX: AL-Almond, BK-Black, GY-Gray, IV-Ivory, & WH-White
