3 GHz F-Type Modular Jack with Nickel Plated Connector in HD Style
|Style: F-Type 3 GHz Nickel Plated|
Country of Origin (subject to change): China
The F-Type female to female modular jacks is ideal for several types of media including audio, video, cable, or antenna input. These high-performance modular jacks provide a clean connection point for wired electronics to wall outlets allowing cables to be hidden within the walls or cabinetry. They provide superior signal quality with minimal noise for today’s video and audio systems. They are fully compatible with ICC’s modular wall plates and multi-media panels.

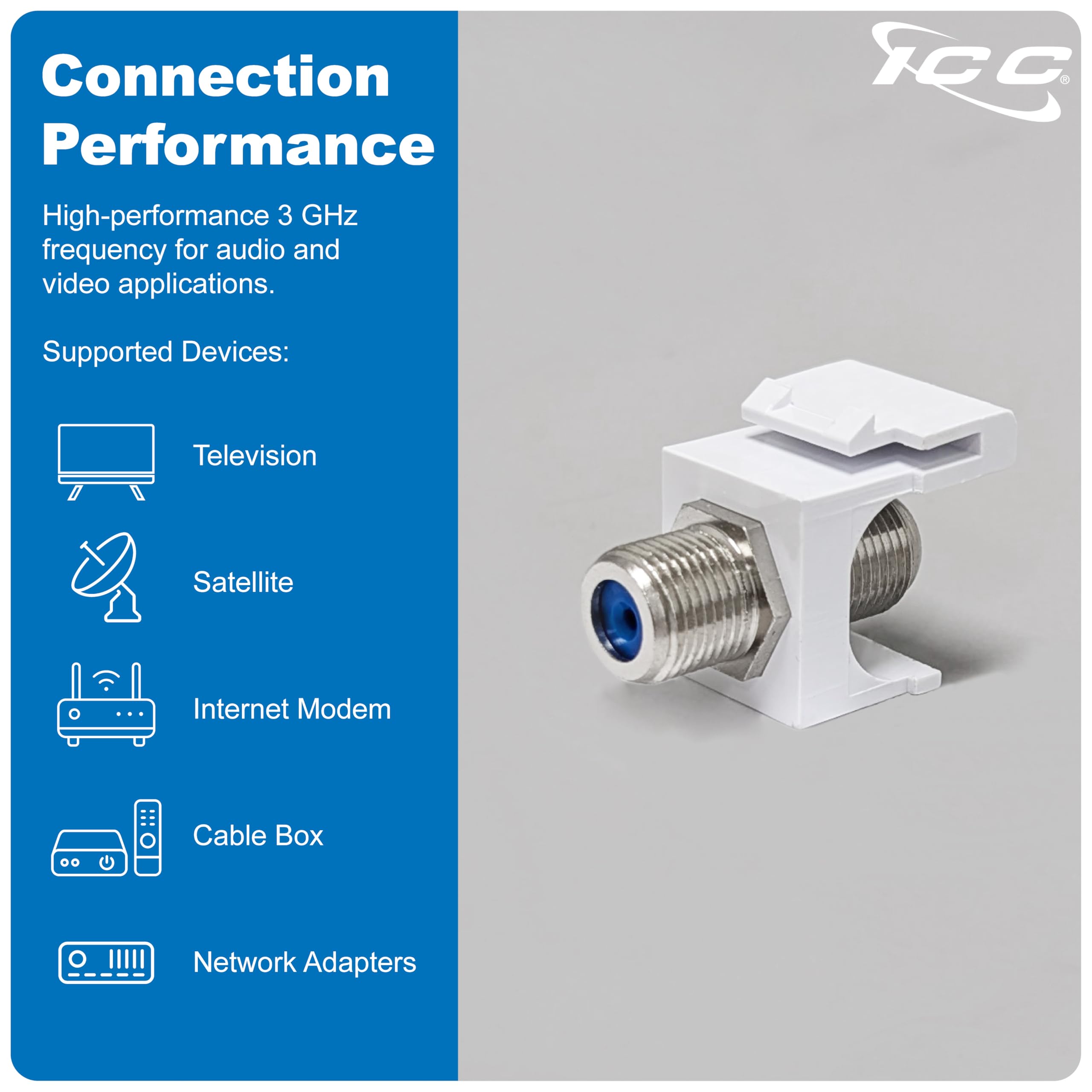

- Designed with 3 GHz bandwidth for audio and video applications.
- Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coaxial cables.
- Provides a clean and neat appearance installation.

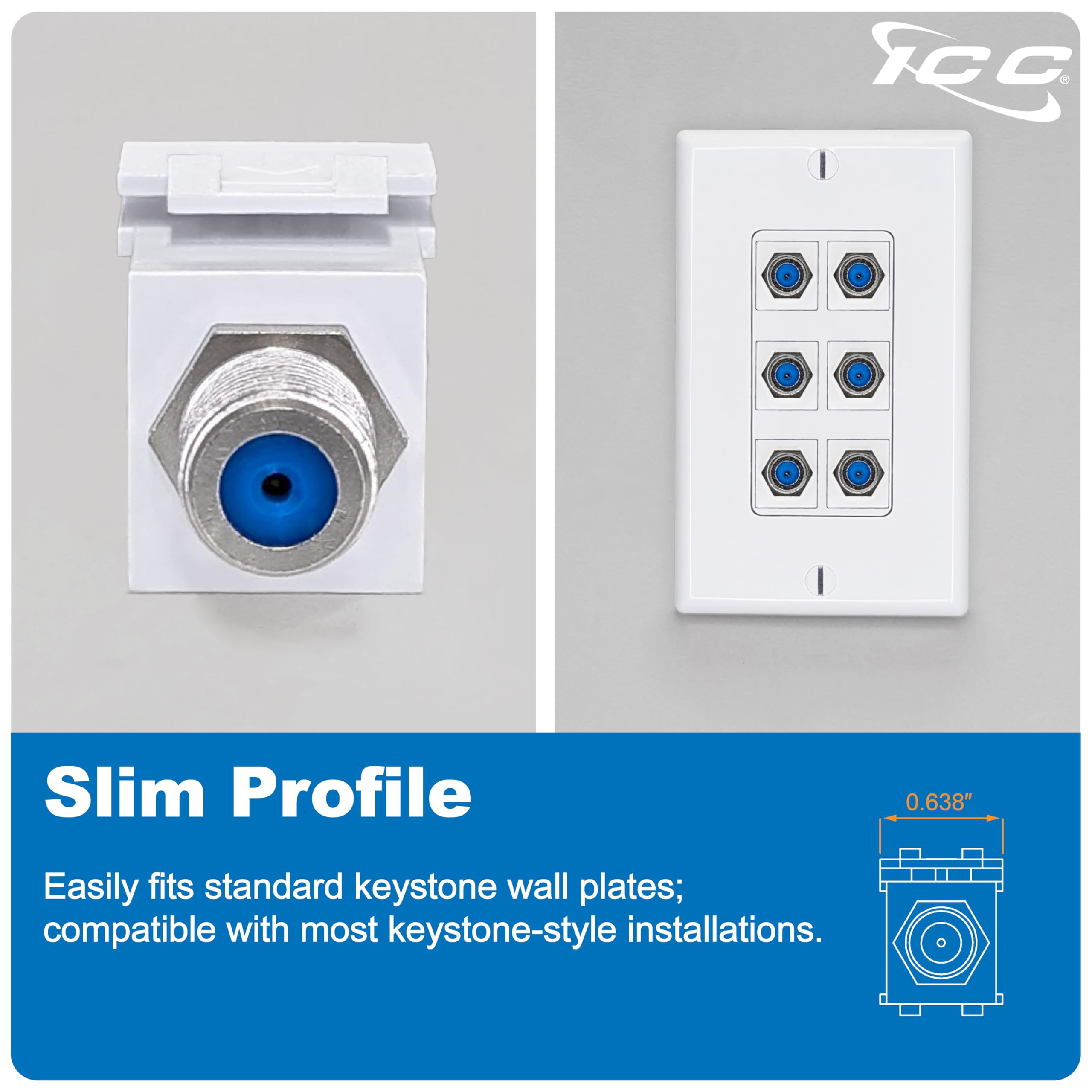

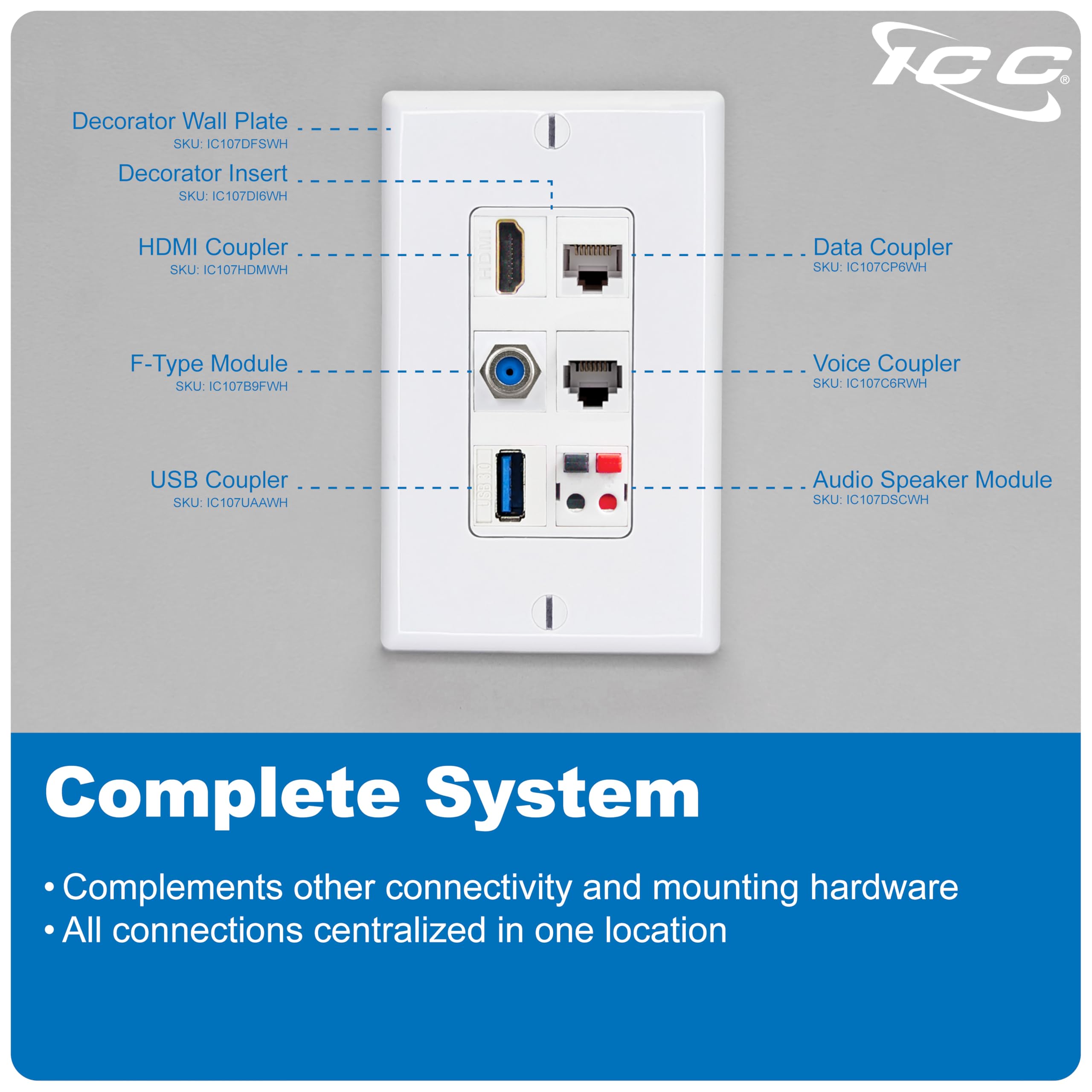

- Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
- UL listed.

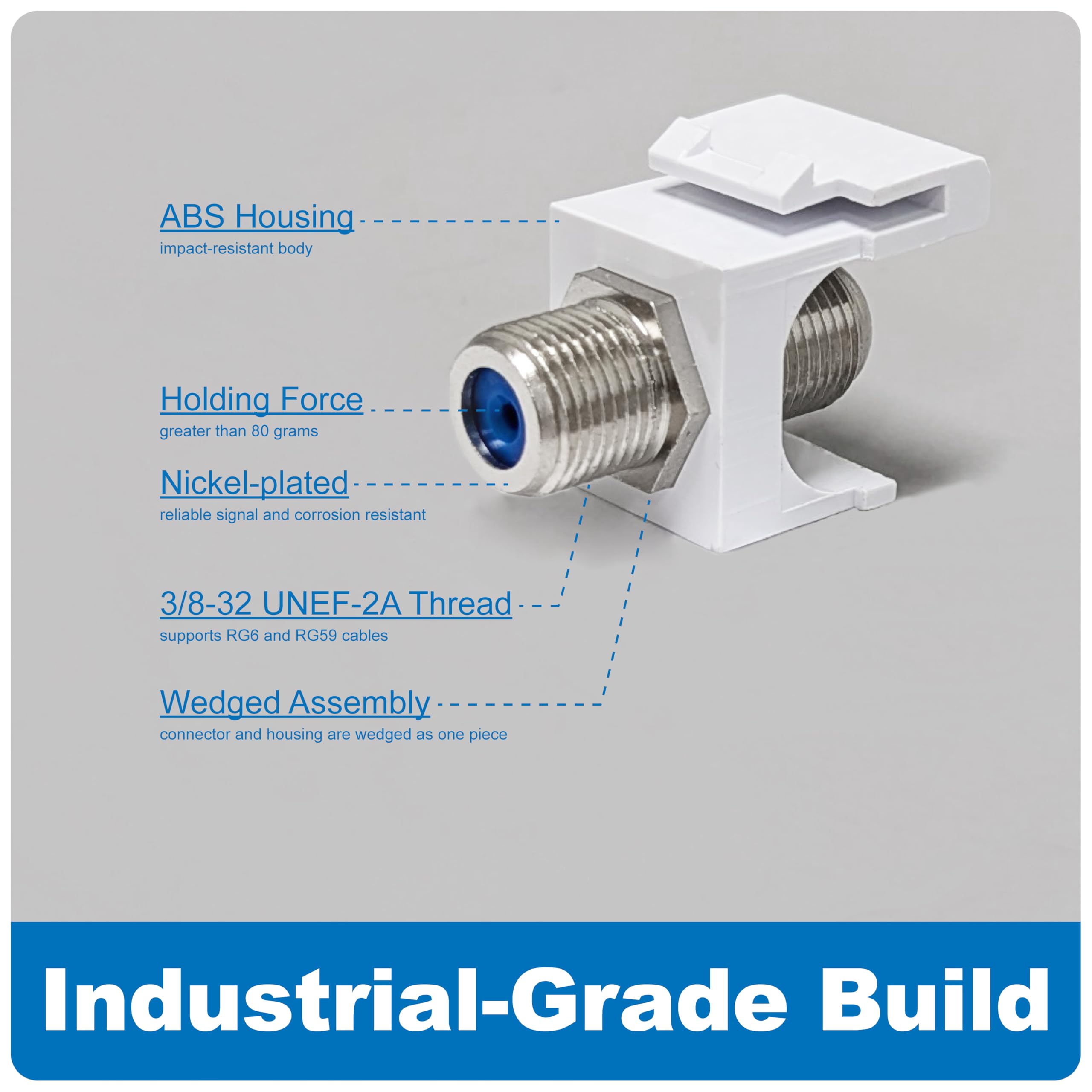

Housing: ABS, UL 94V-0
Nickel-Plated F-Type Connector:
Material: Bronze with Nickle Plated
Holding Force > 80 grams
F-Type Connector Threads: 3/8-32 UNEF-2A
Return Loss of -20 dB max
Frequency Range 1.4 – 3.0 GHz
Contact Resistance < 10 mohms
Character Impedance Rated75 ohm
Insulation Resistance > 10 mohms
Color XX: AL-Almond, BK-Black, IV-Ivory, & WH-White
