LC-ST Duplex Multimode 50/125 (OM2) Fiber Optic Patch Cable in Orange

Clear
SKU: ICFOJ3M7XX Categories: ,

Description

ICC’s family of integrated LC to ST hybrid multimode jumpers are made from OFNR riser rated cables, exceeding industry requirements. They are available in standard stock lengths of 1, 2, 3, 5, 7, and 10 meters. These fiber jumpers are 50/125 multimode duplex LC to ST.

Features

  • Made from OFNR riser rated cables.
  • Exceeding all industry requirements.
  • Used with fiber optic products.

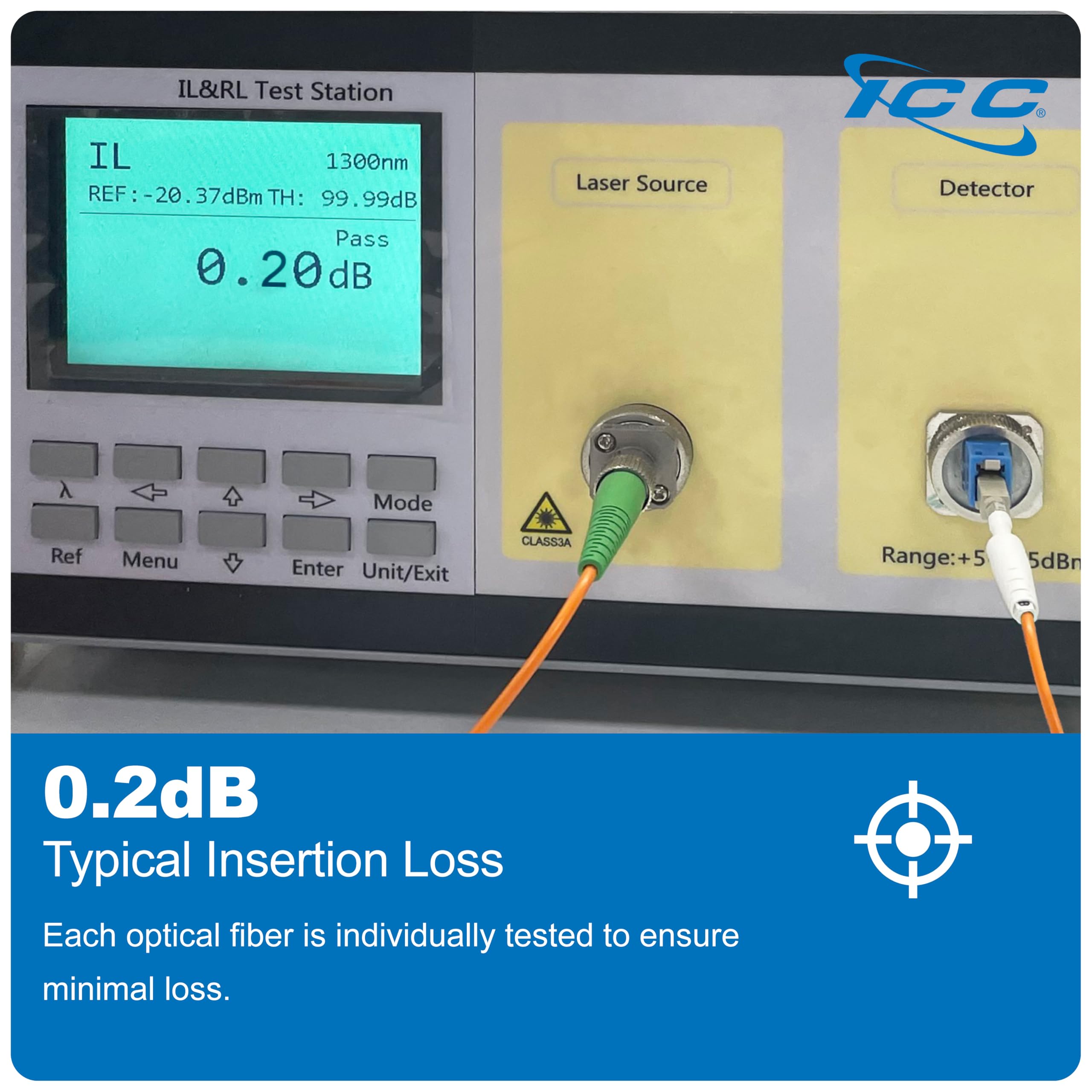

  • Test results included.

Specifications

Cable:
Fiber Counts: 2 Fiber Zipcords
Fiber Type: Multimode 50/125µm
Attenuation: 2.3/0.6 dB/km at 850/1300 nm
Bandwidth: 950 MHz.km EMB at 850 nm
Cable Data:
Cable diameter: .079 in (2.0mm)
Weight: 12 lbs/kft
Bend radius: 1.2″min
Loading: 135 lbs max

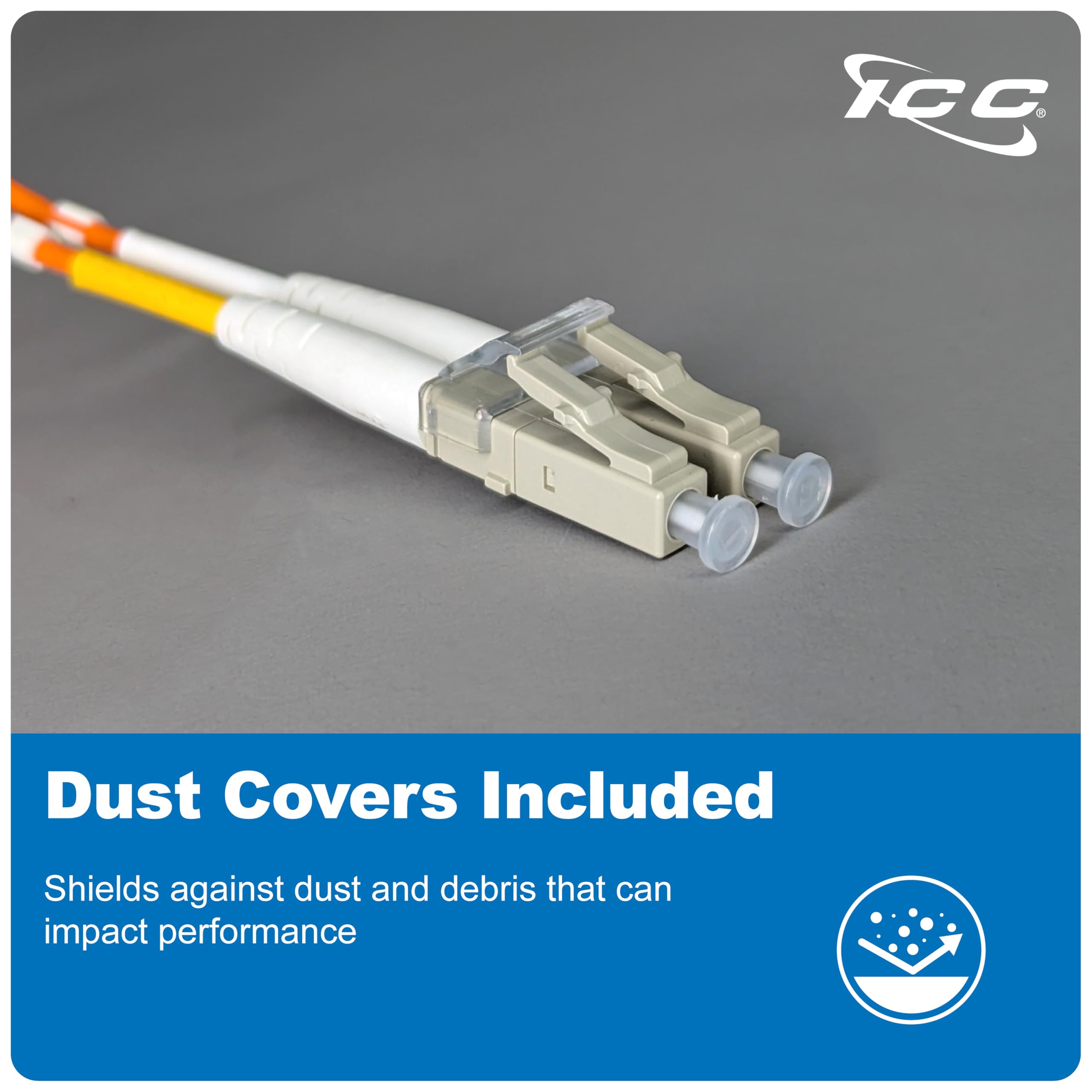

LC Connector:
Ferrule: Zirconia

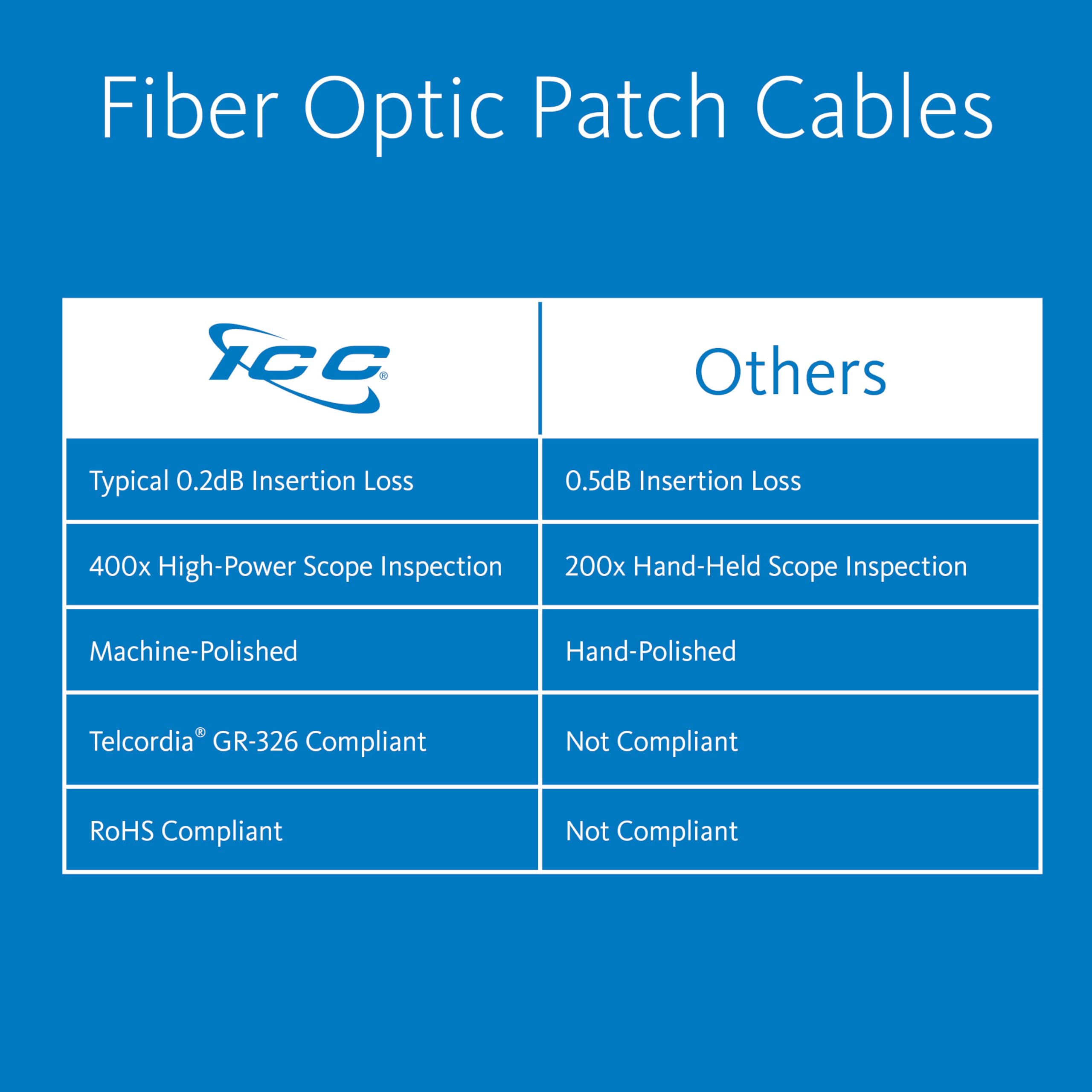

Insertion Loss: 0.2 dB Typical, 0.3 dB max
Return Loss: 55 dB min
UPC Polish

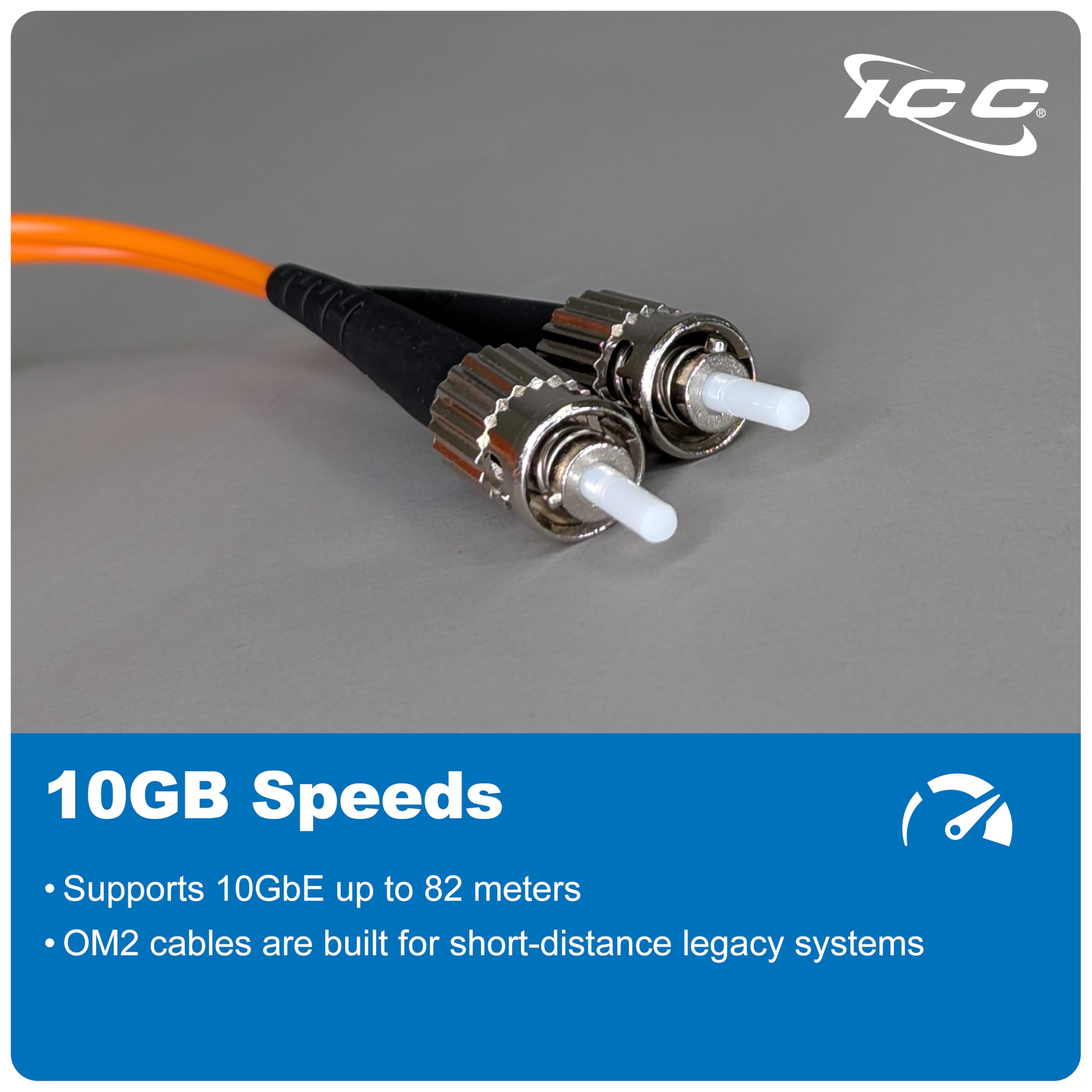

ST Connector:
Ferrule: Zirconia
Insertion Loss: 0.2 dB Typical, 0.3 dB max
Return Loss: 55 dB min
UPC Polish
Compliance:
ANSI/TIA-568-C.3
Length XX: 01, 02, 05, 07, and 10
Color:
Color XX: OR-Orange

Additional information

Type:

Patch Cords

Performance:

50/125 OM2

Length:

1 M, 2 M, 3 M, 5 M, 7 M, 10 M

Connector Type:

LC-ST

Packaging:

Single

Weight:

0.00 LBS
