LC-SC Duplex Singlemode 9/125 (OS2) Fiber Optic Patch Cable in Yellow

Connector: LC-SC	LC-LC LC-SC LC-ST SC-SC SC-ST ST-ST
Mode: OS2/SM	OM3/MM OM2/MM OM1/MM OS2/SM

Length: No selection

Clear

SKU: N/A Categories: Fiber Optic System, Patch Cords

Country of Origin (subject to change): Taiwan

Description

ICC’s family of integrated LC to SC hybrid singlemode jumpers are made from OFNR riser rated cables, exceeding all industry requirements.

Features

Specifications

Cable:

Fiber Counts: 2 Fiber Zipcords

Fiber Type: Singlemode 9/125µm

Attenuation: 0.35/0.20 dB/km at 1310/1550 nm

Bandwidth: N/A

Cable Data:

Cable Diameter: .079 in (2.0mm)

Weight: 12 lbs/kft

Bend Radius: 1.2″ min

Loading: 135 lbs max

Impact Cycle: 1500

SC Connector:

Ferrule: Zicronia

Insertion Loss: 0.2 dB Typical, 0.3 dB max

Return Loss: 55 dB

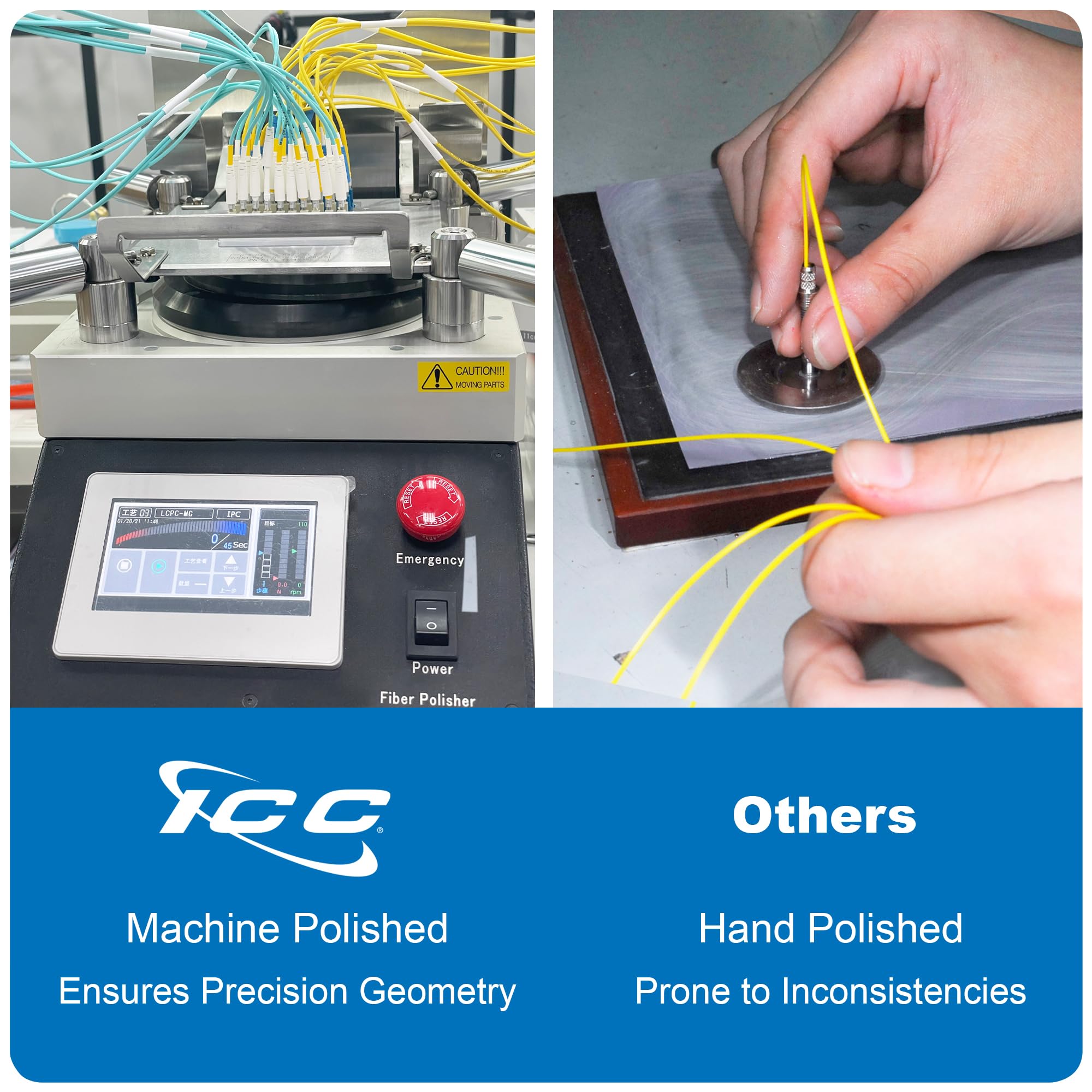

UPC Polish

LC Connector:

Ferrule: Zicronia

Insertion Loss: 0.2 dB Typical, 0.3 dB max

Return Loss: 55 dB

UPC Polish

Compliance:

ANSI/TIA-568-C.3

Length XX: 01, 02, 05, 07 and 10

Color:

Color XX: YL-Yellow

Shipping Weight	N/A
Product Type	Patch Cords
Mode	OS2/SM
Connector	LC-SC
Length	1 M, 2 M, 3 M, 5 M, 7 M, 10 M
Packaging	Single
Country of Origin (subject to change)	Taiwan
