SC-ST Duplex Singlemode 9/125 (OS1) Fiber Optic Patch Cable in Yellow

SC-ST Duplex Singlemode 9/125 (OS2) Fiber Optic Patch Cable in Yellow

Connector: SC-ST
Mode: OS2/SM
Clear
SKU: N/A Categories: ,
UPC:

Country of Origin (subject to change): China

Warning SymbolCalifornia Prop 65 Warning

Description

Designed for adapting SC to ST, these precision-designed singlemode cable assemblies are available in duplex configurations and utilize OFNR riser cable that exceeds UL 1666 requirements.

Features

  • Made from OFNR riser rated cables, exceeding industry requirements.
  • Dust cap included.

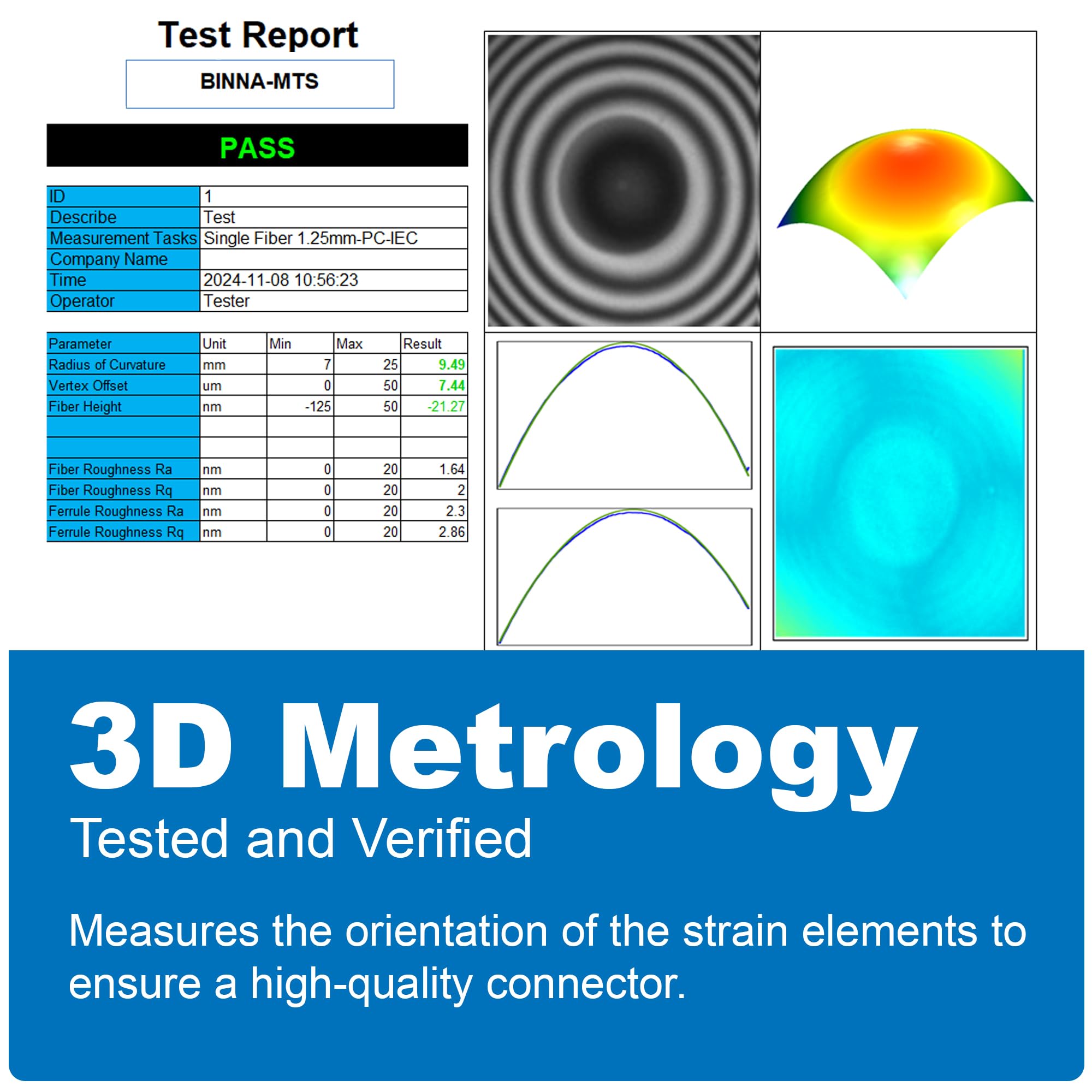

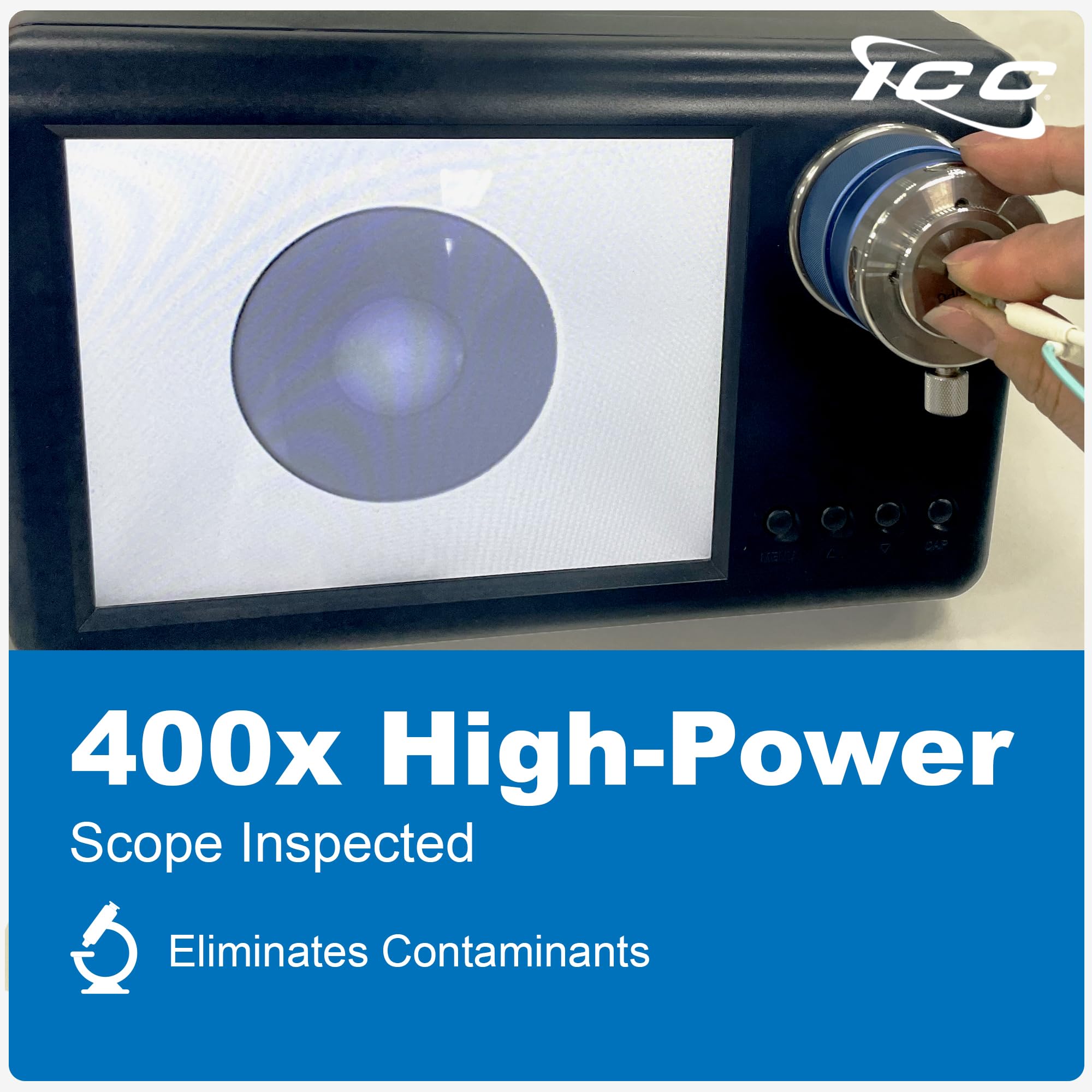

  • 100% factory tested.

Specifications

Cable:

Fiber Counts: 2 Fiber Zipcords

Fiber Type: Singlemode 9/125 micrometer

Attenuation: 0.35/0.20 dB/km at 1310/1550 nm

Bandwidth: N/A

Cable Data:

Cable Diameter: .079 in (2.0mm)

Weight: 12 lbs/kft

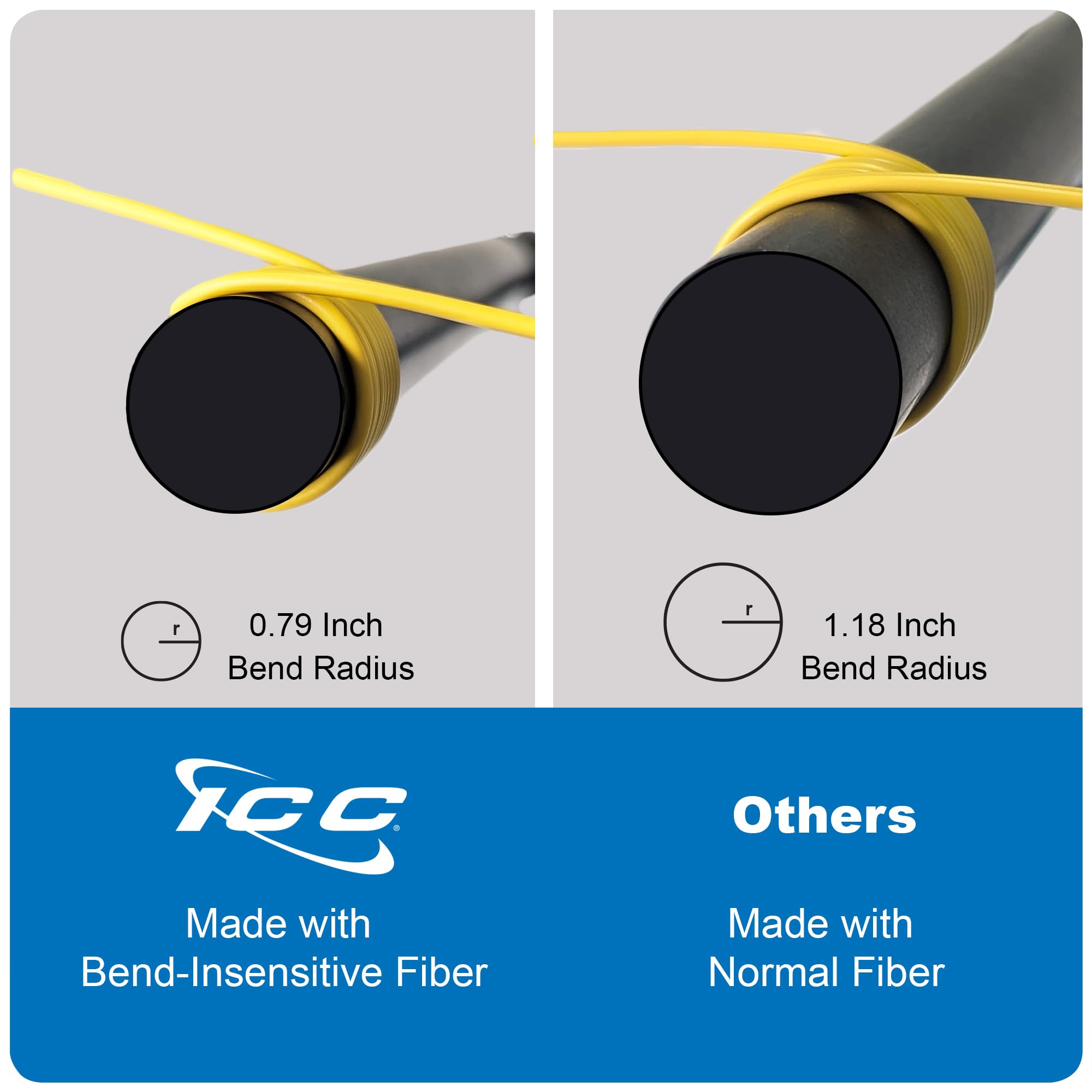

Bend Radius: 1.2″ min

Loading: 135 lbs max

Impact Cycle: 1500

SC Connector:

Ferrule: Zicronia

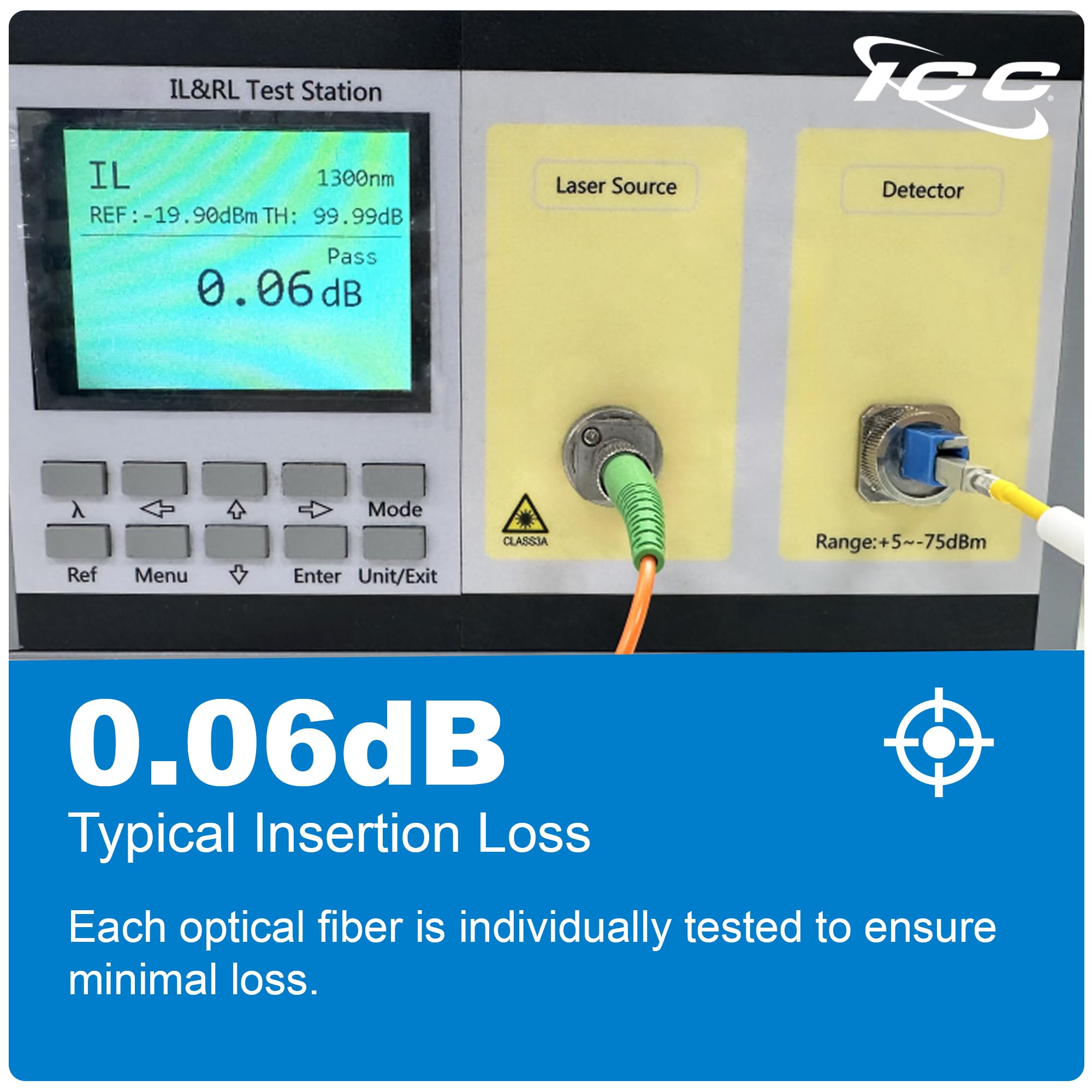

Insertion Loss: 0.2 dB Typical, 0.3 dB max

Return Loss: 55 dB min

UPC Polish

ST Connector:

Ferrule: Zicronia

Insertion Loss: 0.2 dB Typical, 0.3 dB max

UPC Polish

Compliance:

ANSI/TIA-568-C.3

Length XX: 01,02, 05, 07 and 10

Color:

Color XX: YL-Yellow
