Description
Designed for adapting SC to ST, these precision-designed cable assemblies utilize OFNR riser cable and come in duplex versions with 50/125 micron cables.
Features
- Made from OFNR riser rated cables, exceeding industry requirements.

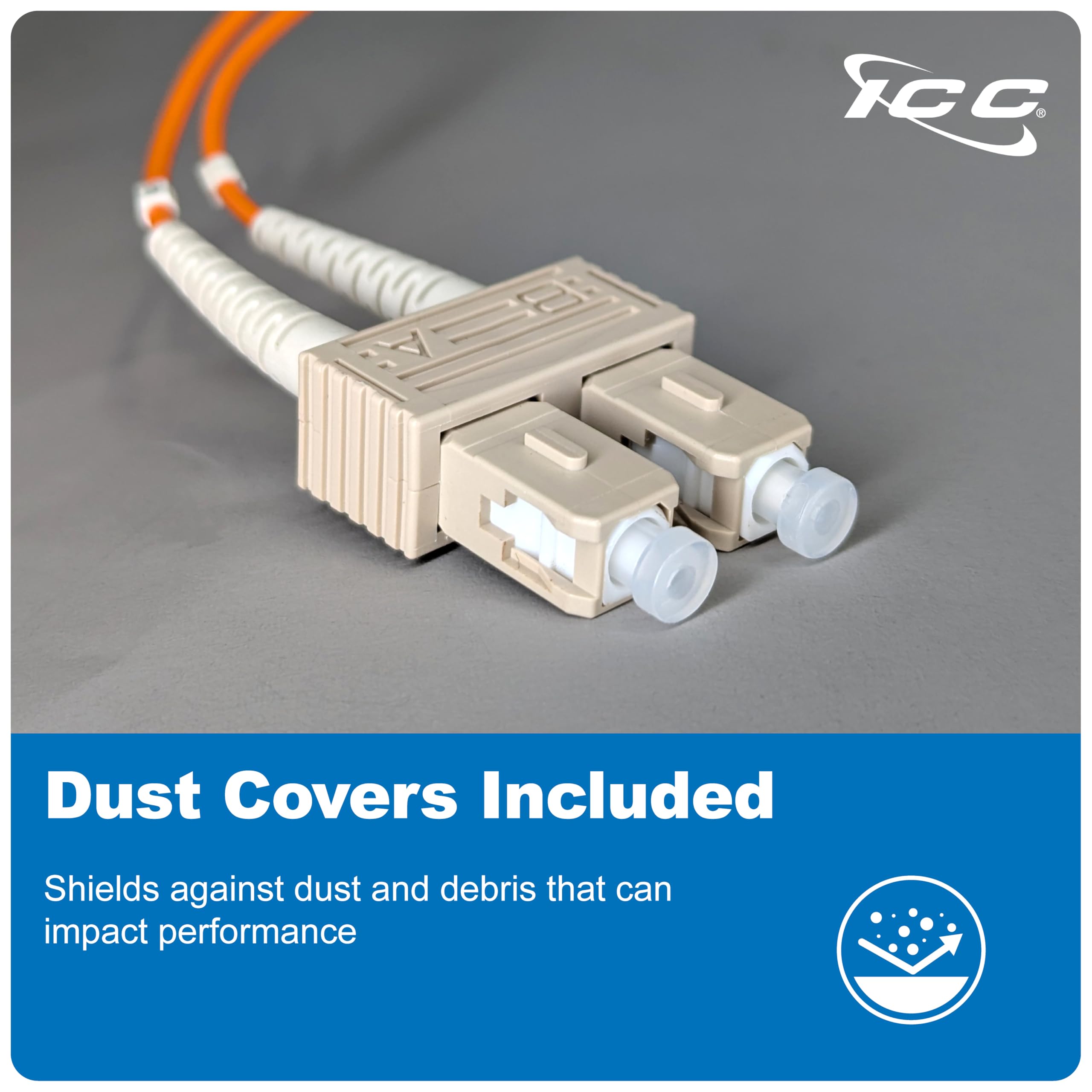

- Dust Cap included.
- 100% factory tested.
Specifications
Cable:
Fiber Counts: 2 Fiber Zipcord
Fiber Type: Multimode 50/125µm
Attenuation: 2.3/0.6 dB/km at 850/1300 nm
Bandwidth: 950 MHz.km EMB at 850 nm
Cable Data:
Cable diameter: .079 in (2.0mm)
Weight: 12 lbs/kft
Bend radius: 1.2″min
Loading: 135 lbs max
Impact cycle: 1500
SC Connector:
Ferrule: Zirconia

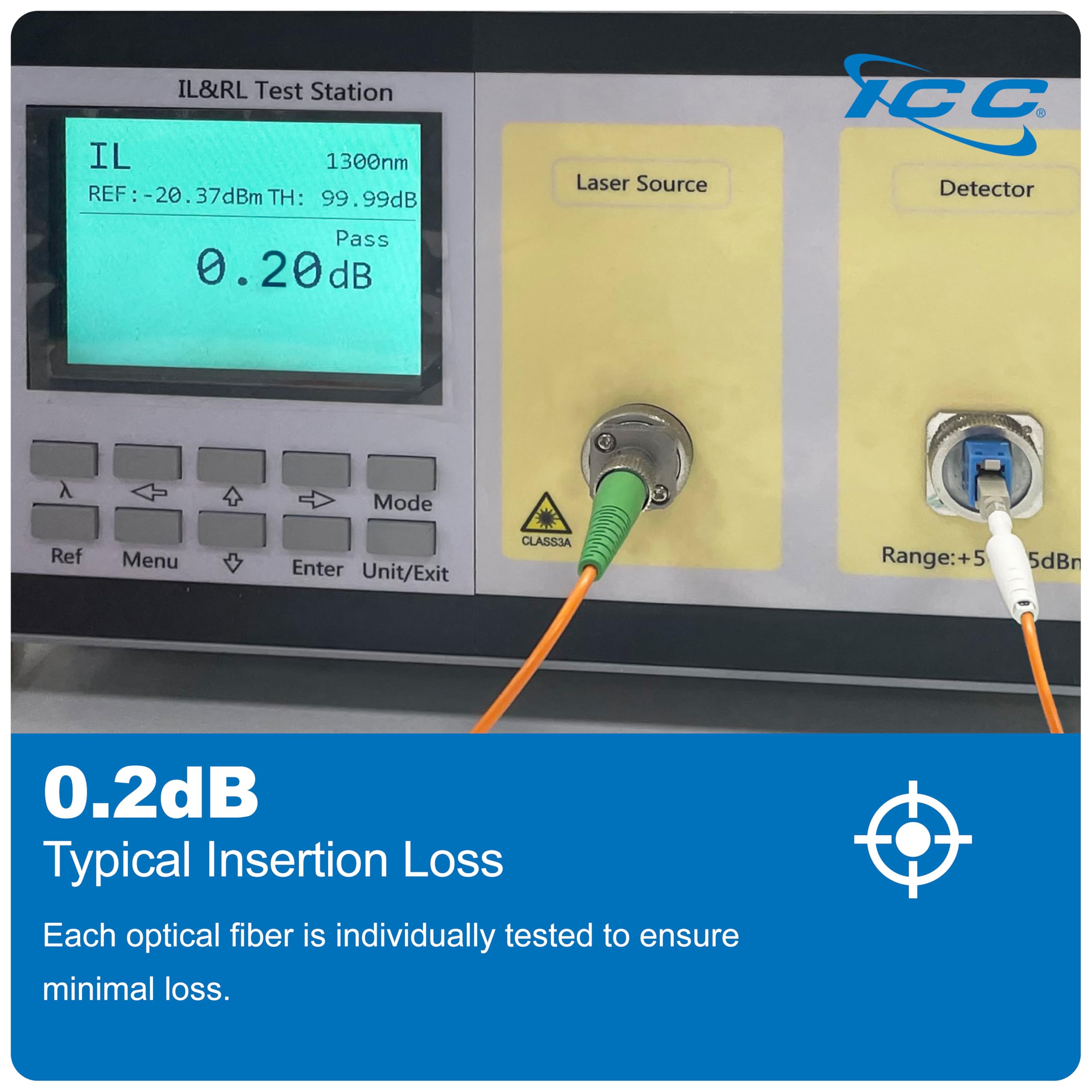

Insertion Loss: 0.2 dB Typical, 0.3 dB max
ST Connector:
Ferrule: Zirconia
Insertion Loss: 0.2 dB Typical, 0.3 dB max
Compliance:
ANSI/TIA-568-C.3
Length XX: 01, 02, 05, 07, and 10
Color:
Color XX: OR-Orange
