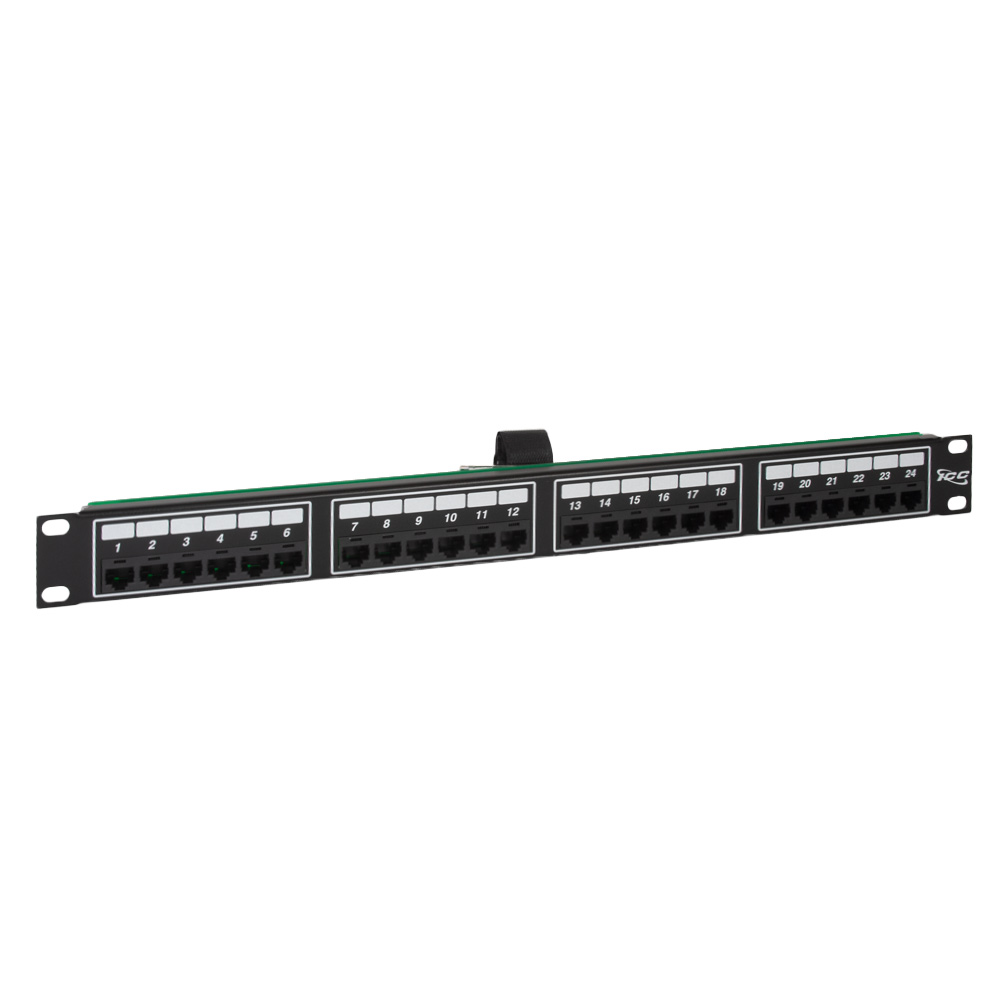

Voice 6p2c Patch Panel with Female Telco in 24 Ports and 1 RMS
Voice 6p2c Patch Panel with Female Telco in 24 Ports and 1 RMS
Voice 6P2C Patch Panel with Female Telco in 24 Ports and 1 RMS

Voice 6P2C Patch Panel with Female Telco in 24 Ports and 1 RMS

Connector: 6P2C
  • Voice 6p2c Patch Panel with Female Telco in 24 Ports and 1 RMS
  • Voice 6P4C Patch Panel with Female Telco in 24 Ports and 1 RMS
  • Voice 8P2C Patch Panel with Female Telco in 24 Ports and 1 RMS
  • Voice 8P4C Patch Panel with Female Telco in 24 Ports and 1 RMS
Telco Connector Gender: Female
Ports: 24

In stock

SKU: ICMPPTF242 Categories: ,
UPC: 633758092067

Country of Origin (subject to change): Taiwan

Warning SymbolCalifornia Prop 65 Warning

Description

24-port 6P2C female Telco patch panel consists of 2-wires RJ-11 USOC wiring scheme is ideal for KSU or PBX phone systems. The active pins are pin #3 and #4; patch panel connects to 24 RJ-11 patch cords on the front and link phone system with 50-pin Telco connectors on the back. Each 50-pin female Telco connector comes with hook and loop tie that is seated in a socket to secure 25-pair cable for either 90 degrees or 180 degrees cable exits. Each patch panel also features front write-on labeling area for port identification.

Features

  • Rack mounted 6-position 2-conductor (RJ-11).
  • Telco patch panel provides voice connectivity applications.
  • Integrated with one female 50-pin Telco connector.
  • Designed to fit all standard 19″ racks or cabinets.
  • 1 rack mount space (RMS).

Specifications

Material:

24 Port Patch Panel: 16 GA CRS

Jack Housing: ABS, UL 94V-0

Spring Wire: Square Spring Wire, Tempered Phosphor Bronze

Gold Rating: 50 micro inch of Gold over 100 micro-inches of Nickel

Surface Finish: Black Powder Coat
