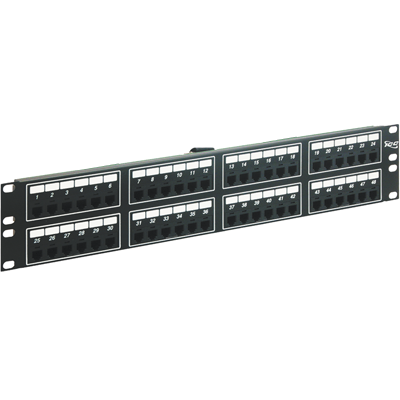

Voice 6P2C Patch Panel with Male Telco in 48 Ports and 2 RMS

SKU: ICMPP048T2 Categories: ,

Description

ICC’s offers Voice Patch Panels. This individual patch panel is designed to fit all standard 19” racks and cabinets, while integrated with 2 male Telco connectors, including mounting screws. This particular panel is equipped with 6p2c, 48 ports.

Features

  • Rack mountable 48 port, RJ-11, 6 positions with 2 conductors.
  • Integrated male 50-pin Telco connector(s).
  • Designed to fit all standard 19″ racks or cabinets, 2 RMS.
  • Ideal for KSU or PBX phone systems.
  • UL Listed.

Specifications

Material:
Material:
48 Port Patch Panel: 16 GA CRS
Jack Housing: ABS, UL 94V-0
Spring Wire: Square Spring Wire, Tempered Phosphor Bronze
Gold Rating: 50 micro inch of Gold over 100 micro-inches of Nickel
Surface Finish: Black Powder Coat

Additional information

Type:

Blank Panels

Performance:

Voice

Style:

Rack Mount

Rack Space:

2

Connector Type:

6P2C

Ports:

48

Packaging:

Single

Weight:

0.00 LBS

SKU:

ICMPP048T2
