Description

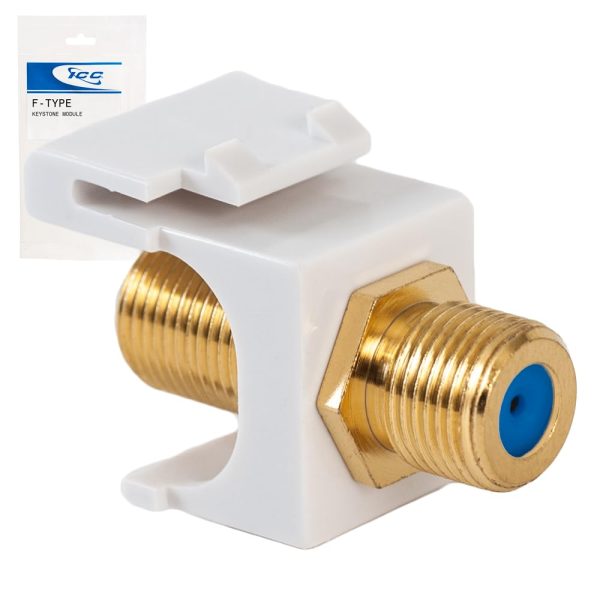

ICC’s F-Type Keystone Jack features a gold plated female-to-female connector rated for 3 GHz coaxial performance. It supports RG6 and RG59 cables and installs into standard keystone wall plates, patch panels, and surface mount boxes. The threaded rear connection secures cables in-wall or in enclosures, while the UL 94V-0 flame-rated ABS housing meets residential and commercial safety codes.
Features
- 3 GHZ GOLD PLATED CONNECTOR: Corrosion resistant and maintains high-frequency signal over coax with reduced loss
- FEMALE TO FEMALE COAX JACK: Supports RG6 and RG59 cable extensions in coaxial setups

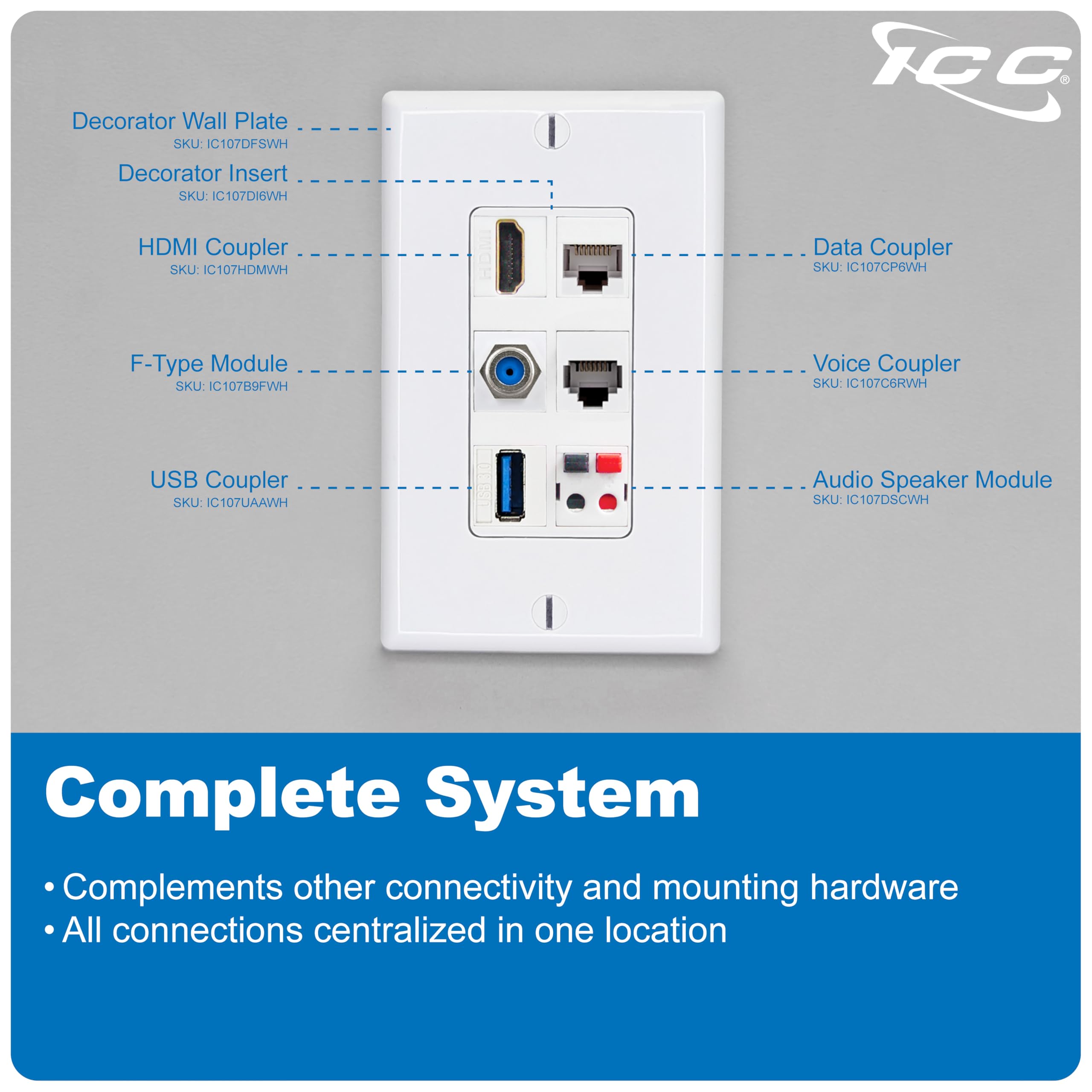

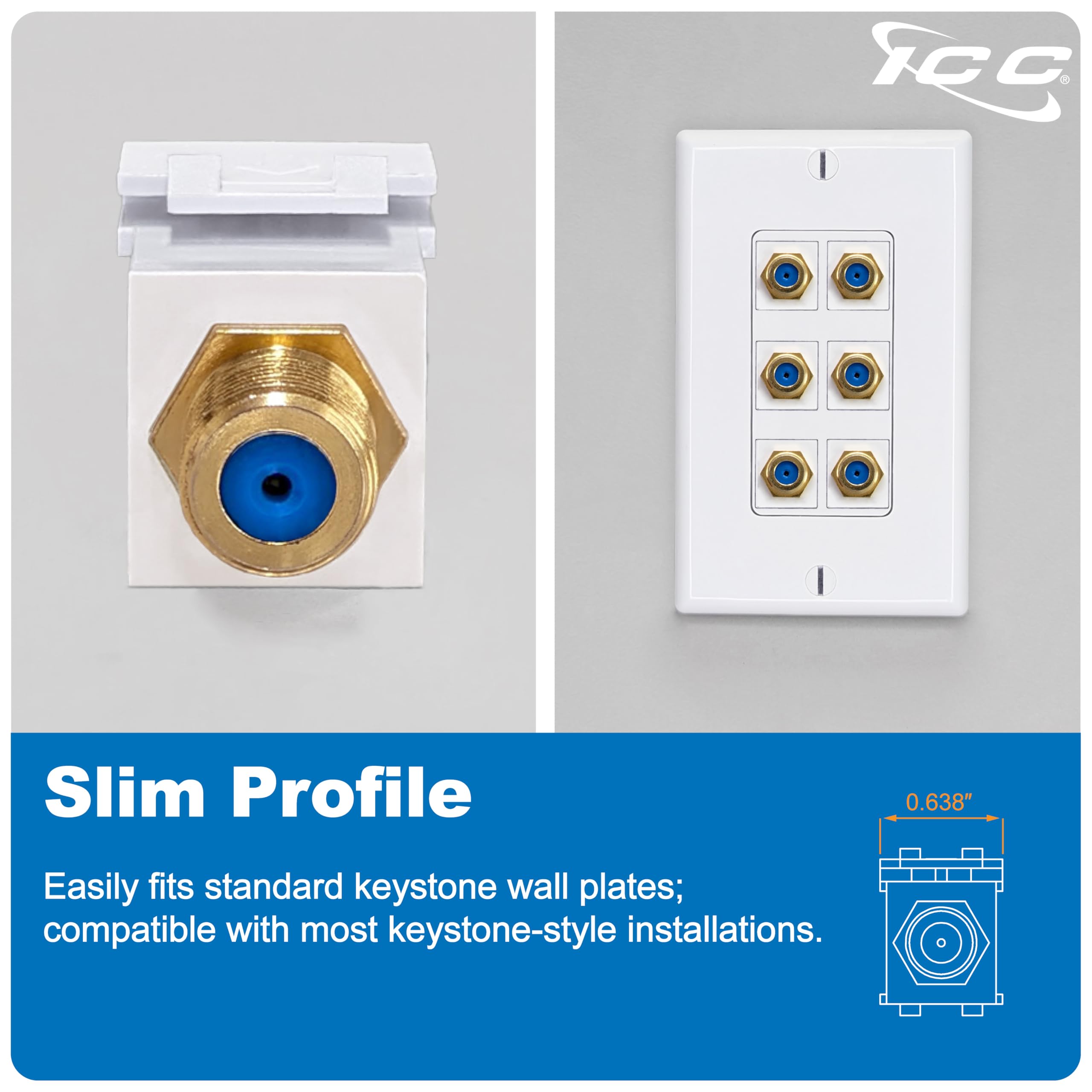

- SNAP-IN KEYSTONE DESIGN: Fits standard wall plates, patch panels, and surface mount boxes
- REAR THREADED CONNECTION: Secures coaxial cable terminations in-wall or inside enclosures
- UL 94V-0 FLAME RATED HOUSING: ABS plastic meets fire safety standards

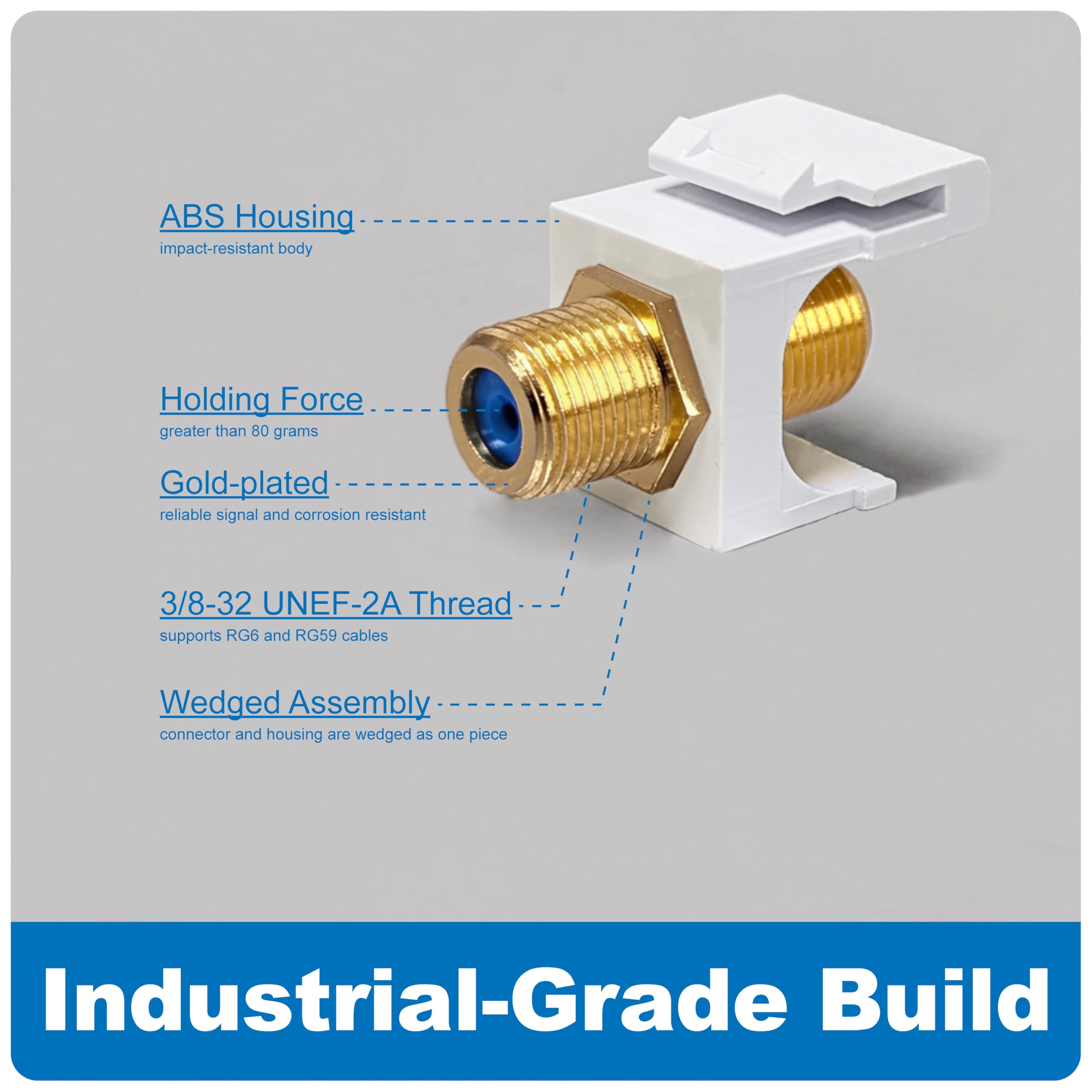

Specifications
Material:
Housing: ABS, UL 94V-0
Gold Plated F-Type Connector
Material: Bronze with 3 microns of Gold Plating
Insulator Color: Blue
Holding Force > 80 grams
F-Type Connector Thread: 3/8-32 UNEF-2A
Electrical:
Return Loss of -20 dB max
Frequency Range 1.4 – 3.0 GHz
Contact Resistances < 10 mohms
Character Impedance Rated 75 ohm
Insulation Resistance > 10 mohms
Color:
Color XX: AL-Almond, BK-Black, IV-Ivory, & WH-White
