Description

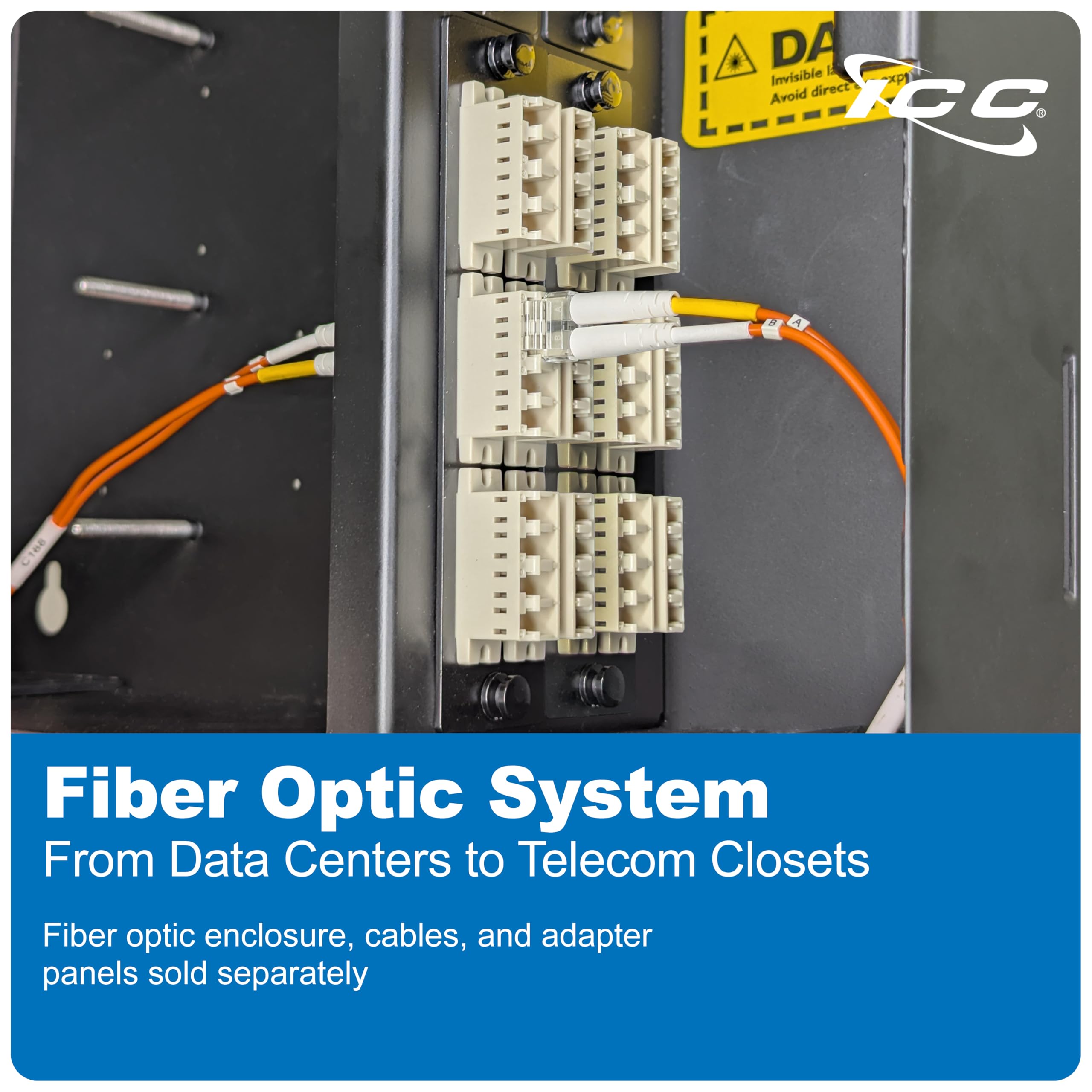

ICC’s LC to LC Duplex Multimode 50/125 (OM2) Fiber Patch Cable is designed for 10G short-range transmission in data centers, telecom rooms, and enterprise networks. The patch cord uses OM2 laser-optimized fiber with a 2.0mm orange OFNR riser-rated jacket and zip cord construction for flexible routing. Factory-polished LC to LC connectors with ceramic ferrules ensure consistent optical performance with typical insertion loss ≤ 0.3 dB. Each cable is 100% factory tested and fully compliant with TIA/EIA, ISO/IEC, and RoHS standards for reliable and code-compliant installations. Compatible with patch panels, fiber enclosures, and network equipment.
Features
- SUPPORTS 10G SHORT-RANGE PERFORMANCE: OM2-rated fiber patch cable supports 10 Gigabit Ethernet up to 82 meters at 850nm, ideal for short-range connections in LANs, data centers, and telecom rooms
- 50/125 MULTIMODE FIBER WITH ORANGE OFNR JACKET: Constructed with 50/125µm multimode fiber and an orange OFNR-rated jacket for vertical runs in riser spaces; 2.0mm zip cord provides added durability and flexibility

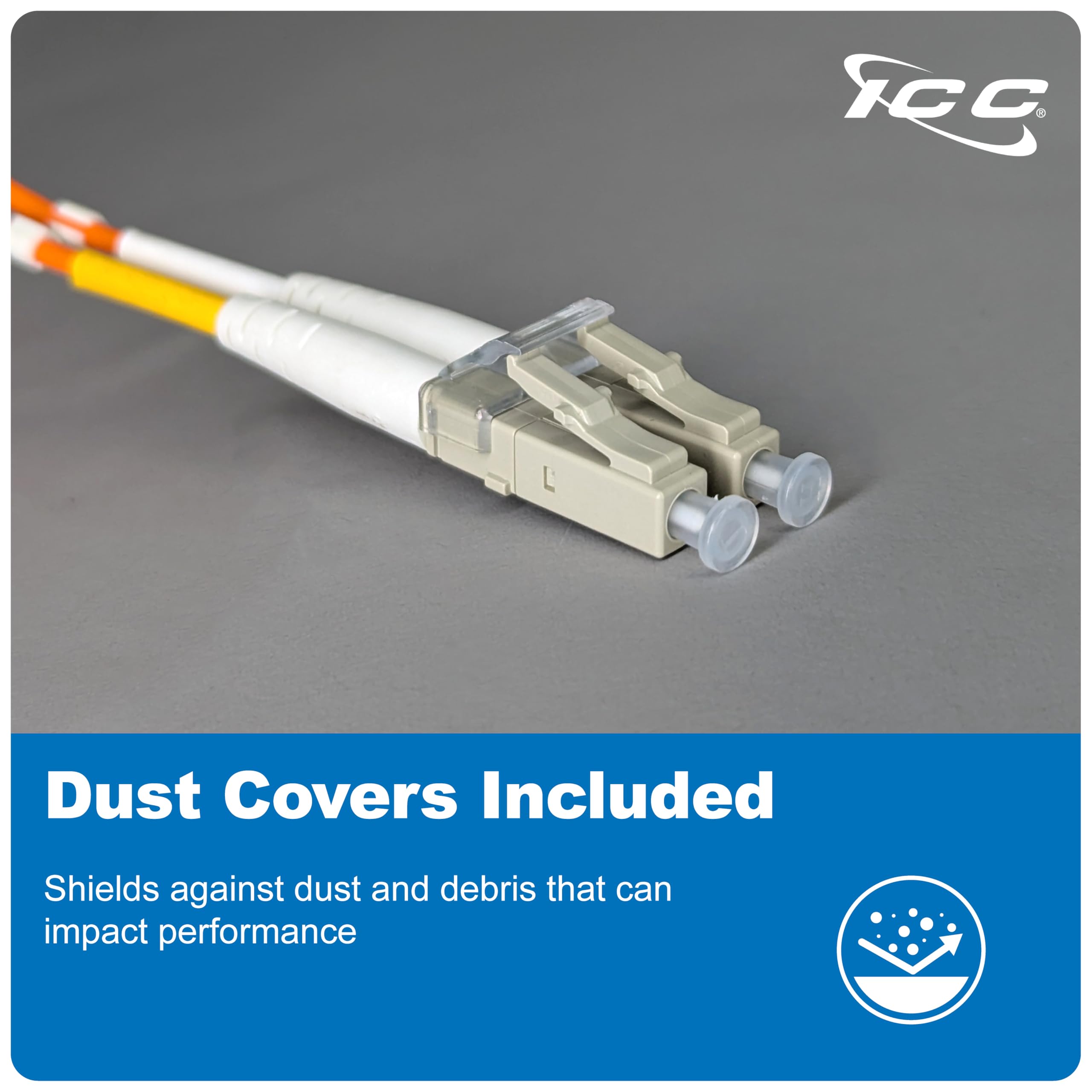

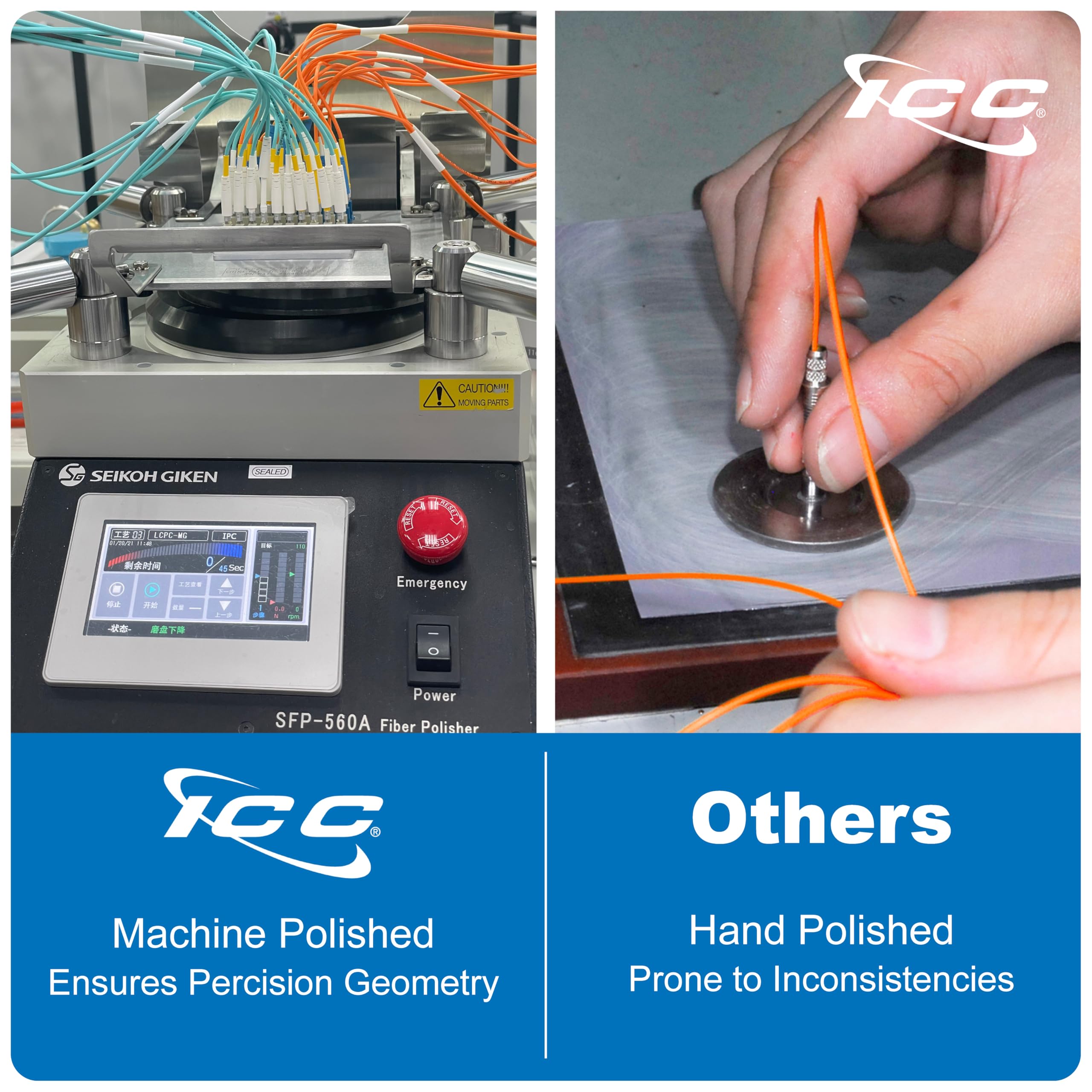

- CERAMIC-FERRULE LC CONNECTORS: Machine-polished connectors with ceramic ferrules deliver reliable connections and consistent performance in high-density patching environments

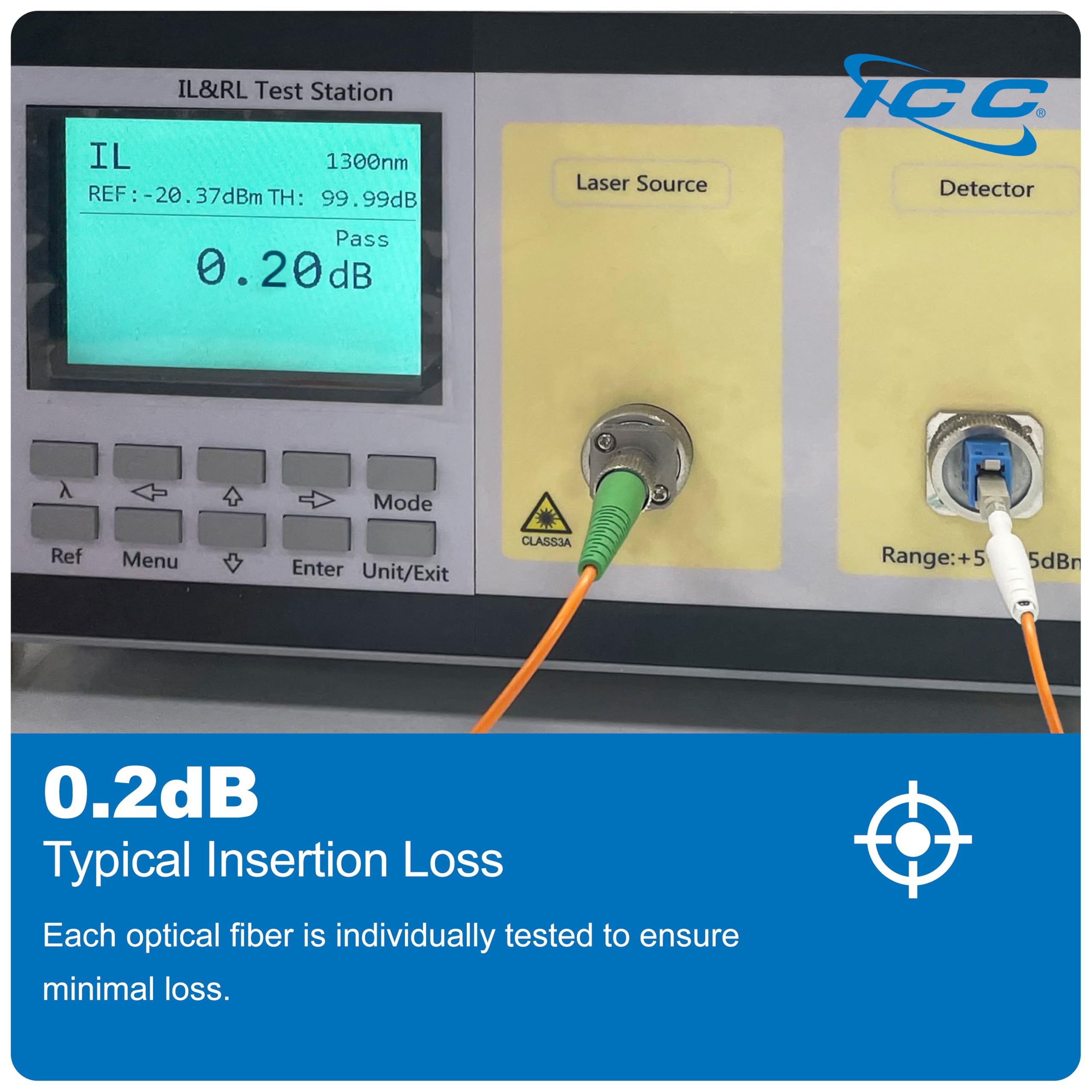

- LOW INSERTION LOSS: Typical insertion loss ≤ 0.3 dB. Precision zirconia ferrule connectors ensure low loss for stable signal transmission in critical networking applications
- FACTORY TESTED AND STANDARDS COMPLIANT: Each patch cord is 100% tested for insertion loss and return loss; compliant with TIA/EIA-568, ISO/IEC 11801, and RoHS for professional-grade installations
Specifications
Cable:
Fiber Counts: 2 Fiber Zipcords
Fiber Type: Multimode 50/125µm
Attenuation: 2.3/0.6 dB/km at 850/1300 nm
Bandwidth: 950 MHz.km EMB at 850 nm
Cable Data:
Cable diameter: .079 in (2.0mm)
Weight: 12 lbs/kft
Bend radius: 1.2″min
Loading: 135 lbs max
Impact cycle: 1500
LC Connector:
Ferrule: Zirconia
Insertion Loss: 0.2 dB Typical, 0.3 dB max
Reflection: N/A
Compliance:
ANSI/TIA-568-C.3
Length XX: 01, 02, 03, 05, 07, and 10
Color:
Color XX: OR-Orange
