Description

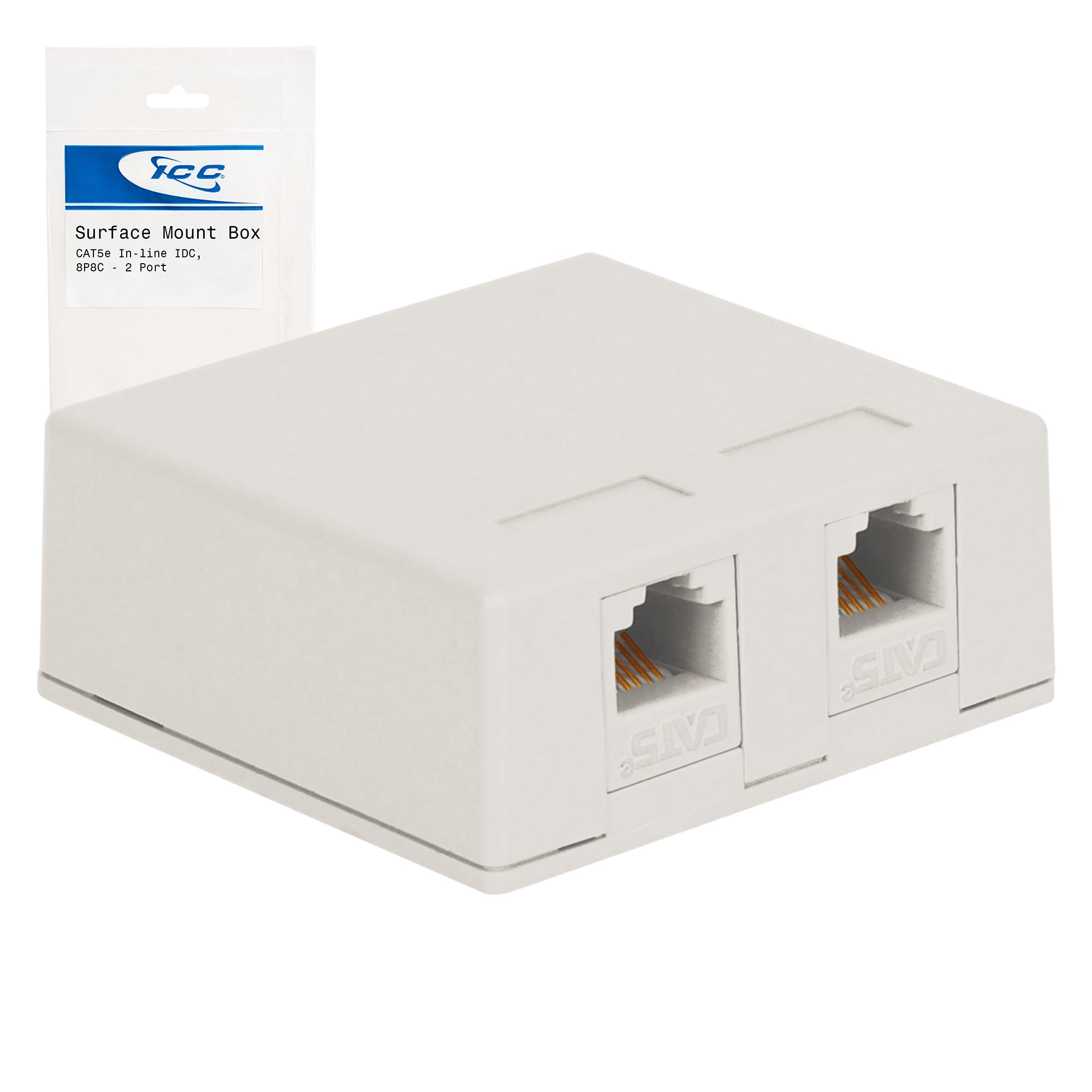

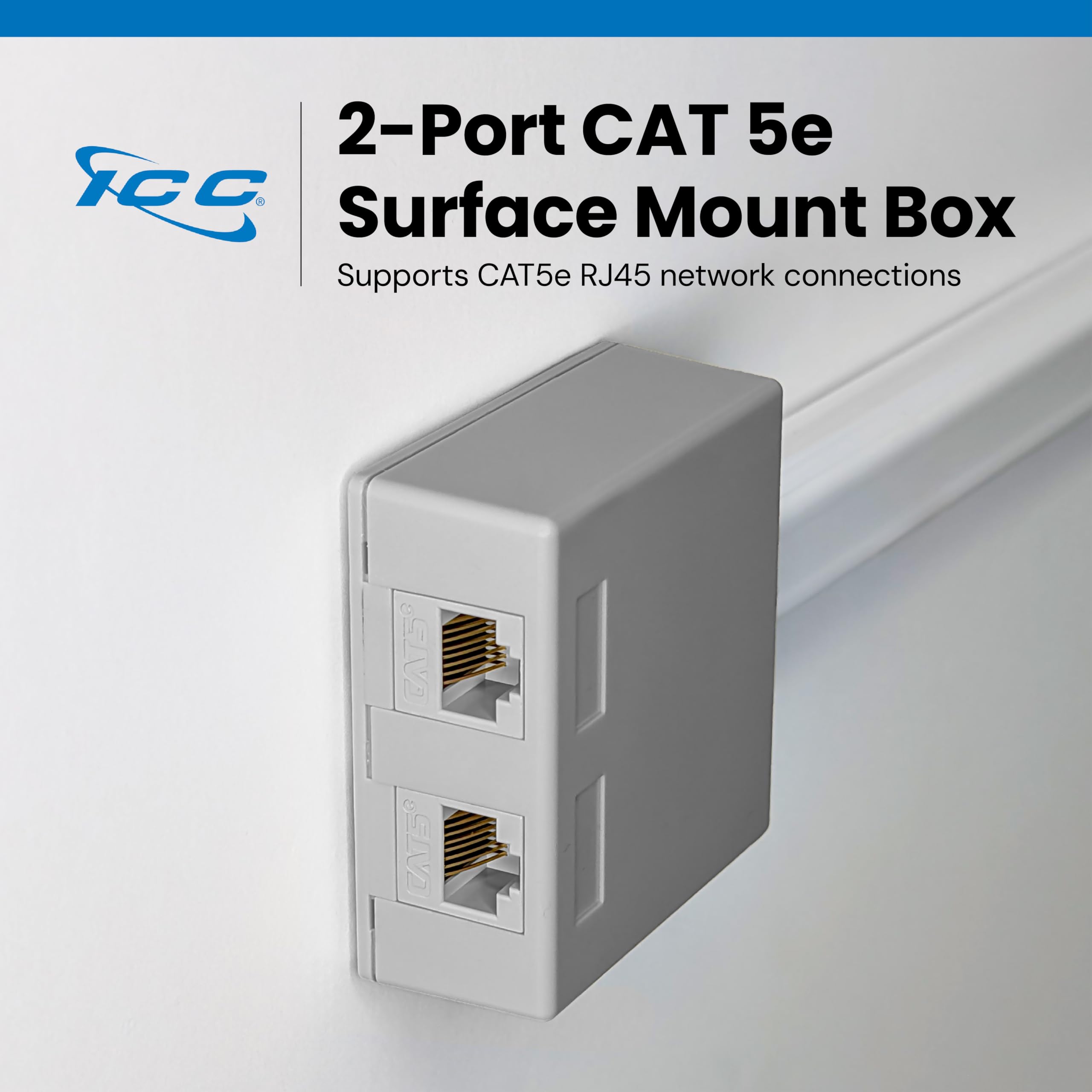

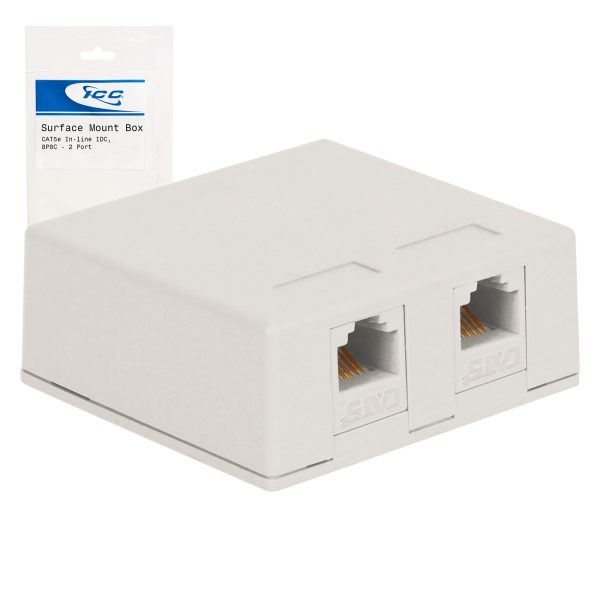

The ICC CAT5e 2-Port Surface Mount Box with CAT5e Keystone Jacks is a complete, ready-to-install surface-mount data outlet that combines a modular 2-port surface mount box and two removable CAT5e keystone jacks in one package. The CAT5e keystone jacks are designed to meet Category 5e requirements for structured cabling applications and support data network use in commercial and residential environments. The 2-port surface mount box is made from UL 94V-0 ABS plastic and allows installation without cutting into walls, making it suitable for locations where in-wall boxes are not available. Each keystone jack snaps into the box and can be removed or replaced individually to support moves, adds, and changes (MACs) without removing the entire outlet. Mounting screws and adhesive backing are included for flexible installation on walls, desks, or other flat surfaces, and recessed label areas support port identification.
Features
- MODULAR SURFACE MOUNT OUTLET: Includes two CAT5e keystone jacks and a surface mount box in one complete outlet. The keystone jack snaps into place and can be removed or replaced individually to support moves, adds, and changes (MACs) without removing the entire box, allowing faster service and upgrades in surface-mount installations.

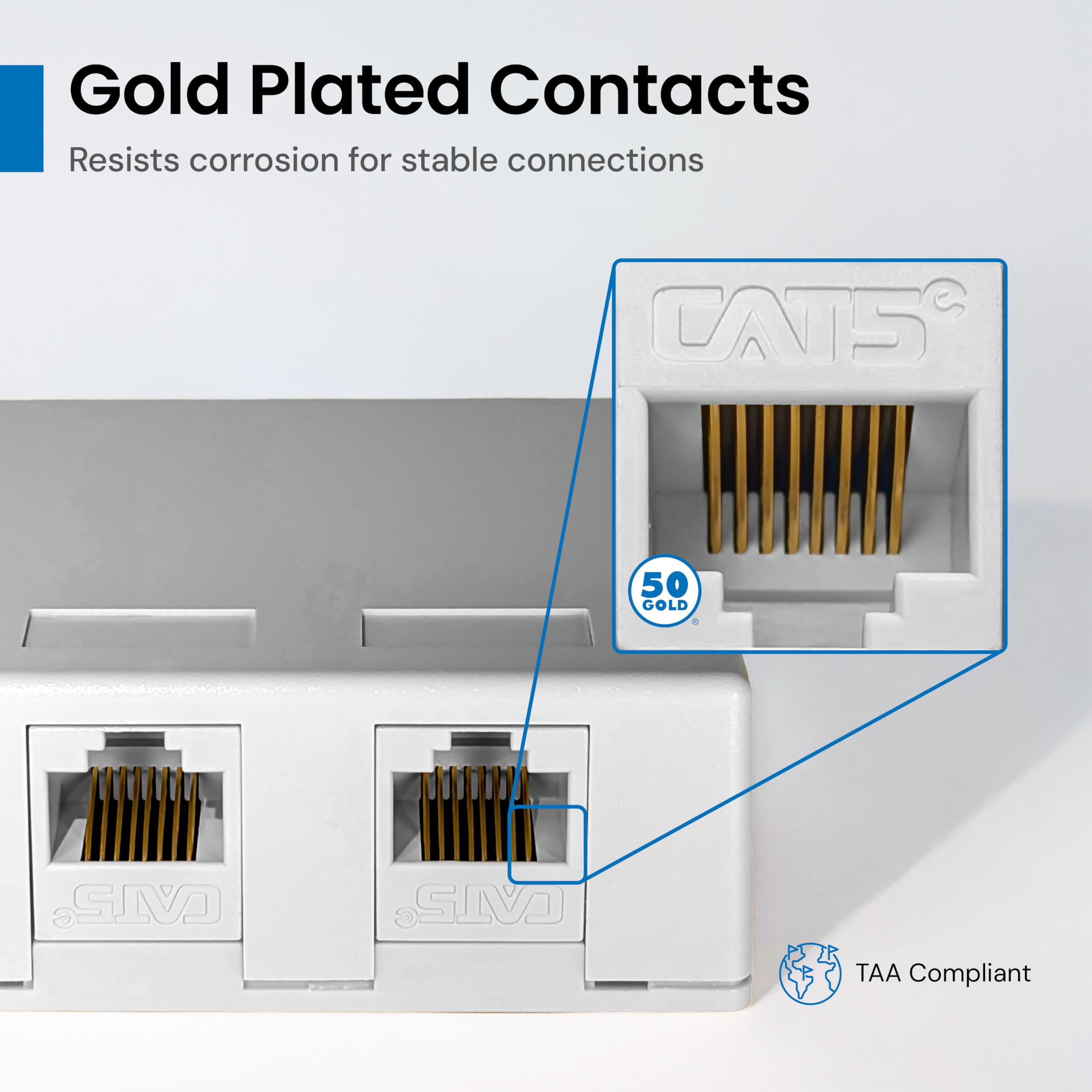

- PoE++ RATED FOR HIGH-POWER DEVICES: These CAT5e keystone jacks features 50 micro-inch gold-plated high-retention contacts over 100 micro-inches of nickel, providing support for up to 100 watts of Power over Ethernet (PoE++). Ideal for powering devices such as pan-tilt-zoom security cameras, webcams, and other types of networked equipment, these RJ45 (8P8C) connectors are built for 8-position, 8-conductor configurations, ensuring a reliable connection for high-power applications.
- FAST WIRING WITH IN-LINE IDC: In-line 110 IDC allows precise pair-to-pair wiring without splitting pairs, supporting efficient installations. A wide rear base offers a secure grip, simplifying handling, removal, and reattachment. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, ensuring versatility for a wide range of network installations.

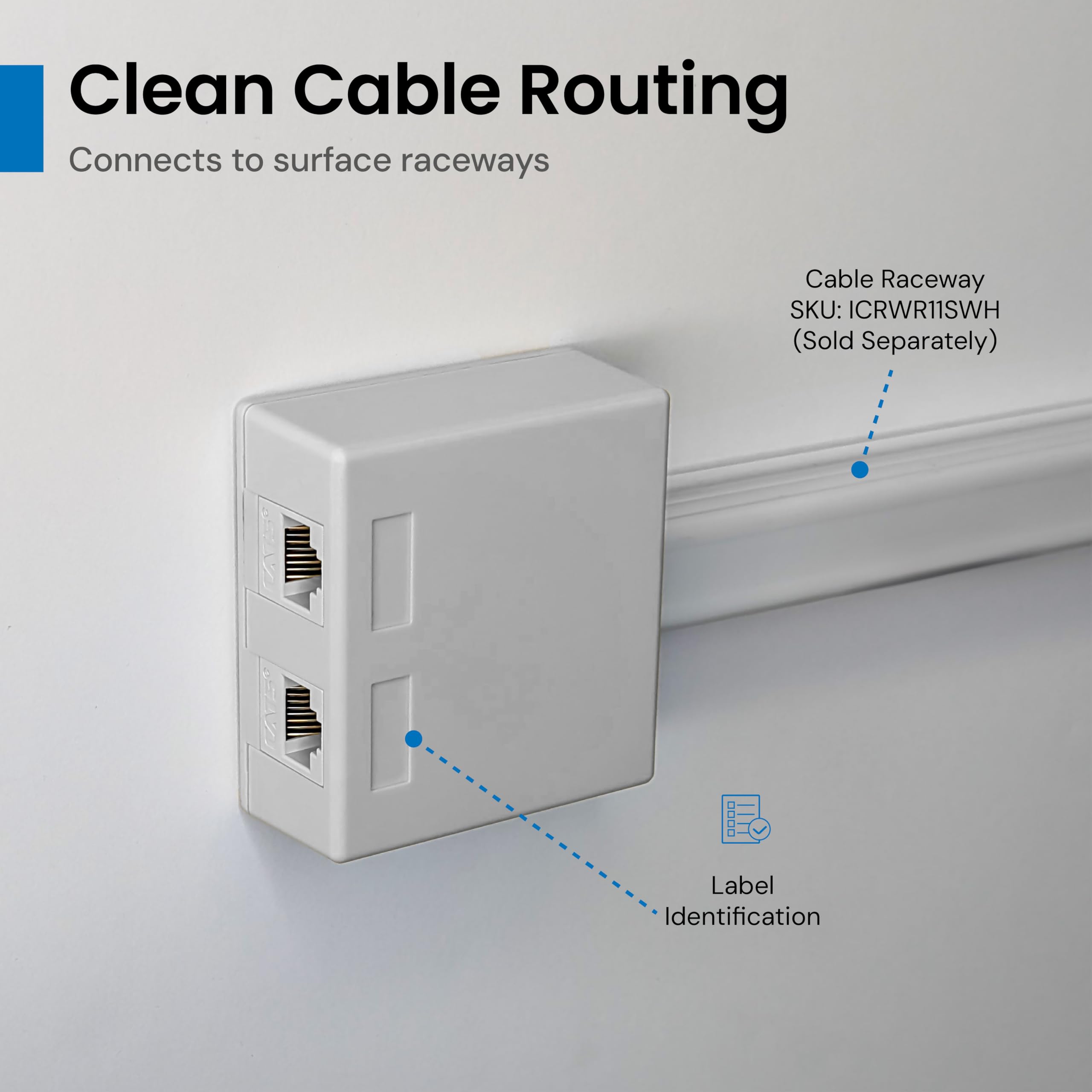

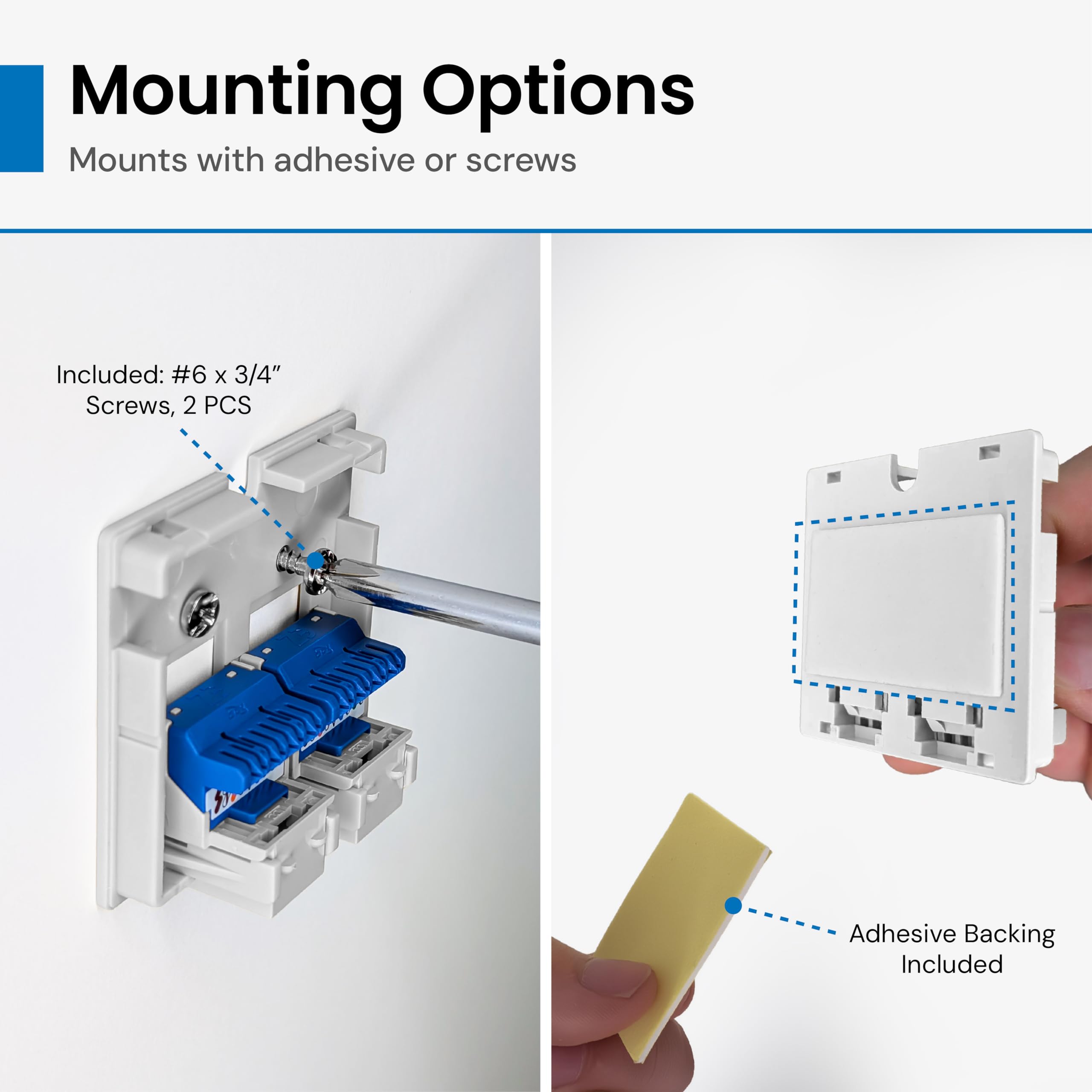

- EASY INSTALLATION & CABLE ROUTING KNOCKOUTS: Includes mounting screws and adhesive tape for quick and secure installation on walls, desks, or ceilings. Features side and rear cable exit points for flexible routing and a clean, professional setup.

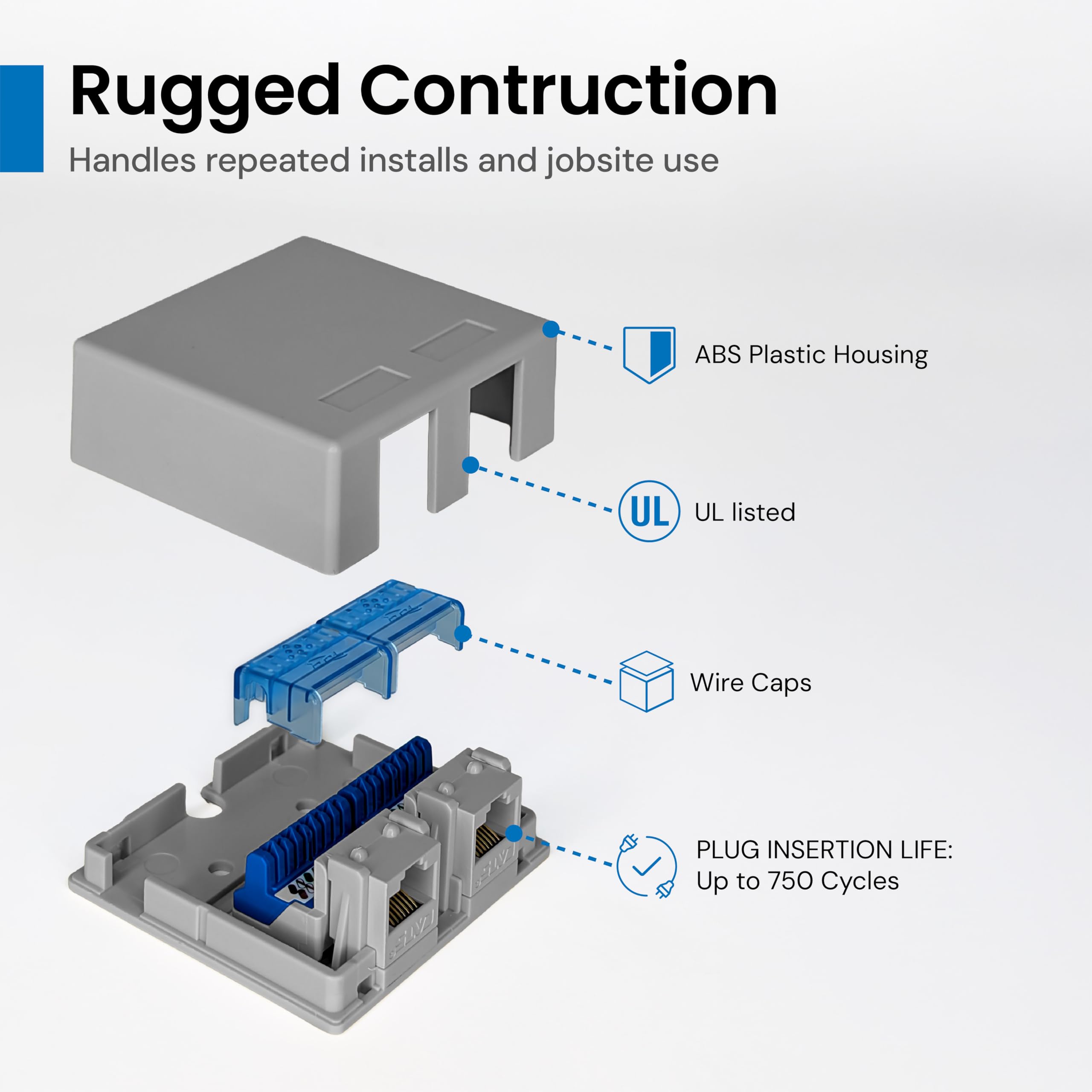

- TAA COMPLIANT & SECTION 889 CERTIFIED: ICC Surface Mount Boxes meet U.S. government regulations, including TAA and Section 889. Made from high-quality ABS plastic for long-lasting performance and impact resistance. Manufactured in approved countries, with UL Listing (UL# E125268) and RoHS Compliance. UL 1863 compliant for safety, ensuring adherence to the highest standards.
Specifications
Material:
Material: ABS, UL 94V-0
Physical:
Jack wiring: 50 micro inches of gold over 100 inches of nickel
Connector: 22~24 AWG solid wire
Electrical:
Current Rating: 1.5 amps
Insulation Resistance: 500 mohms min
Contact Resistance: 20 mohms max
DC Resistance: 0.1 ohms max
Mechanical:
Plug Insertion life: 750 cycles min
Plug & Jack Contact Force: 100 grams min
Force: 30 lbs min
Temperature: -40 degrees C to 150 degrees F
Color:
Color XX: IV-Ivory, WH-White
