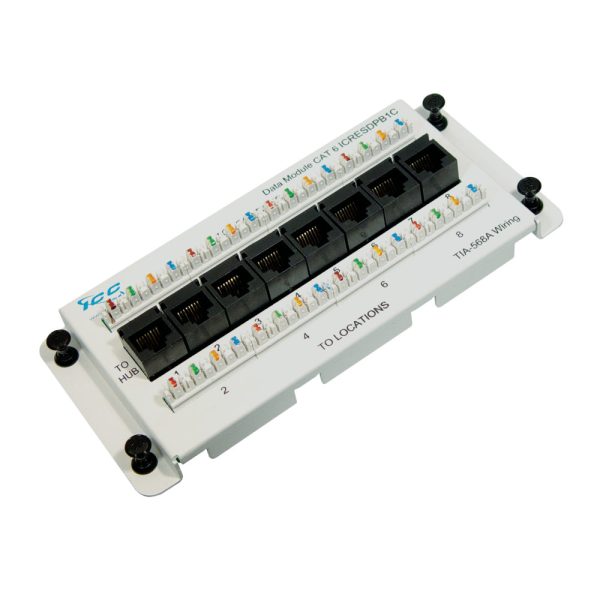

Residential Data Module, CAT 6 with 8 Ports ICRESDPB1C

Data Module Premier Series CAT6 with 8 Ports

Module Type: 8-Port CAT6 Data Module - Metal Bracket
  • Data Module CAT 5e with 8 Ports ICRESDPA3D
  • Data Module Deluxe Series CAT 5e with 8 Ports ICRESDPA2C
  • icresdpa2u-8-port-cat5e-data-module-universal-mounting-base
  • Residential Data Module, CAT 5e with 8 Ports ICRESDPA1C
  • Data Module CAT6 8 Ports ICRESDPB3D
  • Data Module Deluxe Series CAT 6 with 8 Ports ICRESDPB2C
  • Residential Data Module, CAT 6 with 8 Ports ICRESDPB1C
  • icresdpb2u-8-port-cat6-data-module-universal-mounting-base
  • Telephone Expansion module RJ-31X 8 Ports ICRESVPA3C
  • Telephone Expansion Module with RJ-31X and 8 port ICRESVPA2C
  • Telephone Expansion Module with Steel Bracket in RJ-31X and 8 Ports ICRESVPALC
  • icresvpa2u-8-port-telephone-module-universal-mounting-base
  • Telephone Expansion Module ICRESVPB3C
  • Telephone Expansion Module with Steel Bracket and 8 Ports icresvpb1c
  • Video Splitter Module with 4 Ports and 2 GHz ICRESAV42L
  • Video Splitter Module 6 Ports 2GHz ICRESAV62L
  • Video Splitter Module with 8 Ports and 2 GHz ICRESAV82L
  • Voice Splitter 4 Ports and Phone Module 8 Ports with Steel Bracket
  • Voice Splitter 6 Ports and Phone Module 8 Ports with Steel Bracket
  • Voice Splitter 8 Ports and Phone Module 8 Ports with Steel Bracket
  • Blank Mounting Panel with 4 Ports
  • Blank Mounting Panel with 6 Ports
  • Cable Management Cover ICRESCMC06
  • Universal Electronic Bracket ICRESDCBUM
Packaging: Single

In stock

SKU: ICRESDPB1C Categories: ,
UPC: 633758029483

Country of Origin (subject to change): China

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Premier CAT6 data module is designed to provide broadband internet access for up to eight (8) computers in a residence. The module is integrated with a non-bridged CAT6 data board with eight (8) standard, 4-pair, 110 IDC connectors, providing high-performance connectivity that is tested up to 10dB Headroom at 250MHz. The Module exceeds TIA-568-B.2-1 industry standards. ICC’s Deluxe CAT6 data module is UL listed and protected with a lightweight ABS plastic bracket for a premium look. It works with ICC’s 14″, 21″, and 28″ Residential Net.Media Centers and features a push-pin design for simple and easy installation. Use with ICC’s CAT6e UTP solid cable.

Features

  • Designed to support up to 8 Category 6 data lines.
  • Wiring in accordance to T-568-A for residential use.
  • Fit all ICRESDC 14″, 21″, and 28″ Net Media Centers.
  • Exceeds ANSI/TIA-568-B.2 Category 5e connecting hardware requirements.
  • Fits all ICRESDC 14″, 21″, and 28″ Resi distribution center enclosures with the 4 locking buttons.
  • UL listed.

*Note: Requires the use of a network switch or hub.

Specifications

8-Port CAT6 Data Module:
PCB: Glass Epoxy FR-4 copper clad t=1.20mm
110 Block:
Housing: PC, UL 94V-0
IDC: Phosphorous Bronze, Tin Plated
RJ45 Jack/Socket:
Housing: PBT 15 % Fiber Glass
Contact: Phosphorous Bronze, 50u Gold Plated
Wiring in Accordance to TIA 568A
CAT6 Rated
Bracket:
Material: 18 GA CRS
Surface Finish: White Powder Coat
Locking Button:
Material: Nylon 6/6, UL 94V-0
