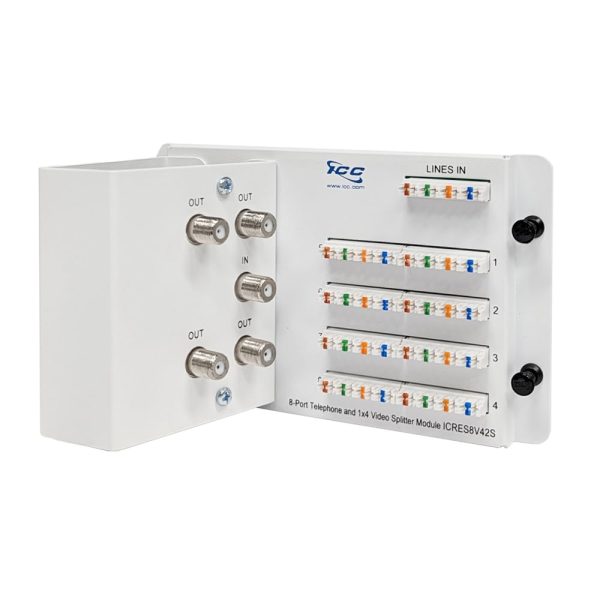

Voice Splitter 4 Ports and Phone Module 8 Ports with Steel Bracket

Video Splitter 4 Ports and Telephone Module 8 Ports with Steel Bracket

Module Type: 8-Port Voice Module / 1 x 4 Video Splitter Module Combo
  • Data Module CAT 5e with 8 Ports ICRESDPA3D
  • Data Module Deluxe Series CAT 5e with 8 Ports ICRESDPA2C
  • icresdpa2u-8-port-cat5e-data-module-universal-mounting-base
  • Residential Data Module, CAT 5e with 8 Ports ICRESDPA1C
  • Data Module CAT6 8 Ports ICRESDPB3D
  • Data Module Deluxe Series CAT 6 with 8 Ports ICRESDPB2C
  • Residential Data Module, CAT 6 with 8 Ports ICRESDPB1C
  • icresdpb2u-8-port-cat6-data-module-universal-mounting-base
  • Telephone Expansion module RJ-31X 8 Ports ICRESVPA3C
  • Telephone Expansion Module with RJ-31X and 8 port ICRESVPA2C
  • Telephone Expansion Module with Steel Bracket in RJ-31X and 8 Ports ICRESVPALC
  • icresvpa2u-8-port-telephone-module-universal-mounting-base
  • Telephone Expansion Module ICRESVPB3C
  • Telephone Expansion Module with Steel Bracket and 8 Ports icresvpb1c
  • Video Splitter Module with 4 Ports and 2 GHz ICRESAV42L
  • Video Splitter Module 6 Ports 2GHz ICRESAV62L
  • Video Splitter Module with 8 Ports and 2 GHz ICRESAV82L
  • Voice Splitter 4 Ports and Phone Module 8 Ports with Steel Bracket
  • Voice Splitter 6 Ports and Phone Module 8 Ports with Steel Bracket
  • Voice Splitter 8 Ports and Phone Module 8 Ports with Steel Bracket
  • Blank Mounting Panel with 4 Ports
  • Blank Mounting Panel with 6 Ports
  • Cable Management Cover ICRESCMC06
  • Universal Electronic Bracket ICRESDCBUM
Packaging: Single

In stock

SKU: ICRES8V42S Categories: ,
UPC: 633758023443

Country of Origin (subject to change): China

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Telephone & Video Splitter Module is designed for structured wiring solutions, such as apartments or townhomes. It consists of either a 4, 6, or 8-port 2 GHz video splitter and telephone module to support up to four phone lines and eight locations. Its compact size is ideal for areas limited by space.

Features

  • Telephone module is designed to support up to 4 incoming telephone lines and 8 outputs/extensions.
  • Telephone module is bridged as using only 2 incoming lines and 16 outputs/extensions per line.
  • Using only 1 incoming line can get 32 outputs/extensions.
  • 1×4 splitter module is designed to provide excellent signal quality for UHF/VHF, antenna, or security system signals, from 5 to 2300 MHz, ideal for home or small office use.
  • Fits all 14″, 21″, and 28″ resi distribution center enclosures.

Specifications

8 Port Telephone Module:

PCB: Glass Epoxy FR-4 copper clad, t=1.20mm

Jack Housing: PBT 15% GF

110 Block: PC, UL 94V-0

Gold Plating: 50 micro inch of Gold

Wiring in Accordance with T568A Standard

1×4 Video Splitter:

Housing: Die-Casting with Nickel Plating

Connectors: F-Type Female

Frequency Range: 5~2300 MHz

Insertion loss: 11 dB Typical

1×4 Splitter Bracket:

Material: 18 GA CRS

Surface Finish: White Powder Coat

Mounting Bracket:

Material: 18 GA CRS

Surface Finish: White Powder Coat

Locking Button:

Material: Nylon 6/6, UL 94V-0
