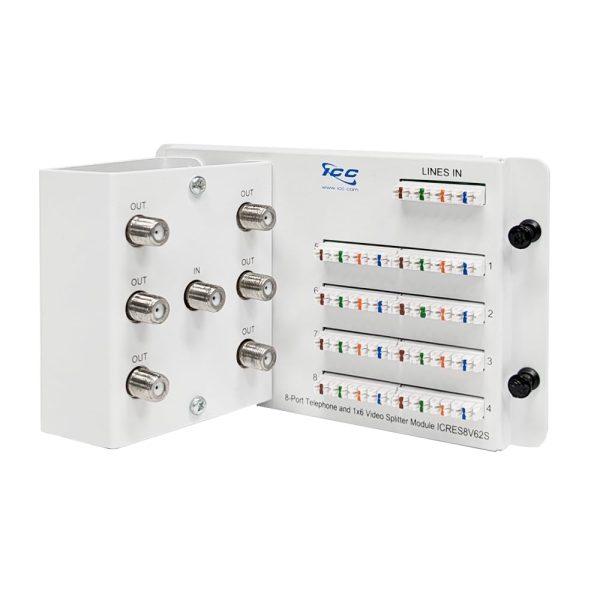

Video Splitter 6 Ports and Telephone Module 8 Ports with Steel Bracket

SKU: ICRES8V62S Categories: ,
UPC: 633758023450

Country of Origin: China

Warning SymbolCalifornia Prop 65 Warning

Product Documents


ICC’s Telephone & Video Splitter Module is designed for structured wiring solutions, such as apartments or townhomes. It consists of either a 4, 6, or 8-port 2 GHz video splitter and telephone module to support up to four incoming phone lines and eight locations. Its compact size is ideal for areas limited by space.


  • Telephone module is designed to support up to 4 incoming telephone lines and 8 outputs/extensions.
  • Telephone module is bridged as using only 2 incoming lines and 16 outputs/extensions per line.
  • Using only 1 incoming line can get 32 outputs/extensions.
  • 1×6 splitter module is designed to provide excellent signal quality for UHF/VHF, antenna, or security system signals, from 5 to 2300 MHz, ideal for home or small office use.
  • Fits all 14″, 21″, and 28″ resi distribution center enclosures.


8 Port Telephone Module:
PCB: Glass Epoxy FR-4 copper clad, t=1.20mm
Jack Housing: PBT 15% GF
110 Block: PC, UL 94V-0
Gold Plating: 50 micro inch of Gold
Wiring in Accordance with T568A Standard
1×6 Video Splitter:
Housing: Die-Casting with Nickel Plating
Connectors: F-Type Female
Frequency Range: 5~2300 MHz
Insertion loss: 11 dB Typical
1×6 Splitter Bracket:
Material: 18 GA CRS
Surface Finish: White Powder Coat
Mounting Bracket:
Material: 18 GA CRS
Surface Finish: White Powder Coat
Locking Button:
Material: Nylon 6/6, UL 94V-0
