Faceplate 2 6P6C Screw Terminals IC630E66IV

Faceplate with 2 6P6C Screw Terminals

Discontinued – Inventory is limited

Pre-configuration: Screw Terminal - 2 6P6C
  • Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
  • Faceplate IDC RJ-11 6P6C RJ-45 Cat5e Data ICRDSV05WH
  • Faceplate IDC RJ-11 6P6C RJ-45 CAT5e Data F-Type ICRDSVF5WH
  • Oversized Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0FLWH
  • Oversized Faceplate IDC RJ-11 6P6C RJ-45 CAT5e ICRDSV0LWH
  • Oversized Faceplate IDC RJ-11 CAT5e F-type ICRDSV0LWH
  • Faceplate F-Type IC630EG0WH
  • Faceplate 6P6C Screw Terminals IC630E60WH
  • Faceplate 2 6P6C Screw Terminals IC630E66IV
  • Faceplate 6P6C Screw Terminals F-Type IC630E6GWH
  • Telephone Faceplate 6P6C IC630DB6WH
  • Telephone Faceplate Stainless Steel 6P6C IC630DA6SS
Clear
UPC:

Country of Origin (subject to change): China

Warning SymbolCalifornia Prop 65 Warning

Description

ICC’s Integrated Faceplates are equipped to support work area outlets. Our faceplates are fitted to install video connectivity. Ideal for installations such as conference rooms, computer labs, classrooms, and office cubicles. Designed with installation versatility these faceplates provide a professional appearance. This particular integrated wall plate design is a single gang voice application.

Features

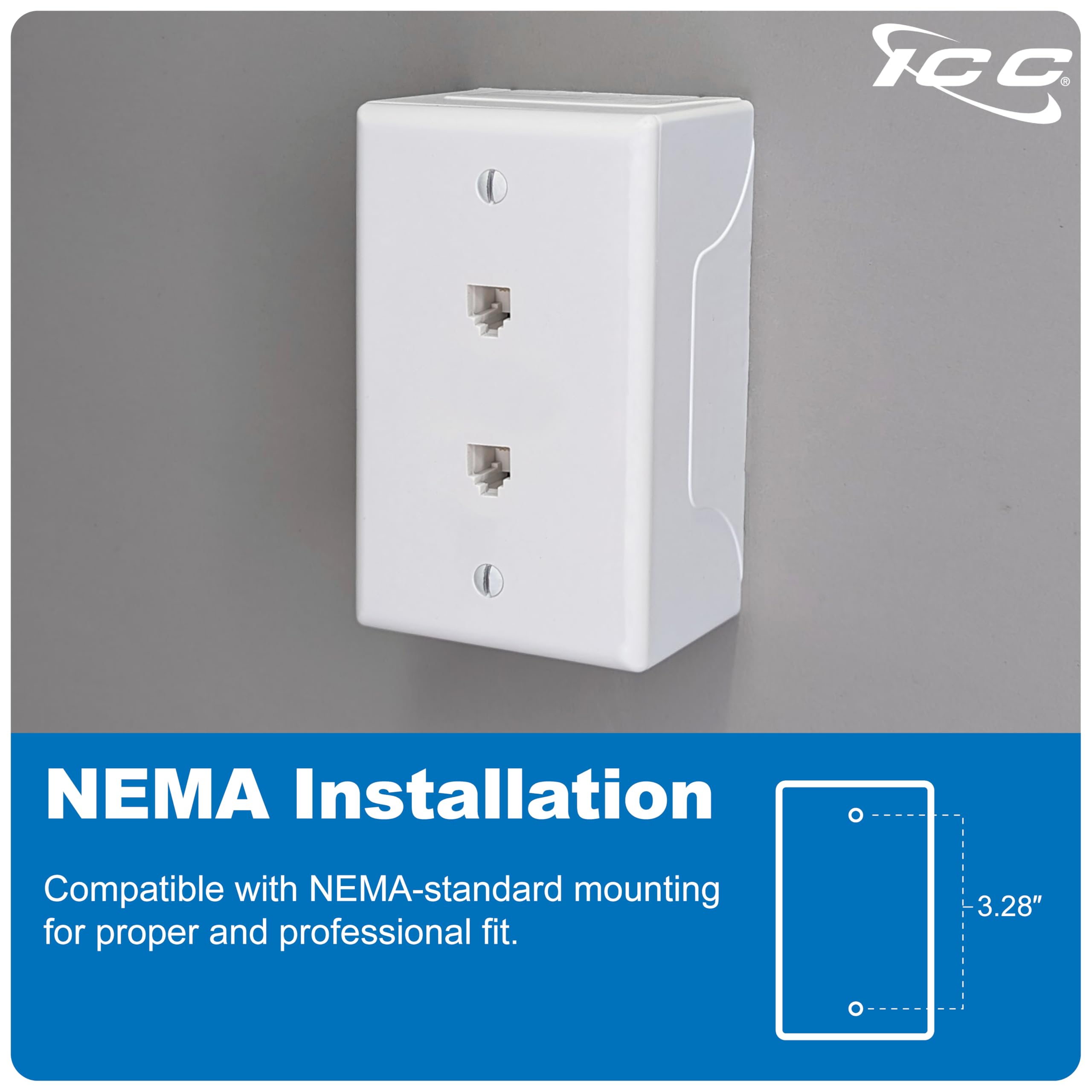

  • Configured to fit standard single gang outlet box.

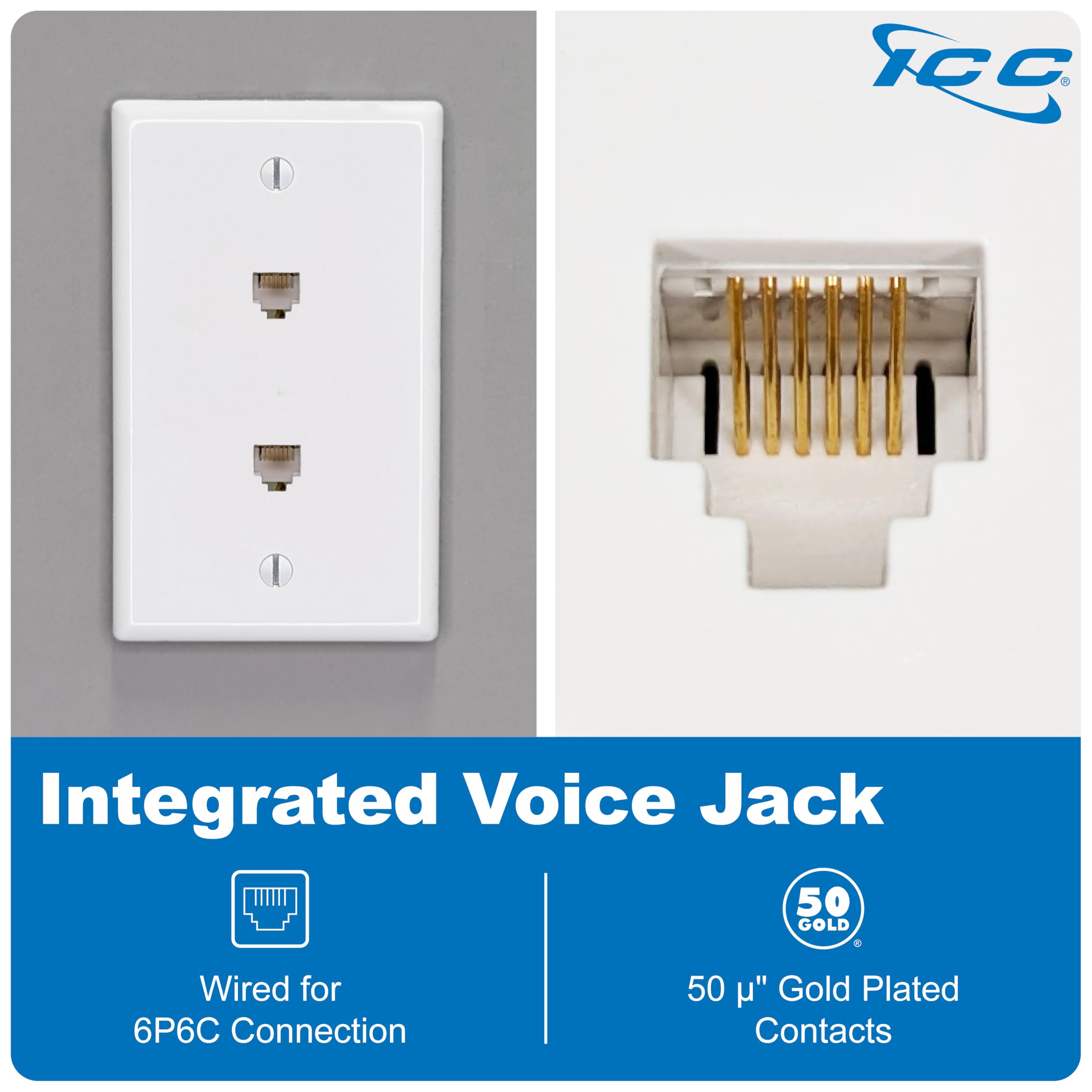

  • Features two RJ-11 jacks for voice.
  • One piece design that requires no assembly.
  • Designed for all voice connectivity.

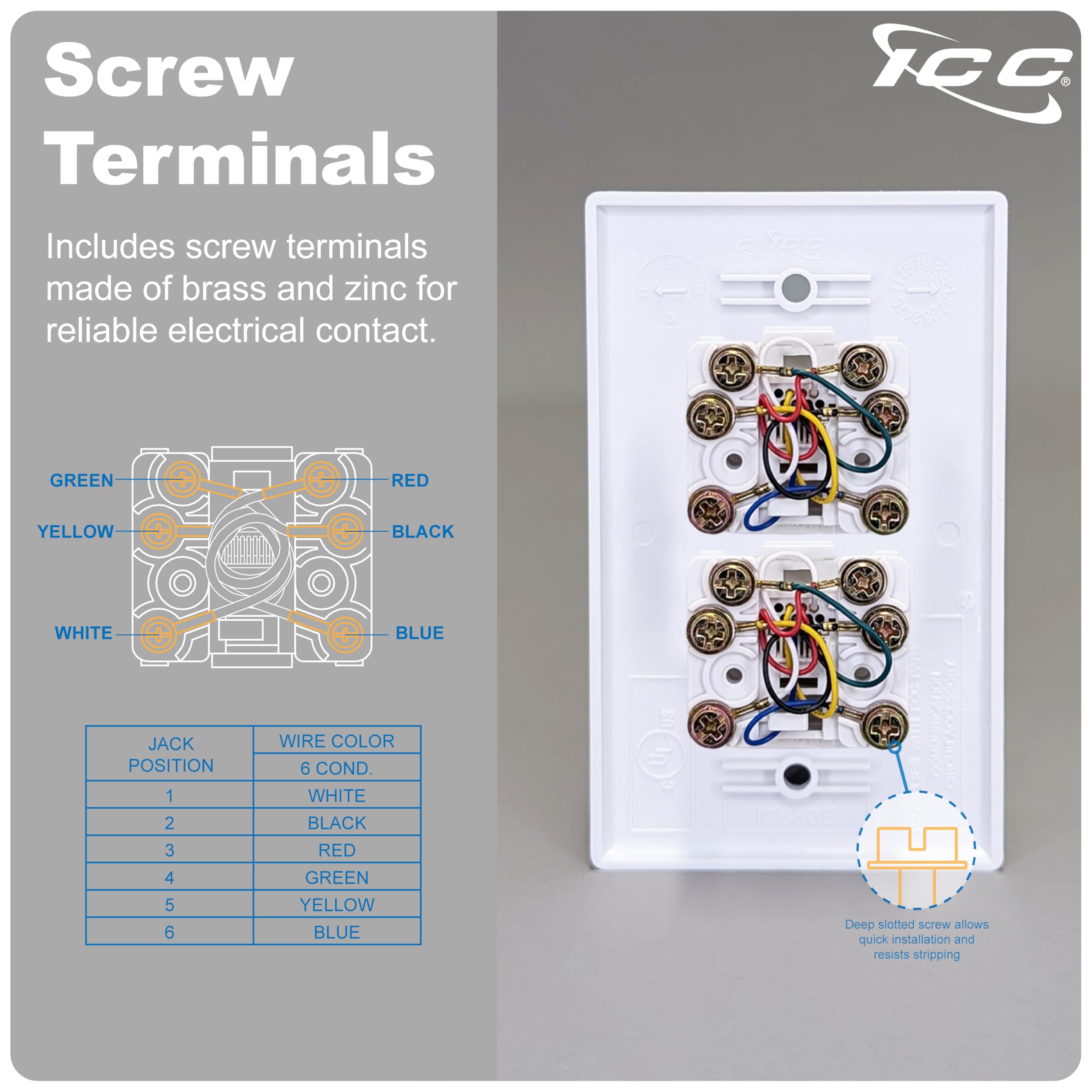

  • Provides traditional screw down terminals for voice connectivity.
  • Rugged and durable construction.

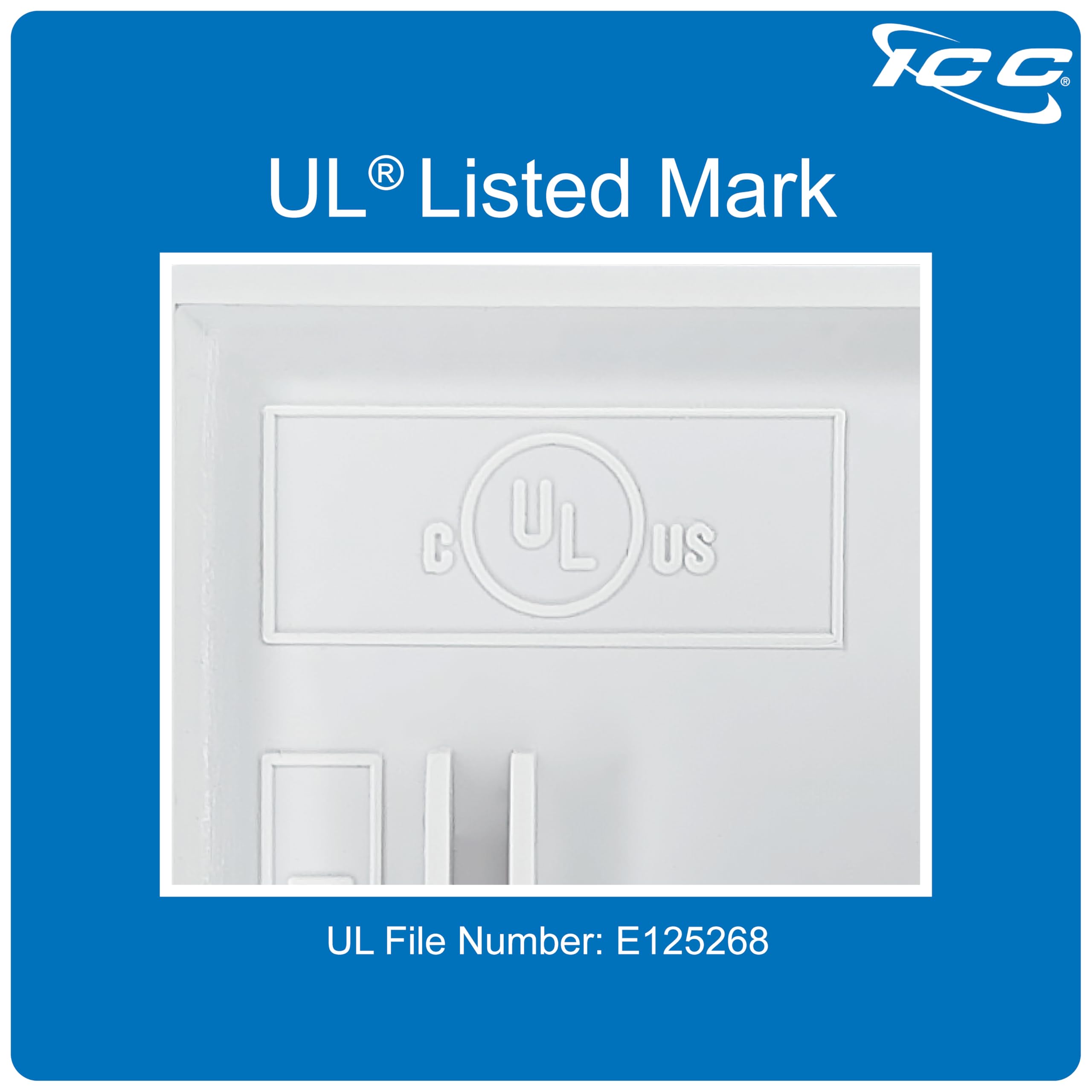

  • ANSI/TIA-568-C and UL 1863 compliant.

Specifications

Material:

Material: ABS, UL 94V-0

Wiring Block:

Phosphor Bronze Gold plating

Over 100 micro-inch nickel

Gold plating: 1.27 micron/50 micro inch min

Wire Lead: 26 AWG stranded wire

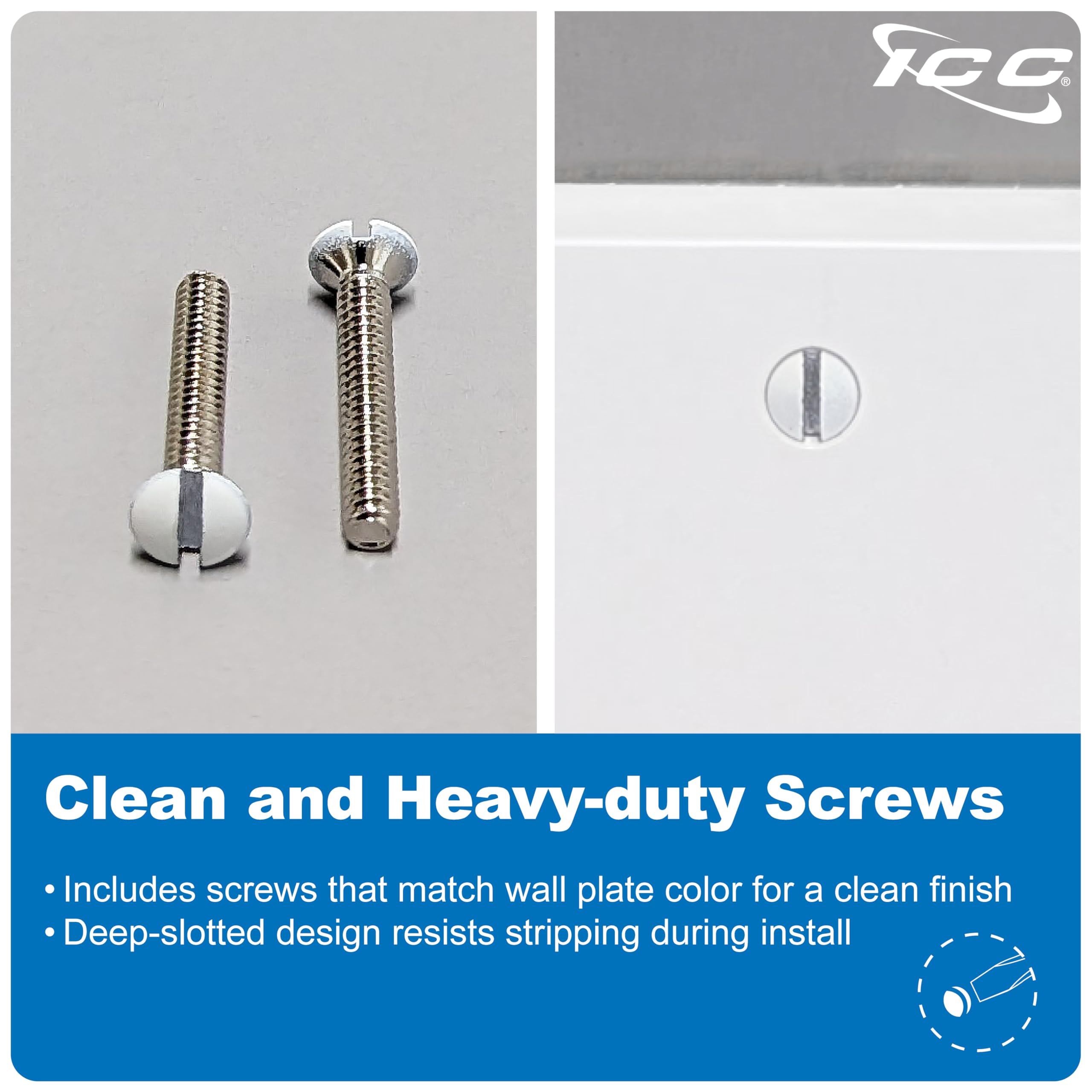

Termination screws: 6-20 x .415 flat pan head

15 lbs/inch min torque

Zinc Chromatic plated steel

Electrical:

Current rating: 1.5 AMP max

Dielectric withstanding voltage: 1000 volts rms, 60 Ghz

Contact Resistance: 20 milli ohms

Insulation Resistance: 10 mega ohms

Performance: return loss of -20 dB max

Frequency range: DC -1.5 Ghz

Mechanical:

Force: 500 grams for 6 wires lead

Retention: 17 lbs between jack and plugs

Crimp Tensile: 4.0-500 lbs

Color:

Color XX: IV-Ivory
