Telephone Faceplate 6P6C IC630DB6WH
Telephone Faceplate 6P6C IC630DB6WH
Telephone Faceplate 6P6C Front IC630DB6WH
Telephone Faceplate 6P6C Back IC630DB6WH

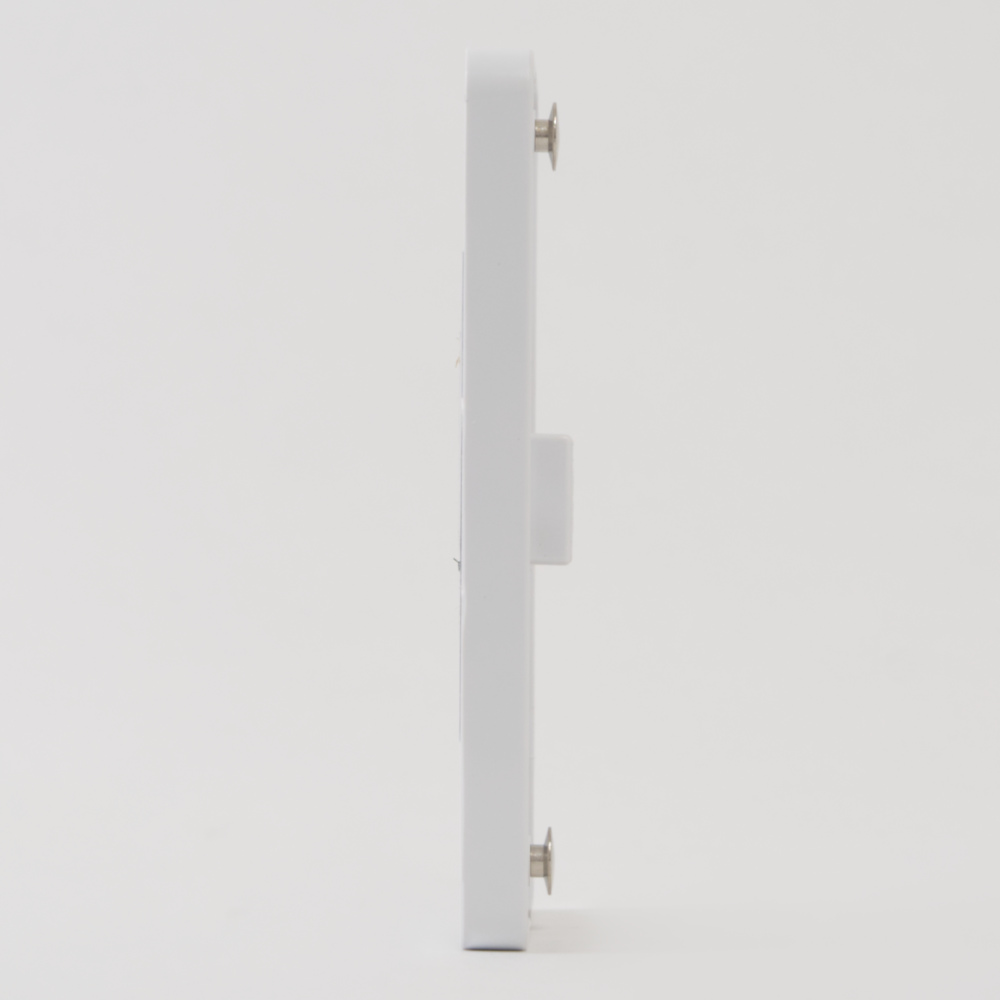

Telephone Faceplate 6P6C Side IC630DB6WH

Telephone Faceplate with 6P6C

Pre-configuration: Telephone Screw Termination - 6P6C
  • Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
  • Faceplate IDC RJ-11 6P6C RJ-45 Cat5e Data ICRDSV05WH
  • Faceplate IDC RJ-11 6P6C RJ-45 CAT5e Data F-Type ICRDSVF5WH
  • Faceplate IDC 2 RJ-45 CAT5e Data 2 F-Type ICRDS2F5WH
  • Oversized Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0FLWH
  • Oversized Faceplate IDC RJ-11 6P6C RJ-45 CAT5e ICRDSV0LWH
  • Oversized Faceplate IDC RJ-11 CAT5e F-type ICRDSV0LWH
  • Faceplate F-Type IC630EG0WH
  • Faceplate 2 F-Type White IC630EGGWH
  • Faceplate 6P6C Screw Terminals IC630E60WH
  • Faceplate 2 6P6C Screw Terminals IC630E66WH
  • Faceplate 6P6C Screw Terminals F-Type IC630E6GWH
  • Telephone Faceplate 6P6C IC630DB6WH
  • Telephone Faceplate Stainless Steel 6P6C IC630DA6SS
  • Designer Faceplate 6P6C F-Type IC630S6GIV

Country of Origin: Taiwan

Warning SymbolCalifornia Prop 65 Warning


ICC’s Telephone Faceplates are equipped to support work area outlets. Ideal for installations such as conference rooms, computer labs, classrooms, and office cubicles. Designed with installation versatility these faceplates provide a professional appearance, this particular faceplate is provided with a voice application in a 6p6c.


  • Configured to fit standard single gang outlet box.
  • Designed for commercial or residential applications.
  • Provides with traditional screw-down terminals for voice connectivity.
  • Rugged and durable construction.

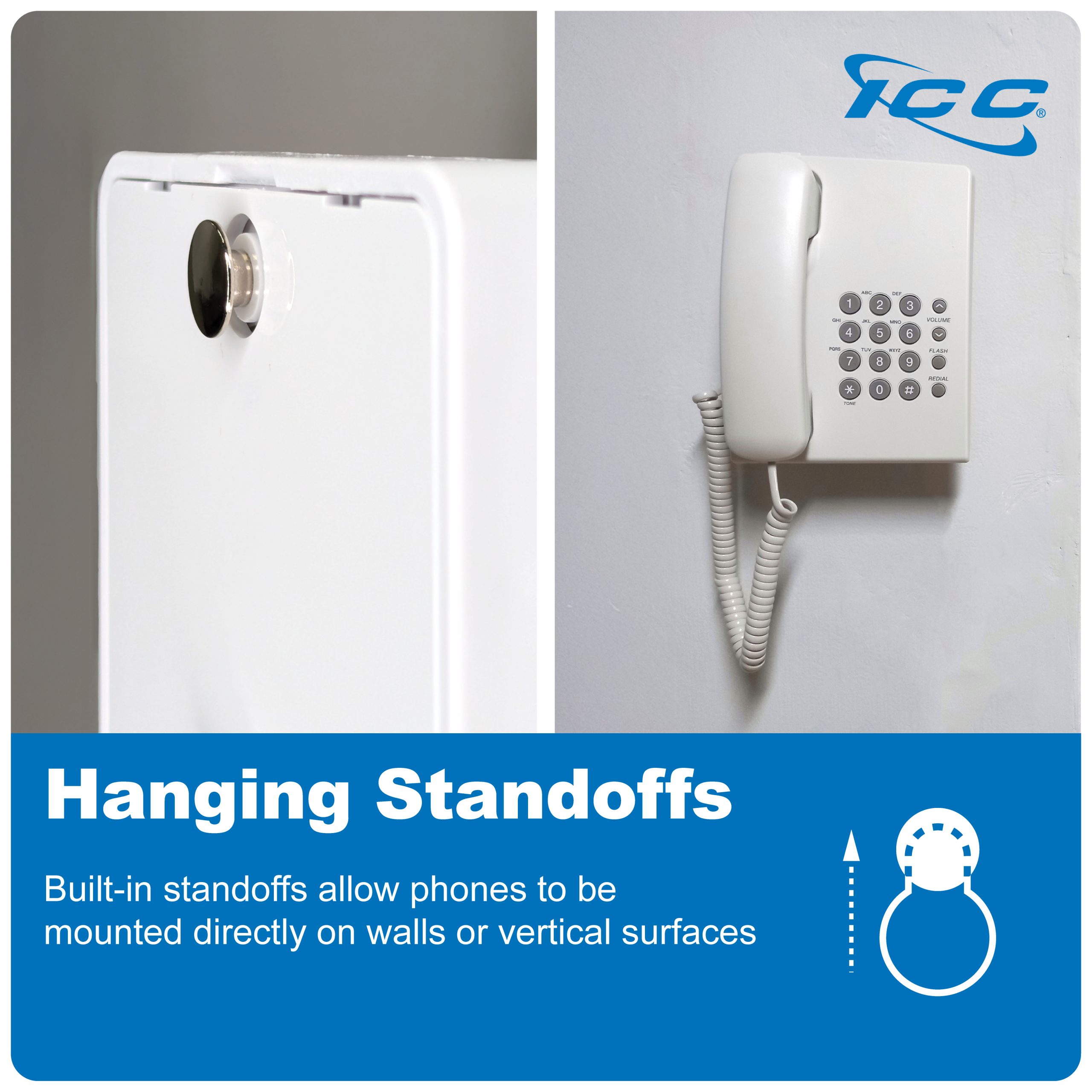

  • Provides with two mounting standoffs for wall mount telephone.
  • ANSI/TIA-568-C and UL 1863 compliant.


Wall Plate Cover & Base: ABS, UL 94V-0

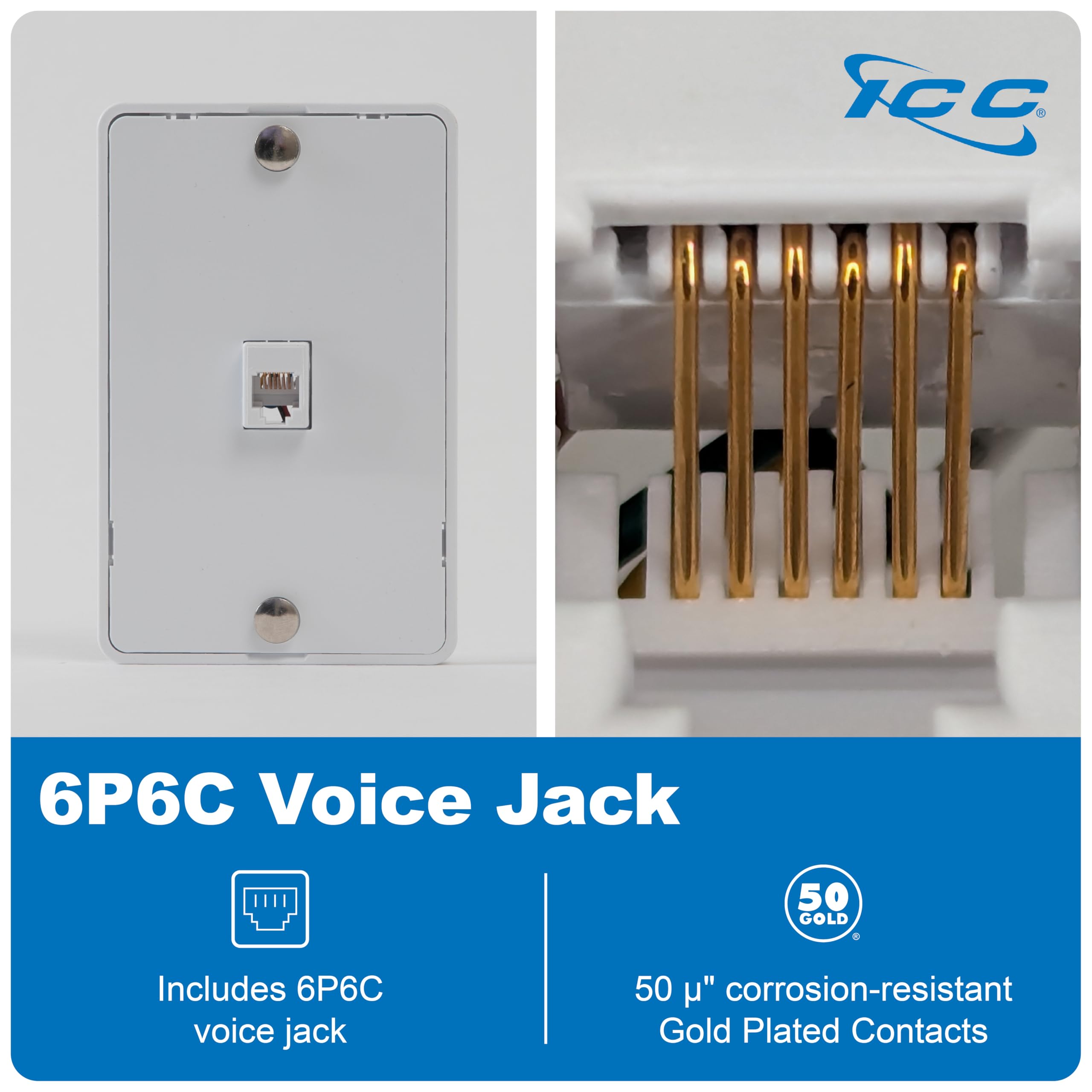

Spring Wire Contacts: Phosphor Bronze Gold Plating 100 microinch nickel 1.27 micron/so micro inch min gold plating
Wire Leads: 26 AWG Stranded wire
Force: 750 grams of 6 wires lead
Retention: 17 lbs between jack and plug
Crimp tensile strength: 4.0-500 lbs
Current rating: 1.5 amp max
Dielectric withstanding voltage: 1000 volts RMS, 60 GHz
Contact resistance: 20 milliohms
Insulation resistance: 10 megaohms
Color XX: IV-Ivory, WH-White
