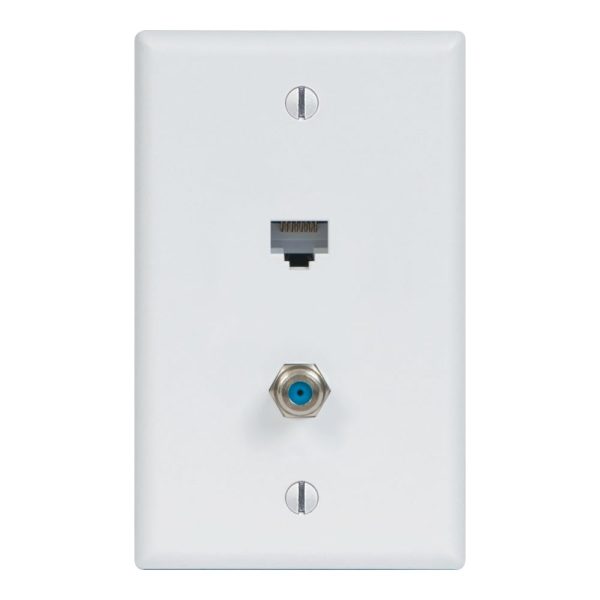

Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
Faceplate IDC RJ-45 CAT5e Data F-type Back ICRDS0F5WH
Faceplate IDC RJ-45 CAT5e Data F-type Side ICRDS0F5WH

Faceplate IDC with RJ45 CAT5e Data and F-Type

Pre-configuration: IDC Termination - CAT5e and F-Type
  • Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
  • Faceplate IDC RJ-11 6P6C RJ-45 Cat5e Data ICRDSV05WH
  • Faceplate IDC RJ-11 6P6C RJ-45 CAT5e Data F-Type ICRDSVF5WH
  • Oversized Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0FLWH
  • Oversized Faceplate IDC RJ-11 6P6C RJ-45 CAT5e ICRDSV0LWH
  • Oversized Faceplate IDC RJ-11 CAT5e F-type ICRDSV0LWH
  • Faceplate F-Type IC630EG0WH
  • Faceplate 6P6C Screw Terminals IC630E60WH
  • Faceplate 2 6P6C Screw Terminals IC630E66IV
  • Faceplate 6P6C Screw Terminals F-Type IC630E6GWH
  • Telephone Faceplate 6P6C IC630DB6WH
  • Telephone Faceplate Stainless Steel 6P6C IC630DA6SS
SKU: ICRDS0F5WH Categories: , ,
UPC: 633758017671

Country of Origin: Taiwan

Warning SymbolCalifornia Prop 65 Warning

Description

Overview
ICC integrated faceplate meets the ANSI/TIA/EIA 570-C Residential Telecommunications Infrastructure Standard recommendations; these recommendations are for each Grade 1 cable location. A minimum of one 4-pair Category 5e or higher rate balanced twisted-pair channel and one 75-ohm coaxial channel shall be available to each outlet. Each Grade 1 cable location provides a generic cabling system, which meets the minimum requirements for basic telecommunications services such as data and community antenna television (CATV).

It consists of one integrated CAT 5e data port with 110 punch down termination, and one 3GHz Gigahertz F-Type coax port. The standard recommends one of these types of wall plates installed in every room of a residence.

Features

  • Provides an integrated one-piece solution for CAT 5e data and video applications.
  • IDC (insulation displacement connection) contacts are designed for repeated 110 terminations providing long-lasting performance and reliability.
  • 3GHz nickel plated F-Type connector for improved performance with superior signal quality with minimal noise.
  • Quick and easy installation with integrated color coded wiring diagrams requiring no additional assembly.
  • Embossed port labels to eliminate the need for additional labeling or identification creating a cleaner appearance.
  • Rugged and durable construction.
  • Includes IDC caps to ensure the terminated wiring is secure.
  • ANSI/TIA-568-C and UL 1863 compliant.

Specifications

Material: ABS, UL94V-0
Finish: Texture
Color: WH-White
